Vaddio EasyIP 20 Mixer Base Kit Scalable AV-Over-IP System - Black

Vaddio EasyIP 20 Mixer Base Kit Scalable AV-Over-IP System

Seamless Integration for Large-Scale Conferencing

The Vaddio EasyIP 20 Mixer Base Kit (White) offers an all-in-one AV-over-IP solution tailored for large classrooms, conference rooms, and multi-camera environments. This comprehensive kit includes a professional-grade PTZ camera, a compact A/V switcher, and a preconfigured PoE+ managed switch, streamlining the setup process and ensuring high-quality video and audio performance. The EasyIP 20 camera delivers 1080p/60 resolution with a 20x optical zoom lens and a 70° horizontal field of view, providing clear and detailed video capture for all participants.

Designed for ease of use and flexibility, the EasyIP 20 Mixer Base Kit supports four EasyIP camera video feeds plus an HDMI source, offering a 4x4 Dante audio matrix and concurrent 1080p/60 USB 3.0 and HDMI outputs. The system is powered through PoE+, reducing cable clutter and providing a clean setup. With flexible control options including serial, telnet, trigger, Vaddio Device Controller, and web control, this solution is ideal for modern AV environments that require scalable, high-quality video conferencing capabilities without the complexity of traditional setups.

Key Features

• High-Quality Video: 1080p/60 resolution with a 20x optical zoom lens and 70° horizontal field of view.
• AV-over-IP Technology: Supports four EasyIP camera video feeds plus an HDMI source, simplifying installation and reducing cable clutter.
• Audio Integration: 4x4 Dante audio matrix for seamless audio routing.
• Flexible Outputs: Concurrent 1080p/60 USB 3.0 and HDMI outputs for versatile connectivity.
• Power over Ethernet: Powered through PoE+ for a clean and efficient setup.

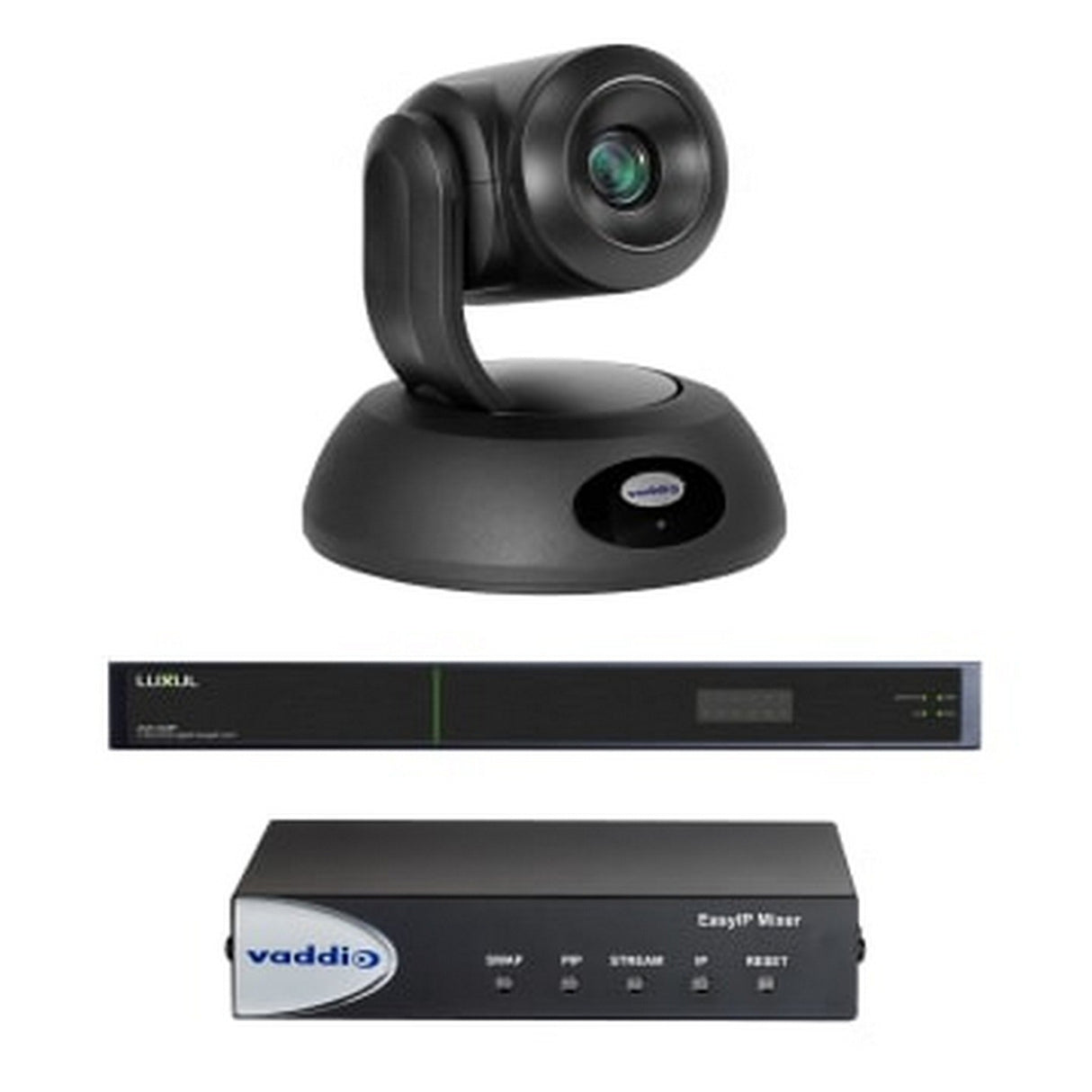

• Comprehensive Kit: Includes EasyIP 20 camera, EasyIP Mixer, and preconfigured PoE+ managed switch.

Technical Specifications

• Camera Dimensions: 6.1" W x 6.3" H x 5.5" D (15.5 x 16.0 x 14.0 cm)
• Camera Weight: 3 lbs (1.36 kg)
• Mixer Dimensions: 1.72" H x 8.38" W x 6.0" D (4.4 x 21.3 x 15.2 cm)
• Mixer Weight: 2.65 lbs (1.2 kg)
• Network Switch: Preconfigured PoE+ managed switch
• Resolution: 1080p/60
• Zoom: 20x optical zoom
• Field of View: 70° horizontal
• Power: PoE+ powered
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -5°F to 140°F (-20°C to 60°C)
• Humidity: 20% to 80% relative humidity, non-condensing

What's Included in the Box

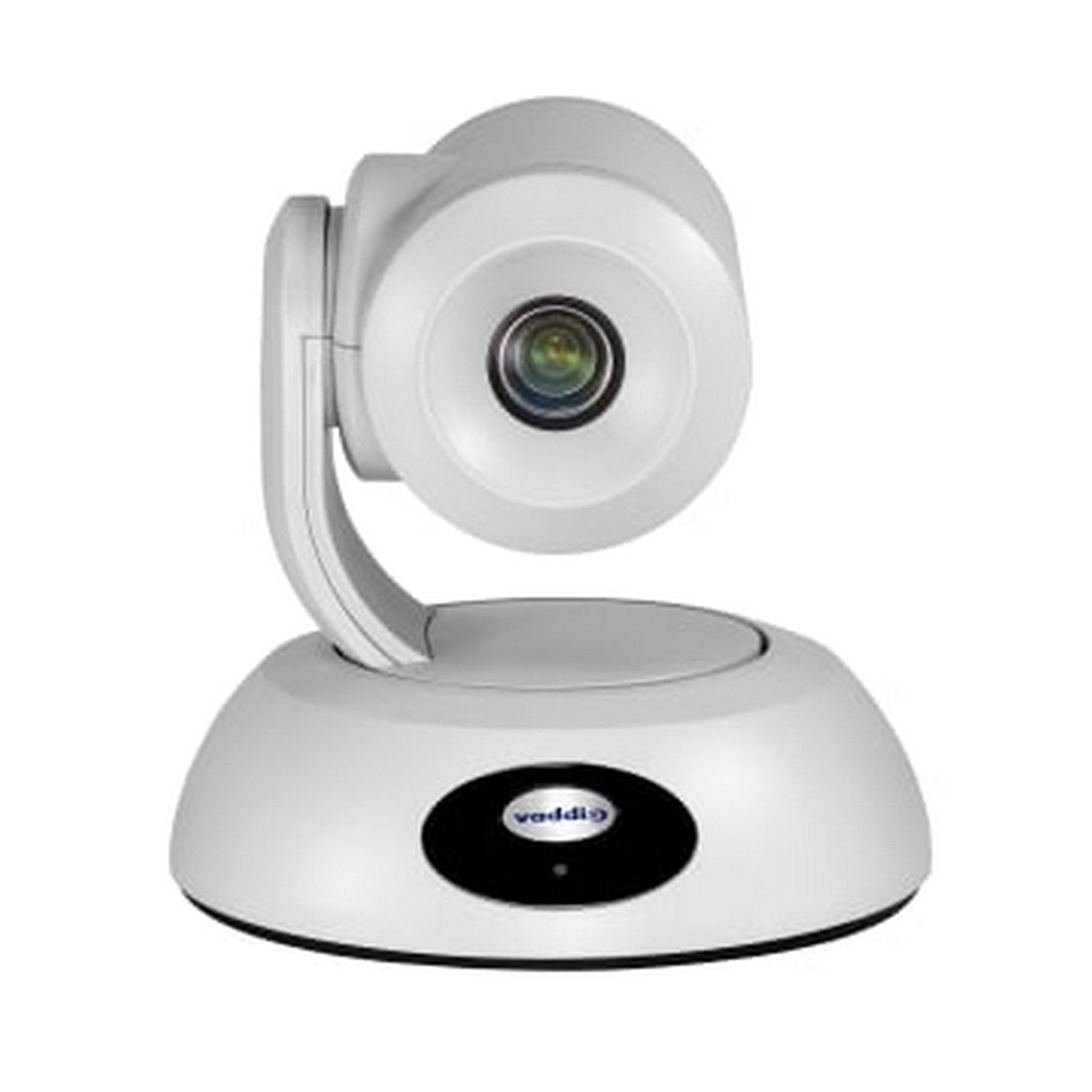

• EasyIP 20 PTZ Camera (White)

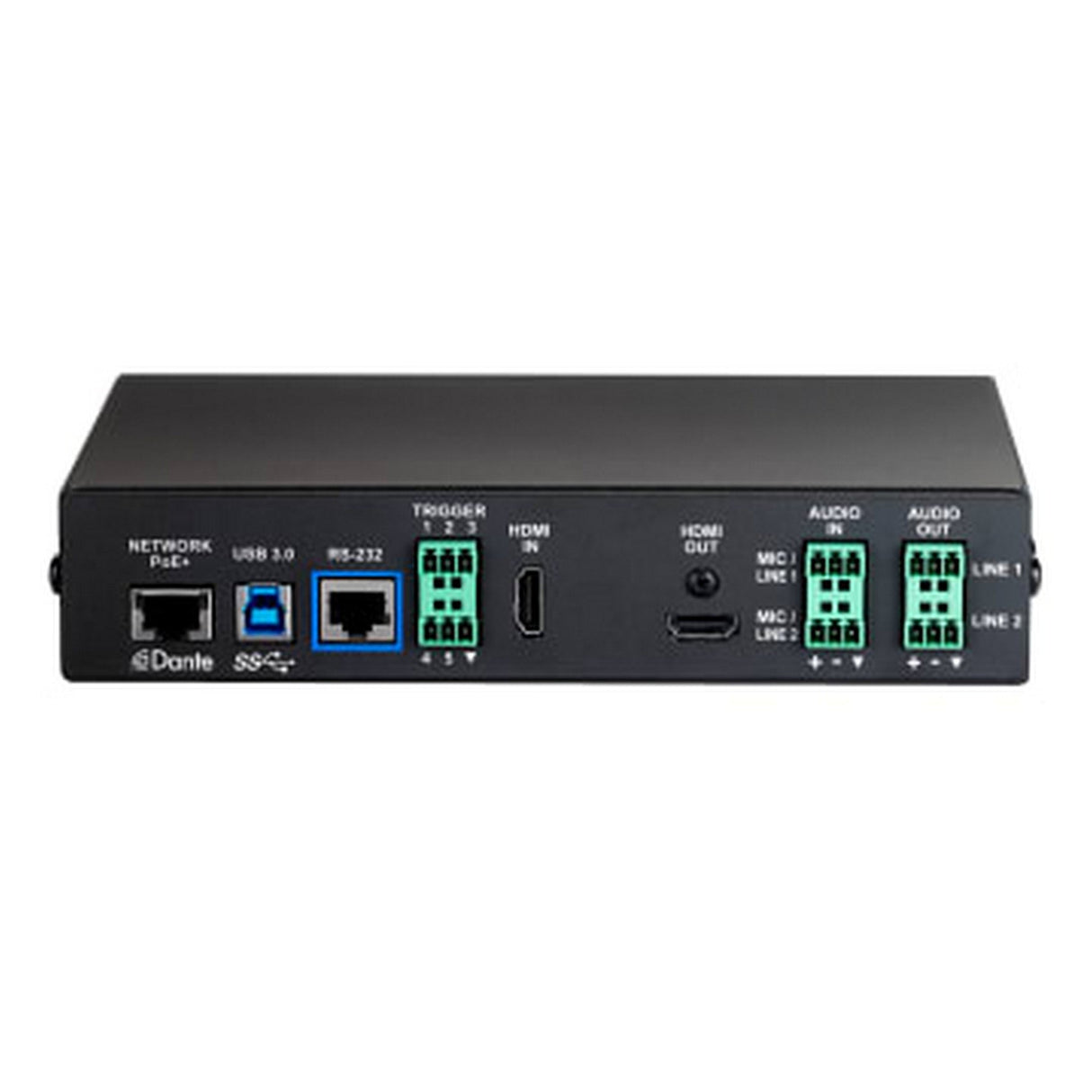

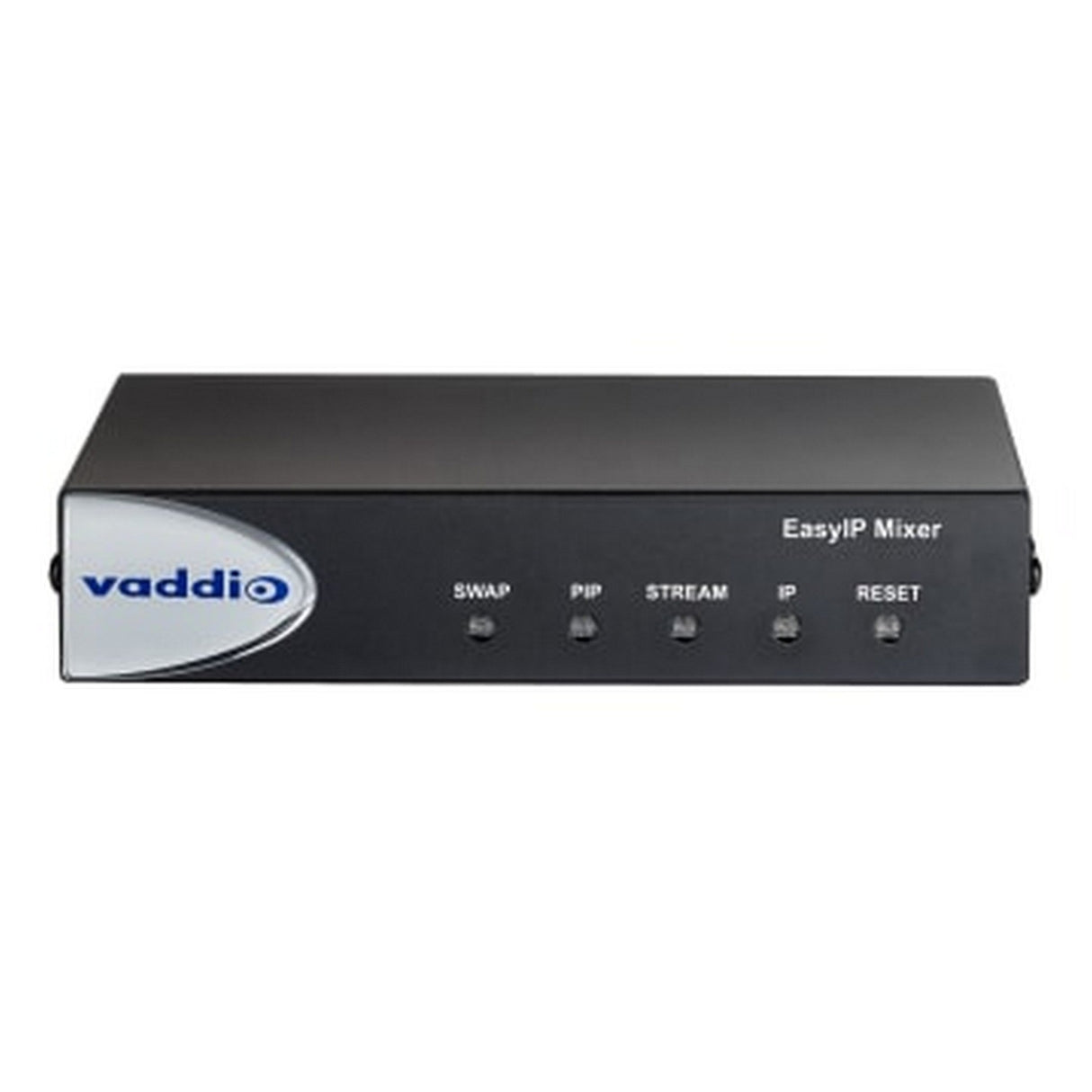

• EasyIP Mixer
• Preconfigured PoE+ Managed Switch
• Mounting Hardware for Switch and Camera
• Cat 5e and USB Cables
• Vaddio IR Remote Commander
