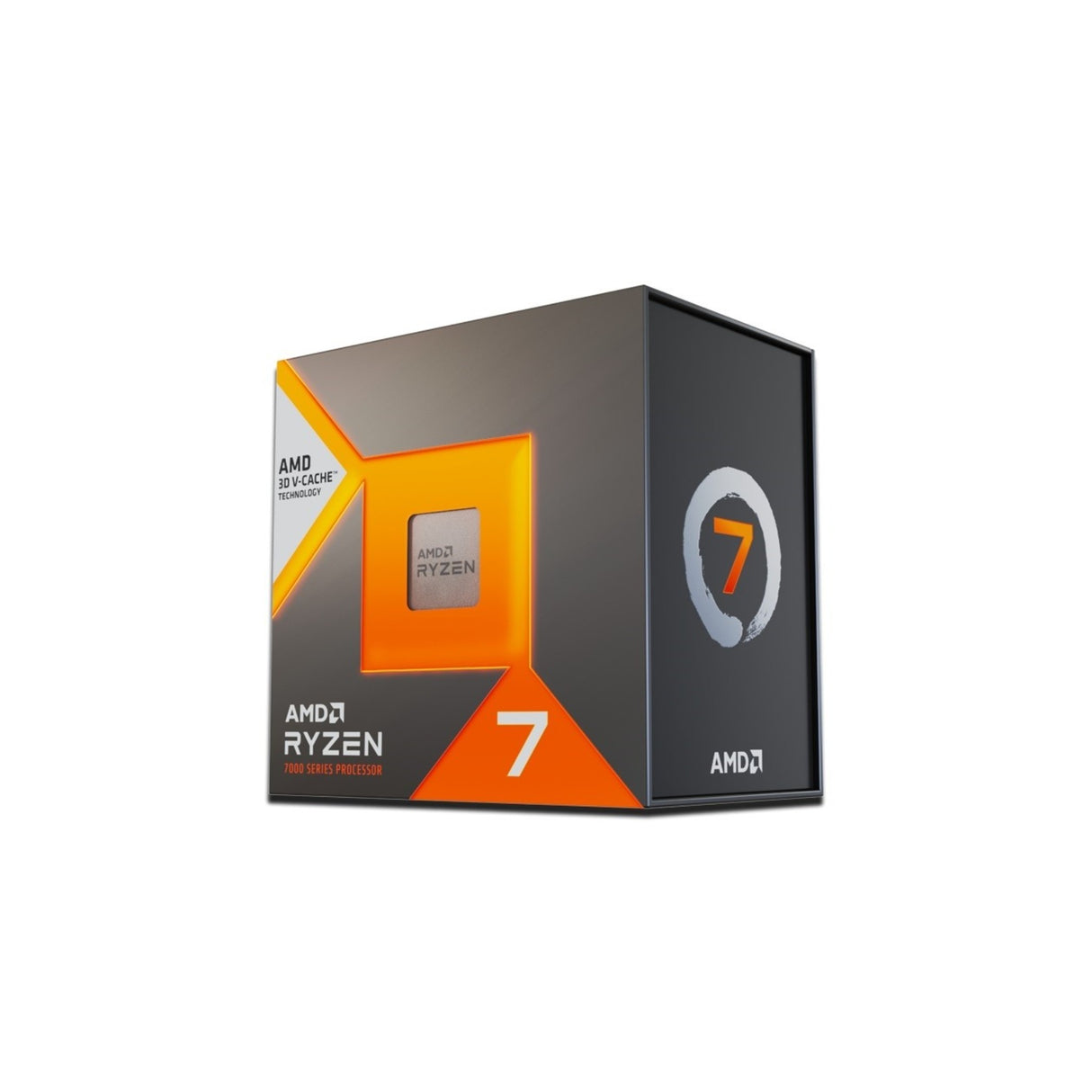

AMD Ryzen 7 7800X3D AM5 8-Core 16-Thread 5.0GHz Boost Desktop CPU

AMD Ryzen 7 7800X3D AM5 Desktop Processor for Enthusiast Gaming & Creation

The AMD Ryzen 7 7800X3D is an enthusiast-class desktop CPU built on the Zen 4 architecture for the AM5 platform. With 8 cores and 16 threads, it delivers the multitasking headroom needed for modern gaming, streaming, and demanding productivity workflows—while maintaining a balanced 120W default TDP for high-performance builds.

Designed for DDR5 systems and PCIe 5.0 connectivity, the Ryzen 7 7800X3D supports today’s high-speed components and next-generation upgrades. It also includes integrated AMD Radeon Graphics (2 cores) to help with basic display output and troubleshooting when a discrete GPU isn’t installed, making it a practical choice for new builds and upgrades alike.

Key Features of the Ryzen 7 7800X3D AM5 CPU

• 8 Cores / 16 Threads: Smooth performance for gaming, content creation, and heavy multitasking with SMT enabled.
• High-Speed Clocks: 4.2GHz base clock with up to 5.0GHz max boost for responsive performance under load.
• Large Cache for Fast Data Access: 96MB L3 cache plus 8MB L2 cache to support performance-sensitive workloads.
• AM5 Platform with DDR5 Support: Built for DDR5 memory and modern motherboards, supporting up to 128GB across dual memory channels.
• PCIe 5.0 Ready: PCIe 5.0 support with 28 total lanes (24 usable) for high-speed GPUs and NVMe storage.
• Integrated Radeon Graphics: Onboard AMD Radeon Graphics with 2 cores at up to 2200 MHz for basic video output.
• Overclocking & Tuning Support: Supports AMD EXPO memory overclocking, Precision Boost Overdrive, and Curve Optimizer voltage offsets.
• Broad OS Compatibility: Supports Windows 10/11 (64-bit) and popular Linux distributions including RHEL and Ubuntu (64-bit).

Technical Specifications

• Brand / Product Line: AMD Ryzen 7 Processors
• Model / Part Number: 100-100000910WOF
• Platform: Desktop
• Market Segment: Enthusiast Desktop
• Architecture: Zen 4
• CPU Socket: AM5
• Cores / Threads: 8 Cores / 16 Threads
• Base Clock: 4.2GHz
• Max Boost Clock: Up to 5.0GHz
• L1 Cache: 512KB
• L2 Cache: 8MB
• L3 Cache: 96MB
• Default TDP: 120W
• CPU Process Technology: TSMC 5nm FinFET (cores)
• I/O Die Process Technology: TSMC 6nm FinFET
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Supported Chipsets: X670E, X670, B650E, B650
• Memory Type: DDR5
• Memory Channels: 2
• Max Memory: 128GB
• Max Memory Speed: DDR5-5200 (2x1R, 2x2R); DDR5-3600 (4x1R, 4x2R)
• ECC Support: Yes (requires motherboard support)
• PCI Express Version: PCIe 5.0
• Native PCIe Lanes (Total/Usable): 28 / 24
• NVMe Support: Boot, RAID0, RAID1, RAID10
• Integrated Graphics: Yes
• Graphics Model: AMD Radeon Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C Support: Yes
• Native USB Ports: USB 3.2 Gen 2 (10Gbps) x4; USB 2.0 (480Mbps) x1
• Thermal Solution (PIB): Not included
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Max Operating Temperature (Tjmax): 89°C
• Item Dimensions (L x W x H): 6 x 4 x 6 inches
