AtlasIED HPA-DAC Series Dante Network Audio Accessory Cards for HPA Amplifiers - 2-Input for 2-Channel Amplifiers
AtlasIED | SKU: ATS-HPADAC2
1
of
7
Loading...
$62899
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

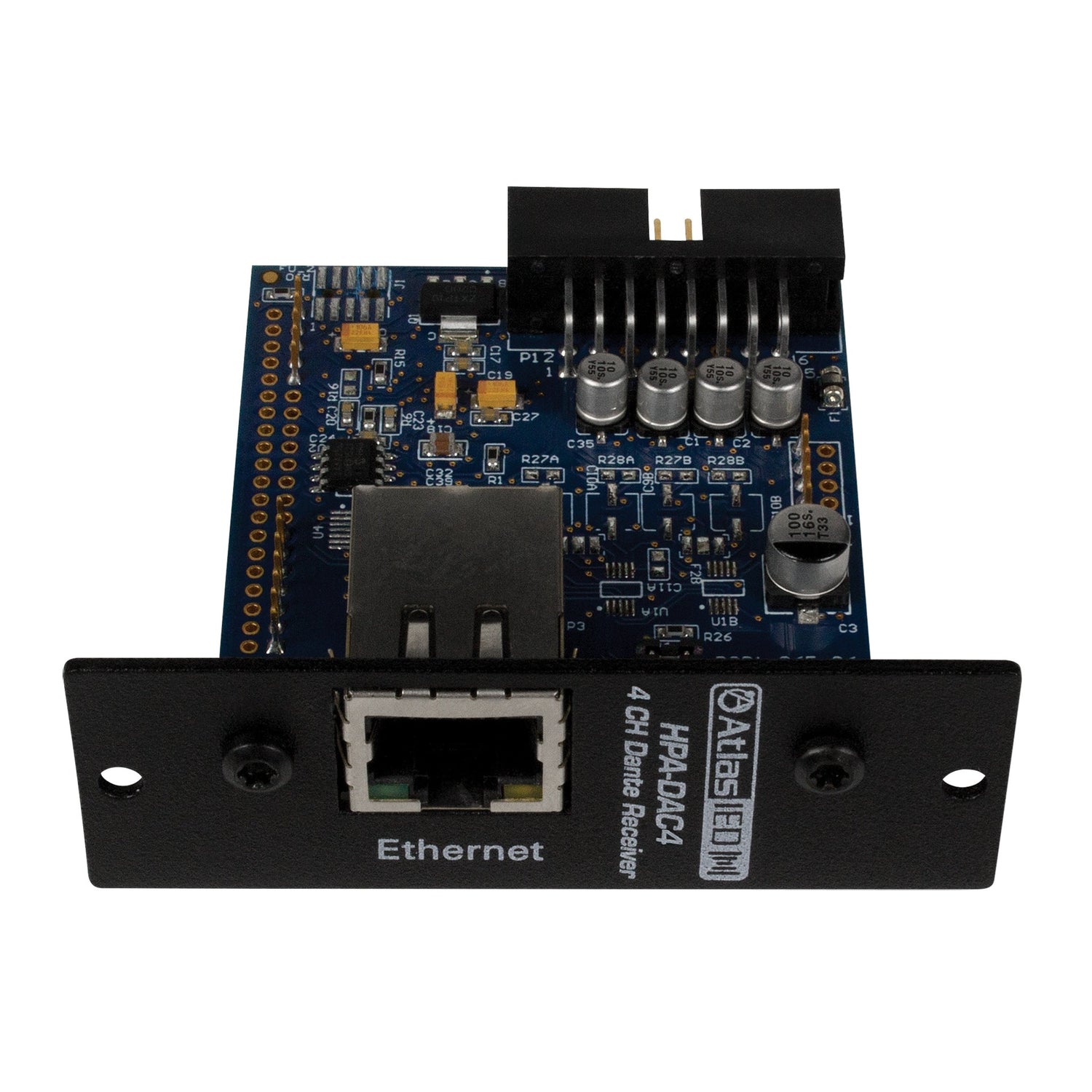

AtlasIED HPA-DAC Series Dante Network Audio Accessory Cards for HPA Amplifiers
AtlasIED's HPA-DAC2, HPA-DAC4, and HPA-DAC8 are Dante®-enabled accessory cards designed to extend the network audio capabilities of HPA Series amplifiers. These receivers provide high-quality digital audio transport over standard IP networks and are tailored for 2-, 4-, and 8-channel amplifier configurations respectively.
Each card adds additional Dante inputs while retaining the amplifier’s analog inputs, which are electronically isolated and summed internally. The analog and Dante input levels for each channel are controlled using the amplifier’s front-panel level controls. This architecture supports flexible integration in commercial and professional AV systems where both analog and network audio coexist.
Key Features
- Dante® Network Audio Enabled: Seamless integration over IP networks
- Input Expansion: Adds 2, 4, or 8 Dante inputs depending on amplifier model
- Summed Analog/Digital Routing: Mixed output design for simplified control
- Purpose-Built Models: Matched to 2-, 4-, or 8-channel HPA Series amplifiers
Technical Specifications
- Connector Type: RJ-45
- Gain Controls: 0dBFS = 20dBu & 0dBFS = 10dBu (DAC2/DAC4 only)
- Frequency Response: 20 Hz – 20 kHz ±1 dB
- THD: 0.06% @ 1 kHz
- Max Output Level: 7 dBu (DAC2/DAC4)
- Dimensions: DAC2/DAC4: 2.7 × 2.5 × 0.97 in (68 × 63 × 25 mm); DAC8: 4.7 × 2.5 × 0.97 in (119 × 63 × 25 mm)
- Weight: 2.6 oz (0.07 kg)
- Warranty: 1-year manufacturer warranty
Model Variants

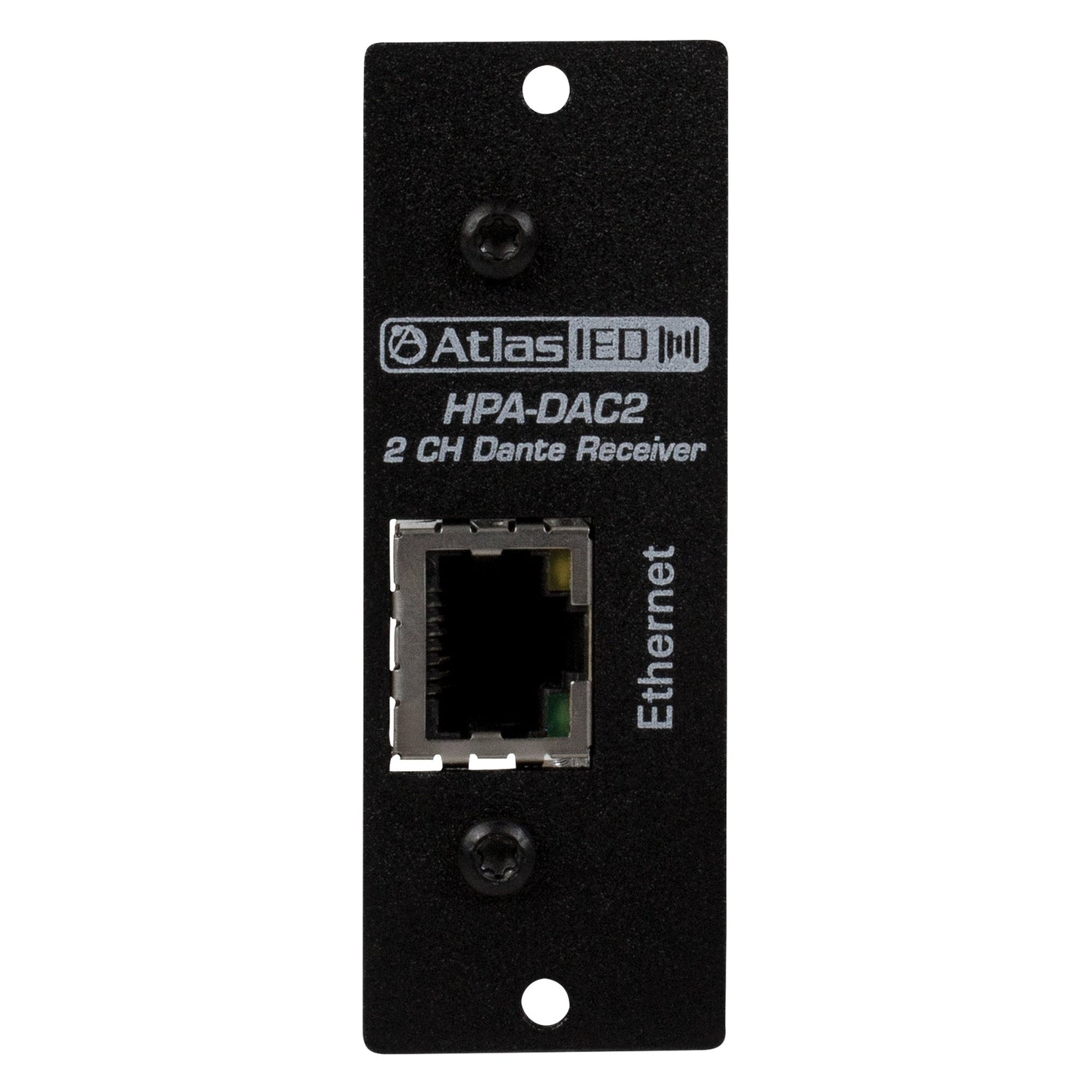

- HPA-DAC2: Two-input Dante® receiver for 2-channel HPA amplifiers
- HPA-DAC4: Four-input Dante® receiver for 4-channel HPA amplifiers

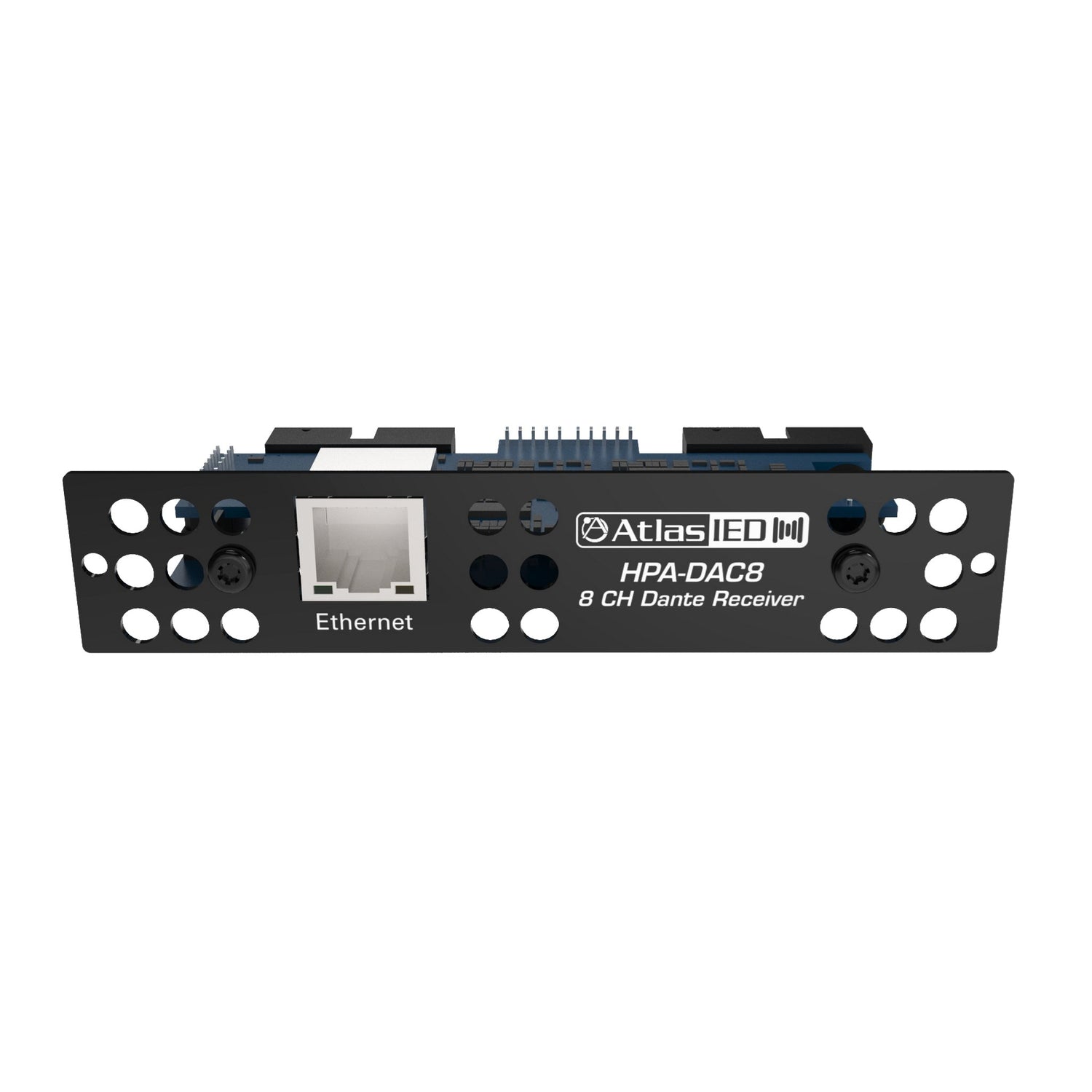

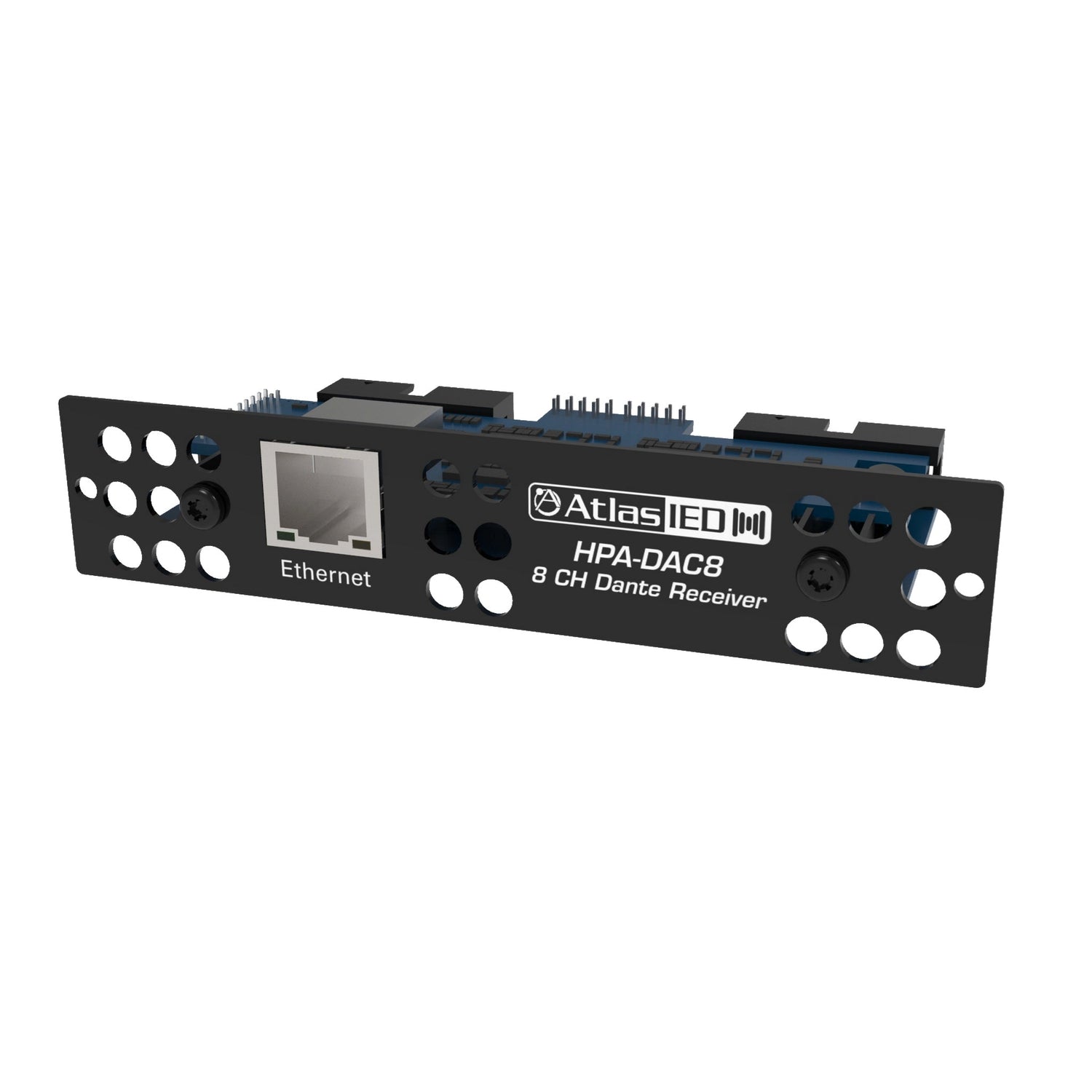

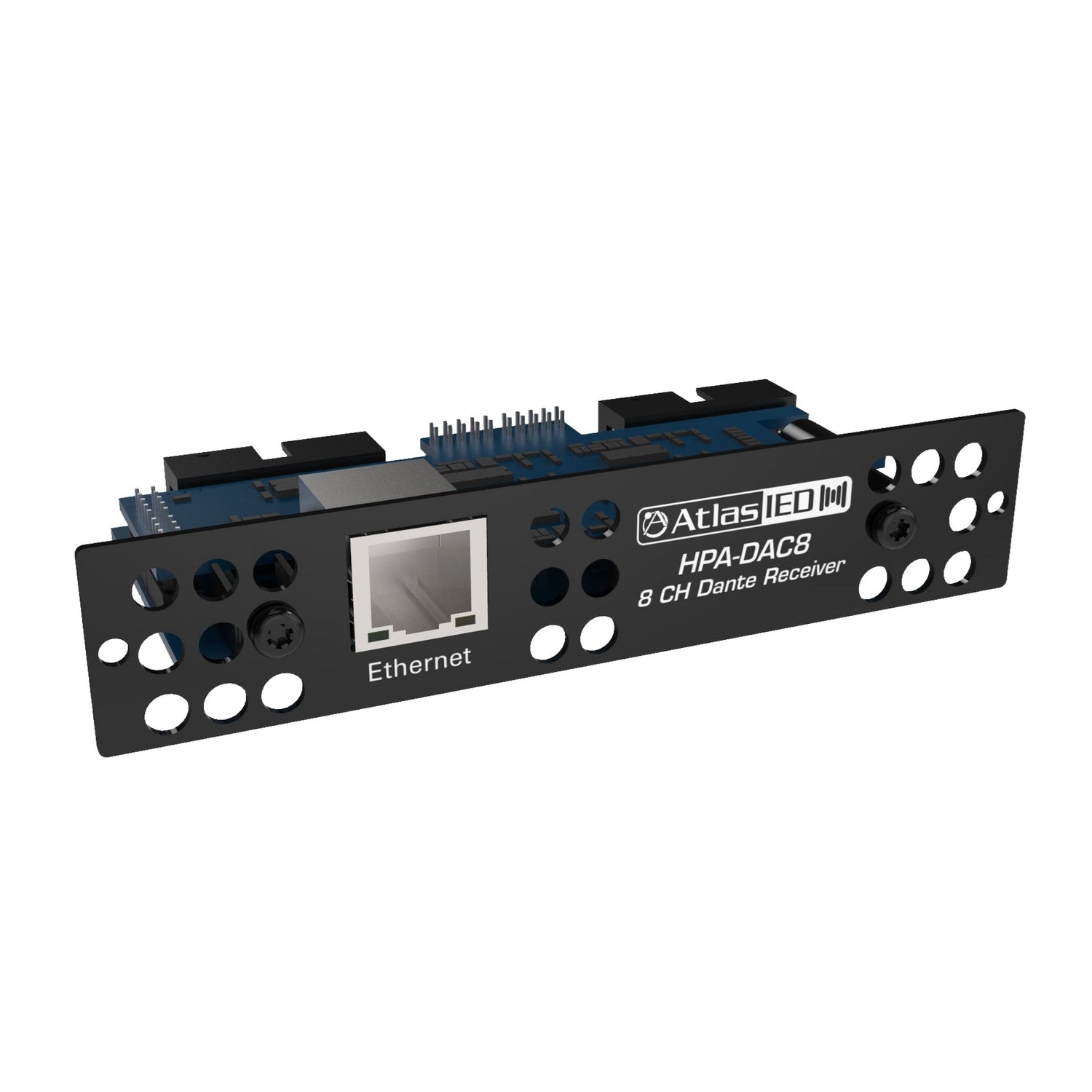

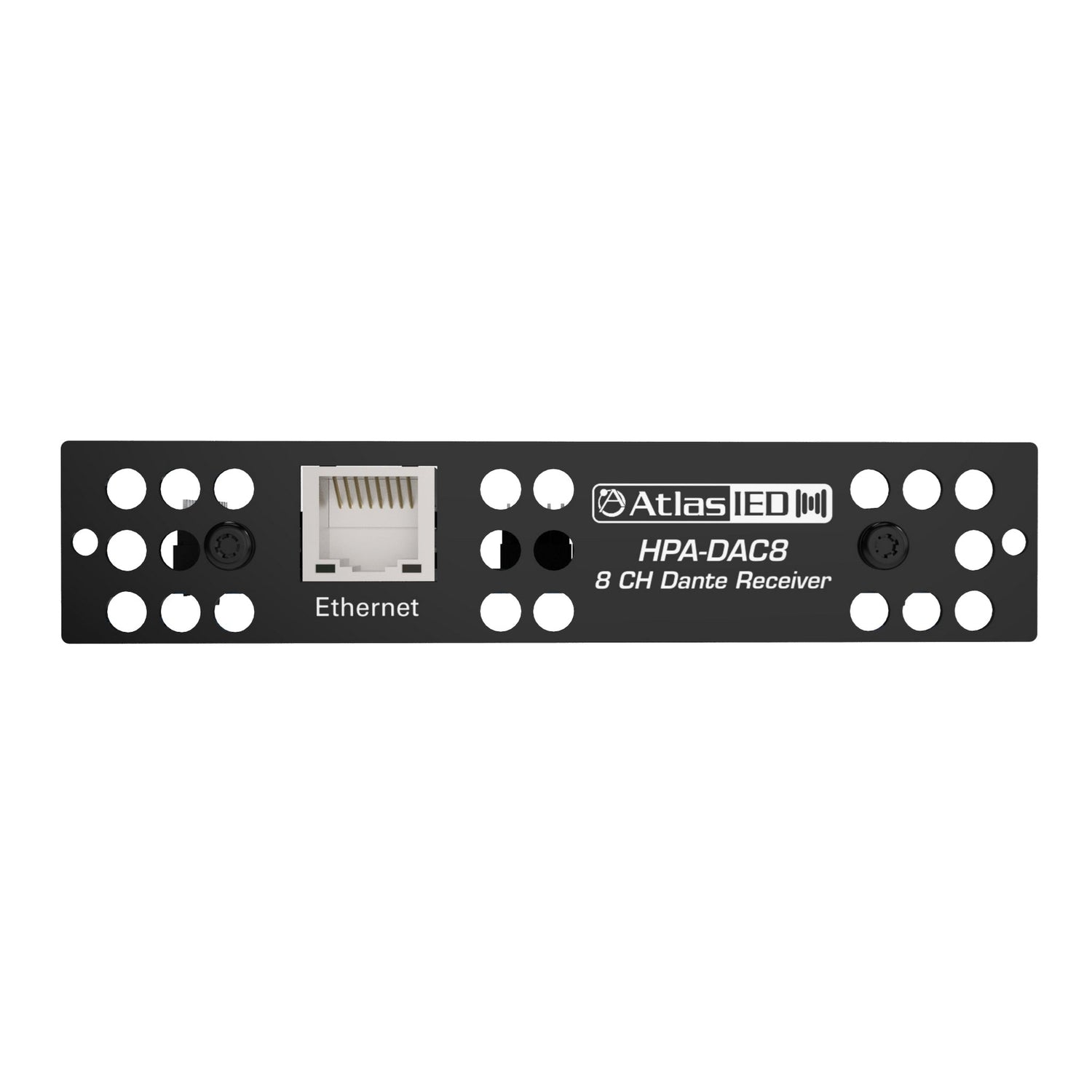

- HPA-DAC8: Eight-input Dante® receiver for 8-channel HPA amplifiers
