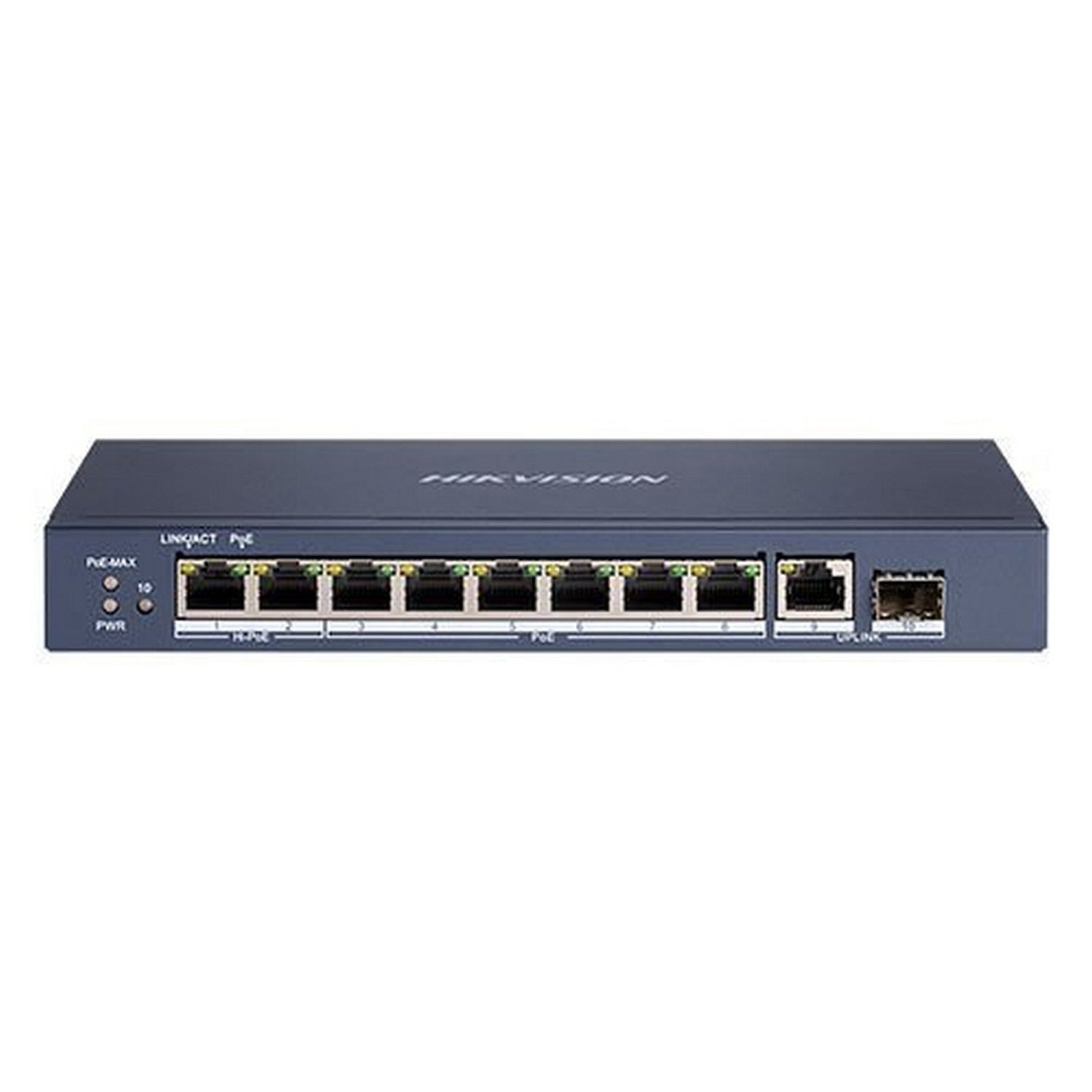

Hikvision Unmanaged Gigabit PoE Switch, 10Gbps, Blue

The DS-3E0510HP-E is a robust gigabit PoE switch that offers 6 gigabit PoE ports and 2 gigabit Hi-PoE ports, making it ideal for powering devices such as IP cameras and wireless access points. With a switching capacity of 20 Gbps and a packet forwarding rate of 14.88 Mpps, this switch ensures efficient data handling and minimal latency. Its fan-free design and metal shell provide durability and reliability in various environments, while the PoE watchdog feature enhances network security by automatically restarting unresponsive devices.

This switch supports multiple PoE standards, including IEEE 802.3af, 802.3at, and 802.3bt, allowing for flexible power distribution across its ports. The long-range capabilities of ports 7 and 8 enable transmission distances of up to 300 meters at a speed of 10 Mbps, making it suitable for expansive network setups.

Key Features:

• Port Configuration: 6 × gigabit PoE ports, 2 × gigabit Hi-PoE ports, 1 × gigabit RJ45 port, 1 × gigabit fiber optical port
• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.88 Mpps
• PoE Power Budget: 110 W
• Max. Port Power: Ports 1 and 2: 90 W; Ports 3 to 8: 30 W
• Operating Temperature: -10 °C to 40 °C (14 °F to 104 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Power Consumption: Max. 120 W, Idle < 10 W

Technical Specifications

• Measuring System: Metric
• Dimensions: 217.6 mm × 108.55 mm × 27.8 mm (8.57” × 4.27” × 1.09”)
• Material: Metal
• Finish: Fan-free design
• Lock Type: N/A
• MAC Address Table: 4 K
• Internal Cache: 1.5 Mbits
• Operating Humidity: 5% to 95% (no condensation)
• Storage Humidity: 5% to 95% (no condensation)
• Power Supply: 54 VDC, 2.22 A

What's in the Box

• DS-3E0510HP-E Gigabit PoE Switch
• Power Adapter
• User Manual
