Description

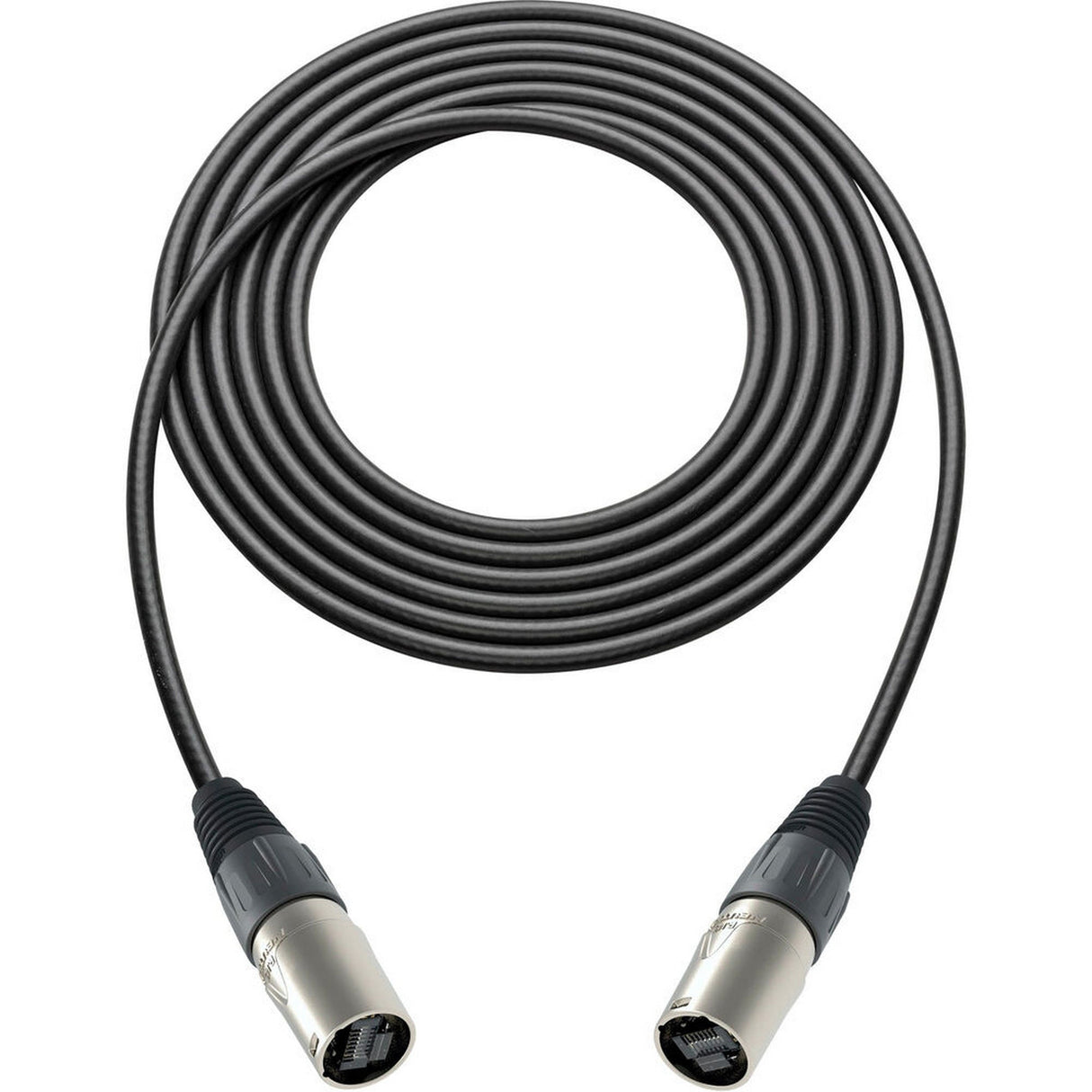

Laird CAT5XTRM CAT5e Extreme Ethernet Cable
Laird CAT5XTRM is an Ethernet cable designed for indoor and outdoor data networking environments. It enables Category 5e signal transmission for networked devices, supporting data and power delivery workflows. This makes it ideal for installations where environmental durability and connector protection are critical.
The cable is constructed using Belden 7923A paired CAT5e DataTuff twisted-pair cabling with a UV-resistant PVC jacket. It terminates with Neutrik etherCON NE8MX-1 connectors that protect standard RJ45 interfaces during deployment. The design supports repeated connection cycles in demanding environments.
In use, the cable supports reliable Ethernet connectivity in fixed or temporary installations. It helps maintain performance in outdoor, industrial, and event-based setups. This supports dependable networking where standard Ethernet cables may be vulnerable to damage.
Key Features
- Belden DataTuff Cable: Uses paired CAT5e twisted-pair construction for network transmission
- Neutrik etherCON Connectors: Protects RJ45 interfaces during deployment and handling
- Outdoor Rated Jacket: UV-resistant PVC jacket suited for harsh environments
- Category 5e Performance: Supports Ethernet data networking applications
- Extreme Environment Design: Built for indoor and outdoor use cases
Technical Specifications
Cable TypeBelden 7923A Paired CAT5e DataTuff Twisted Pair Cable
Conductor Size
24 AWG
Number of Pairs
4 pairs
Outer Jacket Material
PVC Polyvinyl Chloride
Voltage Rating
300 V CMR
300 V CMX Outdoor
Operating Temperature
-40°F to 167°F
-40°C to 75°C
Data Category
Category 5e
Standards Compliance
ANSI TIA-568.2-D Category 5e
IEEE 802.3bt Type 1 Type 2 Type 3 Type 4
Connector Type
Neutrik etherCON NE8MX-1
Connector Mating Life
Greater than 1000 mating cycles
