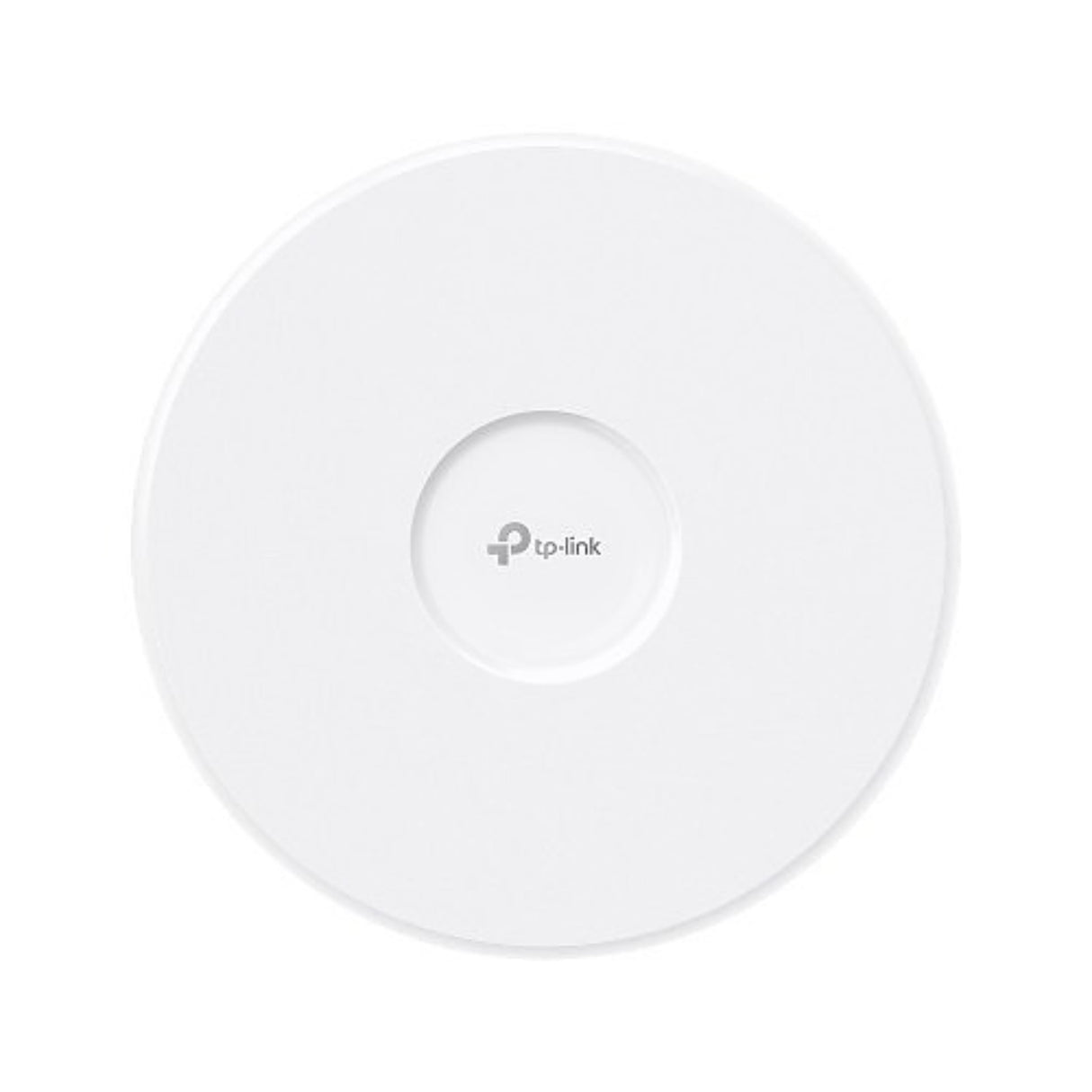

TP-Link EAP773 Omada BE11000 Tri-Band Wi-Fi 7 Ceiling Mount Access Point

TP-Link EAP773 Omada BE11000 Tri-Band Wi-Fi 7 Ceiling Mount Access Point

The TP-Link EAP773 Omada BE11000 Wi-Fi 7 Access Point delivers next-generation wireless performance for demanding enterprise, commercial, and high-density networking environments. Designed for ceiling or wall installation, this tri-band access point leverages the latest Wi-Fi 7 standard to provide ultra-fast speeds, improved efficiency, and greater network capacity for modern workplaces, campuses, and connected homes.

With combined wireless speeds exceeding 10 Gbps across 6 GHz, 5 GHz, and 2.4 GHz bands, the EAP773 supports bandwidth-intensive applications such as cloud services, video conferencing, real-time collaboration, and high-density device connectivity. The dedicated 6 GHz spectrum delivers cleaner channels with reduced interference, ensuring stable, high-throughput wireless performance even in crowded network environments.

Integrated into TP-Link’s Omada Software Defined Networking (SDN) ecosystem, the EAP773 allows centralized cloud management alongside Omada switches and gateways. Network administrators can deploy scalable wireless infrastructure, monitor performance, and configure networks through a single interface, simplifying enterprise-grade network management while maintaining flexibility and reliability.

Key Features of the TP-Link Omada EAP773 Wi-Fi 7 Access Point

• BE11000 Tri-Band Wi-Fi 7 Performance: Provides ultra-fast wireless speeds with 5760 Mbps on the 6 GHz band, 4320 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz for high-capacity networking.
• 10 Gigabit Ethernet Port: A built-in 10G network interface unlocks the full performance potential of Wi-Fi 7 and supports high-bandwidth backhaul connectivity.
• Dedicated 6 GHz Spectrum: The 6 GHz band offers cleaner wireless channels and wider bandwidth resources, minimizing congestion and interference.
• 320 MHz Channel Bandwidth: Supports expanded channel widths that enable more simultaneous transmissions and faster wireless throughput.
• Multi-Link Operation (MLO): Enhances wireless efficiency by allowing devices to transmit data across multiple frequency bands simultaneously.
• Multi-Resource Units (Multi-RU): Improves spectrum utilization and overall network performance in high-density environments.
• Centralized Omada SDN Management: Integrates with the Omada ecosystem for centralized cloud management, scalable deployment, and simplified network control.

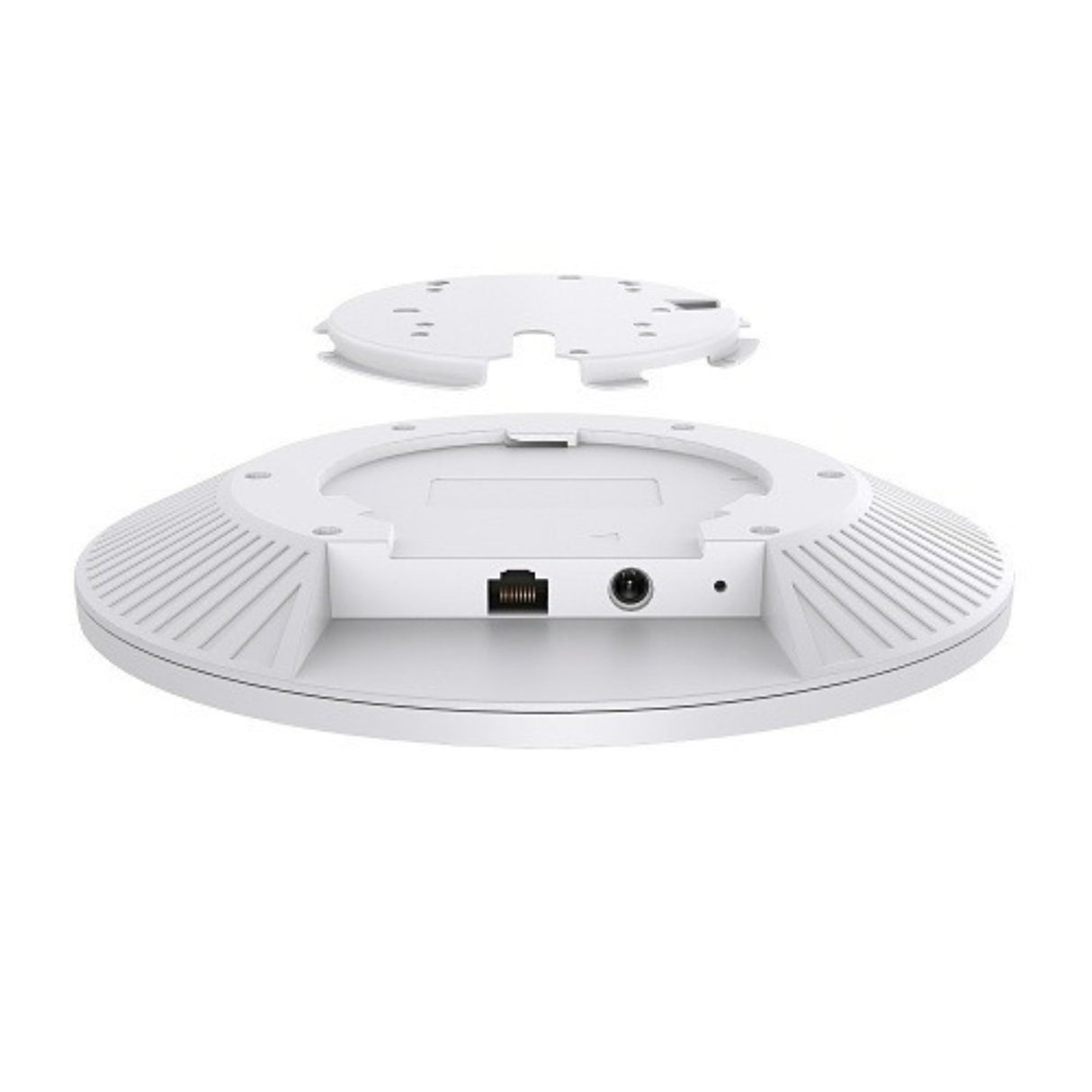

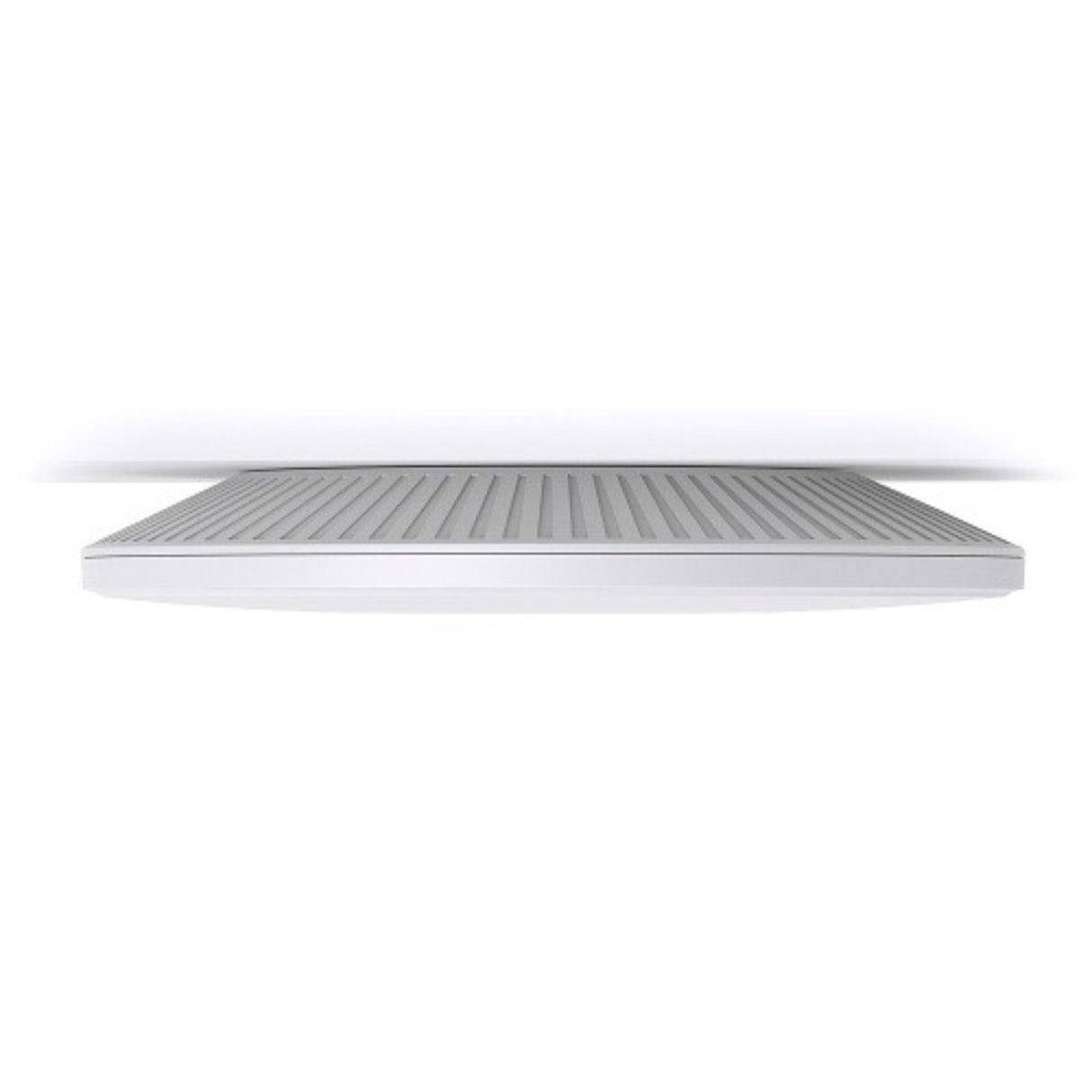

• Professional Installation Design: Supports ceiling or wall mounting for clean, discreet installation in offices, hospitality spaces, classrooms, and commercial facilities.

Technical Specifications

• Brand: TP-Link
• Model: EAP773
• Product Line: Omada
• Product Type: Wireless Access Point
• Wi-Fi Generation: Wi-Fi 7
• Wireless LAN Standard: 802.11 a/b/g/n/ac/ax/be
• Network Band: Tri-Band (6 GHz, 5 GHz, 2.4 GHz)
• Maximum Wireless Speed: 10.40 Gbps
• Wireless Speeds: 5760 Mbps (6 GHz), 4320 Mbps (5 GHz), 574 Mbps (2.4 GHz)
• Ethernet Technology: 10 Gigabit Ethernet
• Network Ports: 1 × RJ-45
• Bluetooth Standard: Bluetooth 5.2
• Beamforming: Yes
• MIMO Technology: Yes
• Data Encryption: Supported
• Power Consumption: 22.57 W – 25.44 W
• Mounting Type: Ceiling Mount, Wall Mount
• Color: White
• UPC: 840030711916

What's Included

• TP-Link EAP773 Omada Wireless Access Point
• Ceiling/Wall Mounting Kits
