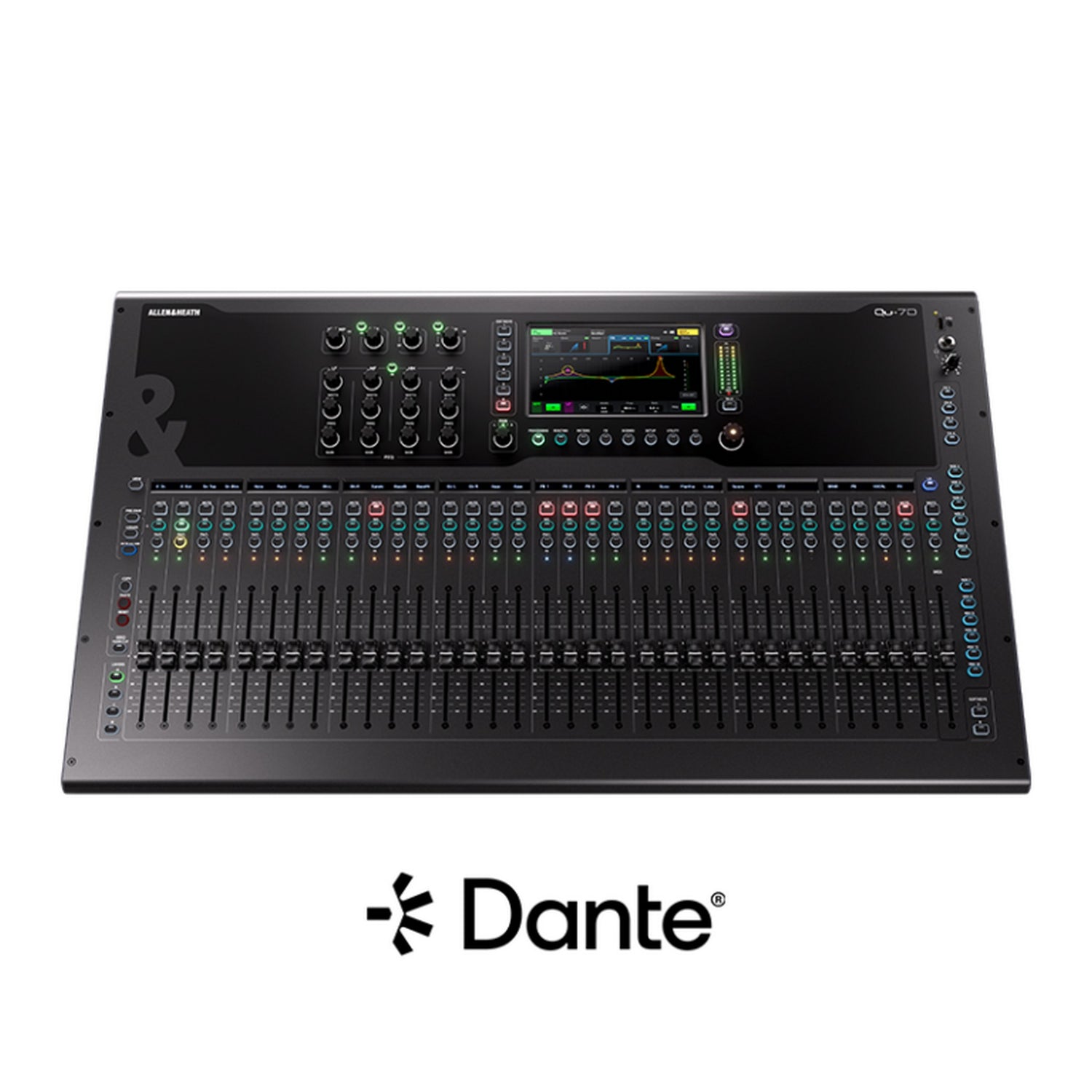

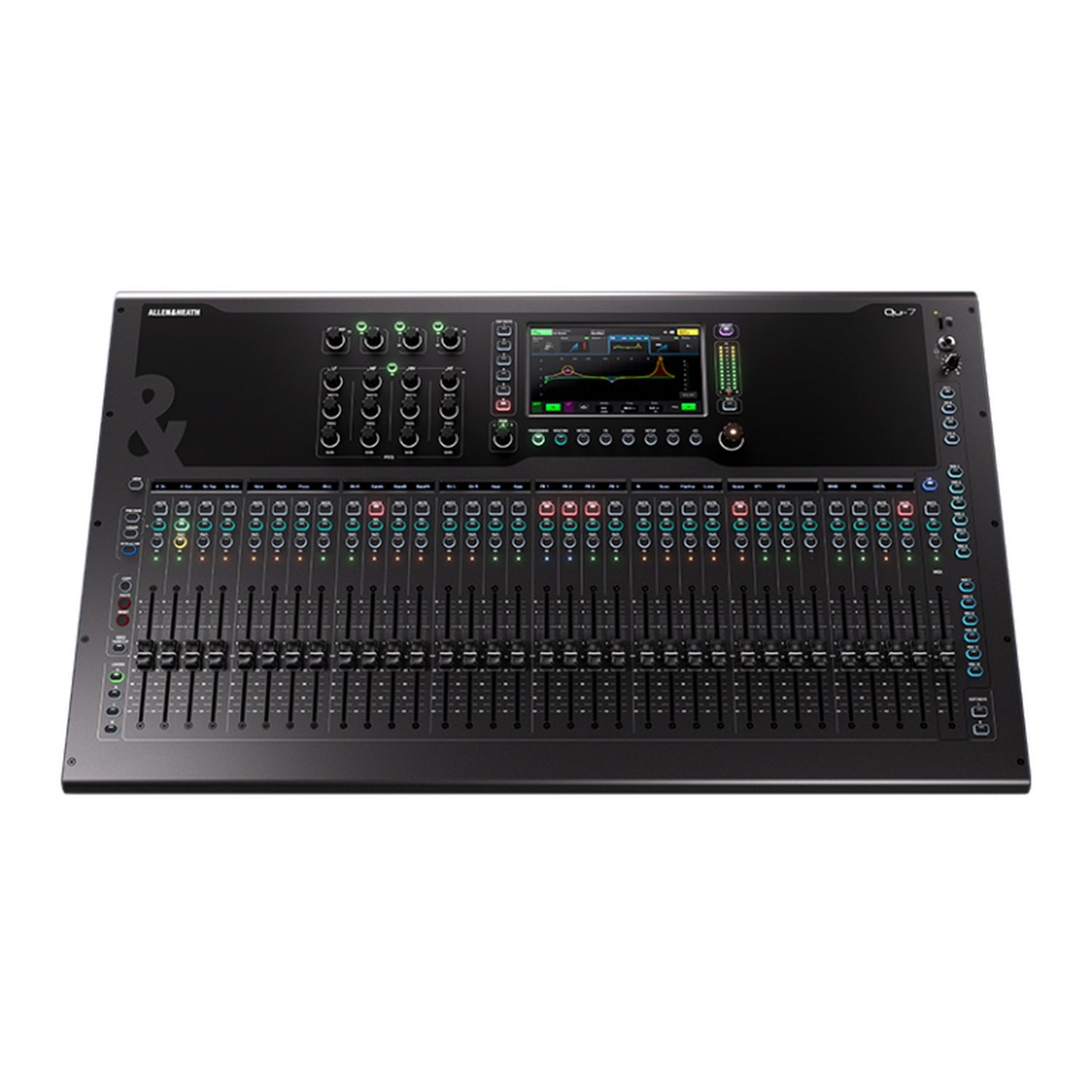

Allen & Heath QU-7 38-Channel Digital Mixer
The Allen & Heath Qu-7 and Qu-7D digital mixers are designed for professional engineers, touring musicians, and studio creators who demand uncompromising sound quality and versatility in one streamlined system. Built around the powerful 96kHz XCVI Core, these mixers deliver pristine audio, ultra-low latency, and advanced processing power that captures every nuance of your sound. With a flexible mix architecture, deep processing capabilities, and robust connectivity options, the Qu-7 series is a powerhouse solution for live sound reinforcement, recording, and broadcast applications.
Engineers will appreciate the 7” capacitive touchscreen, 33 motorised faders, and intuitive interface that make navigation fast and efficient in high-pressure environments. The DEEP processing architecture provides built-in plug-in style effects, compressors, and EQ models, giving users studio-quality tools without the need for additional hardware. Six dedicated Multi-FX engines further expand creative possibilities, enabling lush reverbs, precision delays, and versatile modulation effects that elevate both live and studio mixes.
The Qu-7 series also offers remarkable connectivity and scalability. With 32 combi mic/line inputs, 20 XLR outputs, and an AES3 stereo digital output, the Qu-7 provides extensive I/O options. Its 128×128 SLink port supports expansion with Everything I/O devices, while the Qu-7D enhances workflow with a dedicated 16×16 Dante interface for seamless audio networking. Recording and playback are equally versatile with USB, USB-C, and SD card options, ensuring full multitrack capability in any setting. Compact yet powerful, the Allen & Heath Qu-7 and Qu-7D deliver premium-grade performance for professionals who need complete control and superior sound.
Key Features
- Powered by Allen & Heath’s 96kHz XCVI Core for pristine audio and ultra-low latency
- 6 Multi-FX engines with dedicated stereo returns
- DEEP processing-ready for built-in studio-quality plug-in style processing
- Versatile 38-input mix architecture with 12 configurable mixes and 4 matrices
- 32 combi mic/line inputs and 20 XLR outputs for extensive connectivity
- 16×16 Dante interface with dedicated EtherCon port (Qu-7D only)
- 33 motorised 100mm faders with 4 channel strip layers
- Flexible multitrack recording via USB, USB-C, and SD card
- 7” capacitive touchscreen with remote app control for Windows, MacOS, iOS, and Android
Technical Specifications
Processing & FX:
96kHz XCVI Core
6 Multi-FX Engines with dedicated Stereo Returns
DEEP Processing Ready
Mix Architecture:
38 Inputs to Mix (32× Mono/Linkable, 3× Stereo)
12 Mixes (6× Mono/Linkable Aux/Group, 6× Stereo Aux/Group)
4× Mono/Linkable Matrix
Stereo Main LR Output
I/O:
32 XLR/Jack ‘Combi’ Mic/Line Input Sockets
2 Stereo Line Input Sockets (each 2× TRS)
20 XLR Output Sockets
1 XLR Talkback Socket
2 TRS Output Sockets
1 AES3 Stereo Digital Output Socket
128×128 Intelligent SLink Port for Everything I/O Expansion and System Connections
16×16 48/96 kHz Dante Interface with Dedicated Locking EtherCon Port (Qu-7D only)
Stereo Headphone Output
Control:
7” Capacitive Touchscreen
33 × 100mm Motorised Faders
4 Channel Strip Layers
Remote Control via Free Apps – Windows/MacOS/iOS/Android
8 SoftKeys
Configurable Single/Dual Footswitch Connection
Recording & Playback:
USB-A for Stereo Audio Record/Playback and Data Transfer
USB-C Audio Interface for Multichannel Record/Playback (32×32)
SD Card Slot for Multichannel Audio Recording or Playback (16×16 @ 96kHz, 32×32 @ 48kHz)
Misc:
12V Lamp Socket
Configurable Chromatic Channel Meter LEDs
What’s Included
- Allen & Heath Qu-7 or Qu-7D Digital Mixer
- Power Cable
- User Documentation
- Optional Rack-Mount Kit (sold separately)
