Audio-Technica ATDM-1012 10-Channel Digital Smart Mixer

Audio-Technica | SKU: ATH-ATDM1012
$2,74875

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

Audio-Technica ATDM-1012 Digital SmartMixer

The ATDM-1012 is a 14-input / 12-bus digital SmartMixer designed for installed conferencing and AV applications. It offers 10 mic/line inputs (with high-quality preamps), two stereo line inputs, USB audio I/O and flexible matrix routing suitable for boardrooms, courtrooms, hospitality and other installed environments.

Key professional features include Acoustic Echo Cancellation (AEC) for multiple mic channels, Noise Cancelling, four configurable smart-mixing groups (gain-sharing or gating), onboard parametric EQ and feedback suppression, and remote configuration via Web Remote Manager. The ATDM-1012 supports cascading via Audio-Technica LINK for larger systems.

Important: This ATDM-1012 model does NOT include Dante network audio. A separate Dante-enabled model (ATDM-1012DAN) is available if Dante network I/O is required.

Key Features

  • Inputs / Matrix: 14-input / 12-bus full matrix (10 mic/line inputs + 2 stereo line inputs) with routing to any bus.
  • Preamp / Channels: High-quality discrete mic preamps, phase invert, low-cut filter and 4-band parametric EQ per input.
  • Smart Mixing: Four smart-mixing groups (gain-sharing or gating) and automatic mixing functions.
  • Echo / Noise Management: Up to 10-channel Acoustic Echo Cancellation (AEC) and Noise Cancelling (NC).
  • Outputs: Eight balanced outputs and two unbalanced stereo outputs (multiple level formats supported).
  • Digital I/O: USB audio I/O (USB Type-B: 1 stereo input, 1 stereo output, 24-bit). Dante is not included on this model (see ATDM-1012DAN for Dante capability).
  • Networking / Cascading: Audio-Technica LINK for cascading up to 8 ATDM devices; remote access via Web Remote Manager / IP control.
  • Additional DSP: Assignable compressors, de-essers, feedback suppressors and dynamics processors.
  • Integration: Integrates with Audio-Technica ES954 hanging mic arrays (sold separately) and other installed endpoints.

Technical Specifications

  • Dimensions: 19.0" × 12.77" × 1.73" (482.6 × 324.3 × 44 mm).
  • Weight: 7.9 lbs (3.6 kg).
  • Inputs: 10 balanced Mic/Line inputs, 2 stereo unbalanced line inputs (total 14 inputs) + 8 sub-inputs referenced in manual.
  • Outputs: 8 balanced outputs, 2 unbalanced stereo outputs, micro-level output available.
  • USB: USB Type-B device; stereo in x1, stereo out x1 (24-bit).
  • A/D-D/A Resolution: 24-bit (manufacturer spec).
  • Max Gain / Levels: Maximum gain ~64 dB; maximum input/output levels per datasheet.
  • Power: 100–240 V AC, 50/60 Hz. Power consumption listed ~65 W (varies by listing/manufacturer doc).
  • Operating temp / humidity: 0–40 °C; 25–85% (no condensation) per manual.
  • Included accessories: AC power cable; Euroblock connector x 22; Quick Start Guide / documentation.

What's Included

  • AC power cable
  • Euroblock connectors × 22
  • Quick Start Guide / User manual (paper or downloadable)

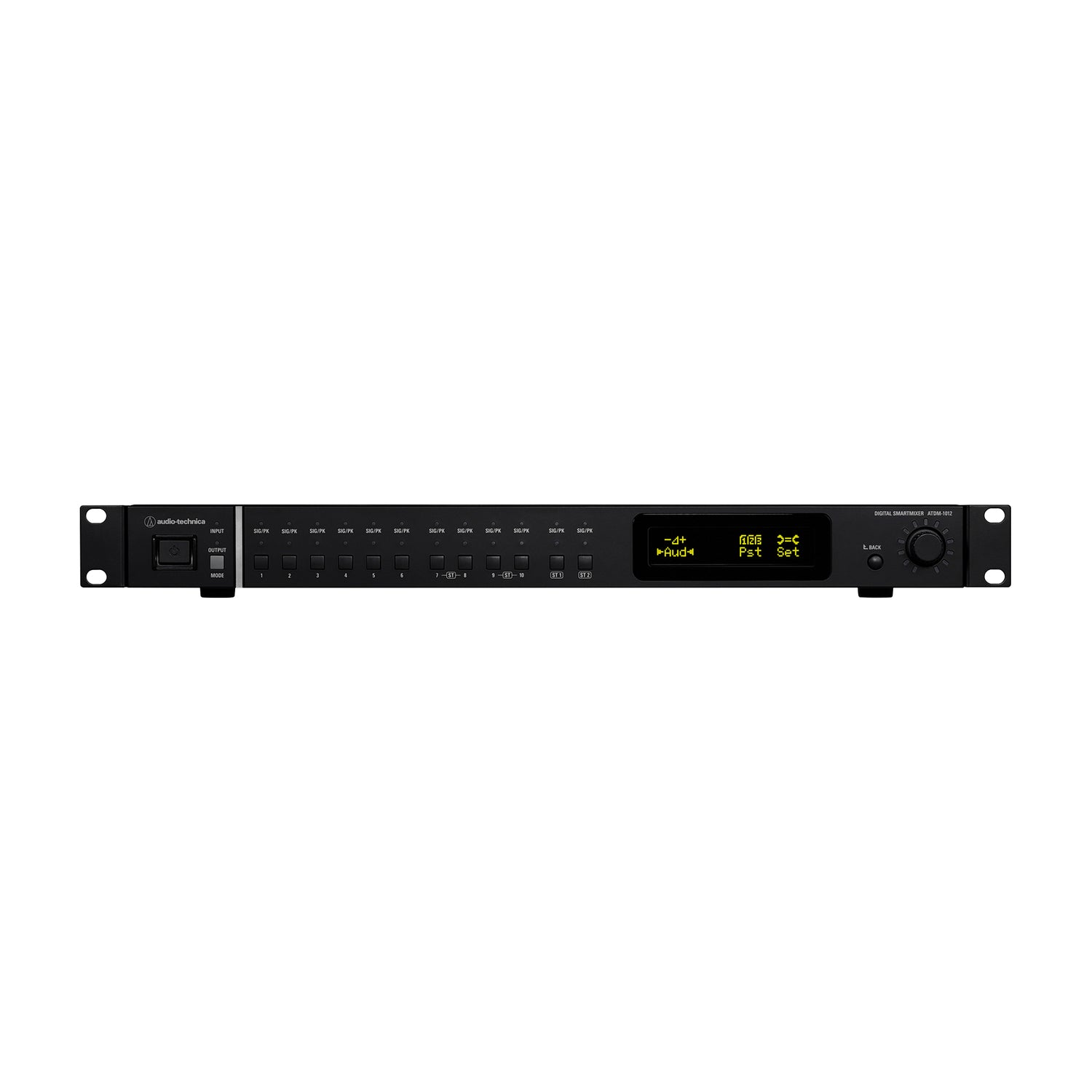

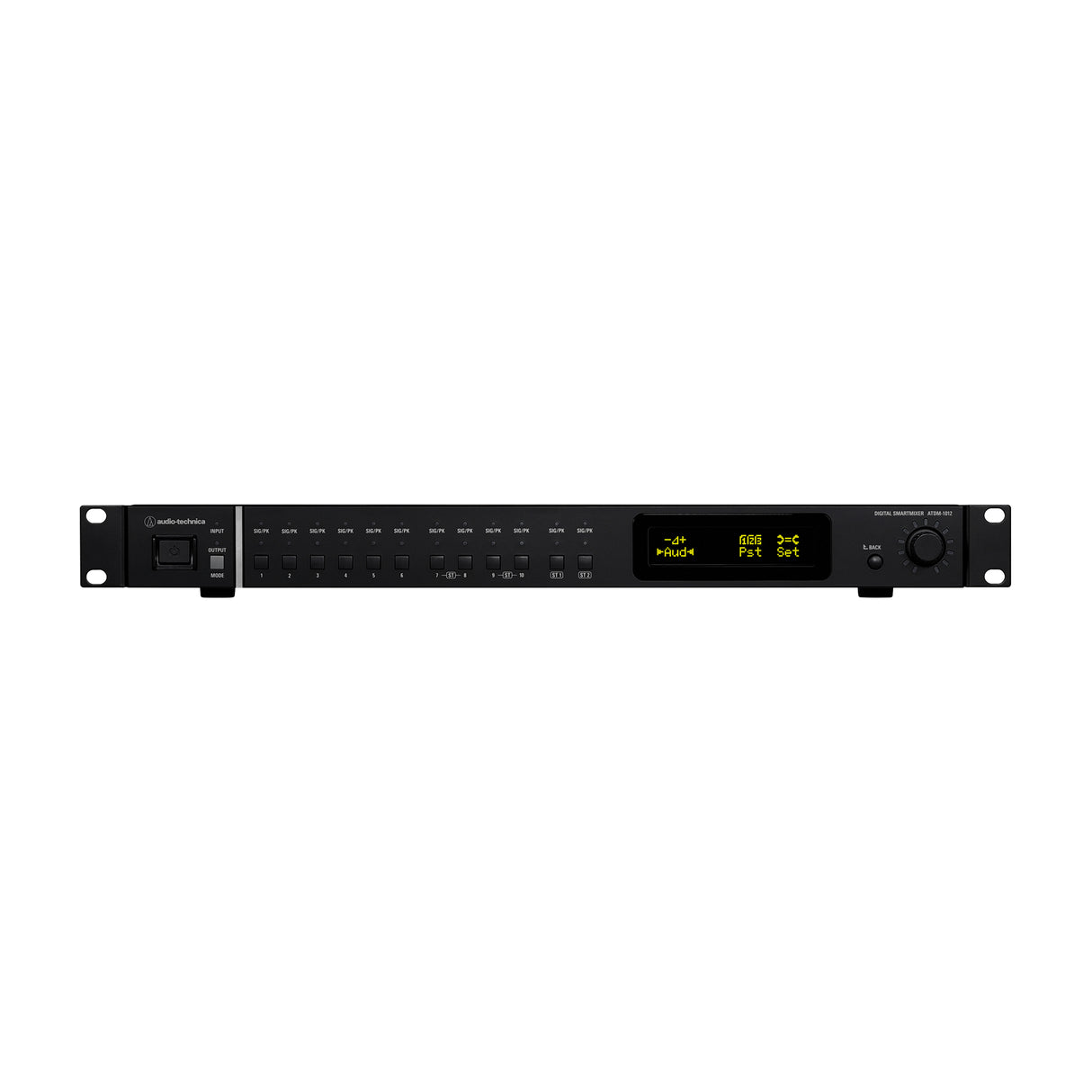

Black audio equipment rack unit with digital display on a white background
