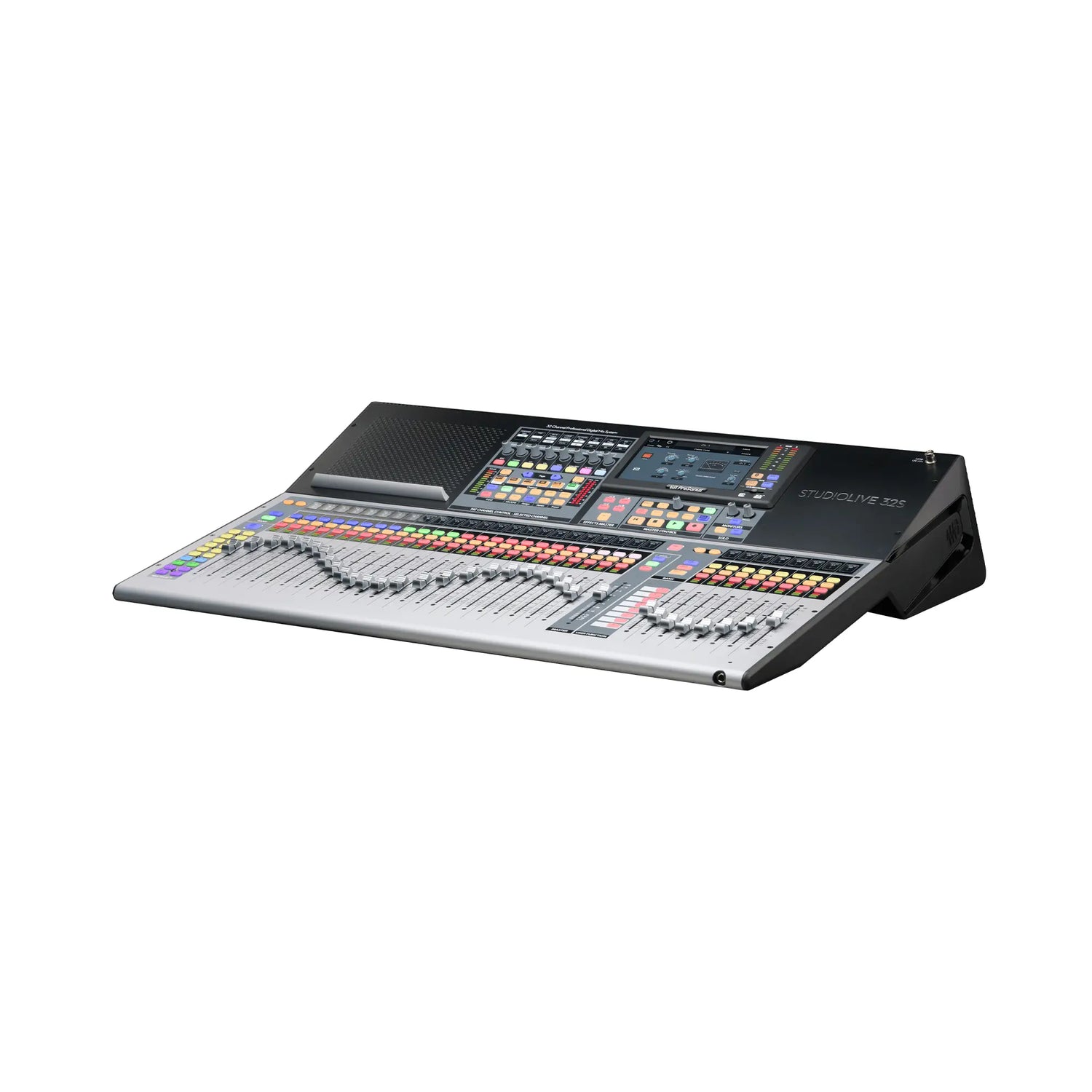

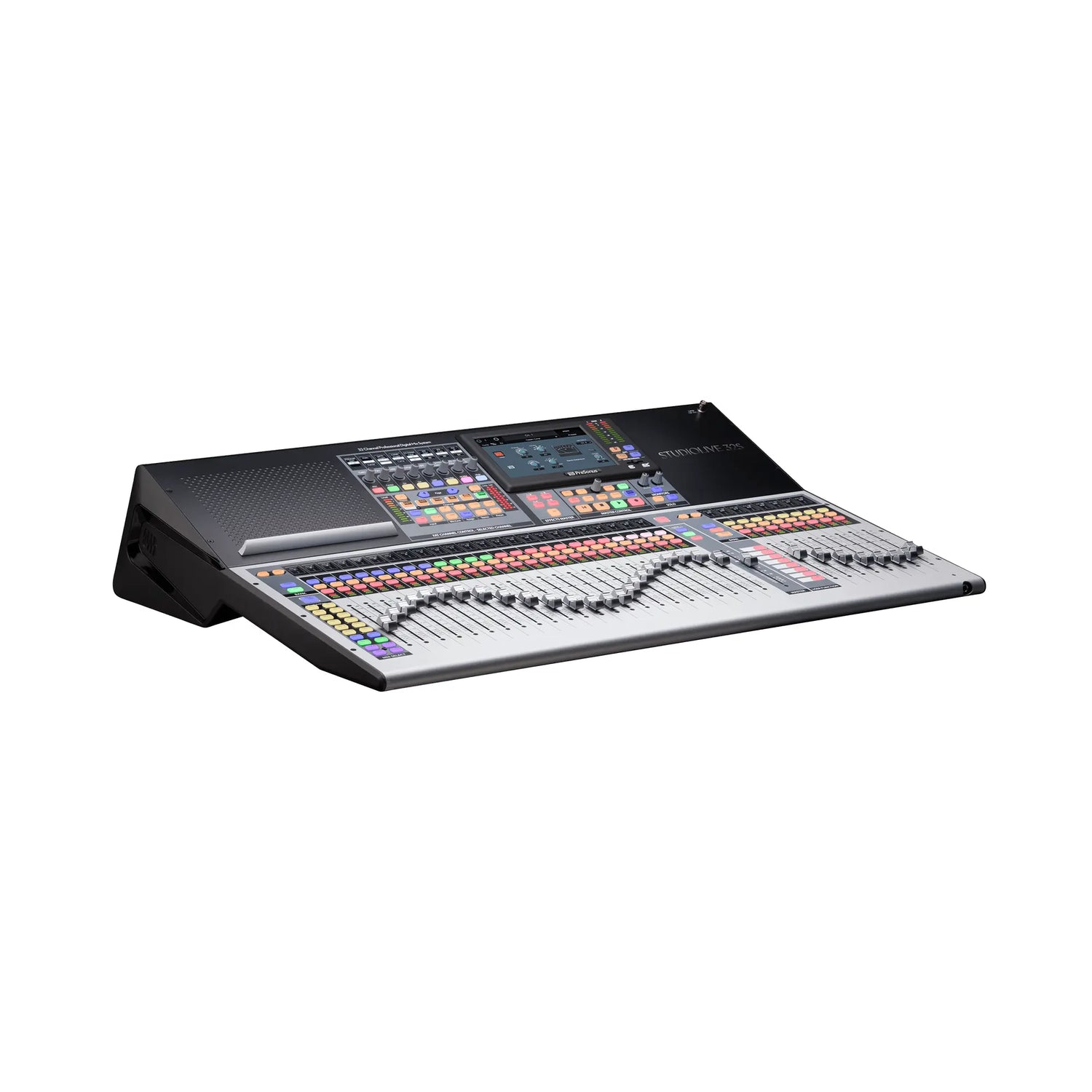

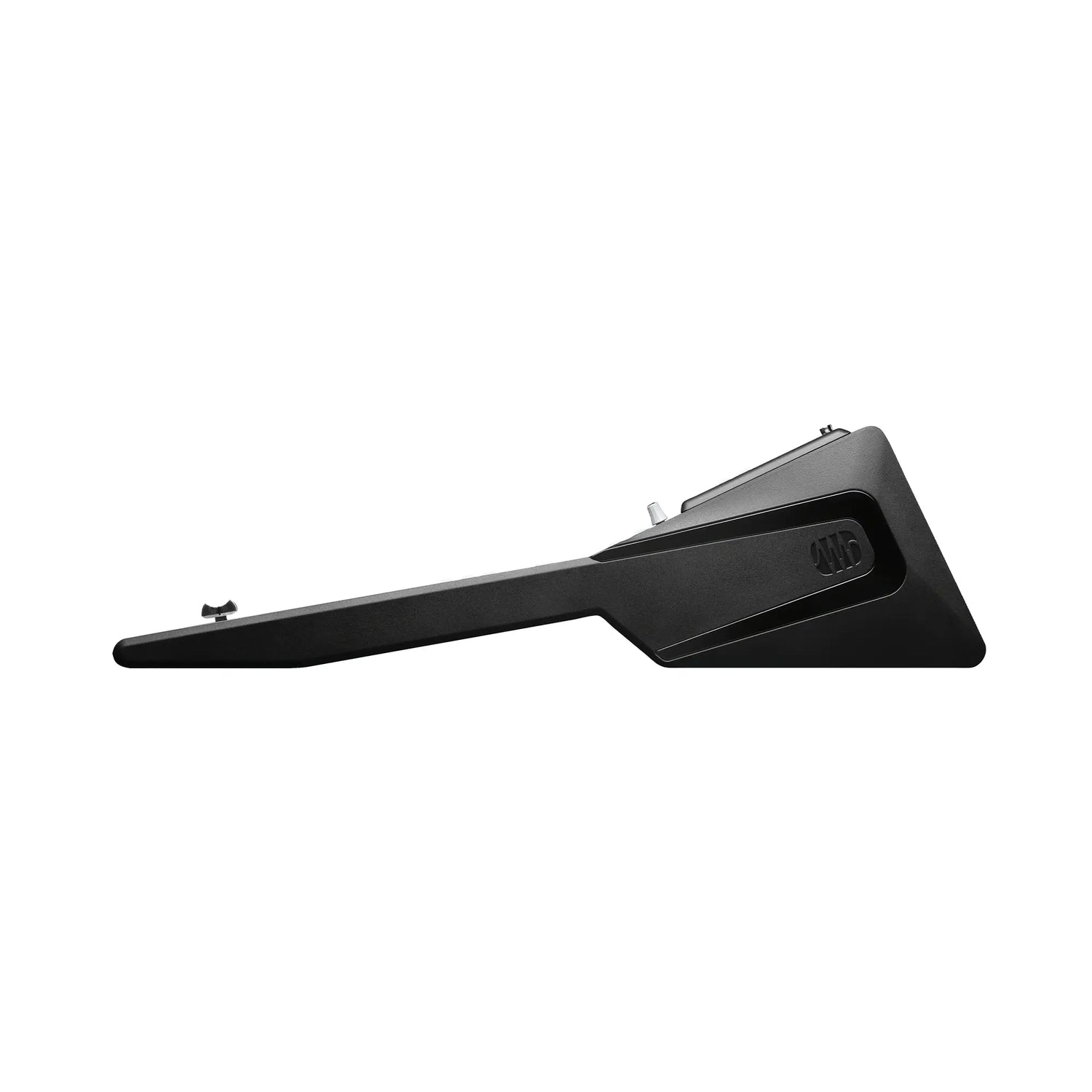

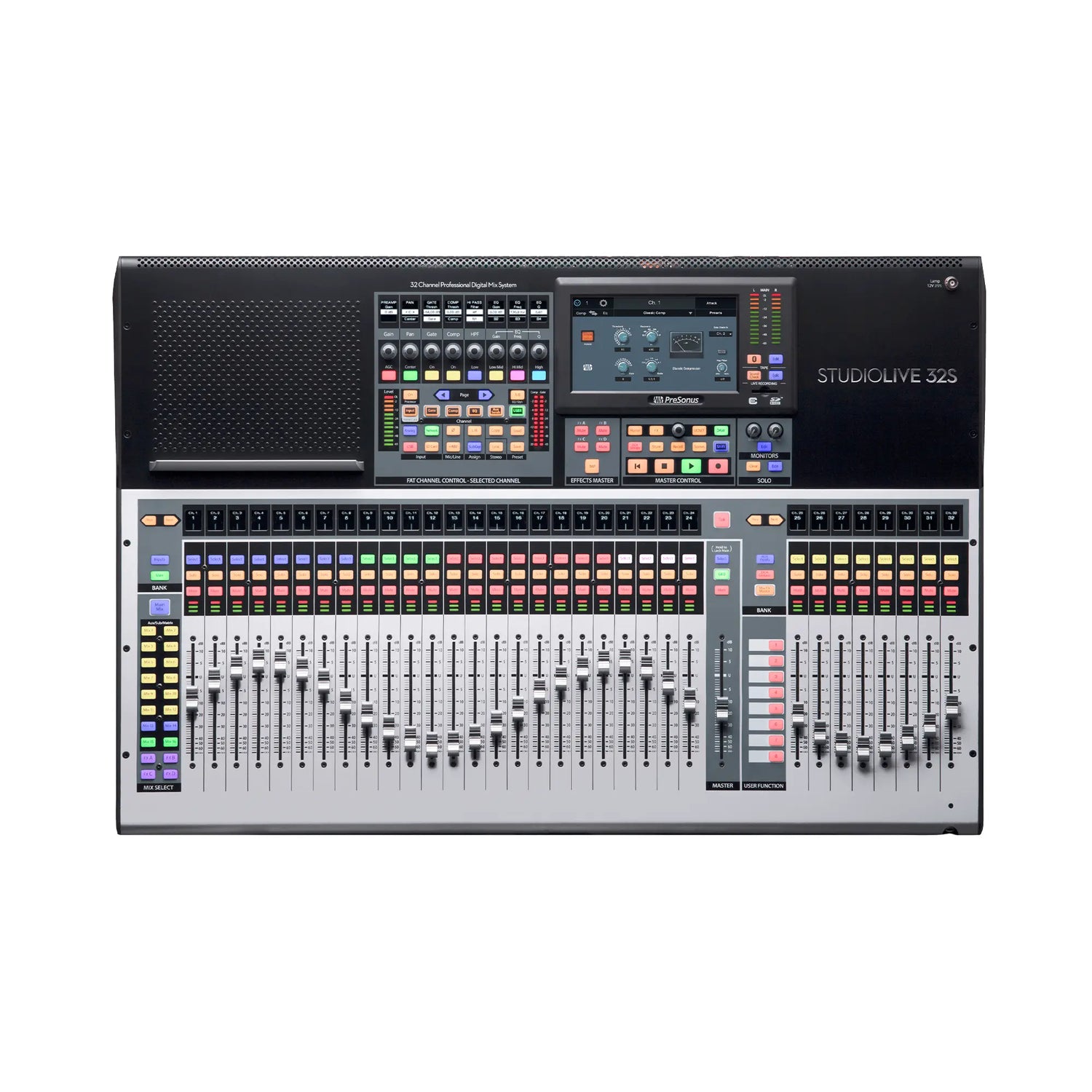

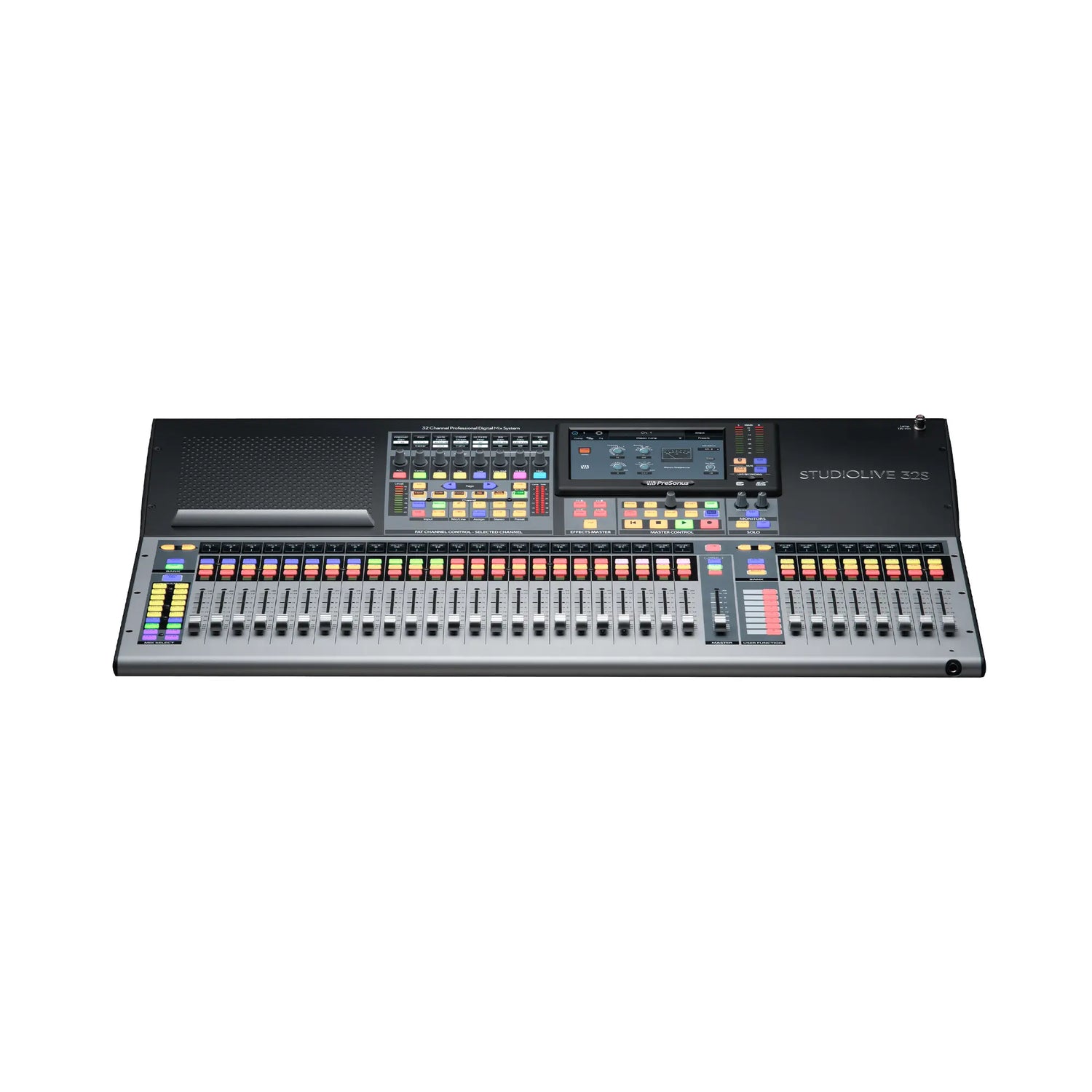

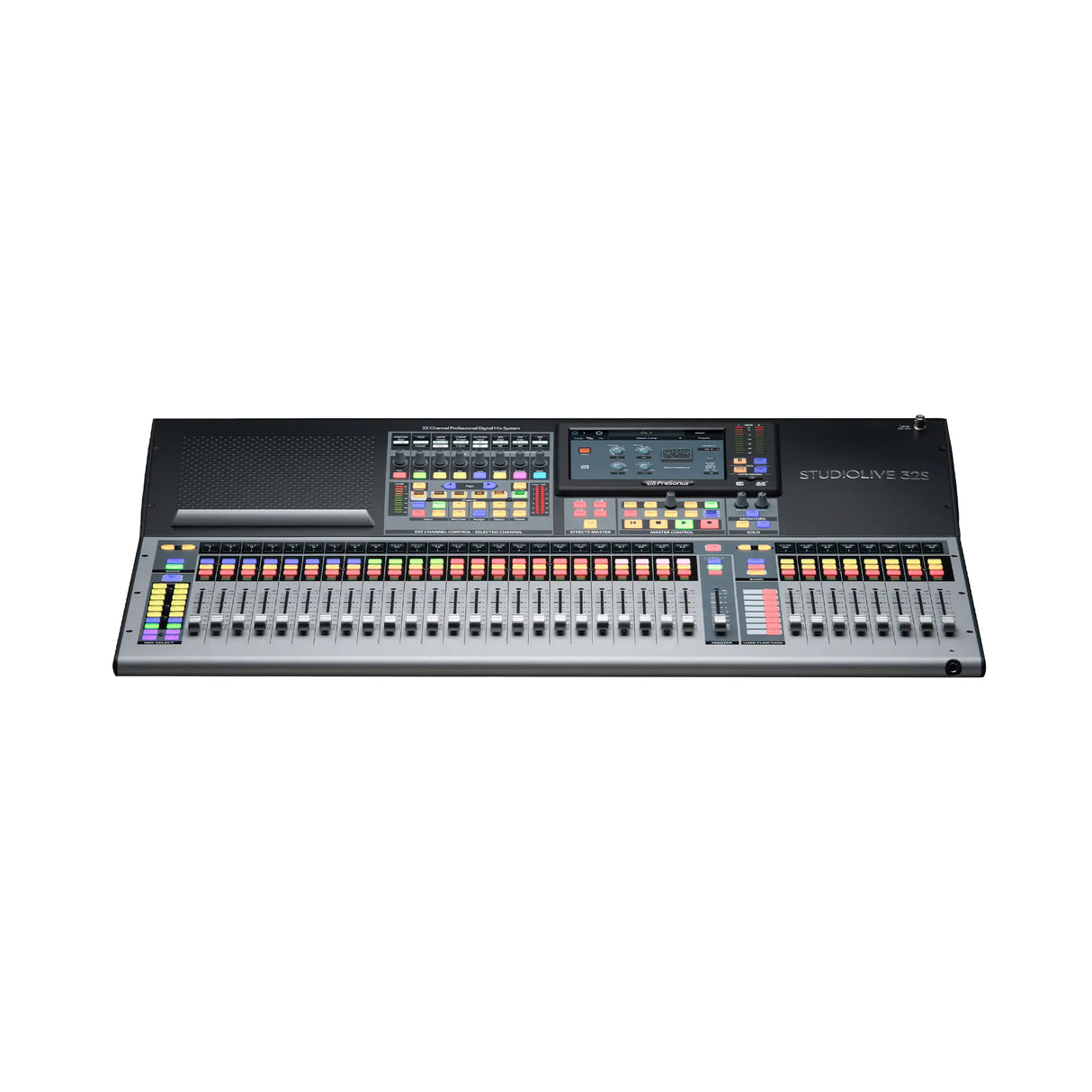

PreSonus StudioLive 32S - The Compact Digital Mixer for Ultimate Flexibility

The PreSonus StudioLive 32S is a powerful 40-channel digital console mixer and USB audio interface, designed to be the versatile heart of your live sound and studio setups. With a compact form factor, this mixer is perfect for installed sound, mobile applications, and professional recording. Powered by a dual-core FLEX DSP Engine, the 32S features 33 touch-sensitive motorized faders and 16 FlexMixes that can be configured to meet your specific needs. Its integrated 64x64 AVB audio networking and a 128-channel USB interface make it an incredibly flexible and powerful tool for any audio professional. Record effortlessly with the built-in multitrack SD card recorder and a free perpetual license to Studio One Pro, included with your purchase.

Key Features:

• 40-Channel Digital Console Mixer: A compact yet powerful mixer with 32 mic/line inputs.
• Dual-Core FLEX DSP Engine: Provides immense processing power for a full suite of onboard effects and processing.
• Touch-Sensitive Motorized Faders: 33 faders for precise, intuitive control and automation.
• Integrated Recording: Built-in multitrack SD card recorder and a 128-channel USB audio interface.
• AVB Audio Networking: 64x64 AVB networking for flexible routing and expansion.
• FlexMixes: 16 configurable FlexMixes that can function as aux buses, subgroups, or matrix mixes.
• Fat Channel Processing: Extensive processing with expandable vintage EQ and classic compression plug-ins.
• Software Suite: Includes a perpetual license for PreSonus Studio One Pro and integrates with Capture live-recording software.

Specifications:

• I/O: 32 mic/line inputs
• Channels: 40-channel
• Faders: 33 touch-sensitive motorized faders
• DSP: Dual-core FLEX DSP Engine
• Networking: 64x64 AVB audio networking
• USB Interface: 128-channel USB
• Recording: Built-in multitrack SD Card recorder
• Headphone Jack: 1/4" TRS Active Stereo
• Phantom Power: +48 VDC
• Power Consumption: 85W
• Power Supply: 100-230 VAC

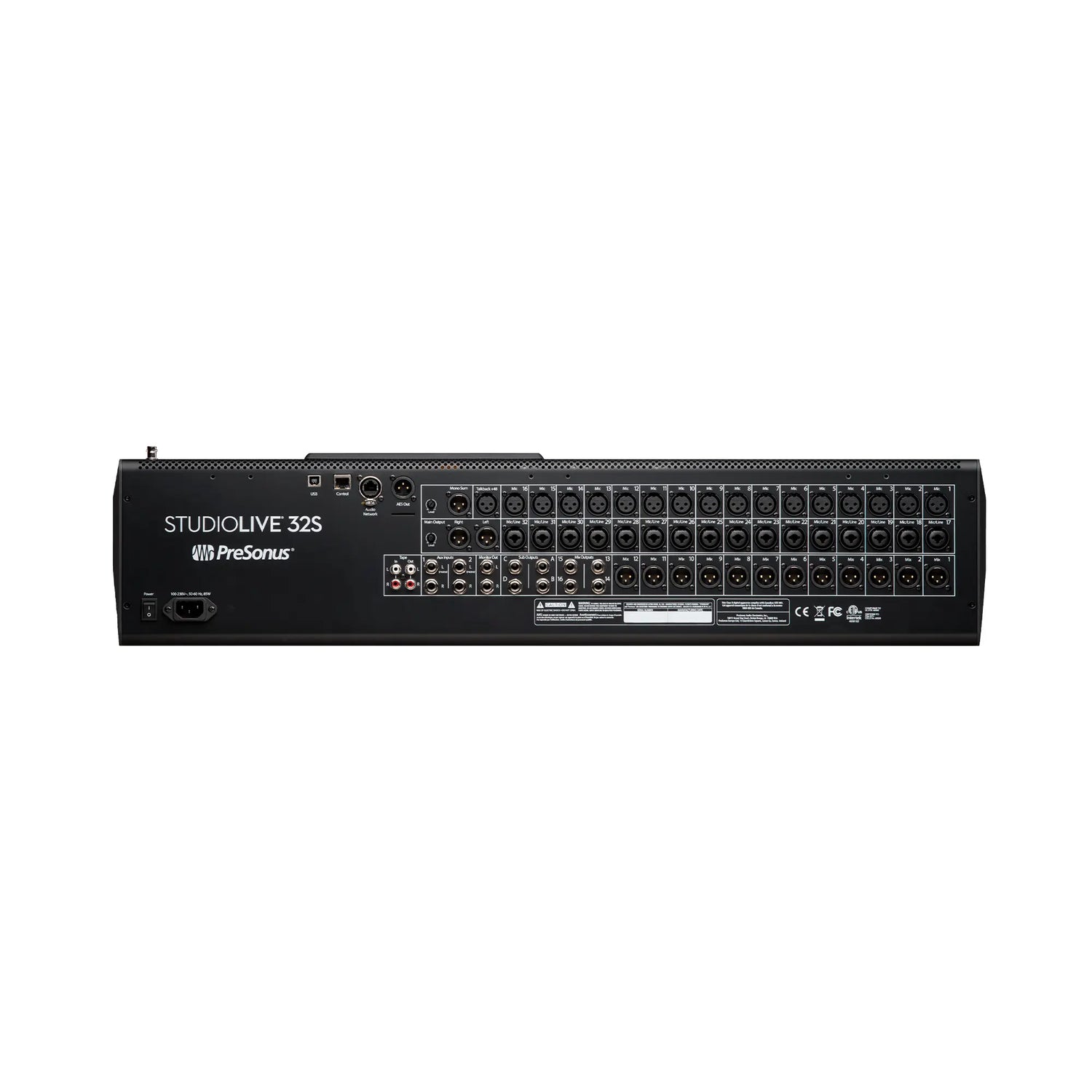

• Hardware Connectivity: XLR male for AES EBU Output, locking XLR and Ethernet for AVB Audio Network Ports, USB 2.0 Type-B
• Microphone Preamps: Gain control range of 0 dB to 60 dB, input impedance of 1 kΩ
• Line Inputs: Frequency response of 20-20 kHz
• Dimensions: 32.37” (W) x 22.97” (D) x 6.51” (H)
• Weight: 37.2 lbs (16.87 kg)

Package Content:

• PreSonus StudioLive Series III 32S Digital Console Mixer
• Power cord
• USB cable
• Perpetual license for Studio One Pro (download)
• Manual and documentation (download)
