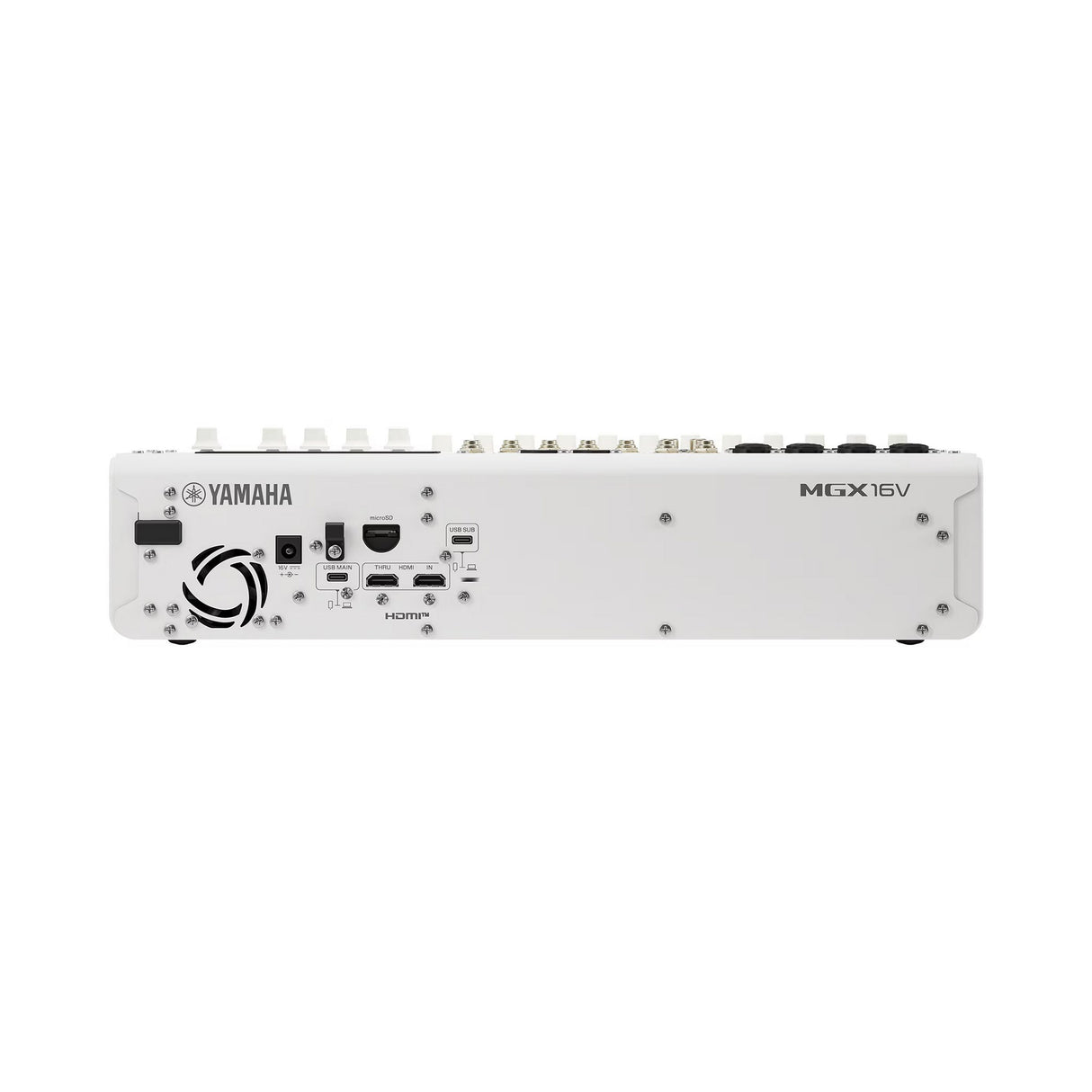

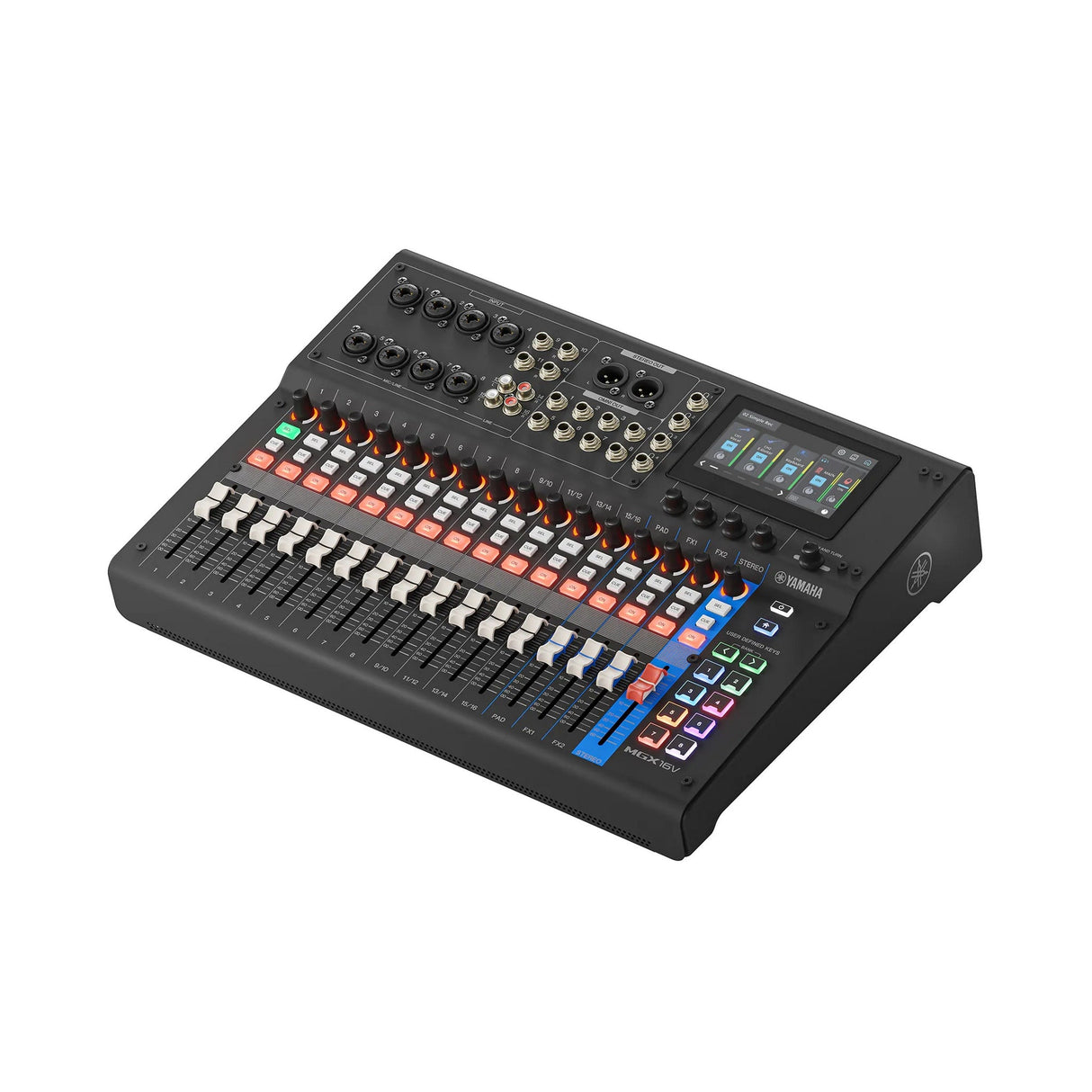

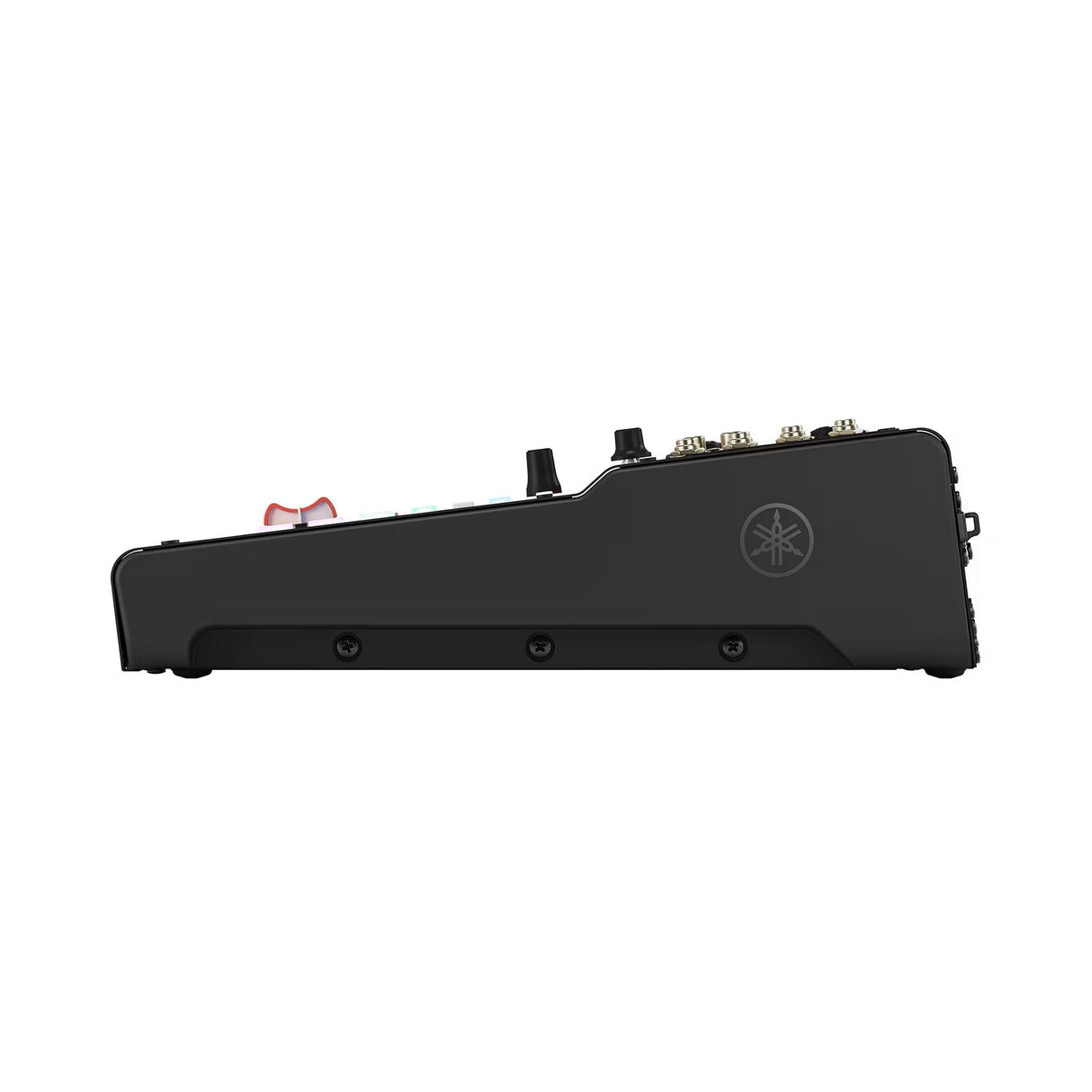

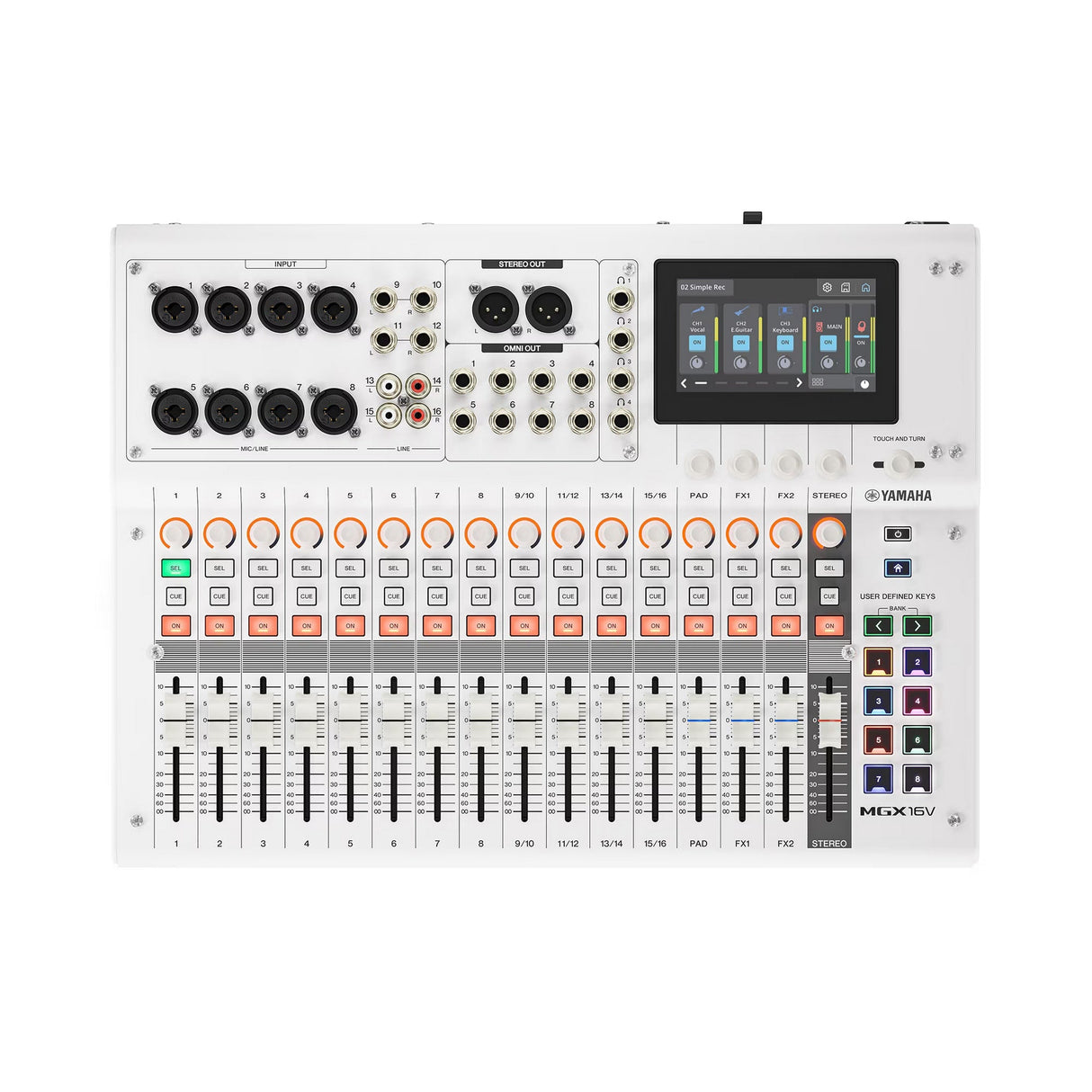

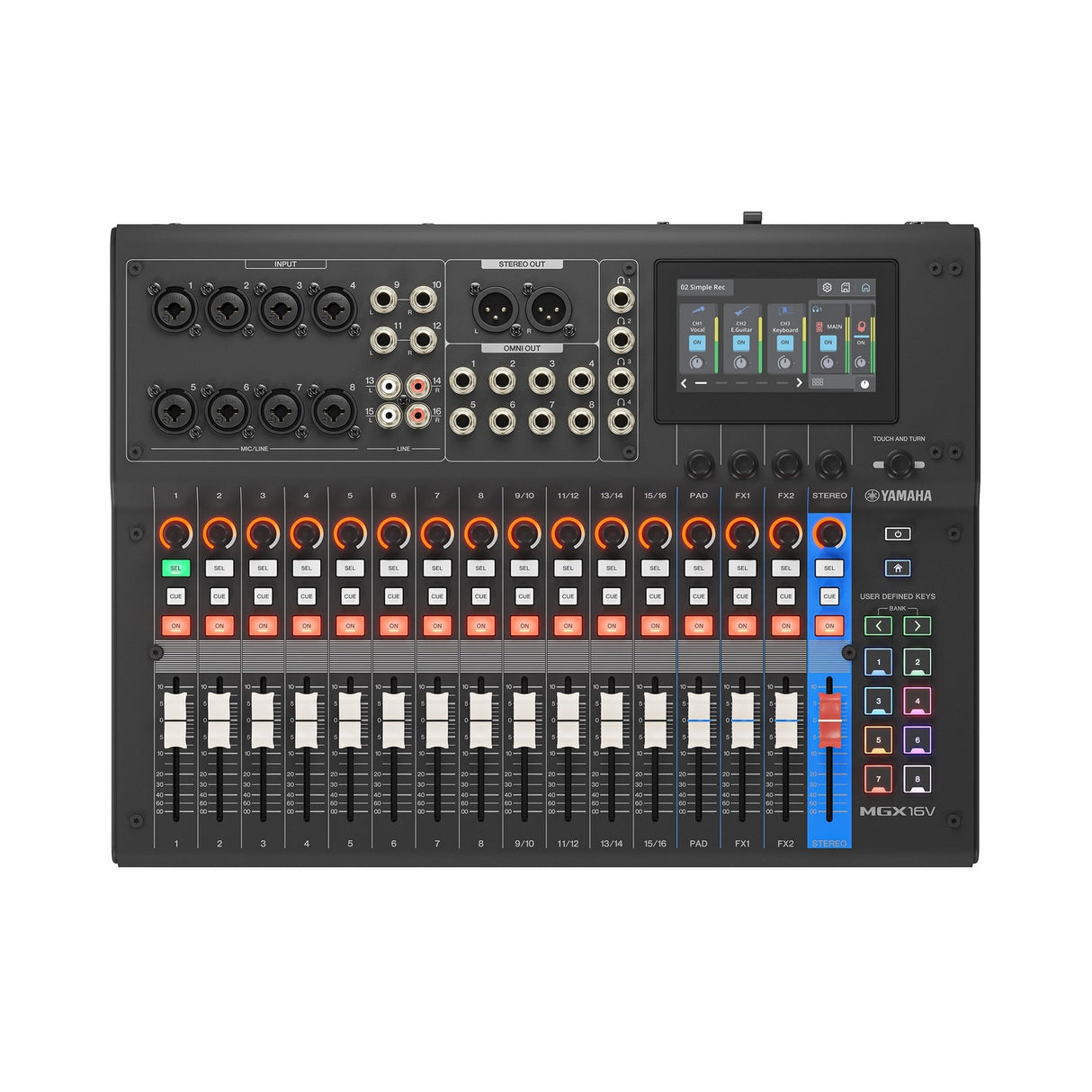

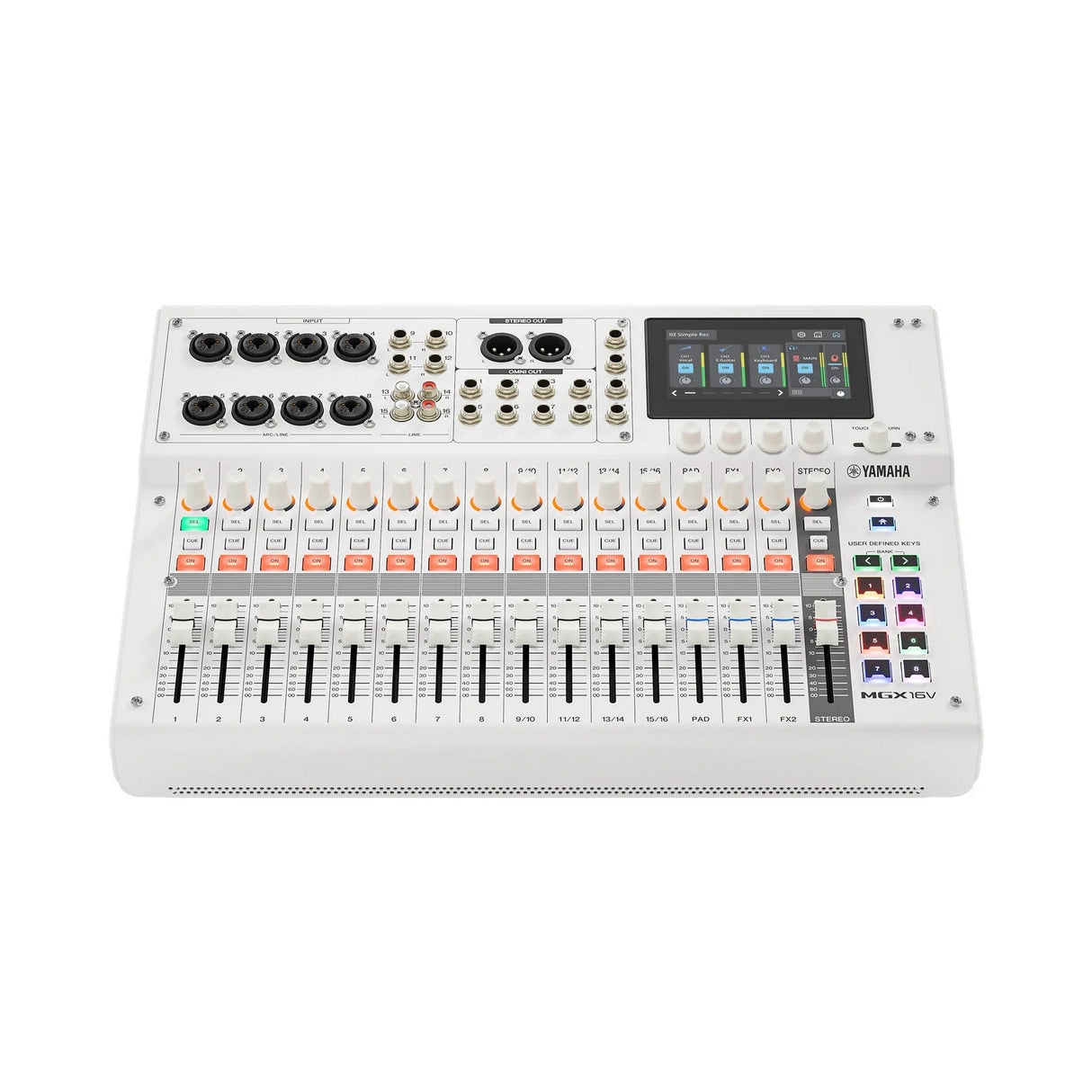

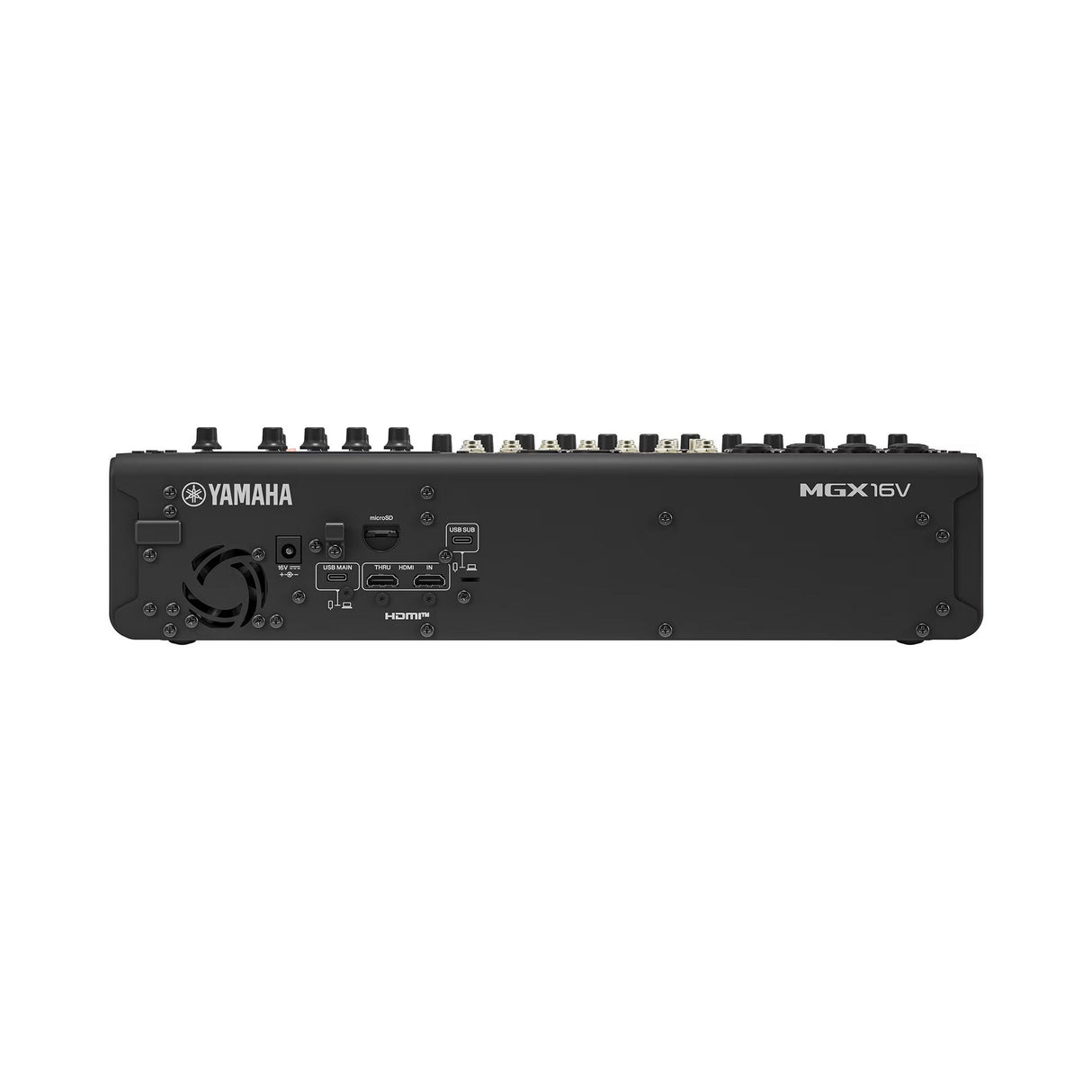

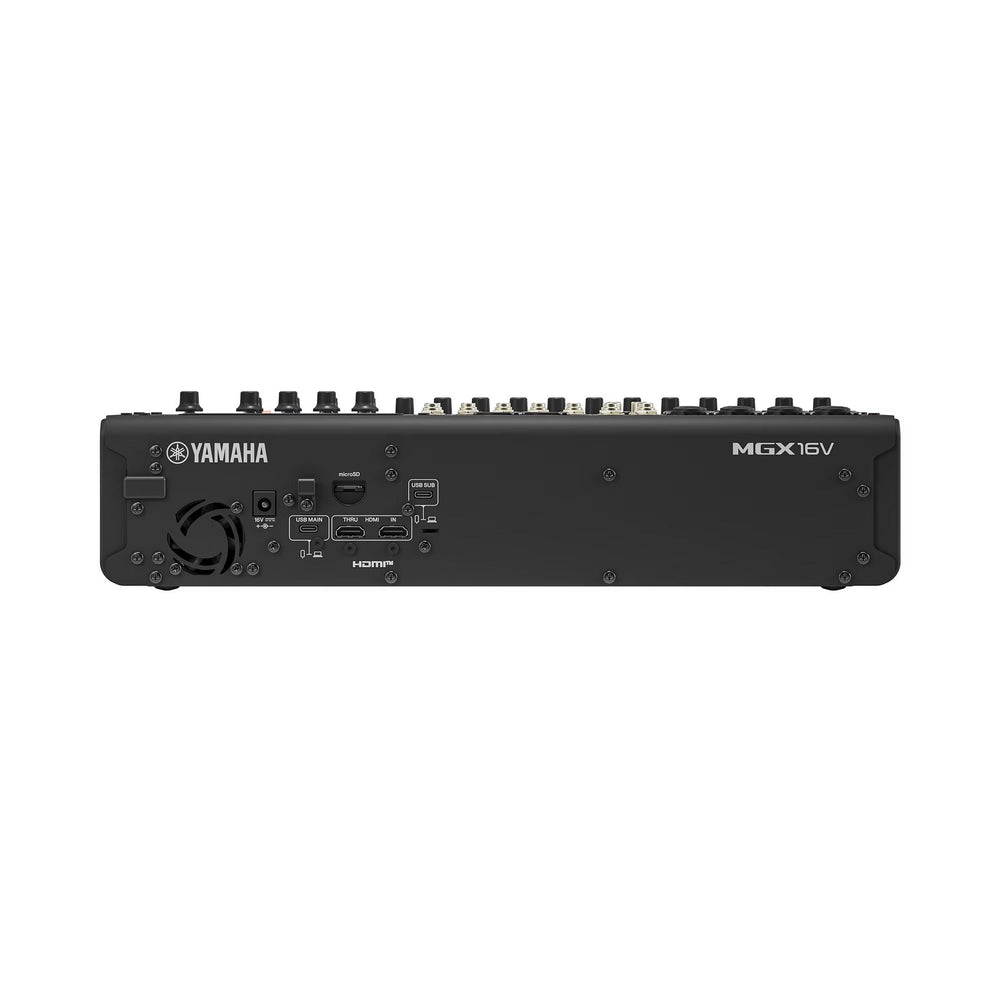

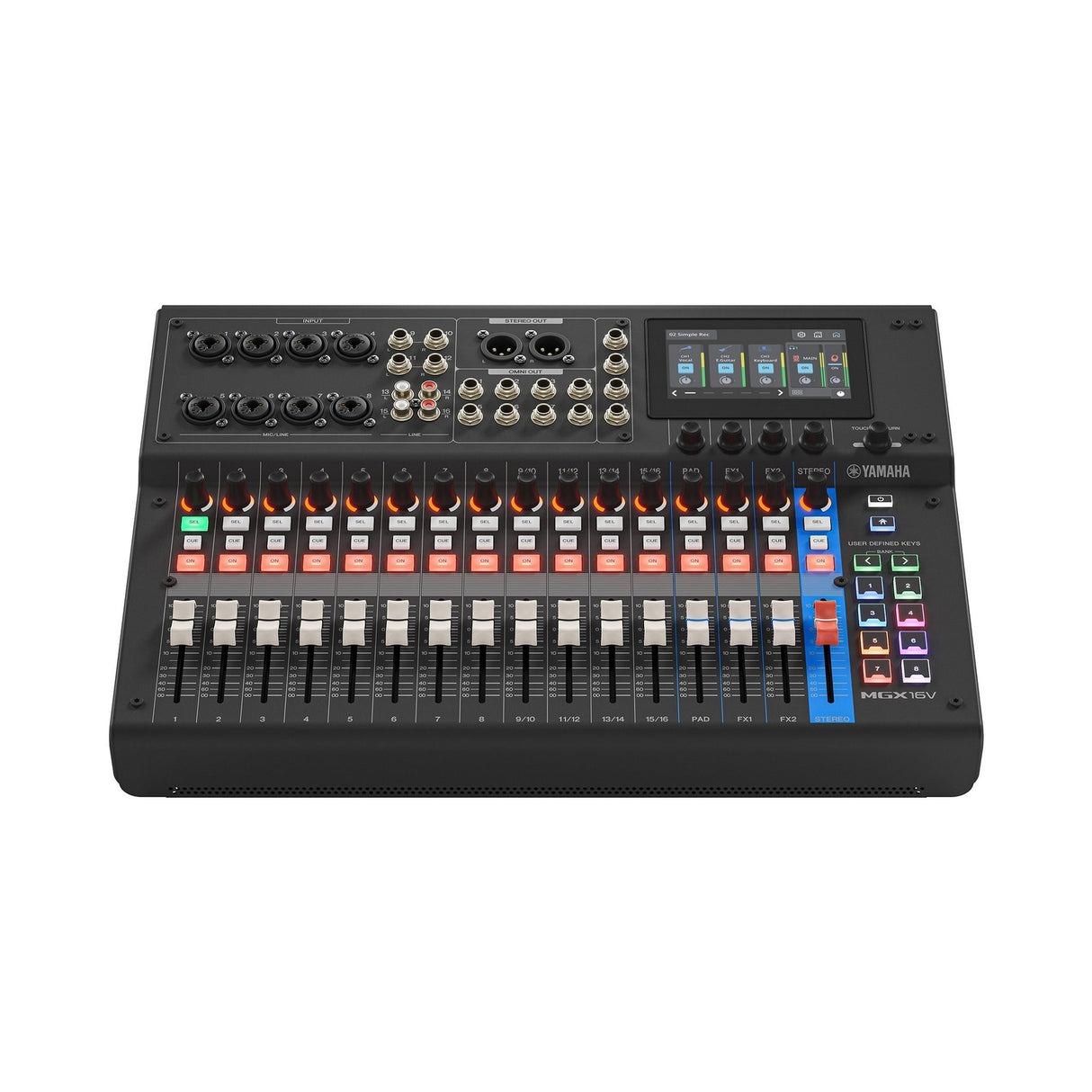

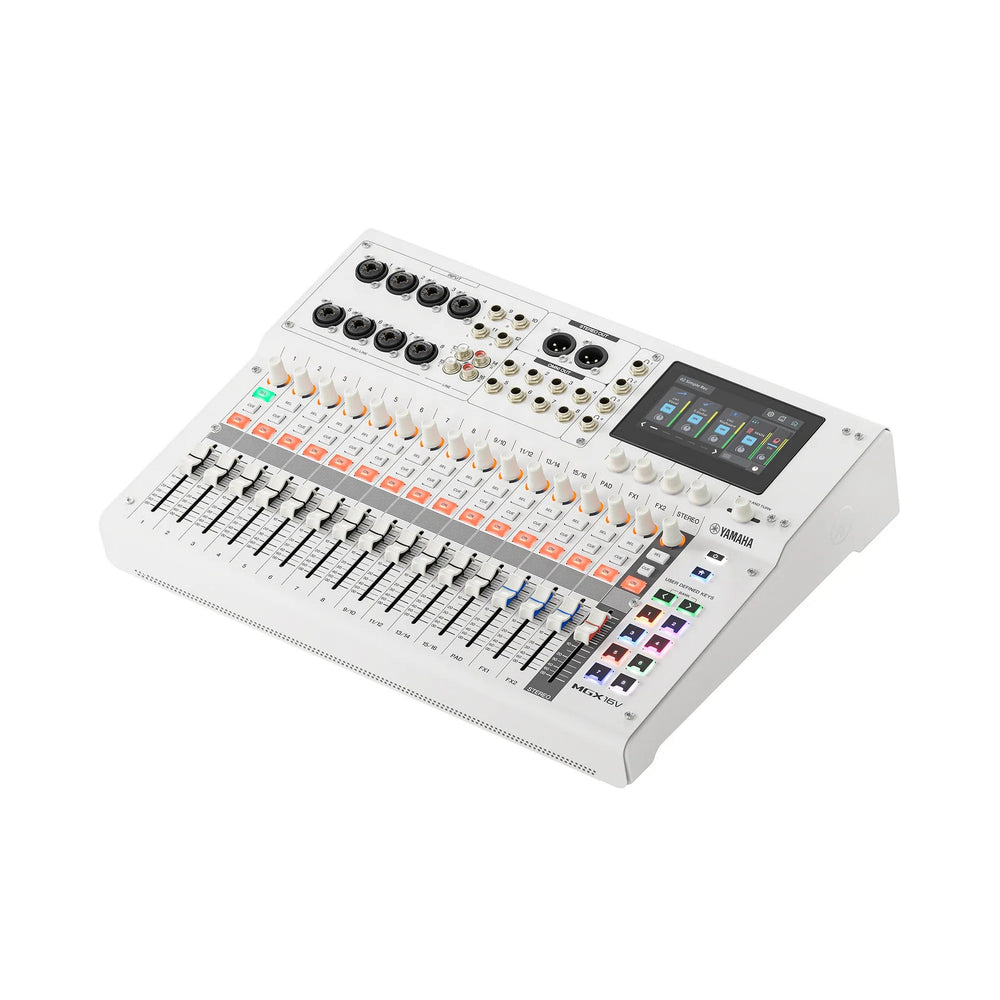

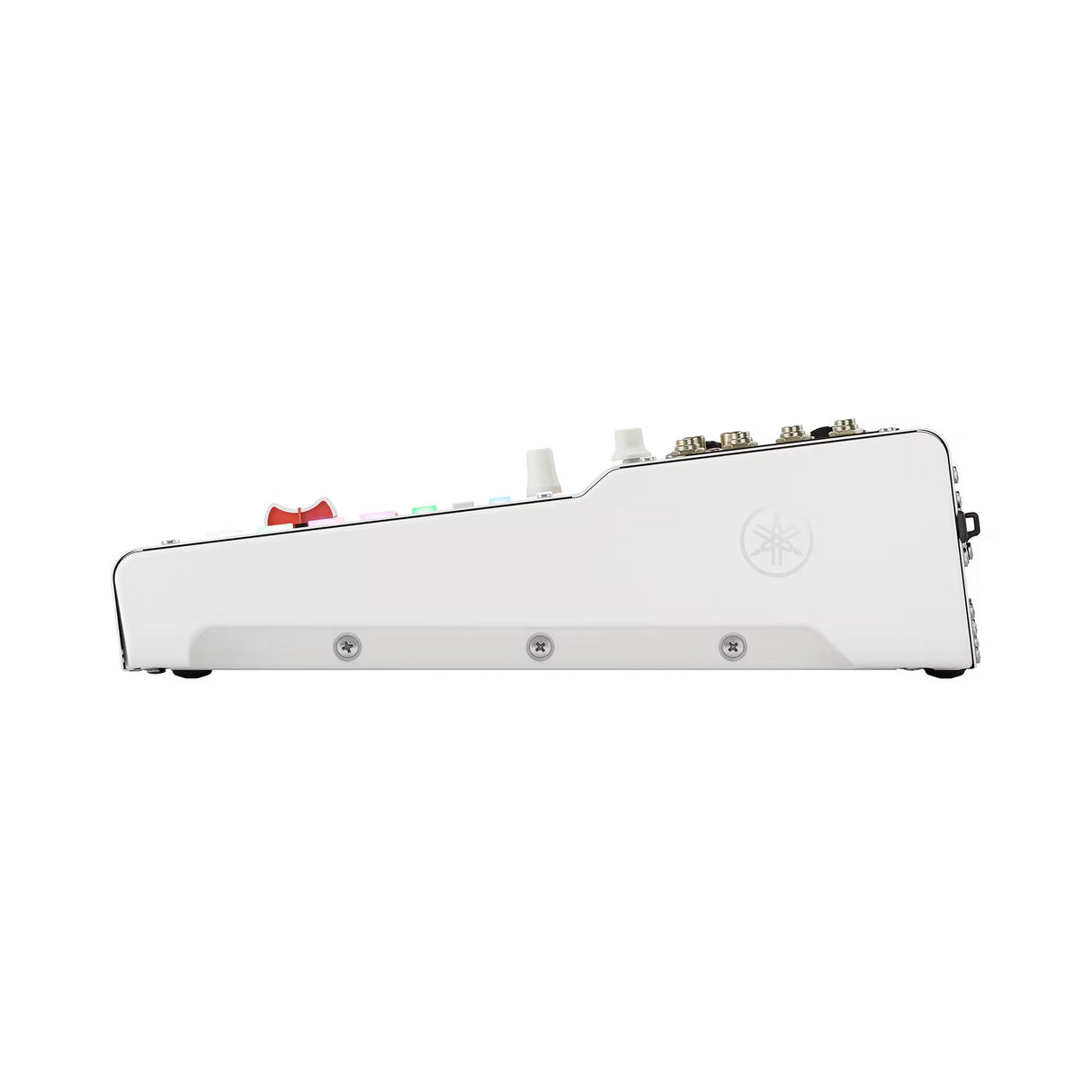

Yamaha MGX16V 16-Channel Digital Mixing Console with Video Interface
The Yamaha MGX16V is a compact digital mixing console designed for live sound, recording, streaming, and content creation applications. It combines professional Yamaha audio performance with flexible routing and integrated HDMI-USB audio and video capture.
This digital mixer features 16 channels, a 4.3-inch touchscreen, dedicated control knobs, and a comprehensive DSP engine for precise sound shaping. With USB, HDMI, Bluetooth, and microSD support, it enables seamless audio and video integration across production environments.
Built for engineers, creators, and performers, the MGX16V delivers reliable operation, intuitive control, and powerful processing in a portable form factor. Its advanced assistive features and extensive connectivity make it well suited for live events, studios, installed systems, and hybrid production workflows.
Key Features
- 16-channel digital mixer: 8 mono and 4 stereo channels plus Sound Pad and FX returns.
- Touchscreen control: 4.3-inch touchscreen with five control knobs.
- Integrated video interface: HDMI-to-USB audio and video capture with HDMI pass-through.
- Built-in DSP: Gate, compressor, EQ, effects, and amp simulation processing.
- USB audio interface: Multi-channel USB MAIN and SUB I-O for recording and playback.
- Flexible recording: microSD card support for multitrack and stereo recording.
- Bluetooth audio input: Wireless audio input via Bluetooth 5.0.
Technical Specifications
- Fader configuration: 15 plus 1 non-motorized fader
- Inputs: 8 mic line combo, 4 TRS line, 4 RCA line
- Outputs: 2 XLR, 8 TRS, 4 headphone outputs
- Buses: 8 MIX, 2 FX, 1 CUE, 1 STEREO
- USB MAIN I-O: 22 inputs and 22 outputs at 32-bit 96 kHz
- USB SUB I-O: 2 inputs and 2 outputs at 16-bit 48 kHz
- microSD recording: Up to 16-track recording and 2-track playback
- Power consumption: 38.4 W
- Operating temperature: 0 to 40 C
Included Accessories
- Start Guide
- Safety Guide
- Steinberg Software License Card
- AC Power Adapter PA-300C
- Power Cord
