Description

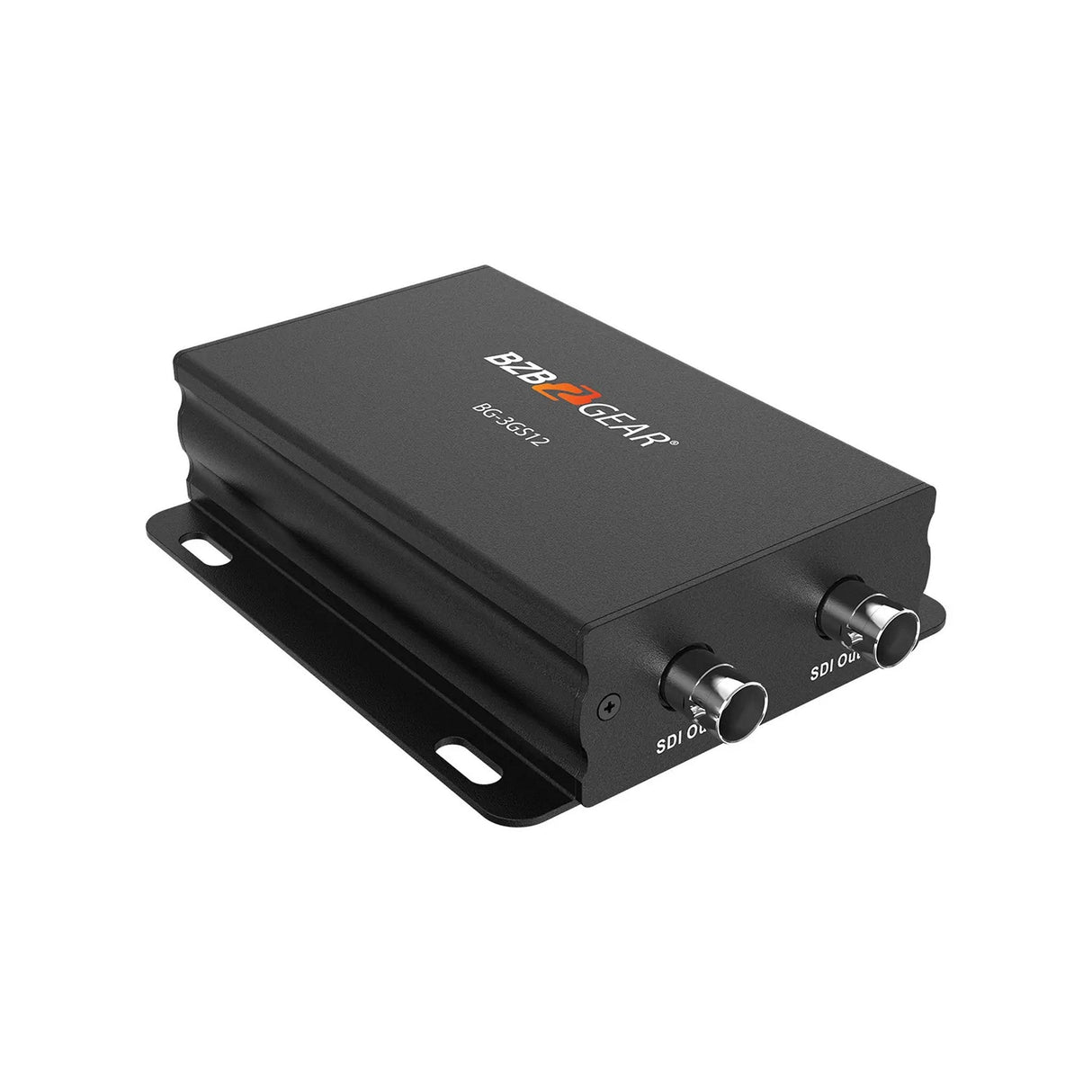

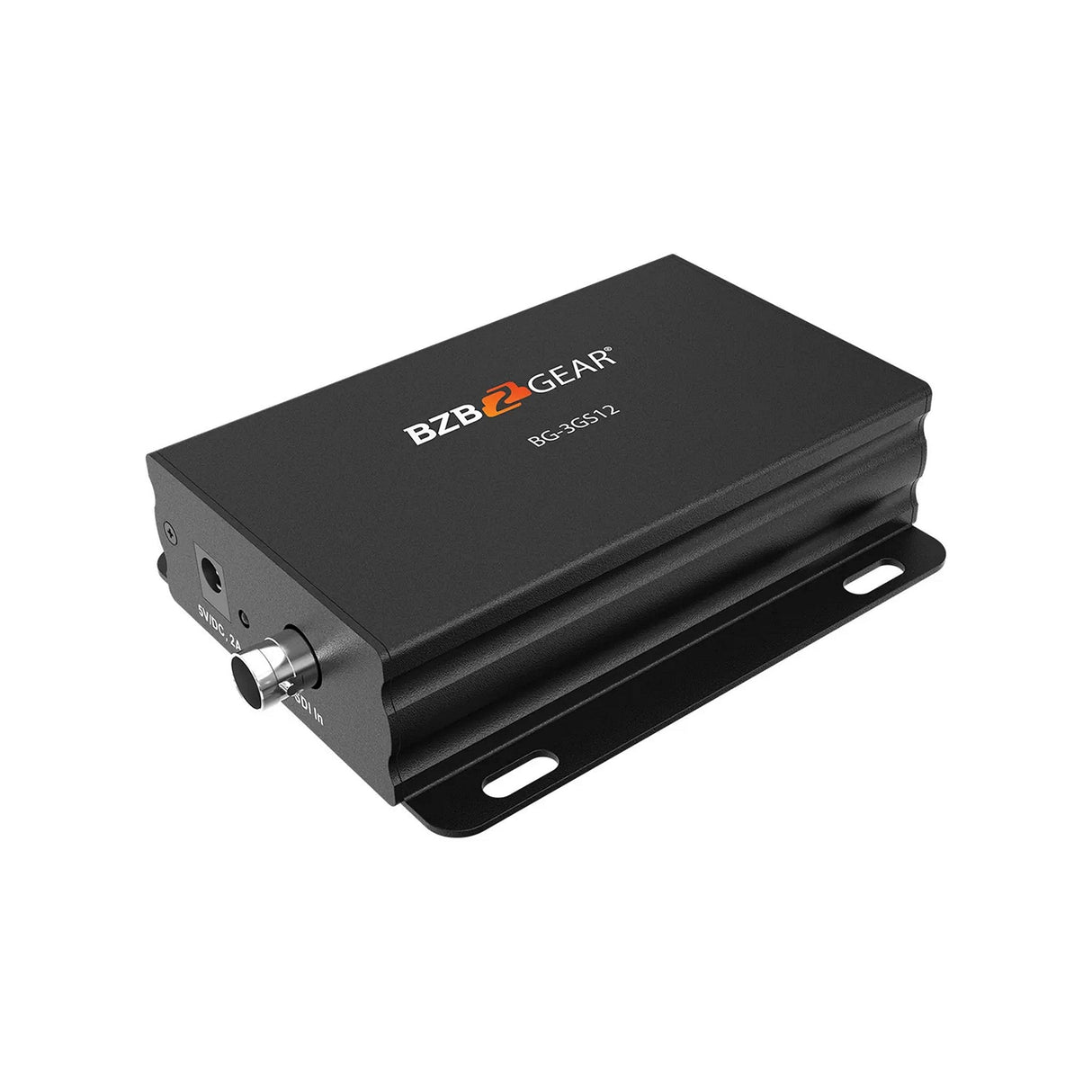

BZBGEAR BG-3GS12 1080P FHD 3G-SDI 1x2 Splitter/Distribution Amplifier
The BG-3GS12 is a 1x2 3G-SDI splitter that splits one SDI input to two SDI outputs simultaneously. With a signal relocking feature it can also extend a video signal for long distance transmission. This reliable and powerful tool provides consistent connections in a variety of different scenarios, like adding a second output for monitoring video feeds on a separate display, splitting the signal and cascading to multiple displays, or extending an SDI signal.
Connectivity
The BG-3GS12 supports a maximum resolution of 1080p@60Hz with 3G-SDI signal. The device also supports a wide range of data rates from 270 Mbps at the low end to a maximum bandwidth of 2.97 Gbps. There is also support for multiple deep color settings such as 8 bit, 10 bit, and 12 bit.
This splitter can also maintain SD signals for up to 200m (656ft), HD signals 120m (393ft), and 3G up to 80m (262ft). Multiple video resolutions are also available with this unit, including SD 480i, 576i and 625i, HD 720p@24/25/30/50/60, 1080i@50/60, 1080p@24/25/30, and 3G 1080p@50/60. It further supports multiple color spaces, including RGB or YCbCr 4:4:4 sampled , YCbCr 4:2:2 or 4:2:0 sampled.
Quality SDI connectors provide reliability due to their interlocking design. This prevents SDI cables from being dislodged from the unit via accidental forces or from loose connections.
Key Features
- 1080p@60 Support Crystal clear images with resolutions up to 1080p@60Hz
- Locking Connectors Quality and reliable locking SDI connectors ensure your cables are not accidentally unplugged

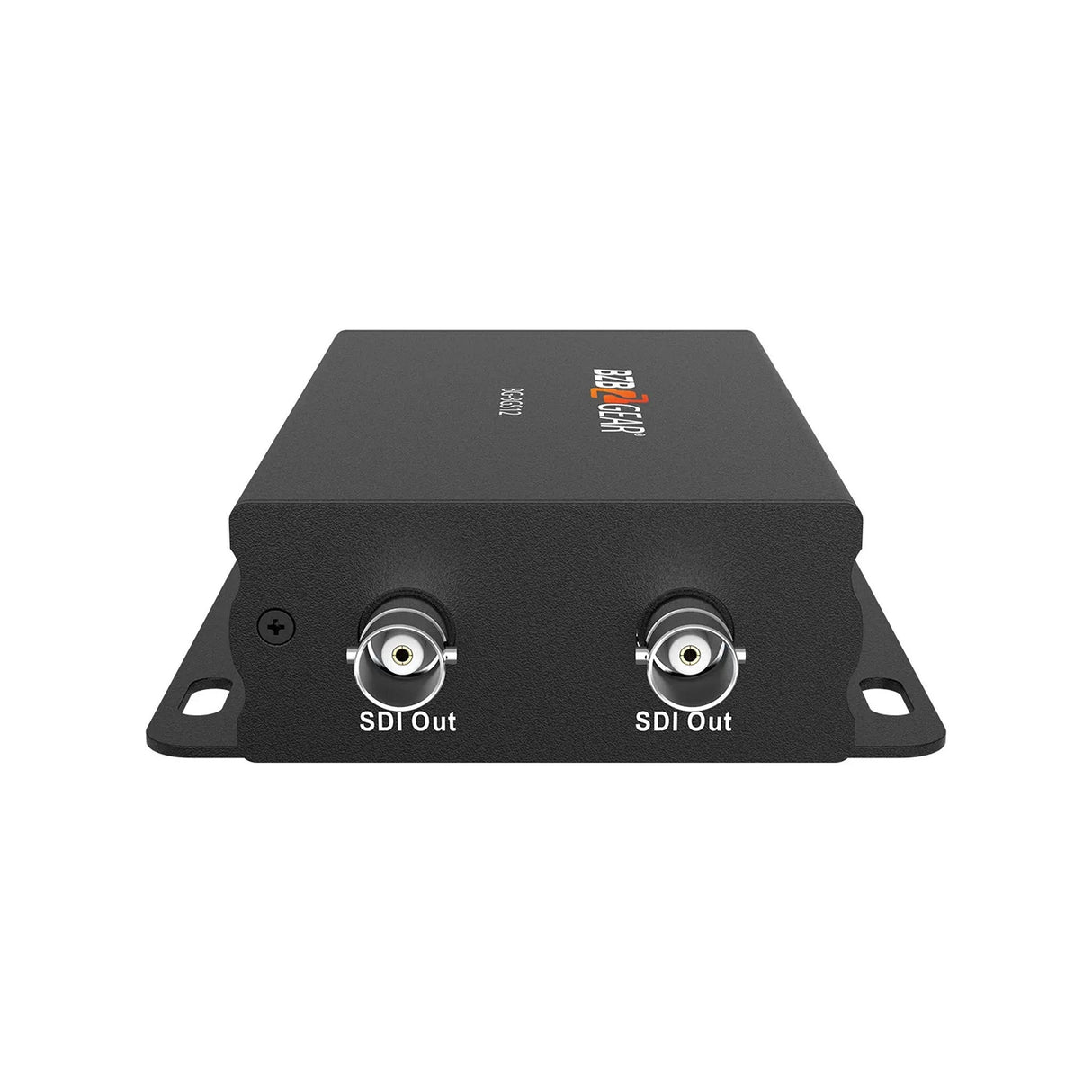

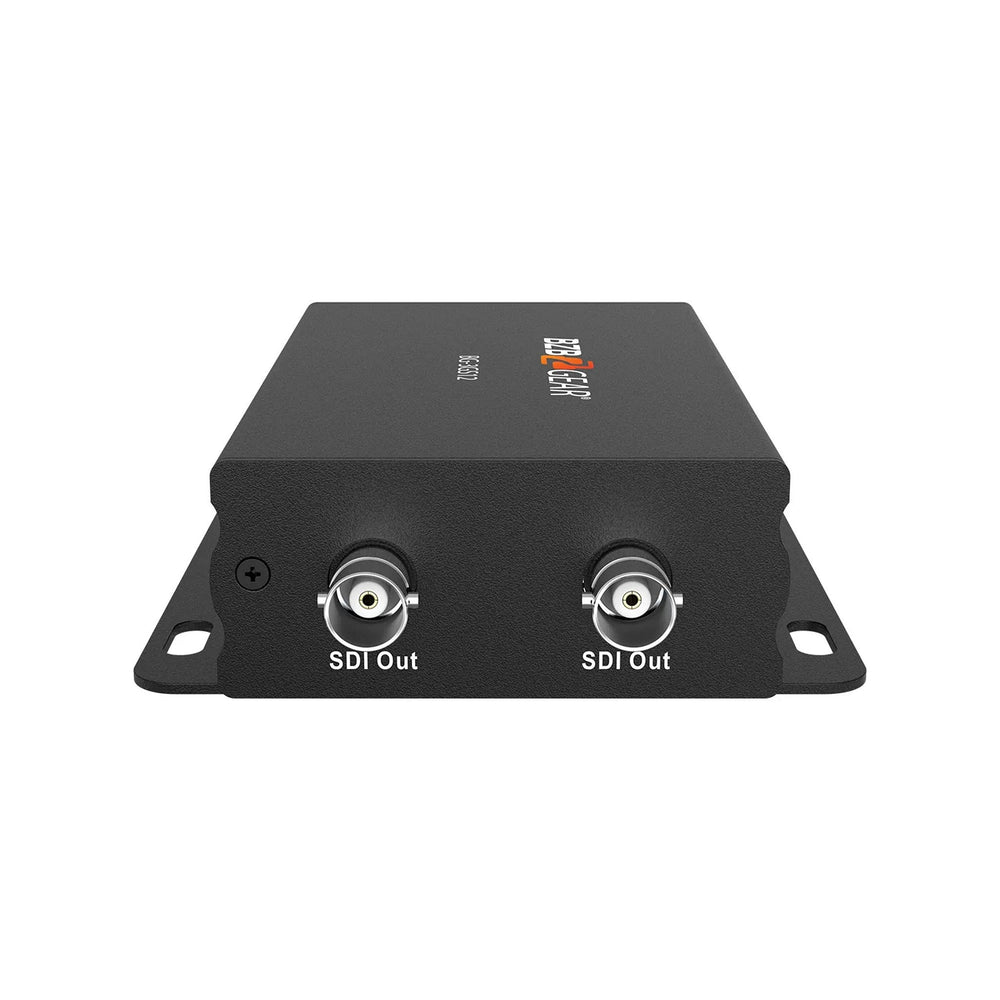

- Multiple Outputs Split a single SDI source up to 2 different SDI displays or devices
- Easy to Use Simple for anyone to learn
- Portable Ideal for any on-the-go kit
- Rigid Design Durable metal structure built to withstand years of operation
- Supports HD signal distances up to 120m
- Supports multiple video resolutions
- Multiple color spaces including RGB or YCbCr 4:4:4
What's in the Box
- 1x BG-3GS12 3G SDI Splitter
- 1x Power adapter 5V@2A
- 1x User Manual
