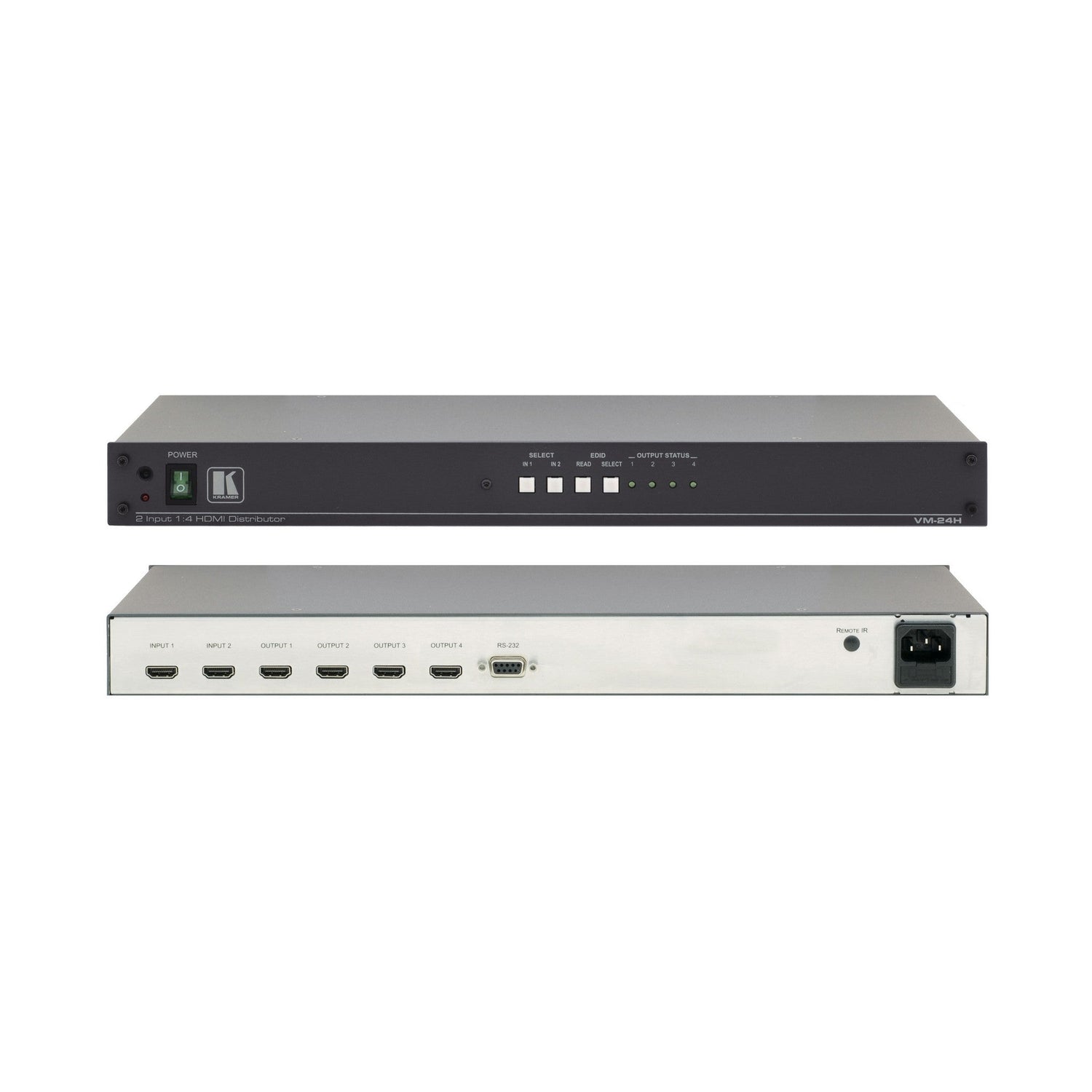

Kramer VM-24H 2x1:4 HDMI Switchable Distribution Amplifier

Kramer VM-24H 2x1:4 HDMI Switchable Distribution Amplifier

The Kramer VM-24H is a high-performance distribution amplifier designed to manage HDMI signals with exceptional efficiency. This versatile unit allows users to select between two HDMI input sources and distribute the chosen signal to four identical outputs. By reclocking and equalizing the input signals, the VM-24H ensures optimal signal integrity and stability across all outputs, making it an ideal solution for professional AV installations requiring reliable HDMI signal distribution.

Engineered to support a maximum data rate of 6.75Gbps (2.25Gbps per graphic channel), the VM-24H is fully compatible with HDTV standards and adheres to HDCP compliance. It accommodates advanced HDMI features such as Deep Color, x.v.Color™, Lip Sync, and CEC, ensuring seamless integration with the latest high-definition video and audio equipment. Additionally, the unit supports 3D pass-through, catering to contemporary multimedia applications that demand 3D content distribution.

The VM-24H incorporates Kramer's I-EDIDPro™ technology, an intelligent EDID handling and processing algorithm that guarantees plug-and-play operation for HDMI systems. This feature simplifies the integration process by ensuring that the connected display devices communicate effectively with the source, optimizing the overall system performance. With active output LED indicators, users can easily monitor the status of each output, enhancing the user experience and facilitating troubleshooting when necessary.

Key Features

• 2x1:4 HDMI switchable distribution amplifier
• Reclocks and equalizes selected input signal for optimal output
• Supports data rates up to 6.75Gbps (2.25Gbps per graphic channel)
• HDTV compatible and HDCP compliant
• Supports advanced HDMI features: Deep Color, x.v.Color™, Lip Sync, CEC
• 3D pass-through capability
• I-EDIDPro™ for intelligent EDID handling and processing
• Active output LED indicators for easy status monitoring
• Front panel, RS-232, and IR switching controls
• Worldwide power supply compatibility (100-240V AC)
• Standard 19” rack mount size (1U); rack ears included

Technical Specifications

Inputs: 2 HDMI connectors

Outputs: 4 HDMI connectors

Bandwidth: 6.75Gbps (2.25Gbps per graphic channel)

Compliance with HDMI Standard: Supports HDMI and HDCP

Controls: EDID SELECT, EDID READ, IN 1, IN 2 buttons; RS-232; IR

Indicator LEDs: Output status LEDs

Power Consumption: 100-240V AC, 50/60Hz, 16VA

Product Dimensions: 19" x 7.20" x 1U (19" x 7.20" x 1.72") (W x D x H)

Product Weight: Approximately 3.5 lbs

Shipping Dimensions: 21.65" x 10.87" x 4.21" (W x D x H)

Shipping Weight: Approximately 5.5 lbs

What’s Included

• Kramer VM-24H 2x1:4 HDMI Switchable Distribution Amplifier
• Power cord
• Null-modem adapter
• Windows®-based control software
• IR remote control
• Rack mounting ears
