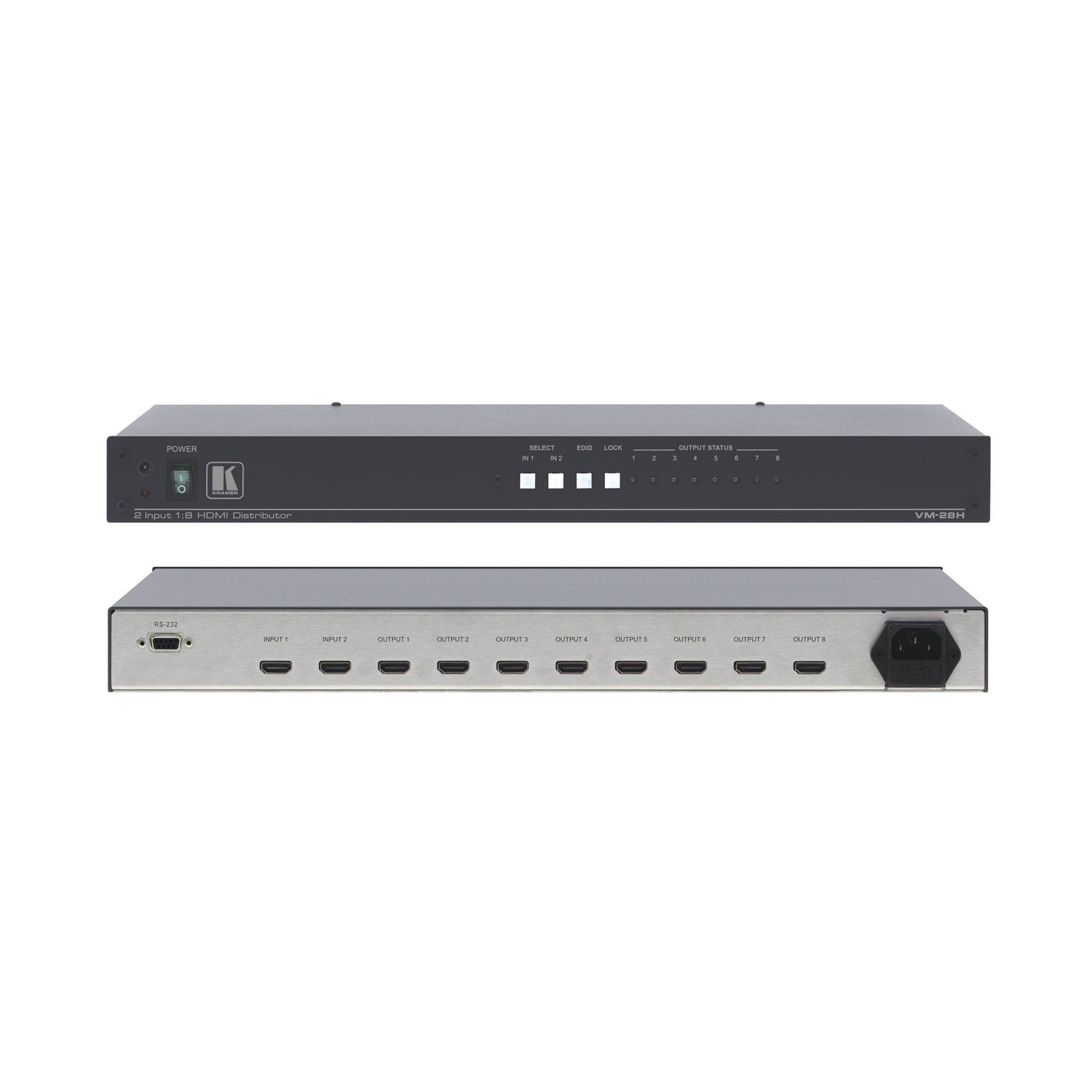

Kramer VM-28H 2x1:8 HDMI Switchable Distribution Amplifier

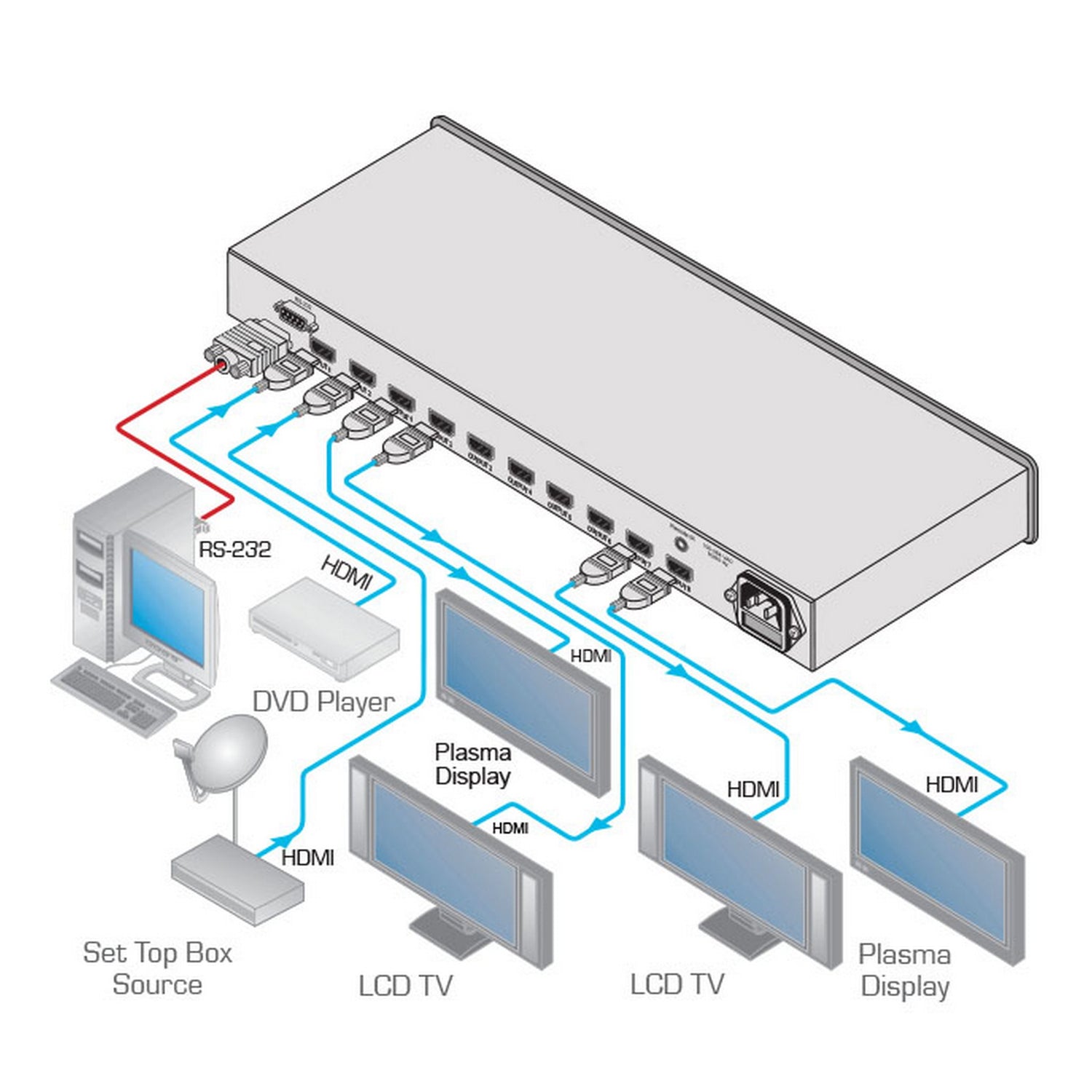

The Kramer VM-28H is a high-performance 2x8 HDMI distribution amplifier designed for applications requiring multiple HDMI outputs. It supports HDMI 2.0 and HDCP compliance, offering a bandwidth of 6.75Gbps. This unit is ideal for professional environments such as control rooms, conference rooms, or digital signage where multiple displays need to show the same signal. Its compact, durable 1U chassis fits seamlessly in rack-mount setups.
Key Features:
- Inputs: 2 HDMI connectors
- Outputs: 8 HDMI connectors
- Bandwidth: 6.75Gbps (2.25Gbps per graphic channel)
- Supports HDMI and HDCP standards
- EDID, IN 1, IN 2, IR remote controller and LOCK buttons for control
- Indicator LEDs for output status
Technical Specifications:
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: -40° to +70°C (-40° to 158°F)
Humidity: 10% to 90%, RHL non-condensing
Power Consumption: 100-240V AC, 50/60Hz 28VA
Dimensions: 19" x 7.20" x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
Weight: 1.8kg (4.1lbs) approx.
Shipping Dimensions: 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21") W, D, H
Shipping Weight: 3.0kg (6.6lbs) approx.
Package Contents:
- Power cord
