Headliner HL90100 R2 2-Channel Analog Rotary DJ Mixer
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

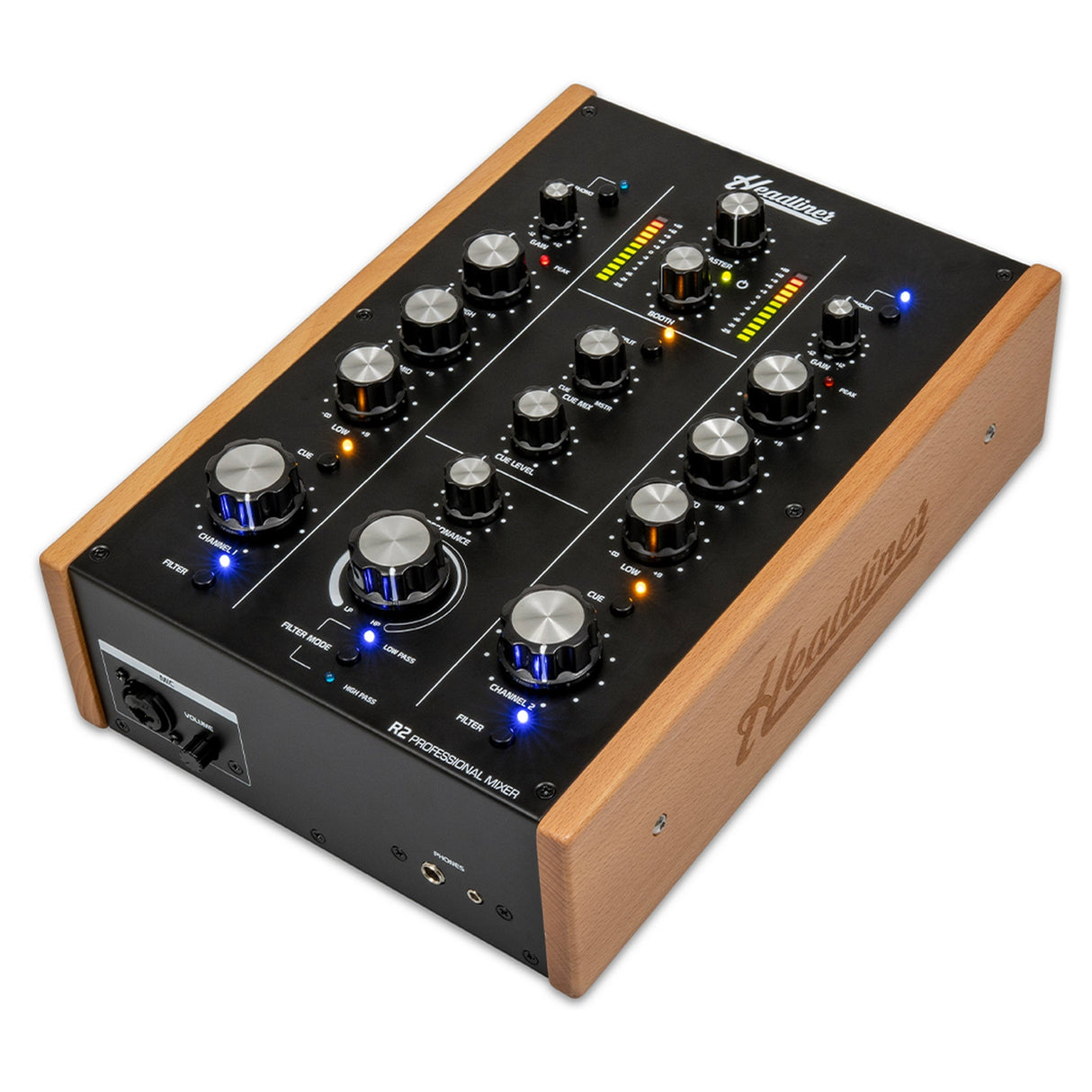

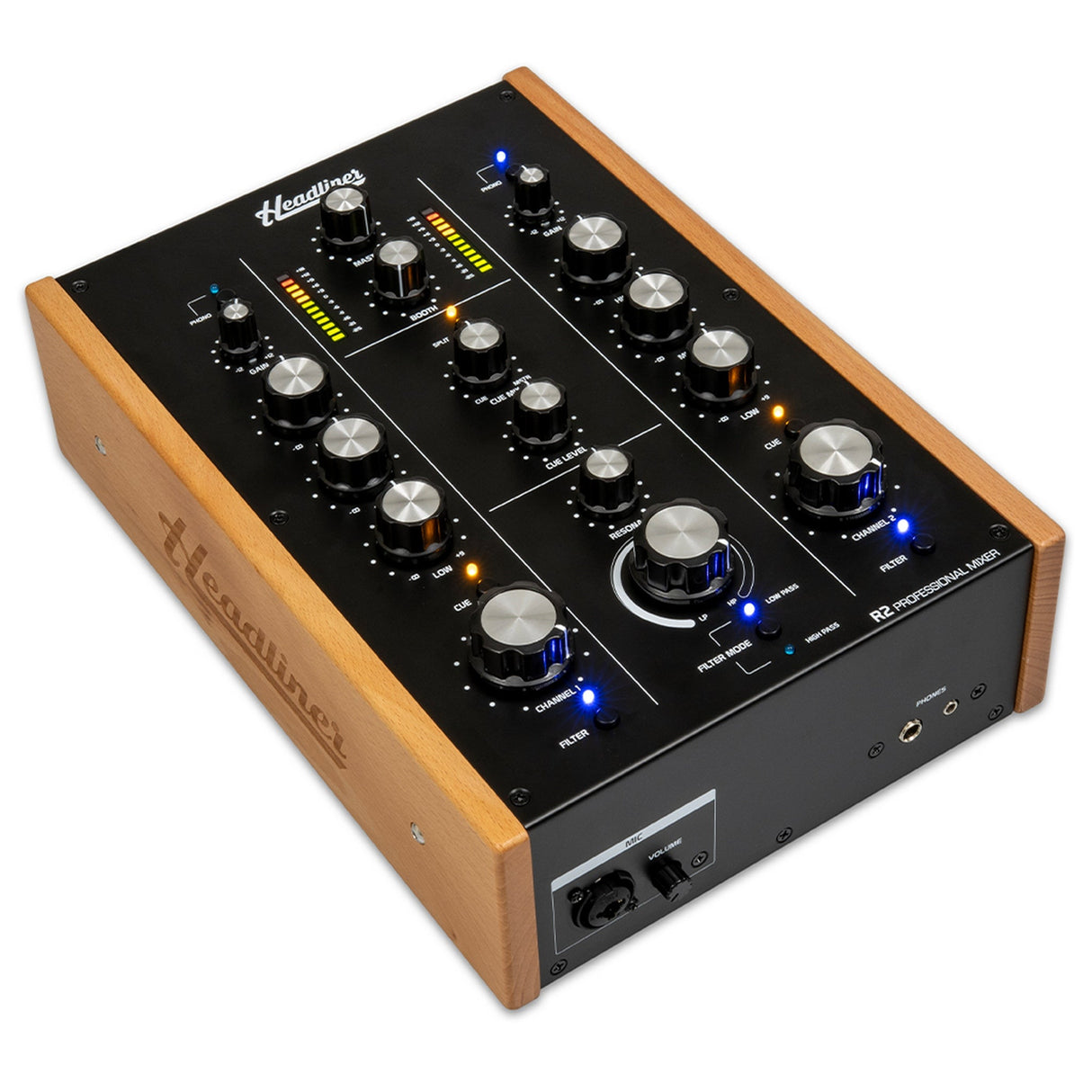

Headliner HL90100 R2 2-Channel Analog Rotary DJ Mixer
Headliner R2 is a two channel analog rotary DJ mixer designed for classic DJ and vinyl based performance environments. It enables precise level control and tonal shaping for DJs who prefer rotary mixing workflows, supporting traditional club and home DJ setups. This makes it ideal for house, techno, disco, and soul performances where smooth transitions and hands on control are critical.
The R2 features fully analog signal paths with high pass and low pass filter modes, three band isolator EQ on each channel, and independent master and booth outputs. High quality internal components and ALPS potentiometers support consistent signal handling across line and phono sources.
Built with a sturdy metal chassis and stained wood side panels, the R2 supports long term reliability and stable operation in demanding DJ environments. Its modular internal construction and external power supply help maintain audio performance while supporting flexible system integration.
Key Features

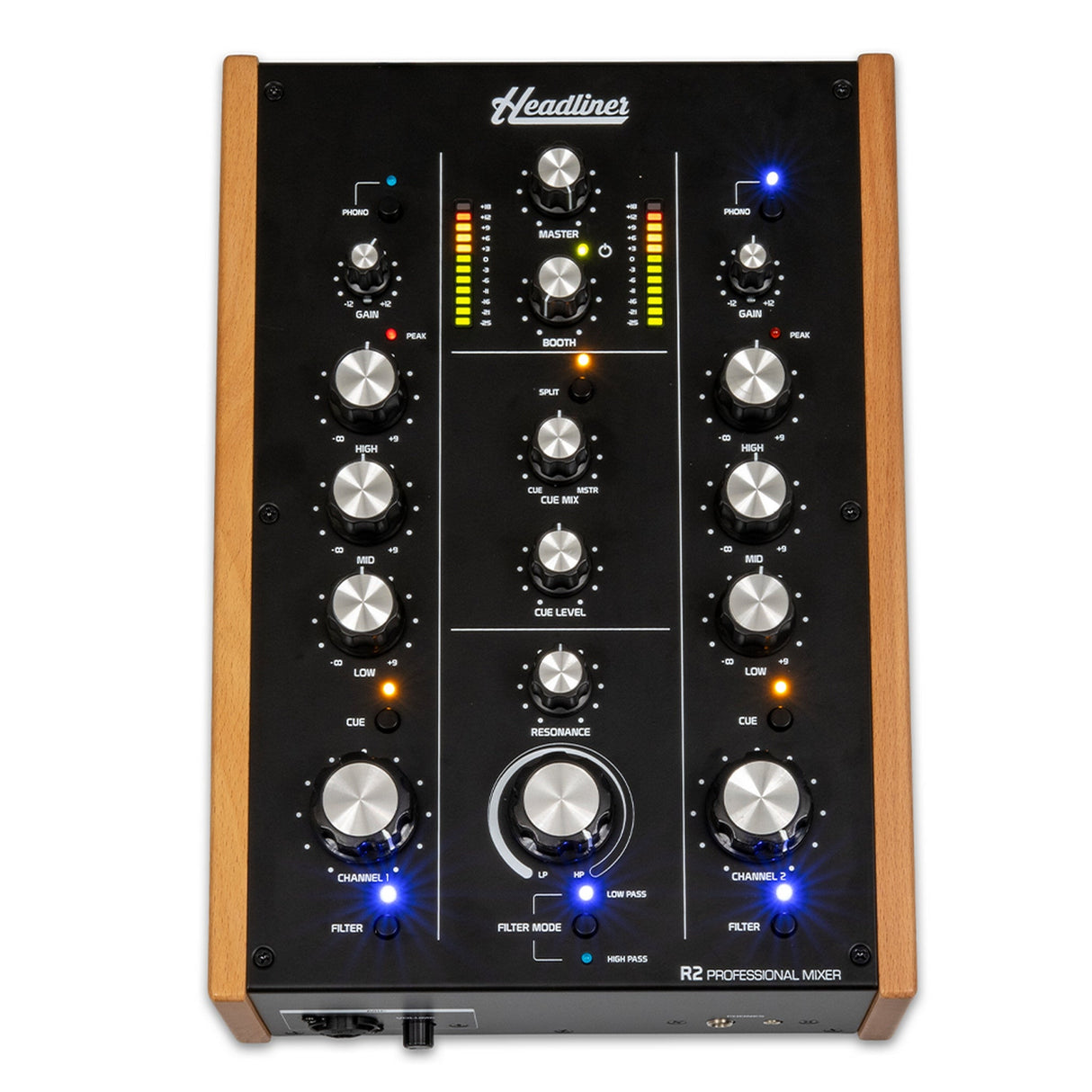

- Two Channel Rotary Mixer: Analog rotary DJ mixer with dedicated level controls per channel
- Three Band Isolator EQ: Channel isolator EQ with peak LED indicators
- Selectable Analog Filters: High pass and low pass filter modes with frequency and resonance control

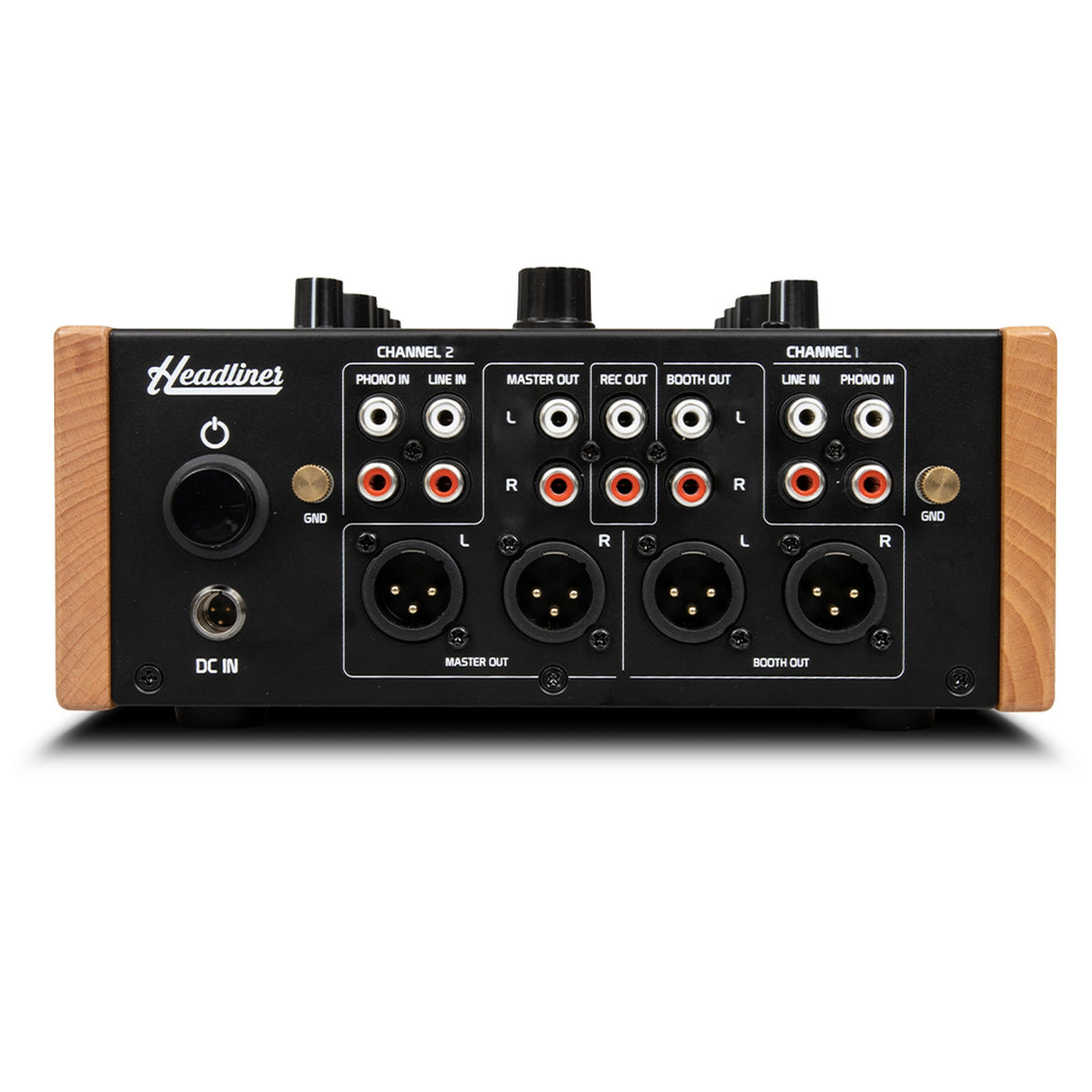

- Flexible Output Routing: Independent master and booth outputs with balanced XLR and unbalanced RCA connections
- Classic Build Design: Metal enclosure with stained wood side panels and modular internal construction
Technical Specifications
Channels
2

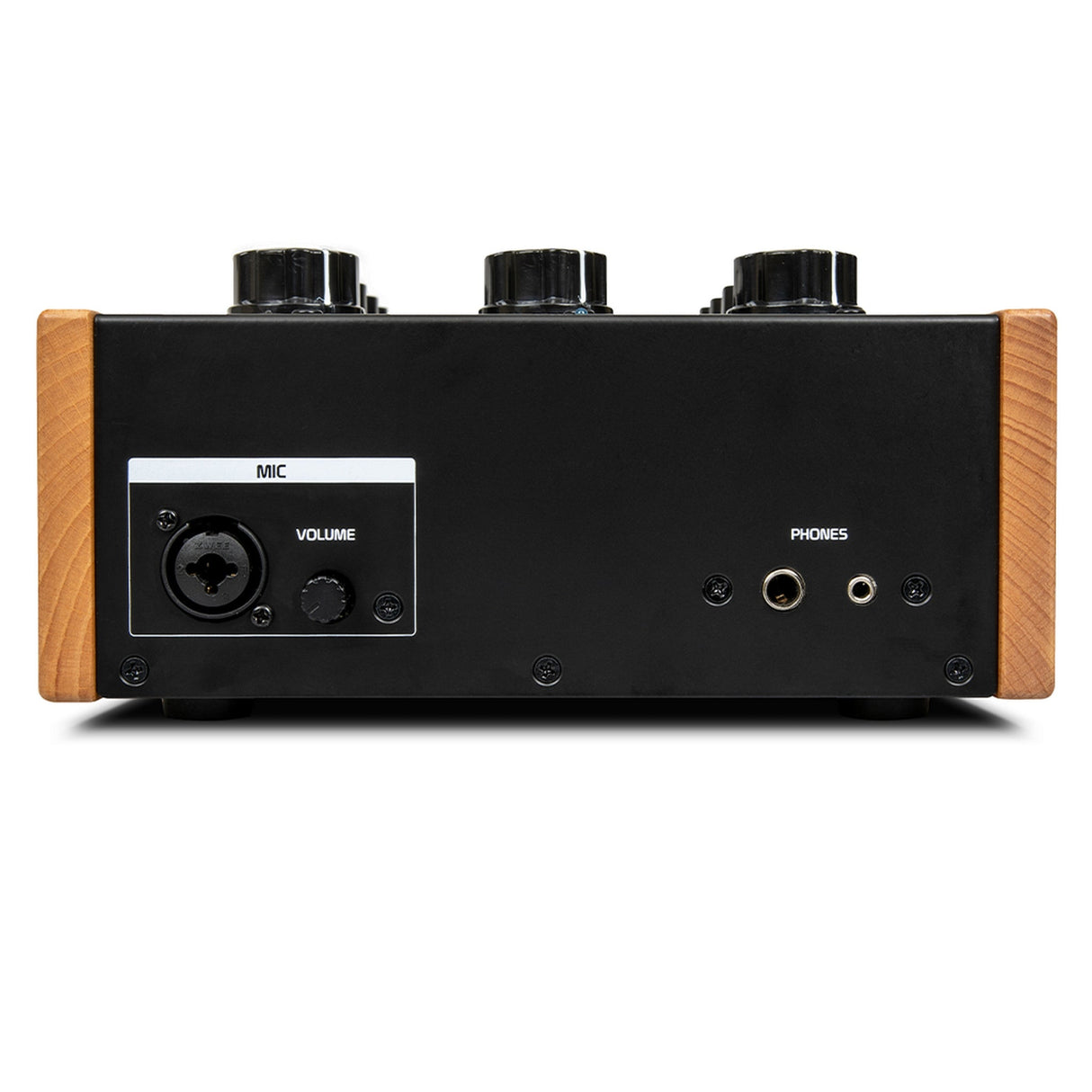

Microphone Input
Nominal Input Level: -50dBu
Frequency Response: 20Hz - 20kHz (+/-0.1dB)
THD + N: < 0.1%
Input Impedance: 1.2 kOhm
Line Inputs
Nominal Input Level: -10dBV (-7.8dBu)
Gain Range: -12dB to +12dB
Frequency Response: 20Hz - 20kHz (+0/-0.5dB)
THD + N: < 0.05%
Input Impedance: 10 kOhm
Phono Inputs
Nominal Input Level: -40dBu (1kHz)
Gain Range: -12dB to +12dB
Active RIAA equalization
THD + N: < 0.05%
Input Impedance: 47 kOhm
Input capacitance: 100pF
Single stage Phono Preamp
Ceramic capacitors
Main Outputs
Nominal Output Levels, balanced: +4dBu
Maximum Output Level, balanced: +20dBu
Nominal Output Levels, unbalanced: -10dBV (-7.8dBu)
Maximum Output Level, unbalanced: +12dBu
Frequency Response: 20Hz - 20kHz (+0/-1.5dB)
Residual noise: < -86dBu (Line to Master A-Weighted)
Dynamic Range: > 100dB (A-Weighted)
Crosstalk: < -65dB
THD + N: < 0.05%
Headphone Output
Maximum Output Level: 70mA per channel into 150Ω
Minimum Load Impedance: 32 Ohms per channel
Power Supply
Type: External with locking mini-XLR connector
Input Voltage: 100-240V ~ 50/60Hz
Output Voltage: +/-15V, 500mA
Dimensions
12.6" x 8.6" x 4.2"
320 x 219 x 106 mm
Weight
2.8 kg
6.6 lbs
