Description

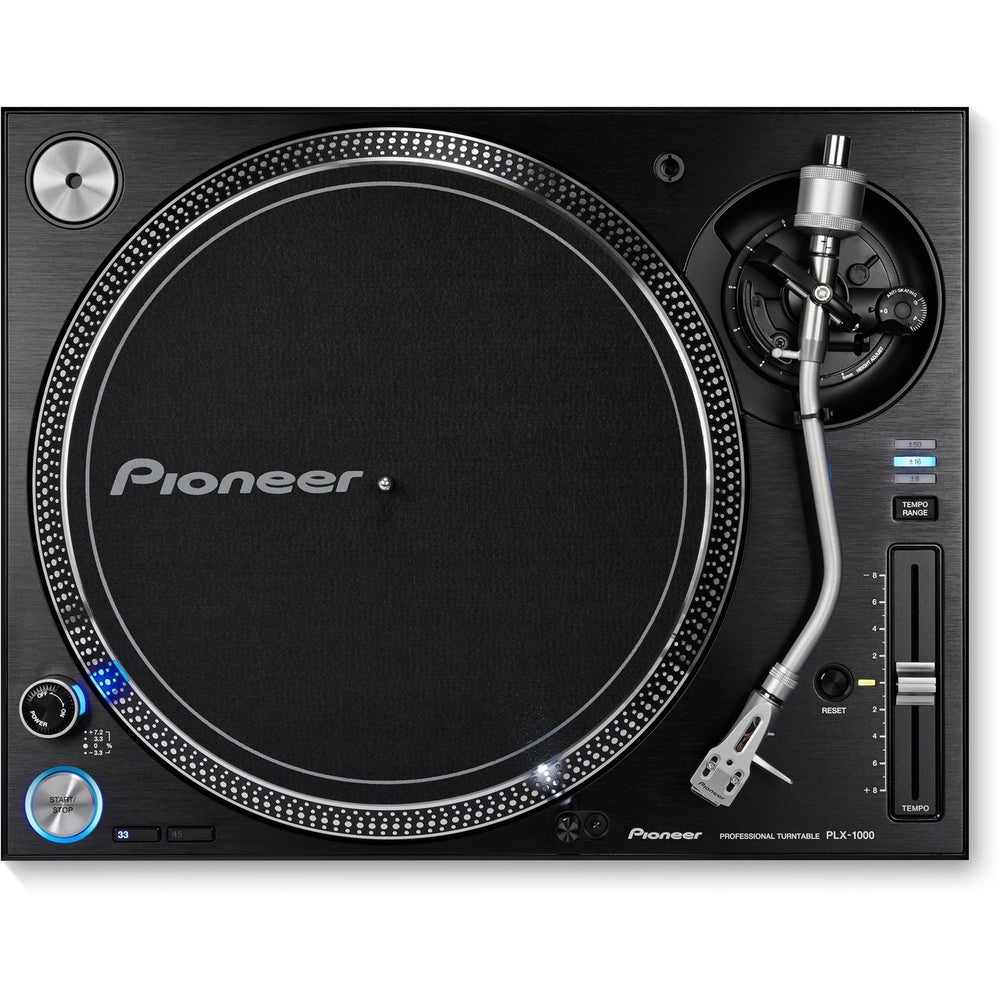

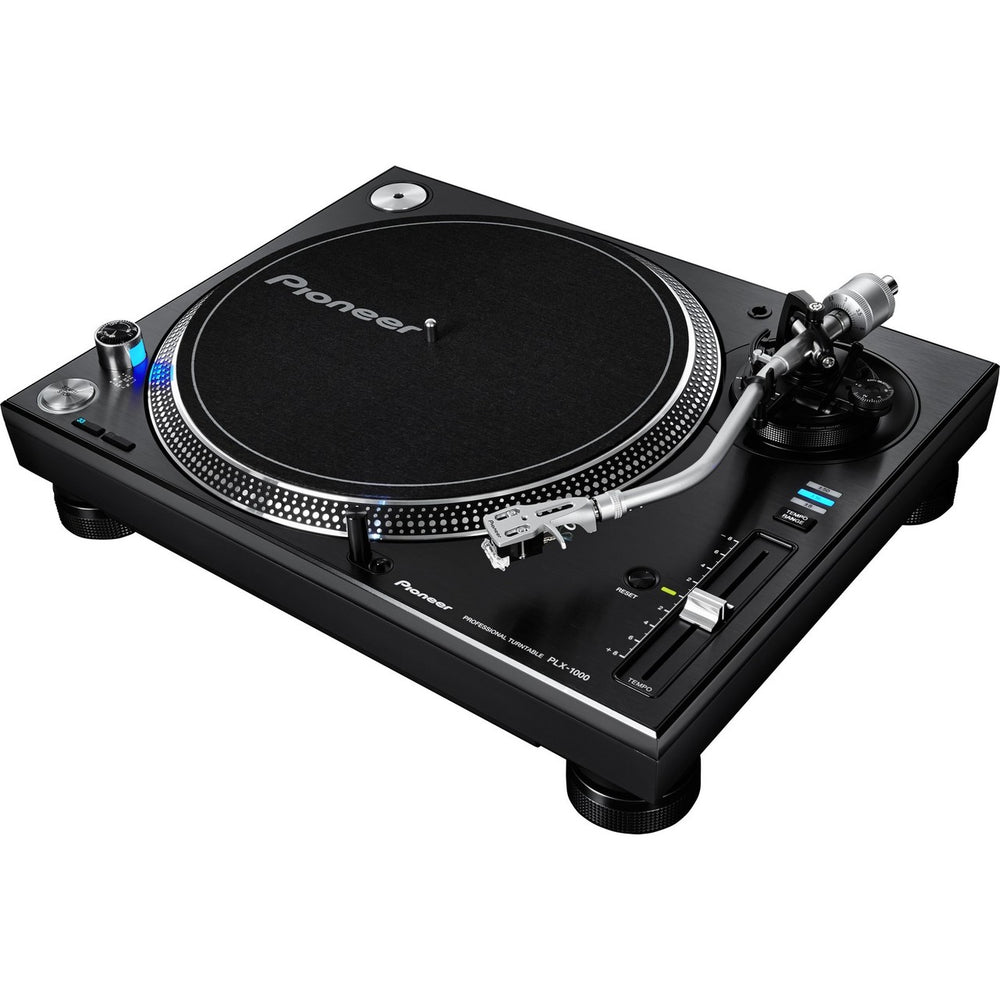

Pioneer PLX-1000 High Torque Direct Drive Turntable Black
The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback.
Key Features
- The high-torque direct drive ensures stable rotation and exceptional control and it reaches 33 rpm
in just 0.3 seconds thanks to a starting torque of 4.5kg/cm - The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base
- Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%

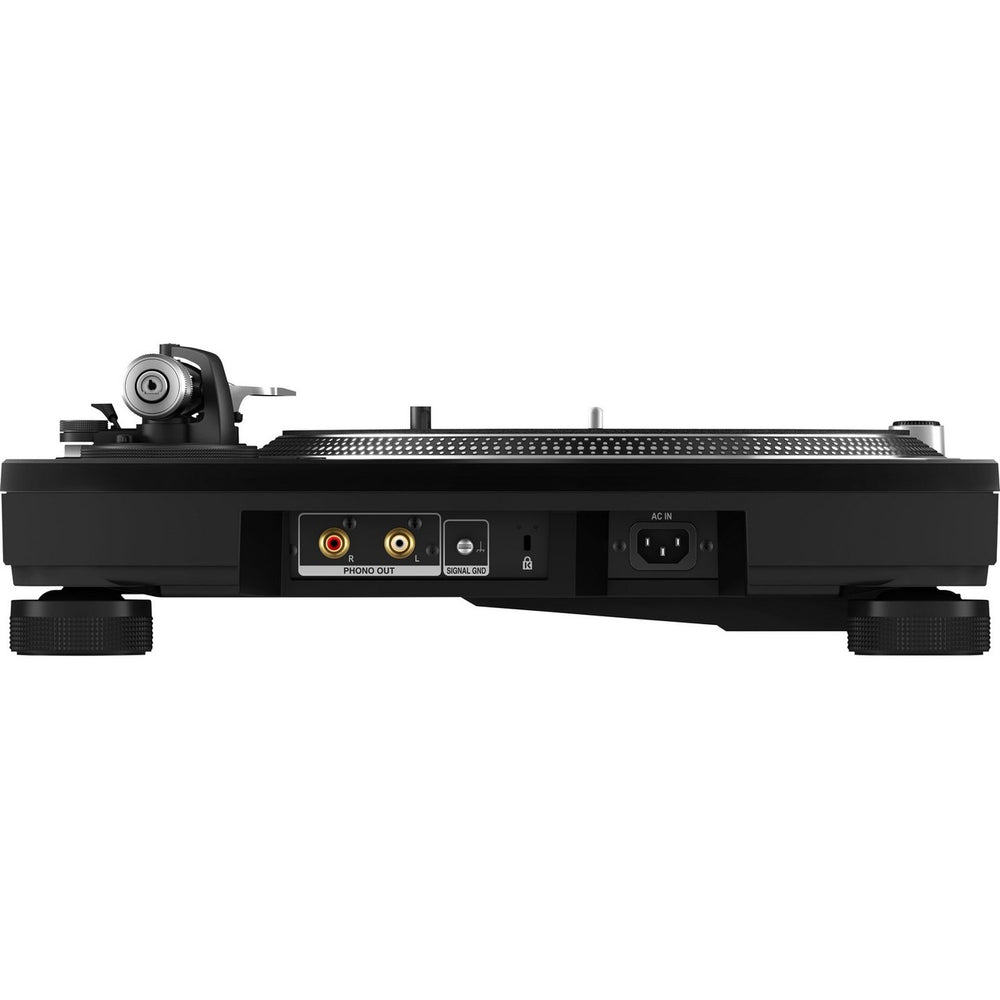

- Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality
- The rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations
Technical Specifications
Width
17.83 in
Height
6.26 in
Depth
13.9 in
Weight
32.19 lb
Drive Method
Quartz lock, servo-type, direct drive
Platter
Aluminium, die-casting diameter: 332 mm
Motor
3-phase, brushless DC motor
Braking System
Electronic brake
Rotation Speed
33-45 rpm
Rotation Adjustment Range
±8, ±16, ±50 %
Wow and Flutter
< 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)
Signal-to-Noise Ratio
70 dB
Starting Torque
> 4.5 kgf?cm
Start Time
Within 0.3 sec (at 33 rpm)
Arm Type
Universal type S-shape tone arm
Gimbal-supported type bearing structure
Static balance type
Overhang
0.59 in
Effective Length
9.06 in
Tracking Error
Within 3°
Height Adjustment Range
0.24 in
Stylus Pressure Variable Range
0-4 g (1 scale 0.1 g)
Cartridge Weight Single
3.5-13 g
Outputs
1 ANALOGUE (RCA)
