ADJ NET 8, 4-port DMX over Ethernet Node with Wired Digital Communication Network
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Presenting the ADJ NET 8, 4-port DMX over Ethernet node with Wired Digital Communication Network, an innovative 8-port DMX over Ethernet node that transforms your lighting control capabilities. This adaptable node supports ArtNet, sACN, DMX, and RDM protocols, serving as a seamless integration platform for your dynamic lighting configurations. Whether your preference leans towards traditional Line Voltage or the convenience of Power over Ethernet (PoE), NET 8 offers versatile power options to accommodate various installation requirements.
Setting up NET 8 is effortless, allowing you to choose between DHCP or Static IP Address settings. This flexibility ensures smooth integration of the node into your existing network infrastructure. What distinguishes NET 8 is its intuitive interface, facilitating configuration adjustments directly from the unit menu or conveniently through a web browser. Whether you are on-site or managing your lighting system remotely, NET 8 provides convenient control. This one-space, 19-inch rack-mountable node enables you to expand from one DMX universe to eight when used with an Artnet-compatible lighting controller.
Key Features
- 8 Port Node for ArtNet, sACN, and DMX protocols
- Can be powered by Line Voltage or Power over Ethernet (PoE)
- Supports both DHCP and Static IP Address configurations
- Features a 1.7" LCD Display for easy navigation
- Configurable settings available through the unit menu or web browser interface
Technical Specifications
Protocols:
DMX512
RDM
Artnet
sACN

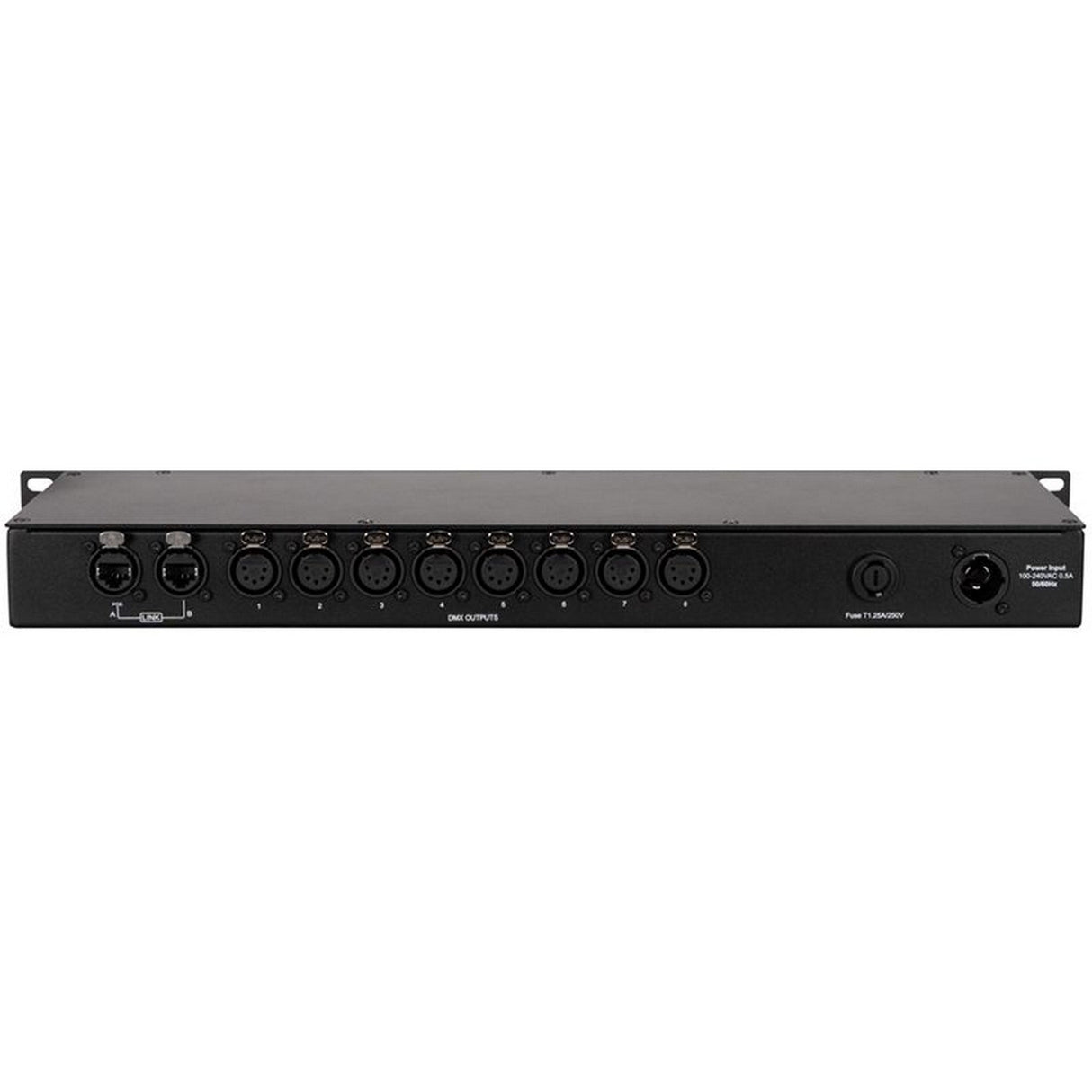

Connections:
2x Indoor RJ45 Input & Output
8x 5pin XLR Input / Output
Dimensions & Weight:
Length: 5.09" (129.3mm)
Width: 19" (482.5mm)
Height: 1.73" (43.8mm)
Weight: 4.76lbs. (2.16kg)
Power:
AC Input 95-240V,50/60Hz
PoE 802.3af
AC Power: 15W
PoE Power: 15W
Power Consumption: 5.7W @ 120V and 5.9W @ 230V
Power Input Protection: Fuse, T1.25A/250V (5.2x20mm)
Thermal:
Ambient Operational Temperature: -4Ā°F to 113Ā°F (-20Ā°C to 45Ā°C)
Humidity: <75%
Storage Temperature: 77Ā°F (25Ā°C)
Certifications & IP Rating:
CE
cETLus (Pending)
FCC
IP20
Included Accessories:
Indoor locking power cord
Specifications subject to change without notice.
