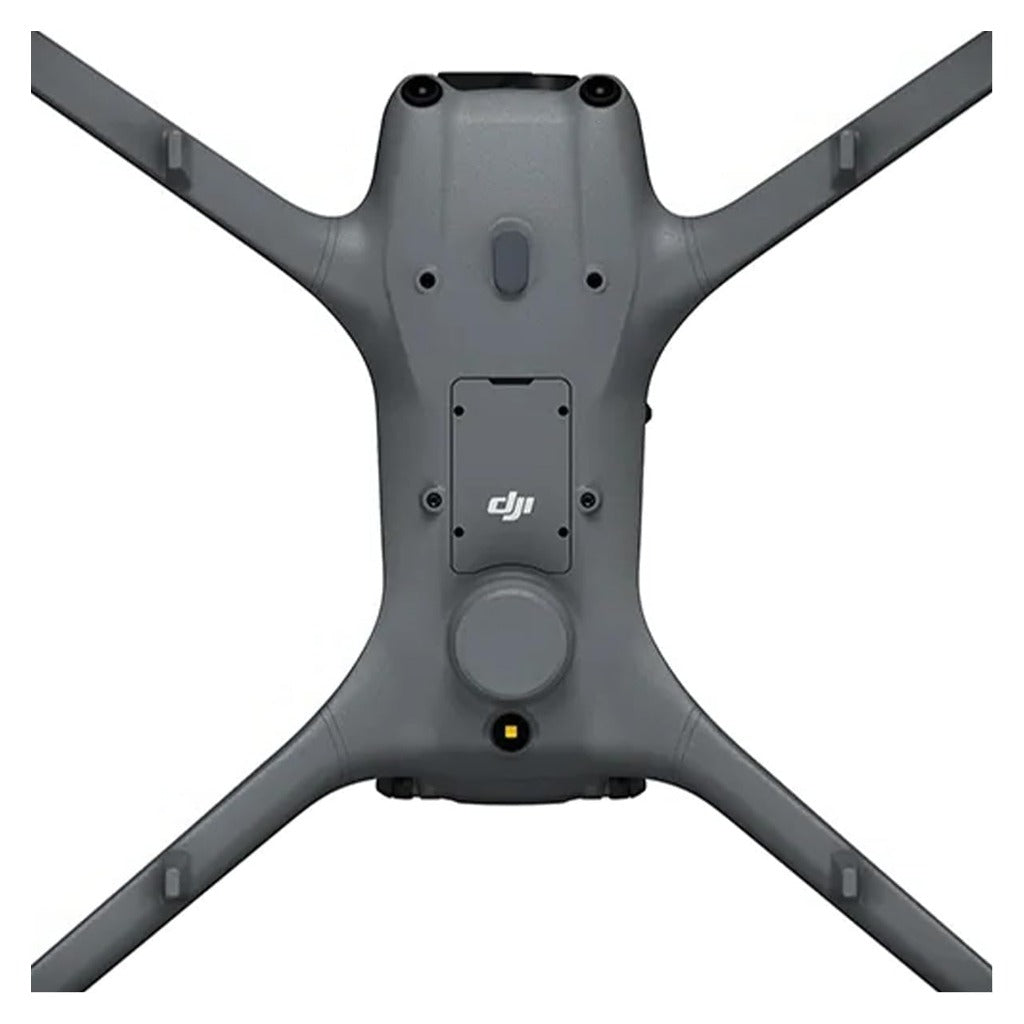

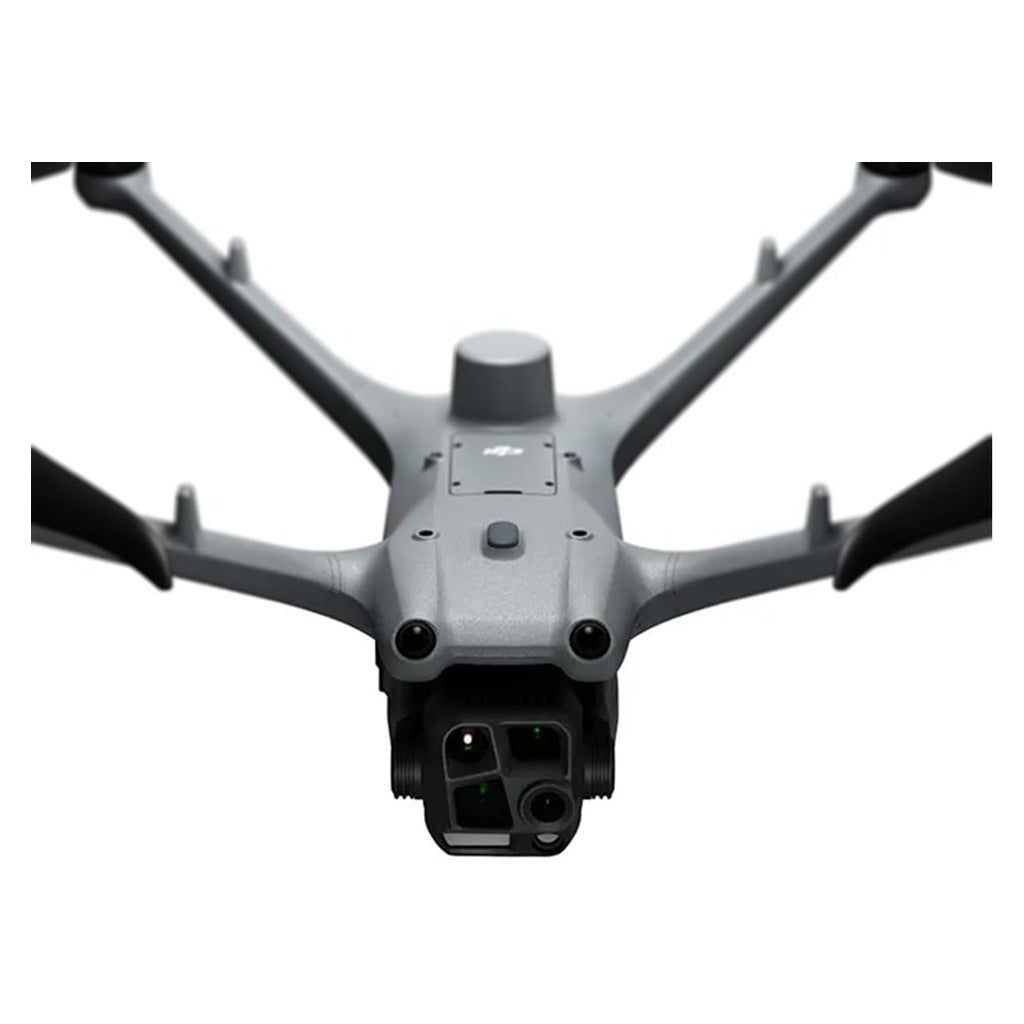

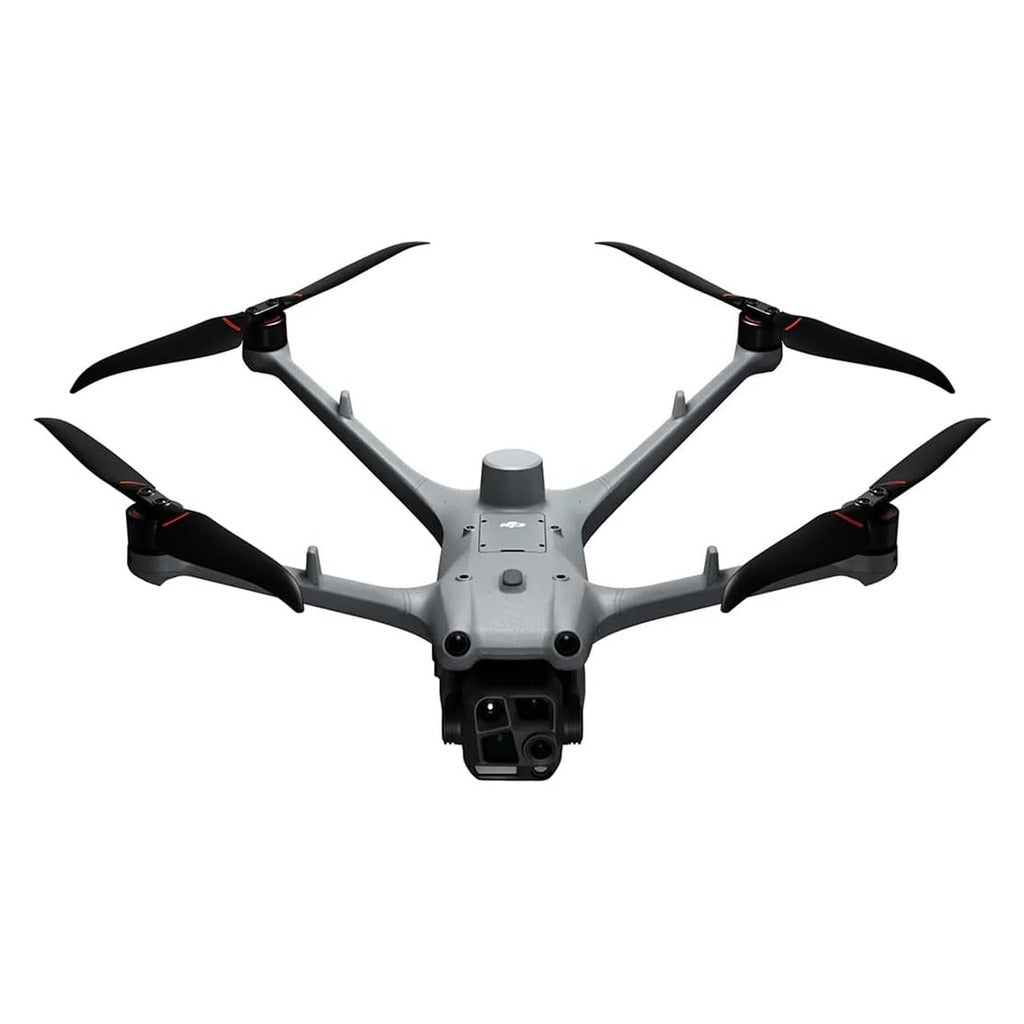

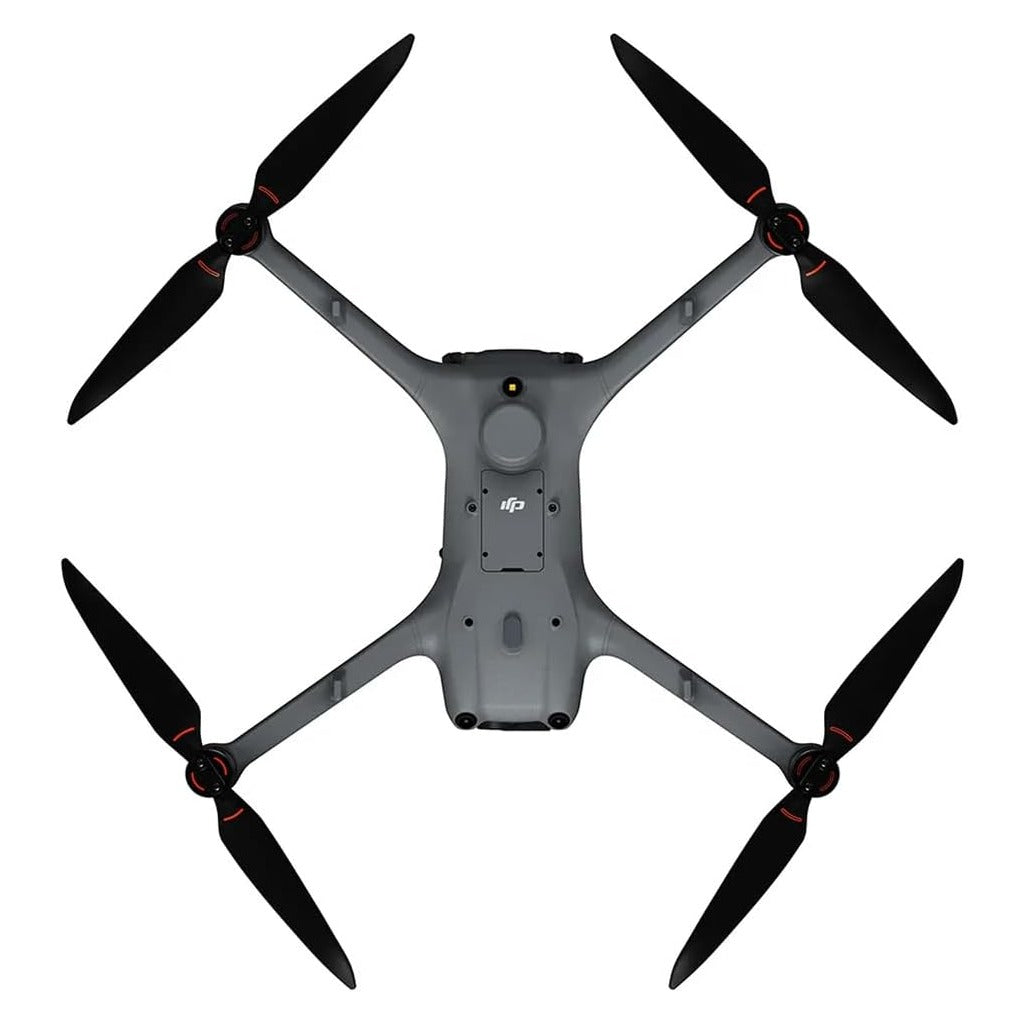

DJI Matrice 4TD Thermal Dock Drone with DJI Care Enterprise Plus

Purpose-built for DJI Dock 3, the Matrice 4TD takes the Matrice 4 Series sensor suite and hardens it for unattended, around-the-clock operations: an IP55 airframe, -20 to 50 C operating range, 12 m/s wind resistance, and a 6S 149.9 Wh battery system that delivers up to 54 minutes of flight or 47 minutes of hover. Dock operators schedule missions in FlightHub 2, while the same aircraft can be flown standalone with the DJI RC Plus 2 Enterprise for manual response.

Imaging combines a 48MP wide camera (24mm equivalent, f/1.7), a 48MP 70mm medium tele and a 48MP 168mm telephoto with 16x optical-equivalent and 112x hybrid zoom, alongside a 640 x 512 radiometric thermal camera with 12 um pixel pitch, 28x digital zoom and 1280 x 1024 UHR infrared mode spanning -40 to 150 C (high gain) and 0 to 500 C (low gain). A laser range finder reaches 1800 m, and a near-infrared auxiliary light extends night visibility to 100 m. DJI O4+ Enterprise transmission supports 1080p live view, 20 MB/s downloads and up to 25 km range (FCC).

Omnidirectional binocular vision and a downward 3D infrared sensor are built in, and the optional Matrice 4 Obstacle Sensing Module adds rotating LiDAR and millimeter-wave radar for wire-level avoidance. This 'SP Plus' bundle includes the first year of DJI Care Enterprise Plus, DJI's enterprise accidental-damage program that binds to the aircraft at activation. As with all Matrice 4D series packages, flight batteries are not included and must be ordered separately; DJI Enterprise dealer authorization applies.

Features

• Designed for DJI Dock 3 remote operations; pairs with DJI RC Plus 2 Enterprise for standalone flight
• IP55 ingress protection; -20 to 50 C operating temperature; 12 m/s wind resistance
• Up to 54 min flight time and 47 min hover; 10 km max operating radius
• 48MP wide, 48MP 70mm medium tele and 48MP 168mm tele cameras with 112x hybrid zoom
• 640x512 radiometric thermal camera, 28x digital zoom, 1280x1024 UHR infrared mode
• Laser range finder to 1800 m; NIR auxiliary light with 100 m illumination
• DJI O4+ Enterprise transmission: 1080p/30fps live view, up to 25 km (FCC), 20 MB/s download
• Omnidirectional binocular vision plus downward 3D infrared sensing; optional LiDAR/mmWave Obstacle Sensing Module
• Integrated RTK module and beacon; GNSS: GPS, BeiDou, Galileo, QZSS, GLONASS
• First year of DJI Care Enterprise Plus included (auto-activation)

Technical Specifications

• Weight: 1850 g (including battery, propellers and microSD card)
• Max takeoff weight: 2090 g
• Dimensions (without propellers): 377.7 x 416.2 x 212.5 mm (L x W x H)
• Diagonal wheelbase: 498.5 mm
• Max flight time: 54 min; max hover time: 47 min
• Max operating radius: 10 km; max flight distance: 43 km
• Max horizontal speed (Normal mode): 15 m/s forward, 12 m/s backward, 10 m/s sideways
• Max ascent / descent speed: 6 m/s (Normal mode)
• Max wind speed resistance: 12 m/s
• Max takeoff altitude: 6500 m
• Operating temperature: -20 to 50 C (-4 to 122 F)
• Ingress protection: IP55
• Wide camera: 1/1.3-inch CMOS, 48 MP, 24 mm equivalent, f/1.7, 82 degree FOV
• Medium tele camera: 1/1.3-inch CMOS, 48 MP, 70 mm equivalent, f/2.8, 35 degree FOV
• Tele camera: 1/1.5-inch CMOS, 48 MP, 168 mm equivalent, f/2.8, 15 degree FOV; 16x optical-equivalent / 112x hybrid zoom
• Thermal camera: uncooled VOx, 640 x 512 (1280 x 1024 UHR), 12 um pixel pitch, 30 Hz, 53 mm equivalent, 45 degree DFOV, f/1.0, 28x digital zoom
• Thermal measurement range: -40 to 150 C (high gain), 0 to 500 C (low gain); sensitivity 50 mK or better
• Laser range finder: 1800 m at normal incidence (20% reflectivity), 600 m oblique (1:5); blind zone 1 m
• Video transmission: DJI O4+ Enterprise; 25 km (FCC) / 12 km (CE/SRRC/MIC) unobstructed; latency approx. 100 ms to dock
• Obstacle sensing: omnidirectional binocular vision plus downward 3D infrared; forward 0.5-20 m measurement, 200 m detection
• Battery: 6768 mAh, 149.9 Wh, 22.14 V, Li-ion 6S, 640 g (sold separately)
• Positioning: GNSS (GPS, BeiDou, Galileo, QZSS, GLONASS) with integrated RTK and beacon
• Remote controller: DJI RC Plus 2 Enterprise

What's Included

• DJI Matrice 4TD aircraft x1
• DJI RC Plus 2 Enterprise x1
• DJI Matrice 4D Series Propellers (Pair) x3
• DJI 240W Power Adapter / Charging Hub x1
• Aircraft Carrying Case x1
• DJI Care Enterprise Plus (first year, auto-activation)
• Note: flight batteries and remote controller battery are NOT included
