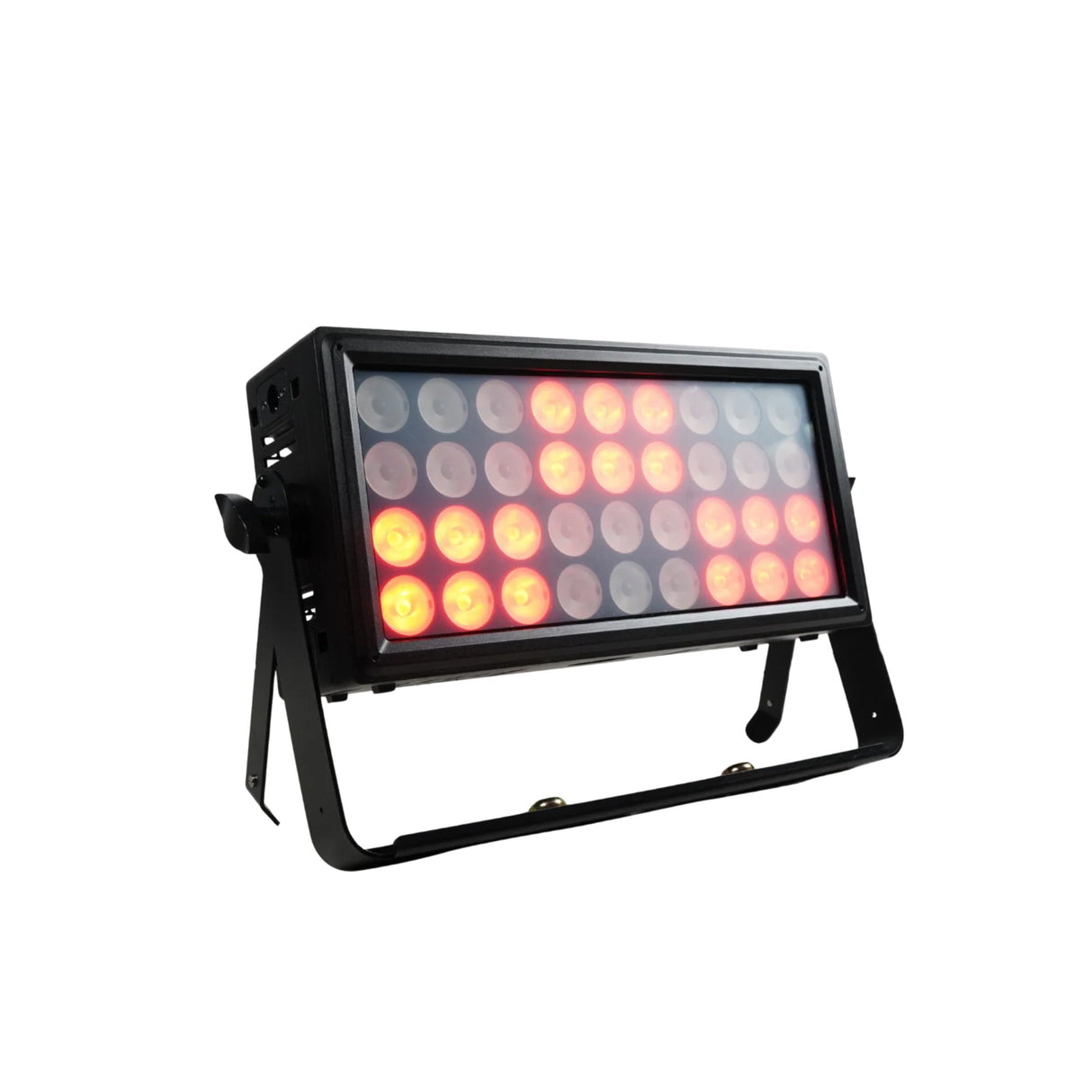

Event Lighting HYBRICK-WASH IP65 RGBWW LED Wash Fixture with Electronic Frost

Event Lighting HYBRICK-WASH IP65 RGBWW LED Wash Fixture

The Event Lighting HYBRICK-WASH is a professional IP65-rated LED wash fixture designed for demanding stage, touring, and architectural lighting environments. Featuring 36 high-performance 10W RGBWW LEDs with both warm and cool white emitters, this fixture delivers powerful color mixing, high color accuracy, and exceptional output for concerts, live productions, and outdoor installations.

With a CRI rating of 95+, the HYBRICK-WASH ensures accurate color rendering for stage lighting and broadcast environments. The fixture supports electronic frost control, allowing lighting designers to adjust beam diffusion smoothly from a sharp beam to a soft wash without needing external filters.

The segmented pixel control system divides the LEDs into six controllable sections, enabling advanced lighting effects, chases, and dynamic color animations. Combined with flexible DMX channel modes and multiple operation modes—including DMX, auto programs, sound active, and master/slave—the fixture adapts easily to complex lighting setups.

Designed with a rugged aluminum housing and IP65 protection, the HYBRICK-WASH is suitable for both indoor and outdoor applications. Its interlocking housing design allows multiple fixtures to connect seamlessly for large-scale lighting rigs, while versatile rigging options enable floor mounting or suspended installations.

Key Features

• High-Power RGBWW LED Engine: 36 × 10W LEDs deliver vibrant color mixing with warm white (2500K) and cool white (6000K) support.
• Electronic Frost Control: Adjustable 0–100% frost effect allows smooth transitions from focused beams to soft wash lighting.
• High Color Accuracy: CRI 95+ ensures accurate color rendering for stage, broadcast, and live production environments.
• Advanced Pixel Control: Six LED segments enable dynamic pixel mapping, chase effects, and animated lighting patterns.
• Multiple DMX Channel Modes: Flexible channel configurations allow simplified or advanced lighting control.
• IP65 Weather Protection: Dust-tight and water-resistant construction suitable for outdoor installations and touring applications.
• Interlocking Housing Design: Fixtures can connect for large lighting arrays and creative stage designs.
• Versatile Rigging Options: Double yoke design supports floor mounting or hanging installations.

Technical Specifications

• Model: HYBRICK-WASH
• Light Source: 36 × 10W RGBWW LEDs
• Color Temperature: Cool White 6000K / Warm White 2500K
• CRI: 95+
• Lens: 35mm
• Beam Angle: 20° (Optional 12° / 40°)
• Output: 82,800 lux @ 1m / 24,400 lux @ 2m
• PWM Frequency: 1200 Hz
• LED Lifespan: 50,000 hours
• Dimming: 5 × 16-bit digital dimming curves
• Strobe: 1 – 25 Hz
• Pixel Segments: 6 segments (6 LEDs per segment)
• Control Modes: Static, Color Fade, Auto Program, Sound Active, Master/Slave, DMX, RDM, WDMX
• DMX Protocol: DMX512
• DMX Channel Modes: 1 / 2 / 3 / 4W / 4S / 5 / 7 / 12 / 13 / 32
• DMX Interface: 5-Pin XLR
• Software Upgrade: DMX Upgrade Support
• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 400W
• Power Connection: True1 Power Input / Output
• Cooling: Dual Fan Cooling System
• IP Rating: IP65
• Housing Material: Aluminum
• Finish: Matte Black
• Product Dimensions: 14.7 × 7.3 × 5.8 inches
• Product Weight: 17.9 lbs

Rigging & Mounting

• Double yoke design for floor or hanging installation
• Mounting points for vertical bracket installation
• Cam locks for 1/4-turn Omega bracket mounting
• Six coffin locks and tool-free handles for linking multiple fixtures
• Maximum linked hanging load: 8 fixtures (approx. 143 lbs)
• Includes one Omega mounting bracket
