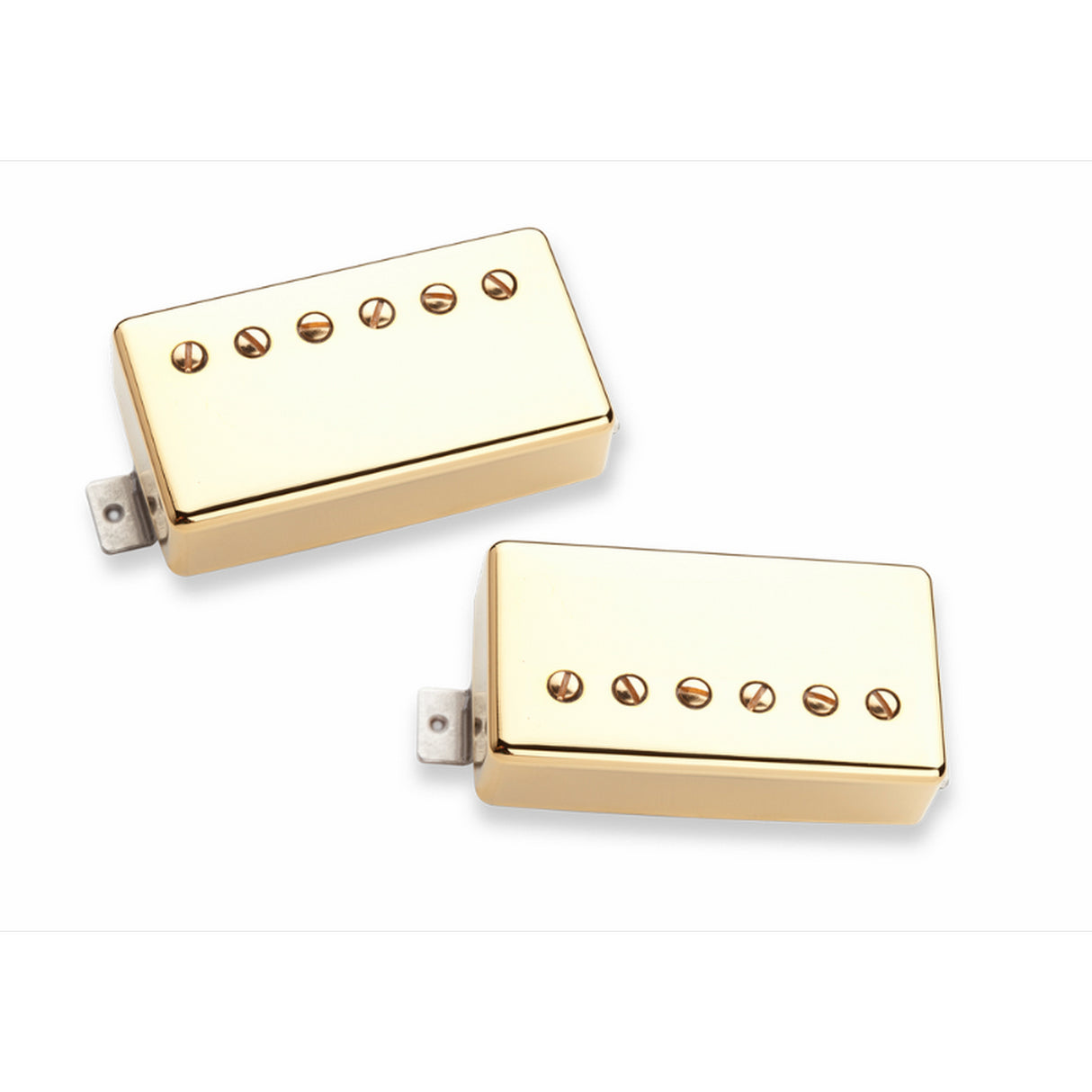

Seymour Duncan APH-2S Slash Signature Humbucker Set – Gold 4-Conductor

Slash’s Iconic Les Paul Tone for Your Guitar

Capturing the searing sustain, crunchy rhythm, and vocal midrange heard on classic rock records, the Seymour Duncan APH-2S Slash Signature Humbucker Set is voiced to deliver the legendary Appetite for Destruction tone. Developed in close collaboration with Slash, this set is designed to make modern Les Paul–style guitars respond and feel like his famed AFD single-cut.

Using carefully selected Alnico 2 bar magnets, custom magnet wire, and a refined winding recipe, these passive humbuckers push a stock guitar toward a thick, singing lead voice and rich, harmonically complex chords. Hand-built in Santa Barbara, California, with classic construction and modern wiring flexibility, this APH-2S set is the same spec used in Slash’s own touring and recording guitars.

Traditional materials such as a nickel-silver baseplate, maple spacer, paper tape, and wax potting provide vintage character and stability, while short-leg mounting and 4-conductor cabling make these pickups a drop-in solution for a wide range of instruments and advanced wiring schemes.

Key Features

• Signature Slash voicing – Tuned for the sustain, crunch, and midrange associated with Slash’s classic Les Paul tones.
• Alnico 2 magnets – Smooth attack, singing sustain, and warm, musical highs ideal for rock and blues.
• Matched neck and bridge set – Calibrated outputs (8.3k neck / 8.9k bridge) for balanced response in all switch positions.
• Hand-built in the USA – Crafted in Santa Barbara with the same approach used on Slash’s original pickups.
• Modern 4-conductor wiring – Supports coil-splitting, series/parallel options, and phase switching for versatile setups.
• Short-leg mounting – SE (Short Ear) mounting legs fit a wider variety of guitars and are ideal for direct mounting.
• Gold covers – Classic, premium look that pairs perfectly with high-end single-cut and LP-style instruments.

Technical Specifications

• Pickup type – Passive humbucker set (neck and bridge)
• Model – APH-2S Slash Signature Humbucker Set
• Magnet material – Alnico 2 bar magnets
• DC resistance – Neck: 8.3 kΩ; Bridge: 8.9 kΩ
• Cable – 4-conductor shielded for advanced wiring options
• Mounting style – Short Ear (SE) mounting legs
• Finish – Gold covered humbuckers
• Design origin – USA designed and made
• Manufacturer part number – 11104-08-Gc-4c-bpSh

Approximate Dimensions (Each Covered Humbucker)

• Main housing length – Approximately 2.62" (66.6 mm)
• Main housing width – Approximately 1.44" (36.5 mm)
• Overall height (excluding mounting screws) – Approximately 1.08" (27.4 mm)
• Overall length including mounting tabs – Approximately 3.32" (84.2 mm)
