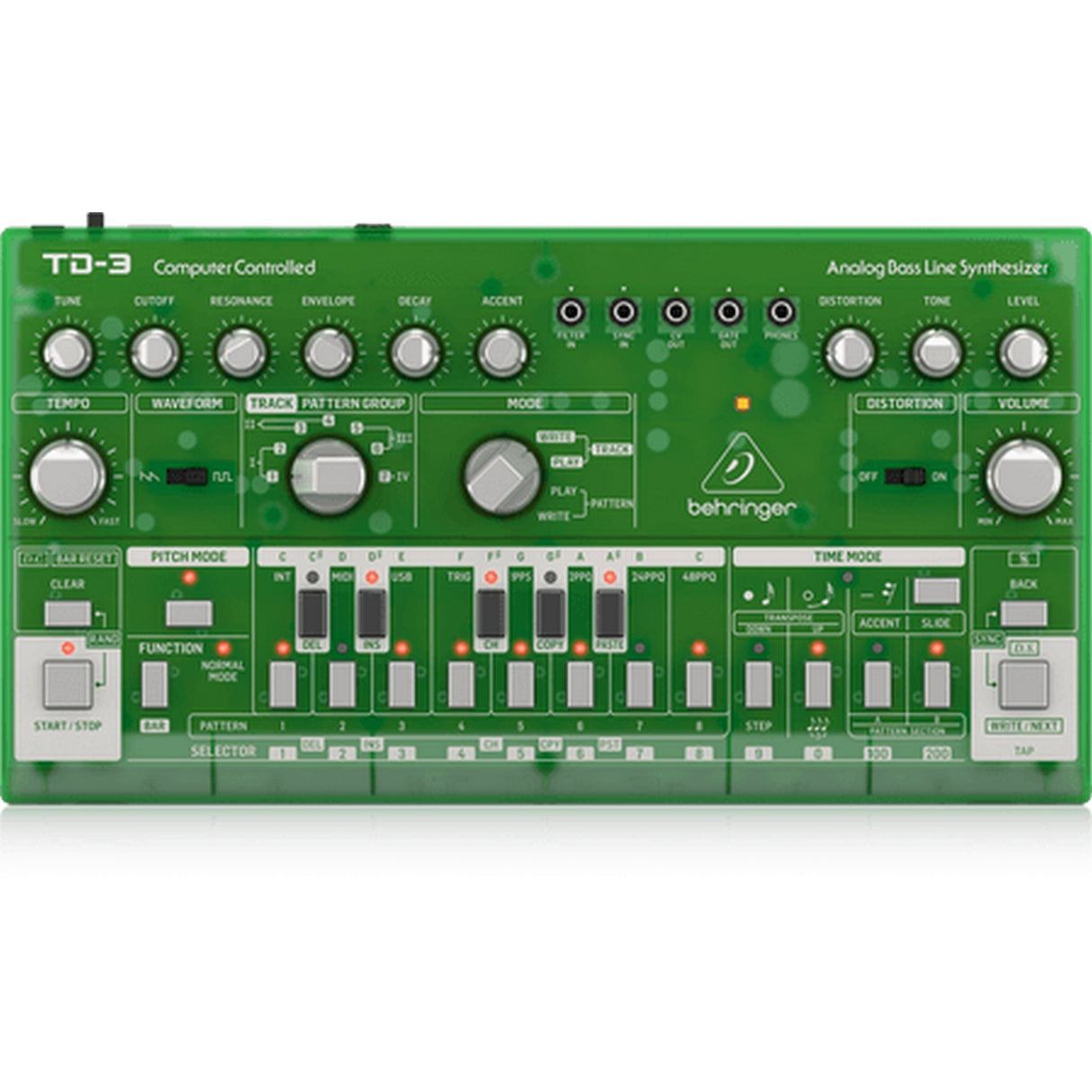

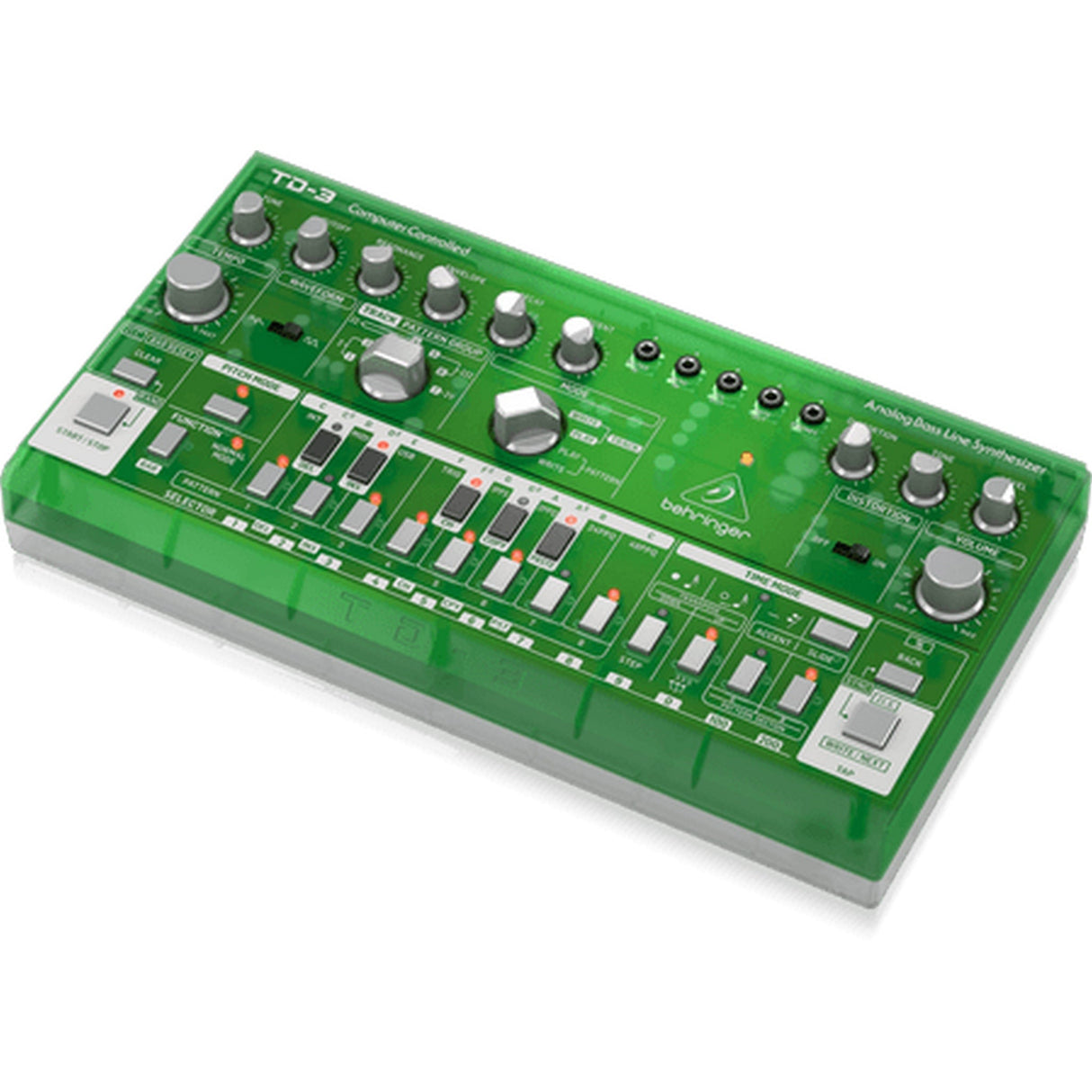

Behringer TD-3-LM Analog Bass Line Synthesizer
Behringer TD-3-LM is an analog bass line synthesizer designed for music production and live performance environments. It enables step-based bass sequence creation for electronic musicians, supporting pattern-driven composition workflows. This makes it ideal for studio and stage scenarios where hands-on control and repeatable analog sequences are critical.
The system operates using a true analog signal path built around voltage-controlled oscillator, filter, and amplifier stages. A built-in step sequencer and arpeggiator control pitch and timing while analog filtering and distortion shape the output signal.
Users can create repeating bass patterns and evolve them in real time during performance. The instrument supports integration into MIDI and USB setups for hybrid hardware and software workflows.
Key Features
- True Analog Signal Path: Based on classic VCO, VCF, and VCA circuit designs
- 16-Step Sequencer: Supports multiple tracks and user-programmable patterns
- Arpeggiator Engine: Generates patterned note sequences for rhythmic effects
- Distortion Circuit: Integrated analog distortion for tonal shaping
- Poly Chain Support: Allows linking multiple units for expanded polyphony
- MIDI and USB Connectivity: Integrates with external controllers and computers
Technical Specifications
Synthesizer ArchitectureMonophonic
Analog
Oscillators
1
Voltage Controlled Filter
1 low pass
Envelopes
1

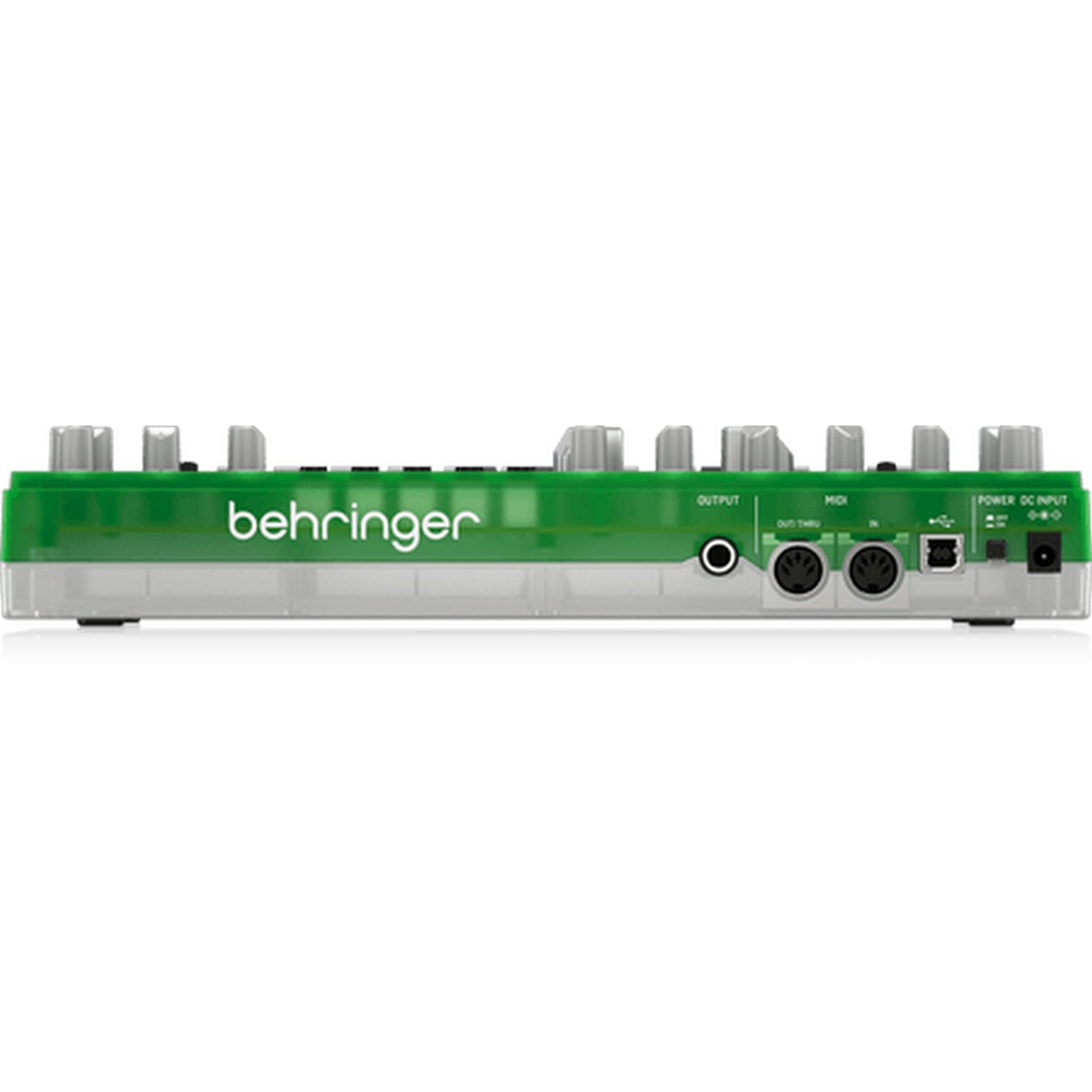

MIDI Connectivity
MIDI In and MIDI Thru, 5-pin DIN
USB
Class compliant USB 2.0, type B
Windows 7 or higher
Mac OS X 10.6.8 or higher
Audio Outputs
Line output: 1/4 inch TRS, unbalanced, max. +8 dBu
Output impedance: 1.5 kĪ©
Headphones
3.5 mm TRS, max. 50 mW / 32 Ī© (1 kHz, 1% THD)
Headphones output impedance: 15 Ī©
Power Requirements
9 VDC 670 mA external power adaptor
Power consumption: 2 W maximum
Environmental
Operating temperature range: 5Ā°C ā 40Ā°C (41Ā°F ā 104Ā°F)
Physical Dimensions (H x W x D)
56 x 305 x 165 mm
2.2 x 12 x 6.""
Weight
0.8 kg (1.8 lbs)
