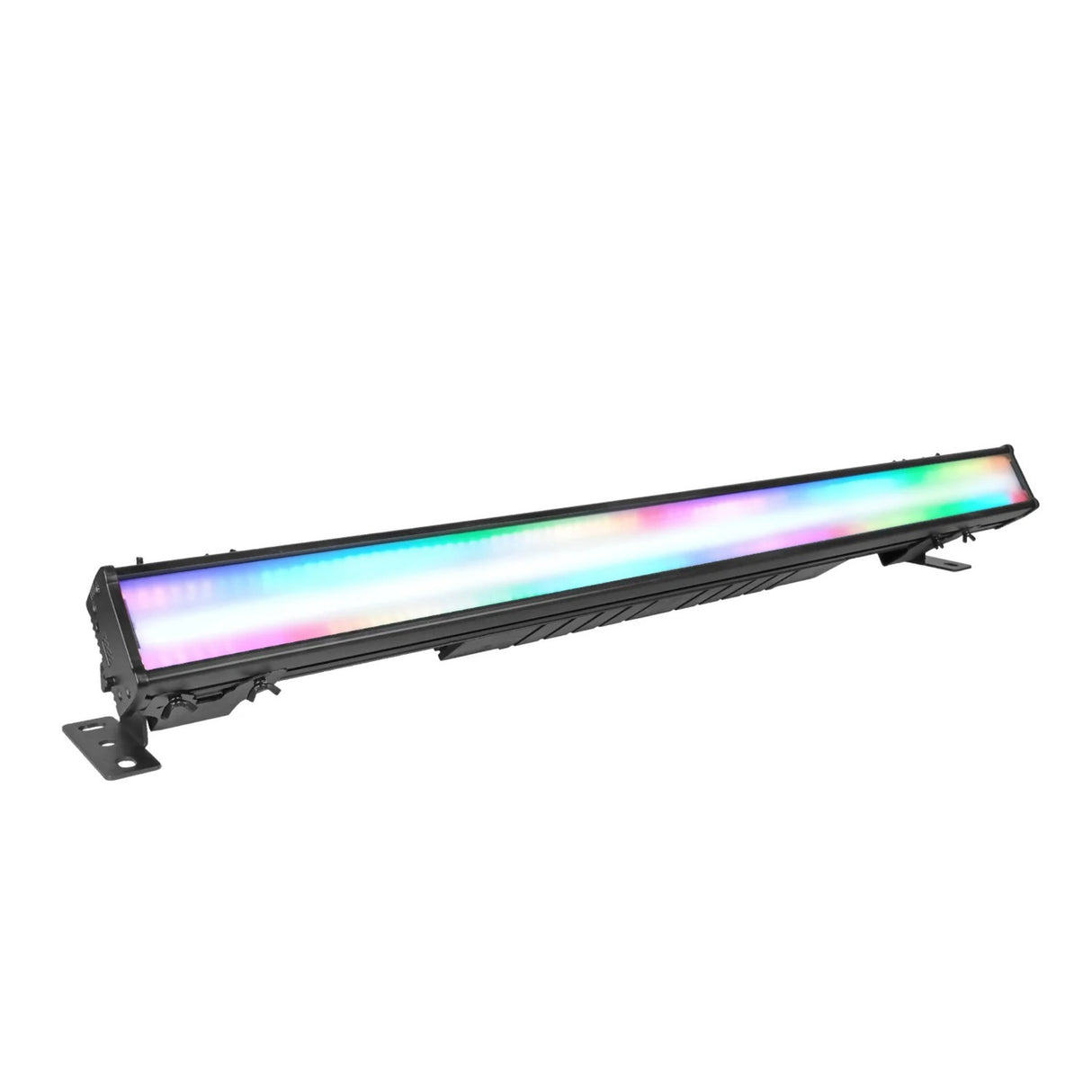

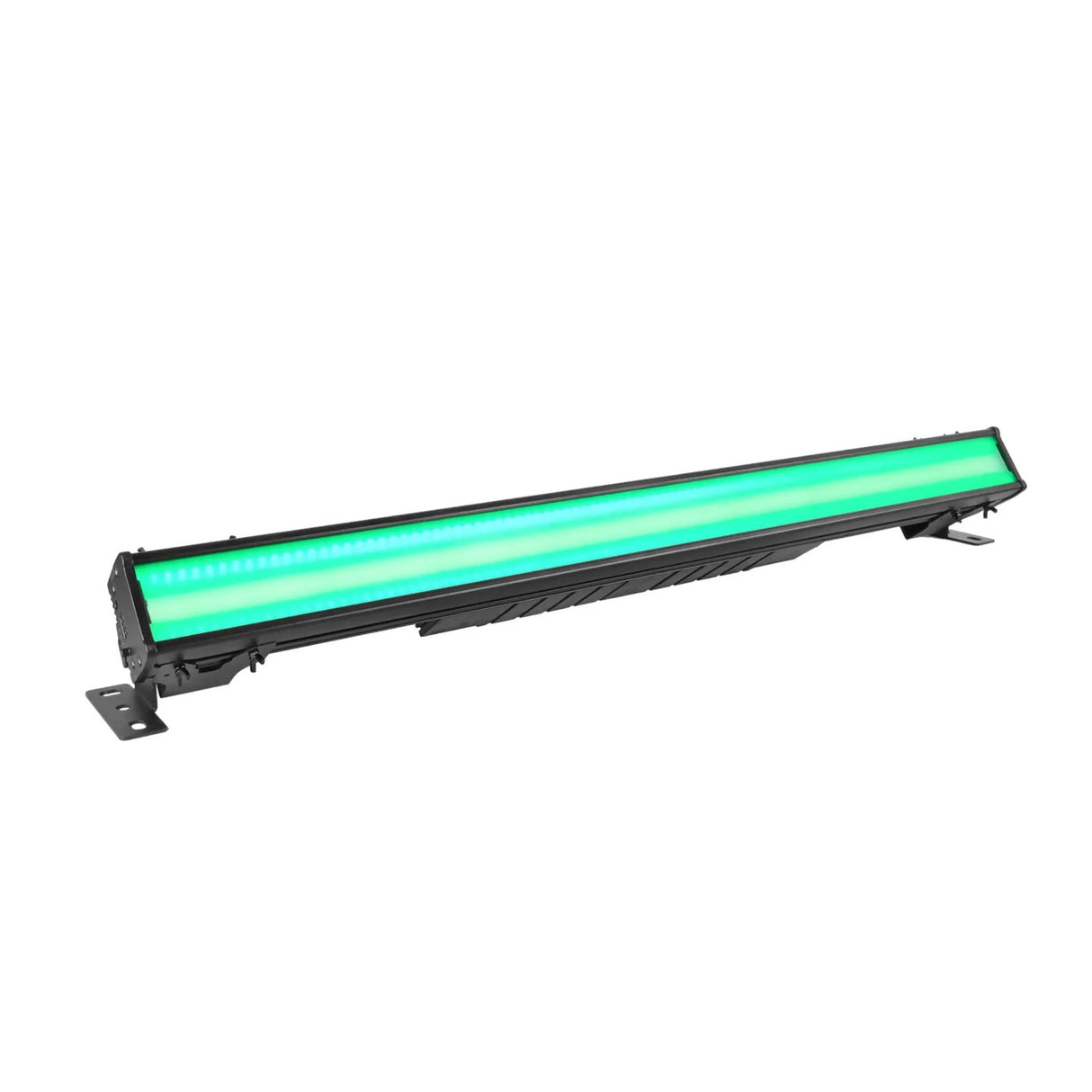

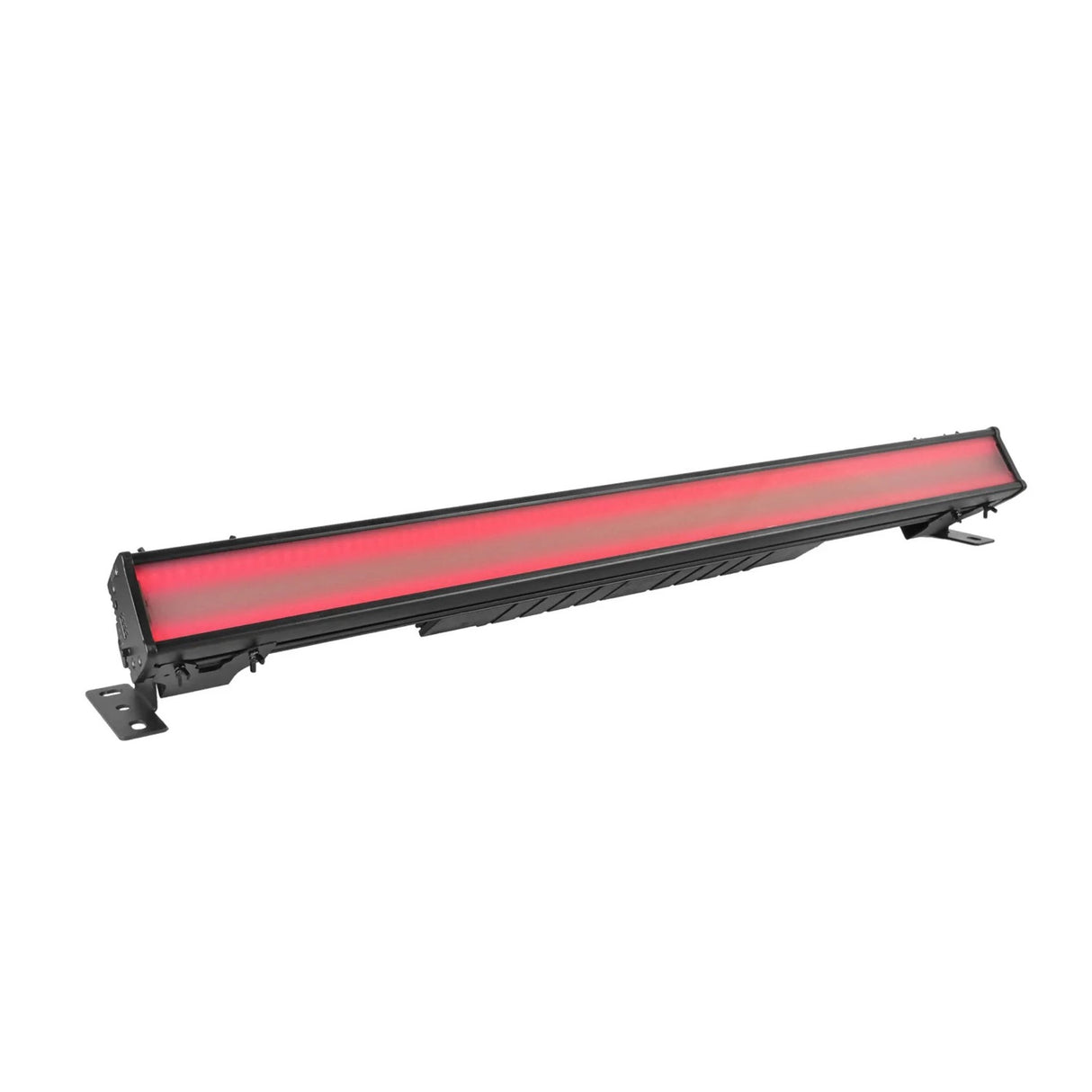

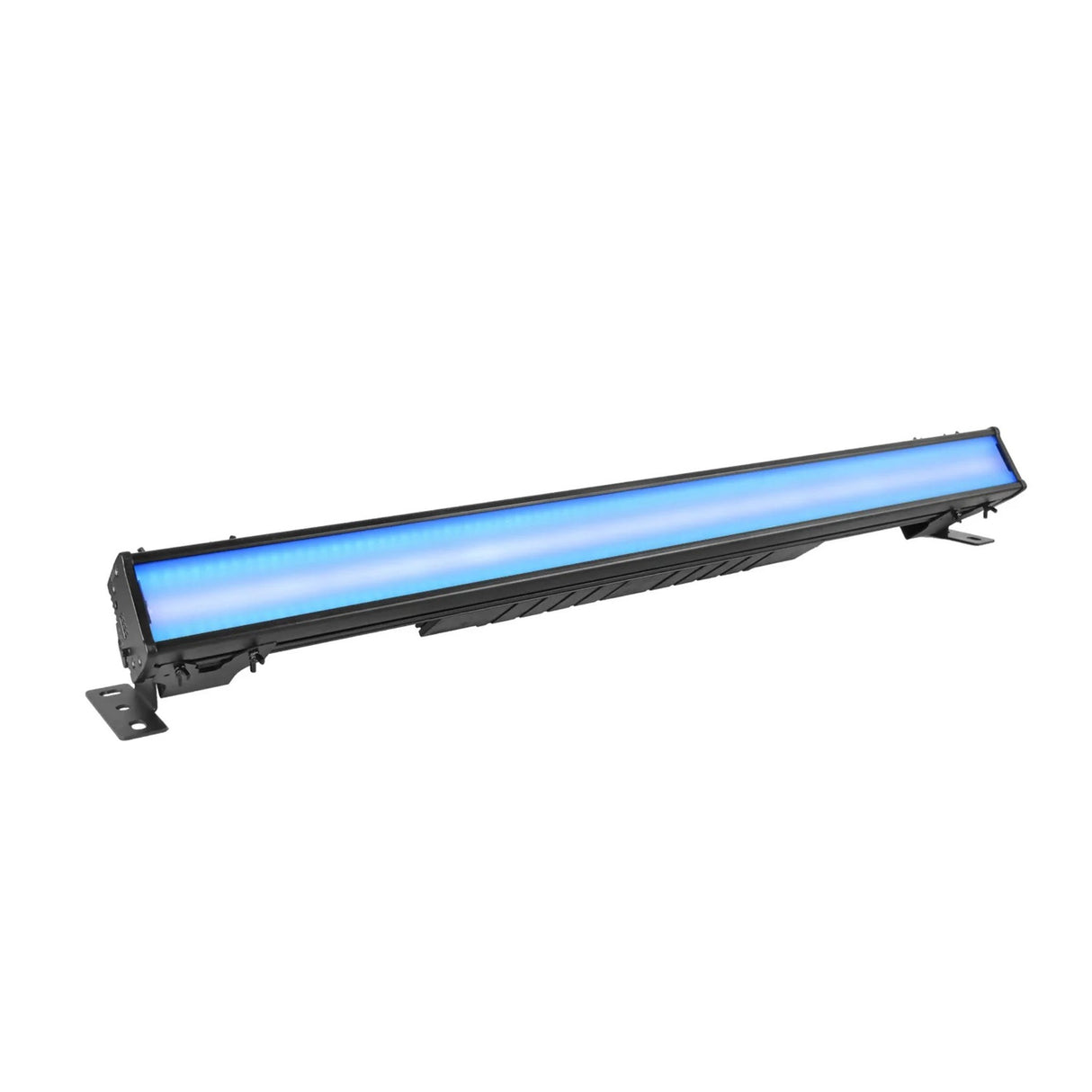

Event Lighting BLITZBARFX Indoor LED Pixel & Strobe Bar with Electronic Frost

Event Lighting BLITZBARFX Indoor LED Pixel and Strobe Bar

The Event Lighting BLITZBARFX is a powerful indoor LED effect bar designed to deliver intense strobe effects and vibrant pixel lighting for stages, clubs, concerts, and entertainment venues. Combining high-output white LEDs with RGB pixel elements, this fixture produces dynamic lighting effects that enhance audience engagement and stage visuals.

The fixture integrates 384 white LEDs to create a bright strobe bar, complemented by 384 RGB SMD LEDs positioned along the top and bottom sections for colorful pixel effects. This hybrid design allows lighting designers to combine powerful strobe bursts with animated RGB lighting for dramatic visual impact.

An integrated electronic frost system allows users to soften the beam output, creating smoother wash effects when needed. With 64-segment pixel control, the BLITZBARFX supports detailed lighting animations and chase patterns, giving designers full creative control over dynamic stage effects.

Built for professional lighting environments, the fixture supports multiple DMX channel configurations and flexible operation modes including DMX, auto, manual, and master/slave operation. The rugged aluminum housing and adjustable mounting brackets make installation simple for touring productions and permanent venue installations.

Key Features

• Hybrid Pixel and Strobe Lighting: Combines 384 white LEDs for intense strobe effects with 384 RGB LEDs for vibrant pixel lighting.
• Electronic Frost Effect: Built-in frost allows smooth diffusion for softer lighting when needed.
• High-Speed Strobe Capability: Adjustable strobe frequency from 1–30 Hz for dynamic visual impact.
• Advanced Pixel Mapping: 64-segment pixel control enables detailed chase patterns and animated effects.
• Multiple Control Options: Supports DMX, auto programs, manual operation, and master/slave configuration.
• Professional DMX Integration: Flexible channel modes support both simple setups and advanced programming.

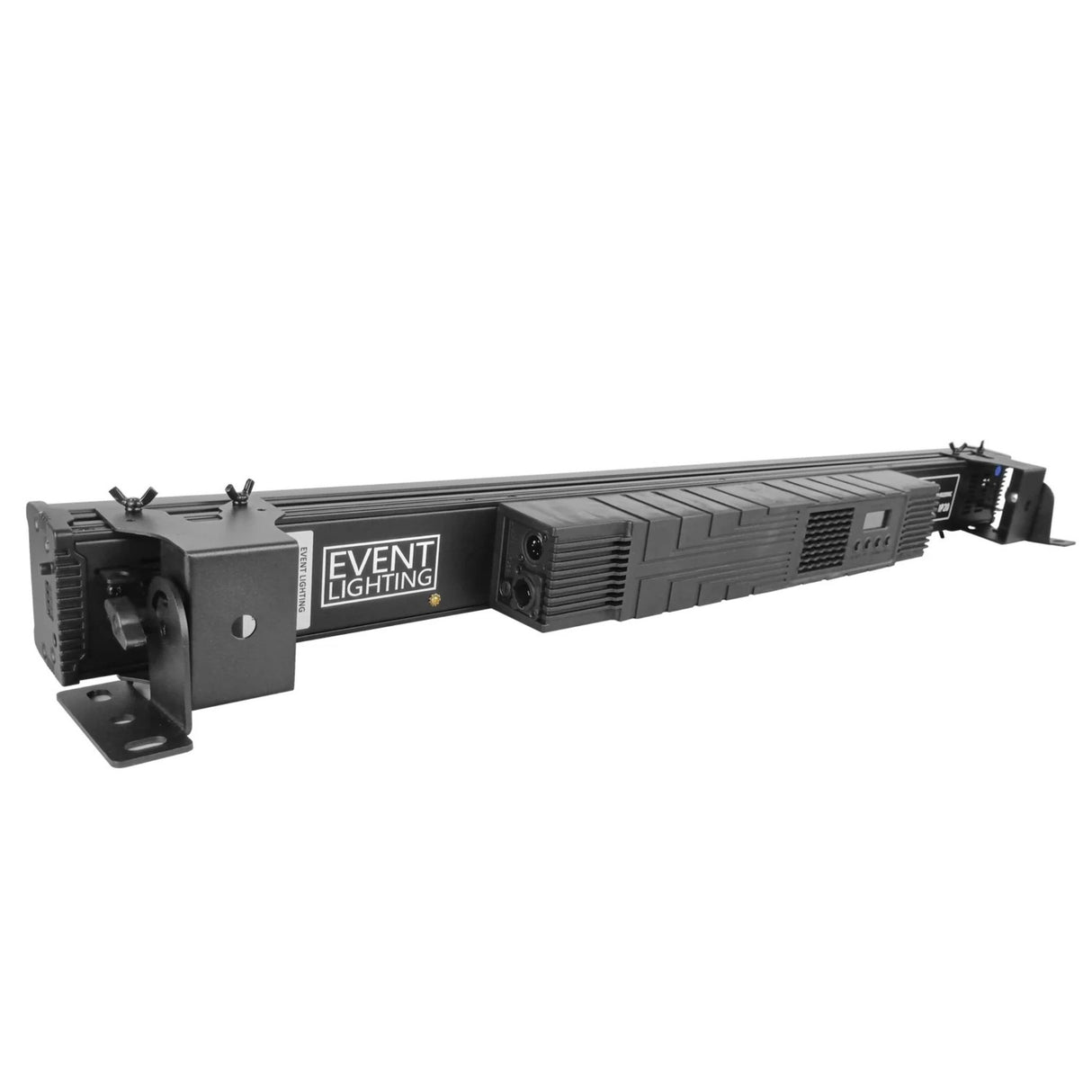

• Durable Aluminum Housing: Matte black finish with adjustable brackets for flexible rigging and installation.
• High PWM Frequency: 10,000Hz refresh rate ensures flicker-free performance for broadcast and video production.

Technical Specifications

• Model: BLITZBARFX
• Light Source: 384 × White LEDs + 384 × RGB LEDs
• Beam Angle: 80°
• PWM Frequency: 10,000 Hz
• LED Lifespan: 50,000 hours
• Dimming: 0–100% Linear Dimming
• Strobe: 1 – 30 Hz
• Pixel Control: 64 Segments
• Control Modes: DMX, Manual, Auto, Master/Slave
• Control Protocol: DMX512
• DMX Channels: 7 / 18 / 21 / 22 / 256 / 269
• DMX Interface: 5-Pin XLR Input / Output
• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 450W
• Power Connection: True1 Input / Output
• IP Rating: IP20 (Indoor Use)
• Housing Material: Aluminum
• Finish: Matte Black
• Product Dimensions: 39.4 × 5.3 × 5.7 inches
• Product Weight: 15 lbs
