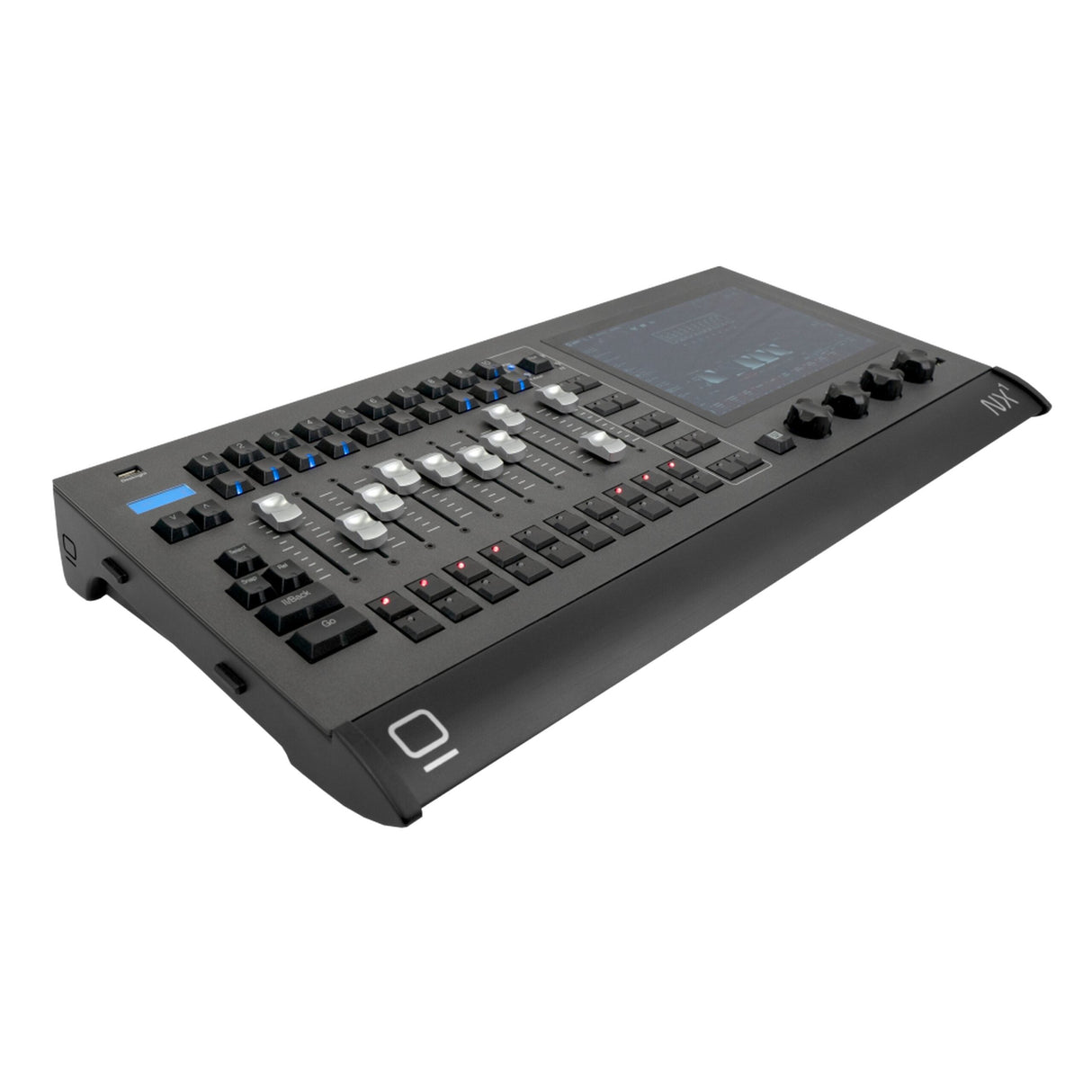

Obsidian Control NX1 Full HD Multi Touchscreen 8 Universe Lighting Console
The NX1 is the essential lighting controller in the innovative and powerful ONYX platform. Fully featured and unrestricted if offers the complete ONYX experience without compromises in an ultra-compact package.
Utilizing the full ONYX Operating System, the NX1 includes a high-brightness 10.1” HD multi-touch screen; 4 assignable parameter encoders; 10 full motorized playbacks with four freely assignable buttons plus and extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design.
Including the latest in industrial components the NX1 contains a powerful new Intel processor, high speed NVMe SSD drive and 8GB of DDR4 RAM, allowing fast boot times, instant operation and the ability to process 8 Universes right inside the console. With four DMX ports, a Gigabit network port for up to 8 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 1 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at any time.
The NX1 is further expandable with the dedicated NXK keypad and the NXP motorized playback wing. A simple magnetic alignment system allows attachment on either side of the NX1. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.
Key Features
- Portable and compact fully featured lighting console
- 10.1” Full HD multi touch screen, 1x external touch display
- ONYX Essential License (8 Universes)
- Fully integrated industrial processing
- 10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section
Technical Specifications
Surface
10x 60 mm motorized playback faders, each with 4x function-assignable buttons
10x customizable playback or multi-function keys
Playback Select button
Master Go section with Go, Pause, Snap and Release
4x digital rotary encoders with push function and status LED for fixture parameter control
Virtual Keypad control
Hardware
Industrial 10.1” TFT 16:9 touchscreen (1920x1200px)
250 GB NVMe M.2 storage drive
Industrial motherboard with Intel CPU
Quiet thermal design using advanced copper heat pipe coolers
8 GB DDR4 RAM
Integrated graphics processor
Windows 10 IoT Embedded Operating System
OS installation by USB 3.0 storage device
Supports Windows USB touchscreens
Connections
4x DMX / RDM Universe In/Out
5pin locking XLR
External Display
1x HDMI
Network
1x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
Storage and Peripherals
4x USB 3.0, 1x USB 2.0
Audio Out, Mic In
2x 3.5mm Jack
Desk Lamp
USB 5V
IP65 Locking Power In
Physical
Length
298.5 mm (11.75 in.)
Width
636 mm (25 in.)
Height
71 mm (2.8 in.)
Weight
8.1kg (17.8 lbs.)
Electrical
100-240V 50/60 Hz, 104W
Installation / Use Cases
- Use as a compact, fully featured lighting console for ONYX lighting control workflows.
- Suitable for shows and applications requiring 8 Universes directly inside the console.
- Use the 10.1-inch Full HD multi-touch screen for direct lighting control access.
- Use 10 motorized playbacks, 10 playback/function hybrids, 4 encoders, and Master Go section for hands-on show control.
- Suitable for systems using 4 DMX/RDM Universe In/Out ports and a Gigabit RJ45 Ethernet port for Art-Net, sACN, and ONYX X-Net.
- Use one additional touch monitor through HDMI for expanded direct access.
- Expand the workflow with the dedicated NXK keypad and NXP motorized playback wing.
Package Contents
- Obsidian Control NX1 Full HD Multi Touchscreen 8 Universe Lighting Console
- LED USB Desk Lamp
- Dust Cover
- USB 3.0 Recovery Drive
- IP65 Locking Power Cable
Frequently Asked Questions
What is the Obsidian Control NX1 designed for?
The NX1 is a compact lighting console built for the ONYX platform, providing a fully featured control surface with an ONYX Essential 8 Universe license.
How many universes can the NX1 process inside the console?
The NX1 can process 8 Universes inside the console.
What touchscreen does the NX1 use?
The console has an industrial 10.1-inch TFT 16:9 touchscreen with 1920 x 1200 resolution.
What playback controls are built in?
The surface includes 10 motorized 60 mm playback faders, 10 customizable playback or multi-function keys, 4 digital rotary encoders, and a Master Go section.
What lighting network protocols are supported?
The Gigabit RJ45 Ethernet port supports Art-Net, sACN, and ONYX X-Net.
Can an additional touch monitor be connected?
Yes. One external touch display is supported through HDMI.
What comes with the Obsidian Control NX1?
The package includes the NX1 lighting console, LED USB desk lamp, dust cover, USB 3.0 recovery drive, and IP65 locking power cable.
