Galaxy Stage GS34 Series Square Truss Segments
The Galaxy Stage GS34 Series Square Truss Segments are modular aluminum box truss components designed for structural applications across staging and production environments. Each segment is constructed from 6082 T6 alloy aluminum and manufactured by TUV certified welders, offering uniform compatibility within the GS34 family and other truss systems that use the same conical connection method.
The GS34 series features a consistent 11.42 inch by 11.42 inch square profile, supported by a 2 inch outer tube diameter, 0.75 inch diagonal bracing, and a 0.08 inch wall thickness. Length options range from compact 0.82 ft segments to extended 9.84 ft sections, allowing users to build custom structural layouts while maintaining standardized interface geometry across all sizes.
Every truss segment includes a coupler, pin, and safety clip set for integrating into larger assemblies. This lineup provides a unified selection of lengths suitable for small adjustments, medium expansions, or long-span constructions within stage or event builds requiring precise aluminum truss components.
Key Features
- GS34 Series Construction: Built from 6082 T6 alloy aluminum.
- Certified Manufacturing: Produced by TUV certified welders.
- Standard Connection System: Compatible with conical connection truss systems used by other standard brands.
- Multiple Length Options: Available from 0.82 ft to 9.84 ft.
- Uniform Square Profile: Consistent 11.42 in by 11.42 in dimensions across all variations.
Technical Specifications
- Profile Width: 11.42 in (290 mm)
- Profile Height: 11.42 in (290 mm)
- Outer Tube Diameter: 2 in (50 mm)
- Diagonal Bracing: 0.75 in (20 mm)
- Wall Thickness: 0.08 in (2 mm)
- Material: 6082 T6 alloy aluminum
- Manufacturing: TUV certified welders
- Included Hardware: Coupler, pin and safety clip set for connecting
Available Variations

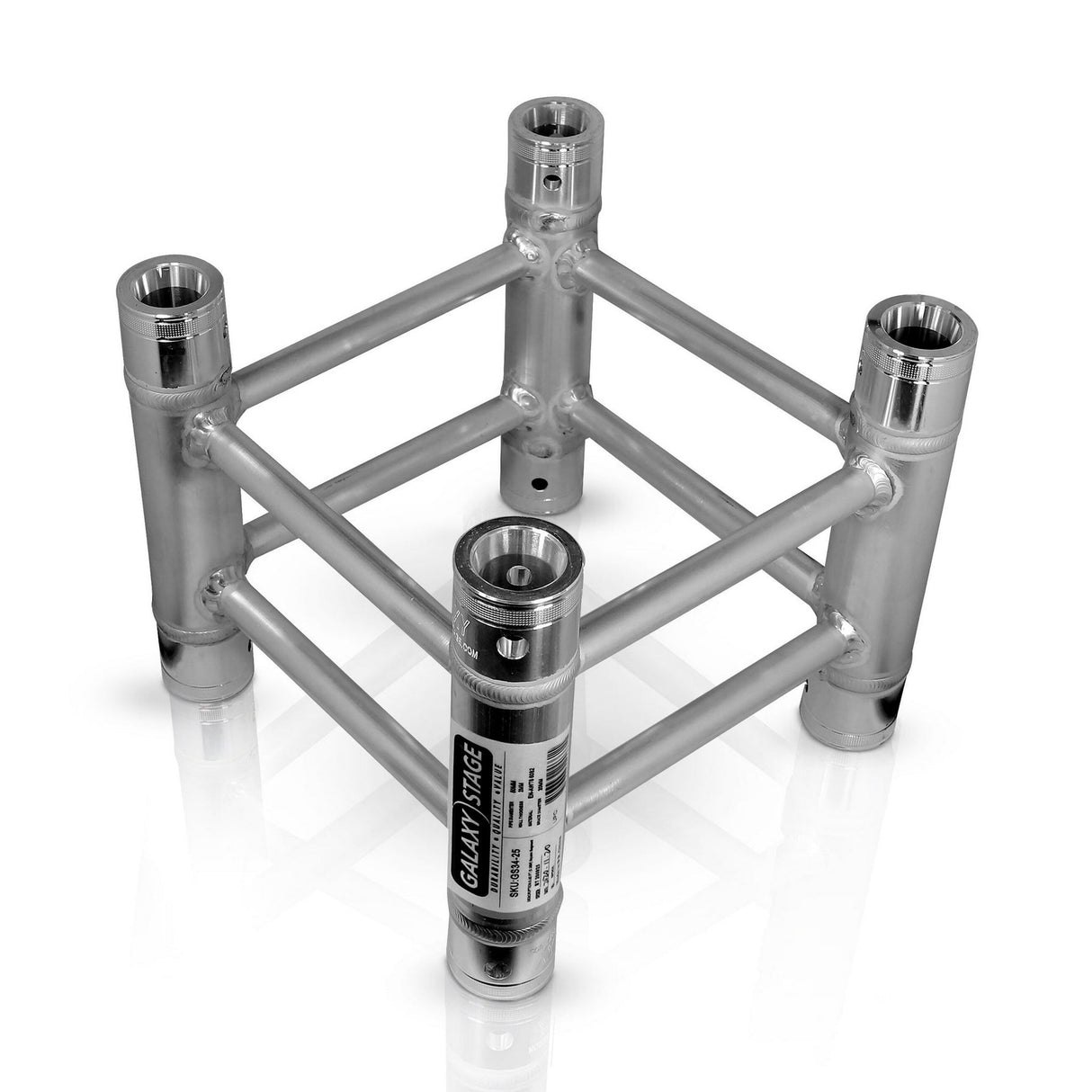

- GS34-025: 0.82 ft (0.25 m)

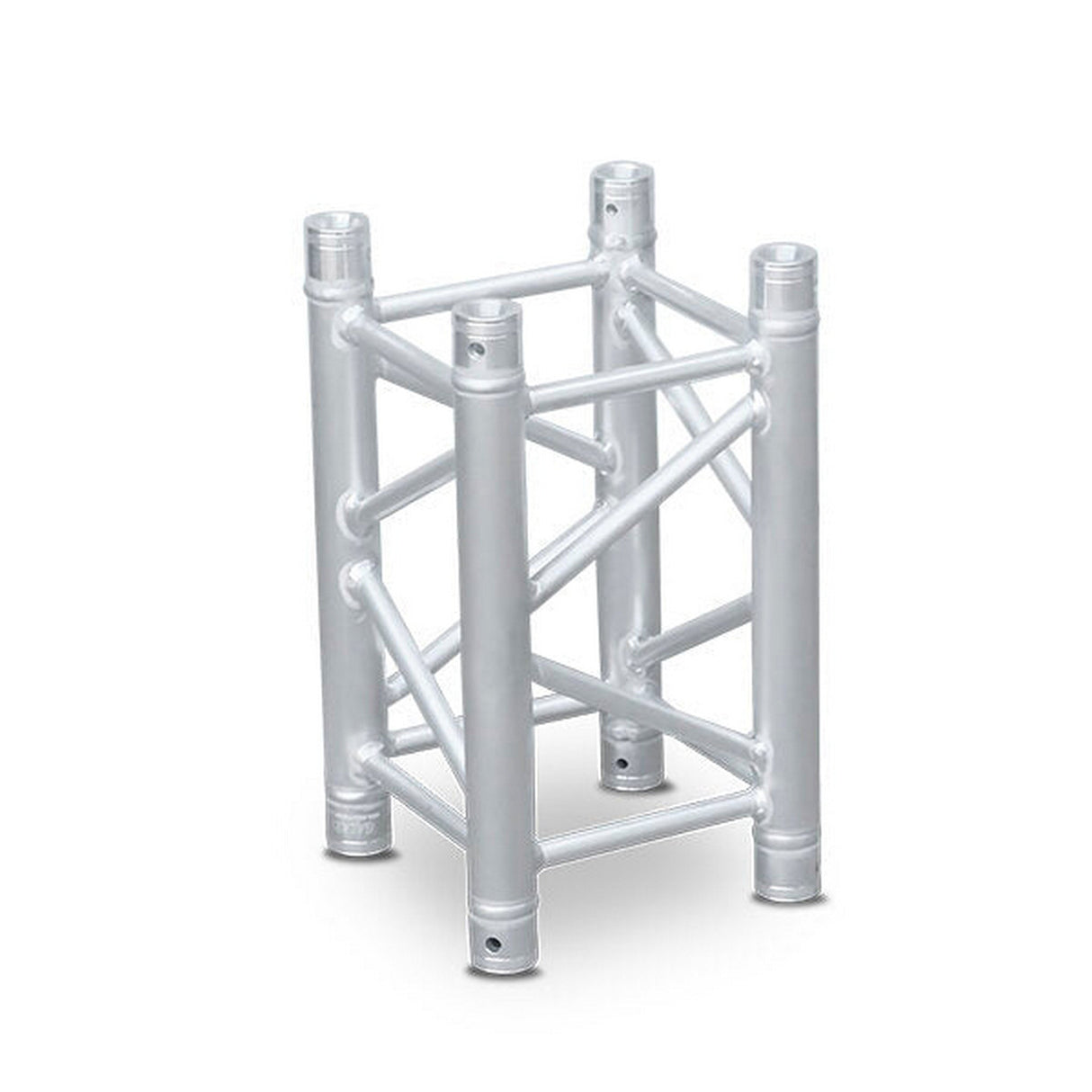

- GS34-050: 1.64 ft (0.5 m)
- GS34-075: 2.46 ft (0.75 m)

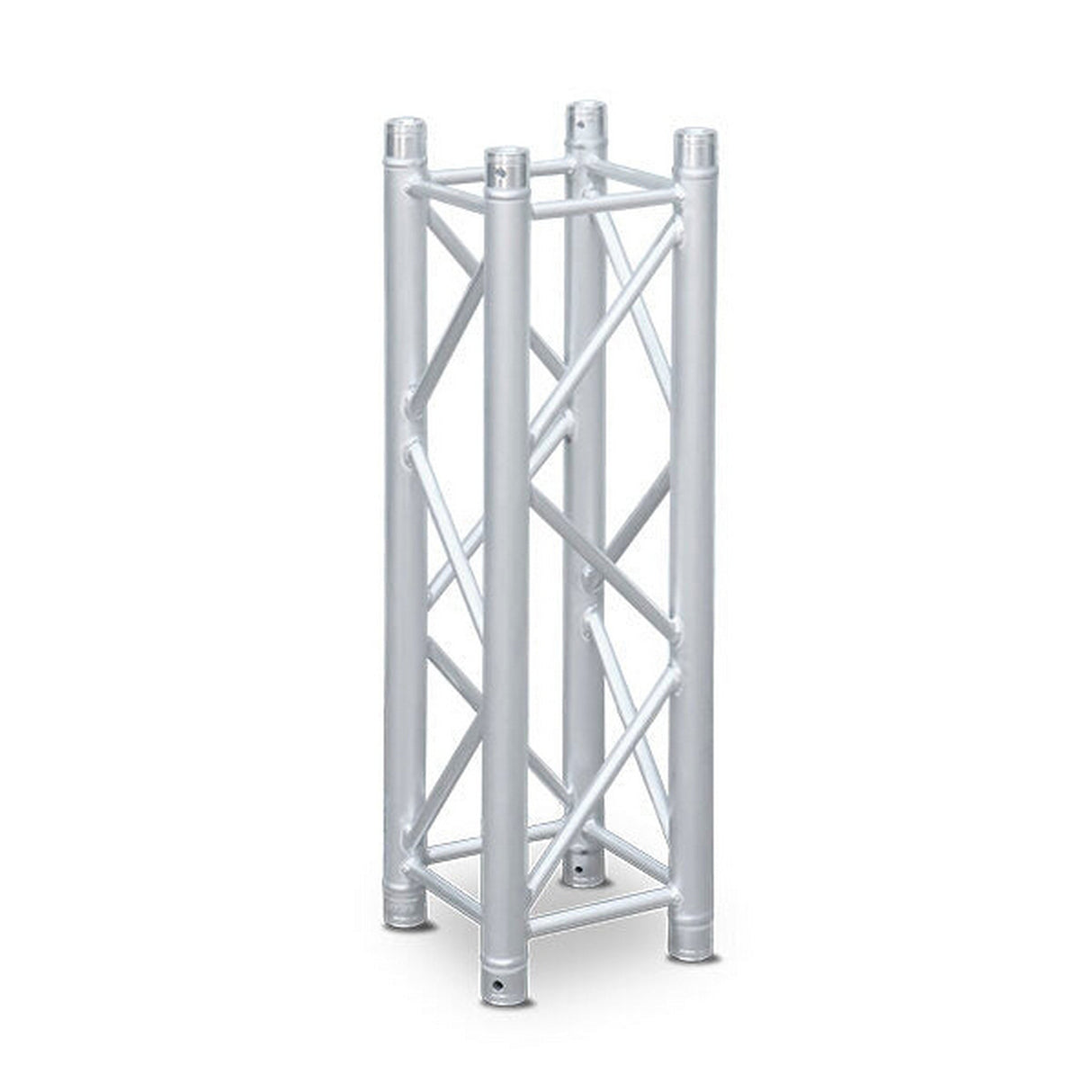

- GS34-100: 3.28 ft (1.0 m)

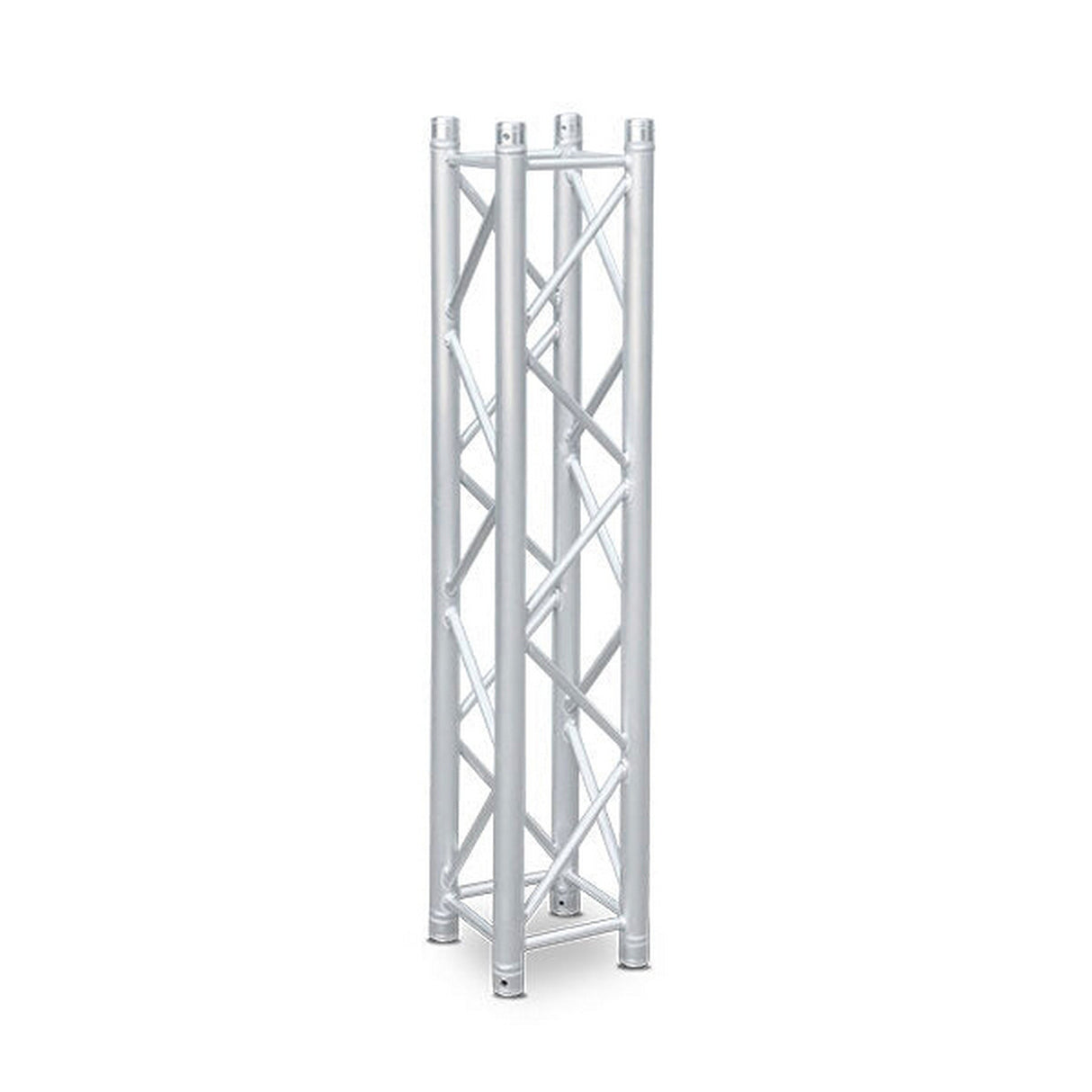

- GS34-150: 4.92 ft (1.5 m)

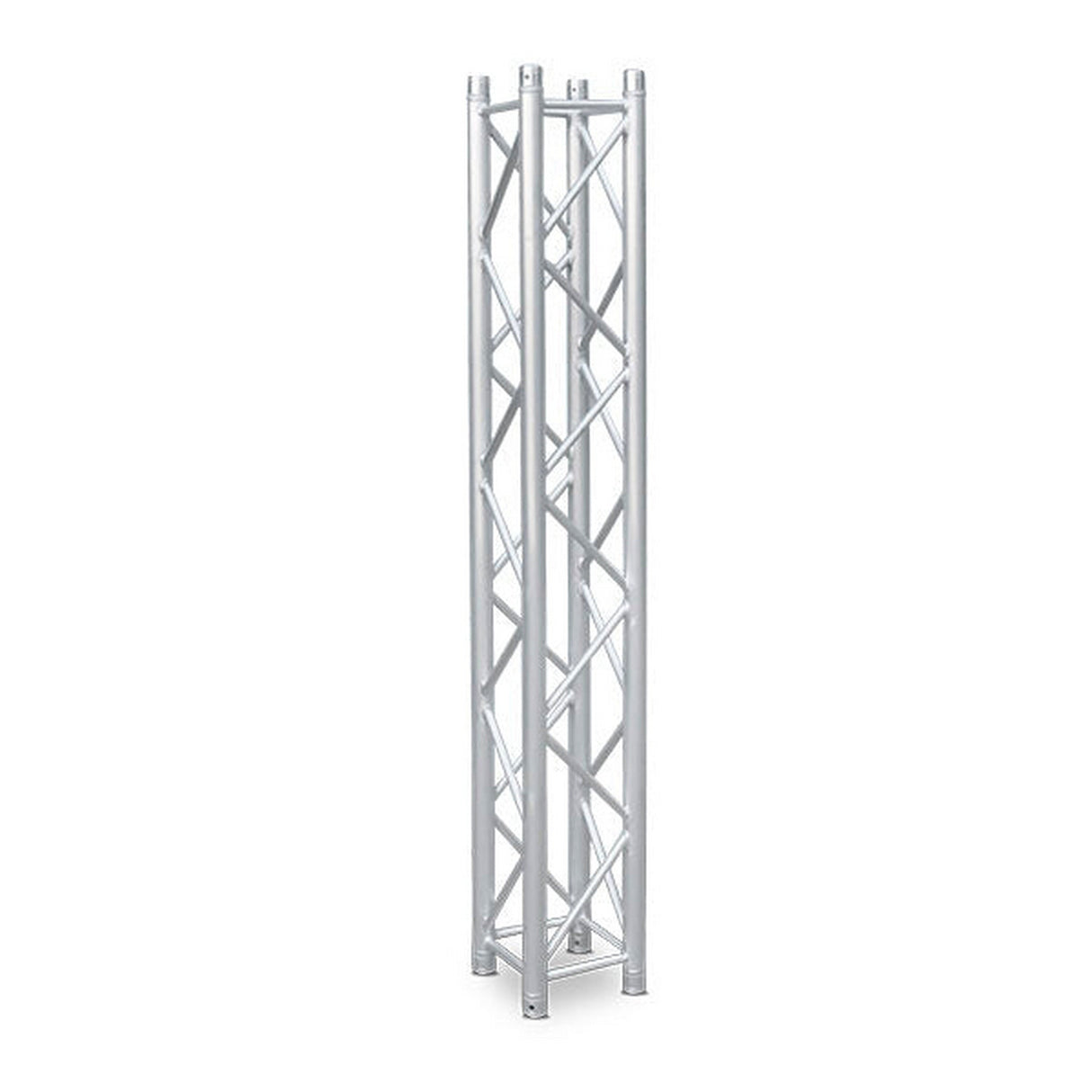

- GS34-200: 6.56 ft (2.0 m)

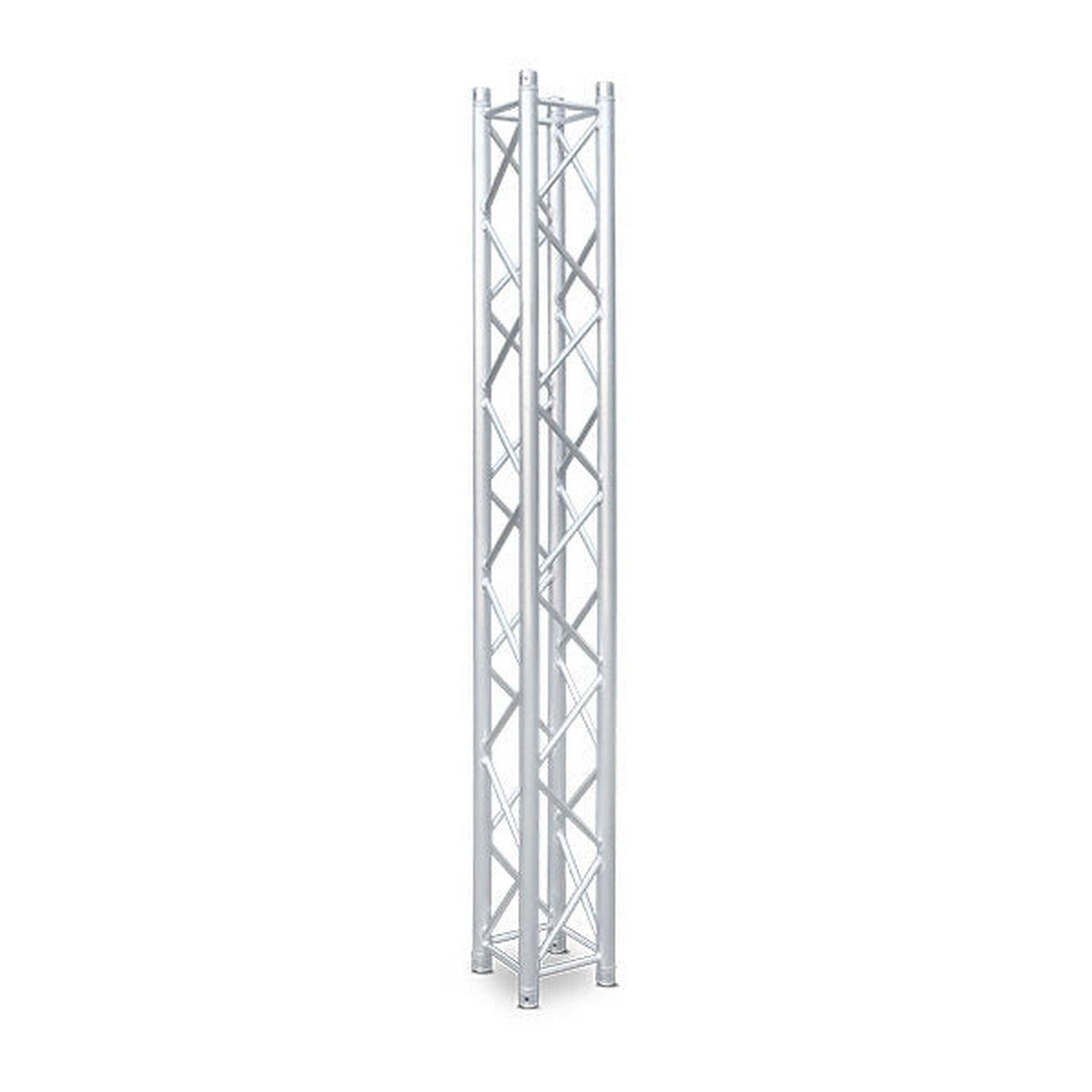

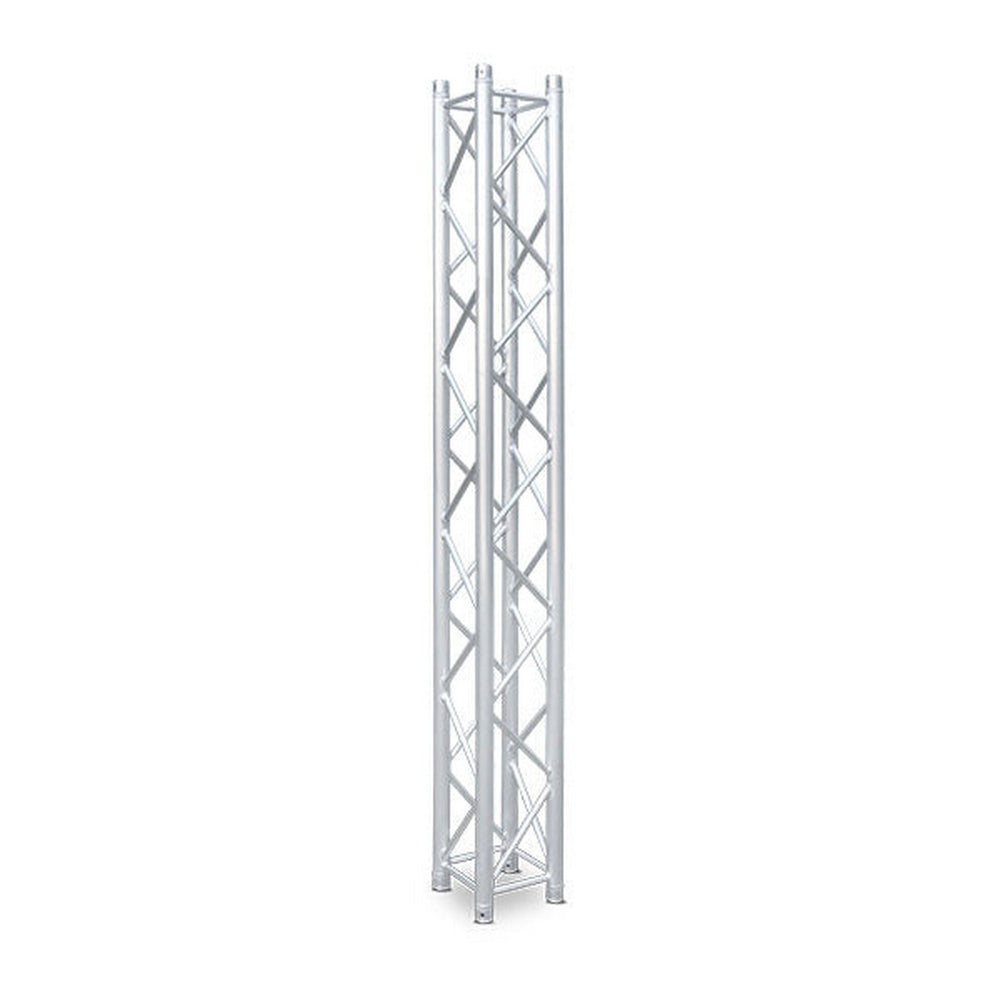

- GS34-250: 8.20 ft (2.5 m)

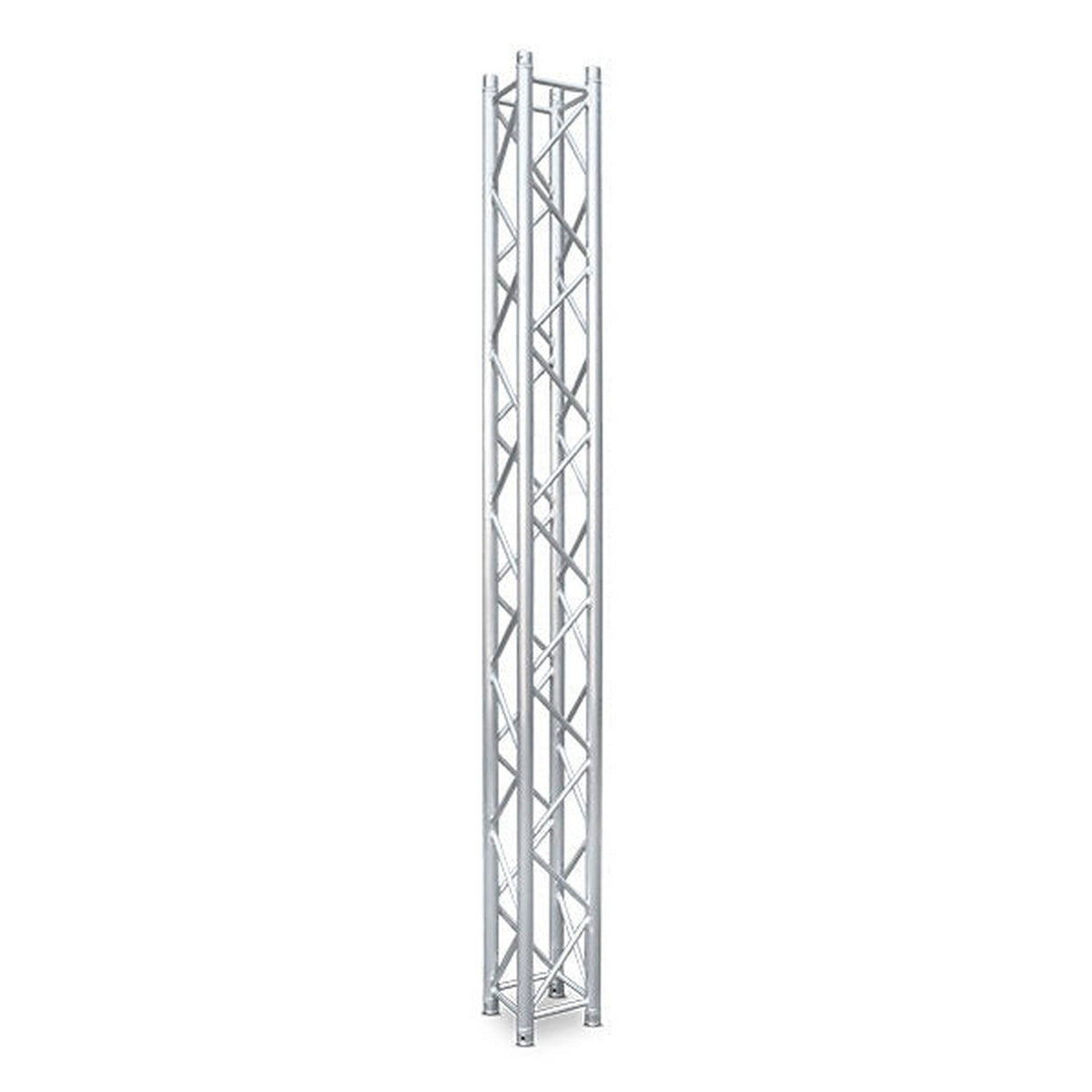

- GS34-300: 9.84 ft (3.0 m)
What’s in the Box
- Coupler, pin and safety clip set for connecting
