Condition: New

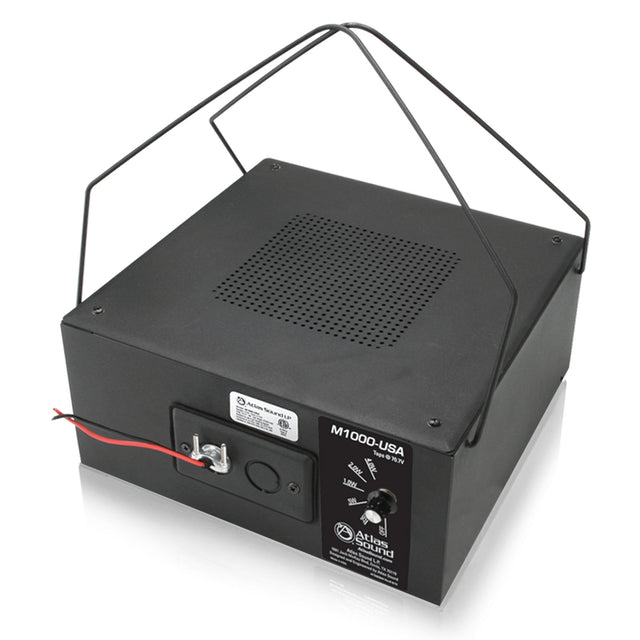

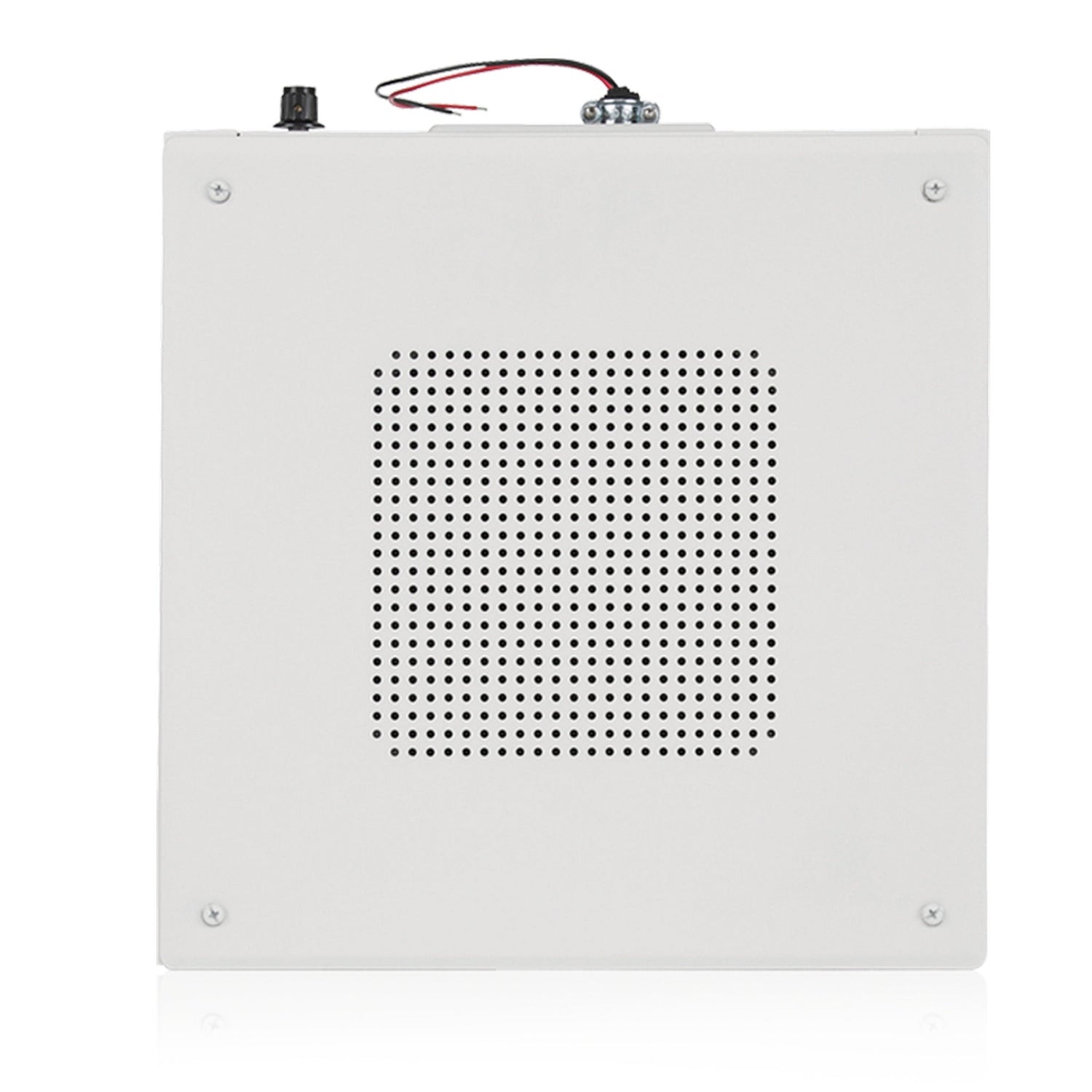

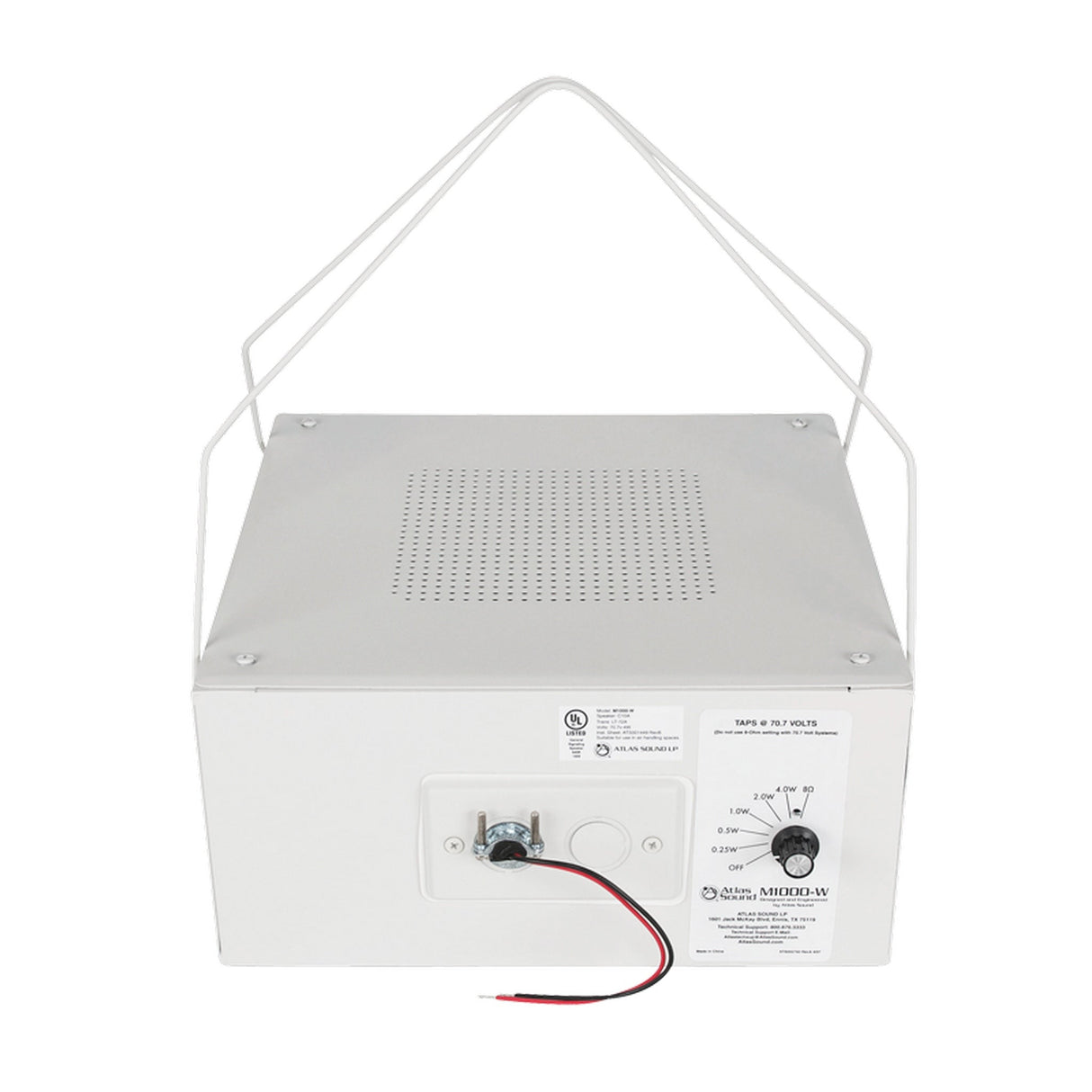

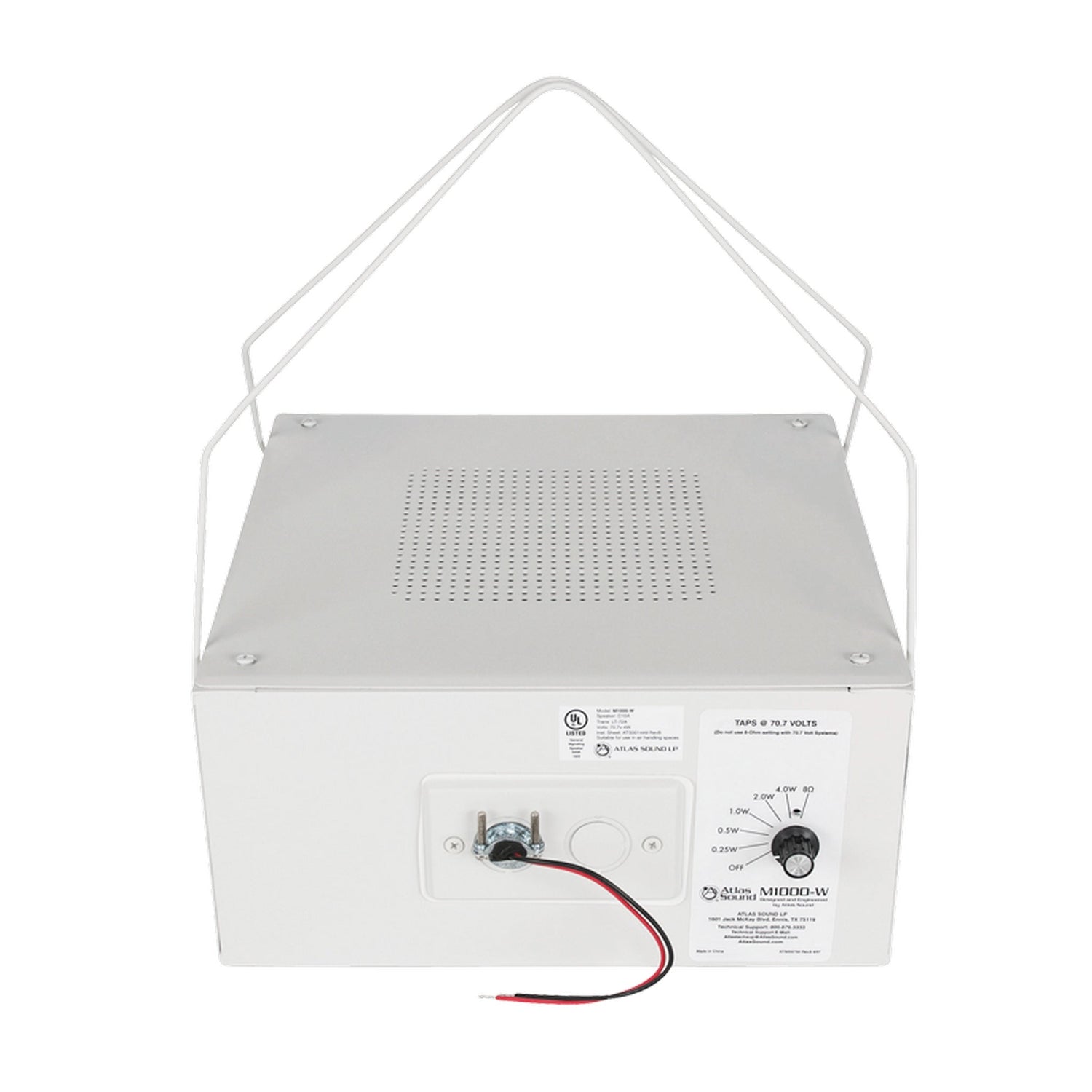

AtlasIED M1000 Series 8-Inch Dual Cone Sound Masking Speaker with 70V Transformer
The AtlasIED M1000-USA and M1000-W are professionally engineered sound masking speakers optimized for commercial open ceiling or plenum installations. Featuring a high-efficiency 8″ dual-cone driver and a robust 70.7V transformer, these speakers deliver uniform masking coverage across a broad frequency range with selectable output taps from 0.25 to 4 watts.
The square 734 in³ enclosure provides extended low-frequency performance and includes AtlasIED’s exclusive EZ hang system for rapid upward, downward, or horizontal suspension. These models comply with UL 2043 and UL 1480 for air handling space and safety, and are available in either black (M1000-USA) or white (M1000-W) epoxy finishes.
Key Features
- Speaker: 8″ dual-cone transducer optimized for masking
- Power Taps: 0.25, 0.5, 1, 2, and 4 watts (plus 8 Ω connection for M1000-W)
- Enclosure Volume: 734 in³ (12.03 L)
- Certifications: UL 1480 & UL 2043 for plenum space applications
- Dispersion: Upward, downward, or horizontal orientation
- Finish Options: M1000-USA (Black), M1000-W (White)
- Input Panel: Combination knockout and strain relief for conduit and secure termination

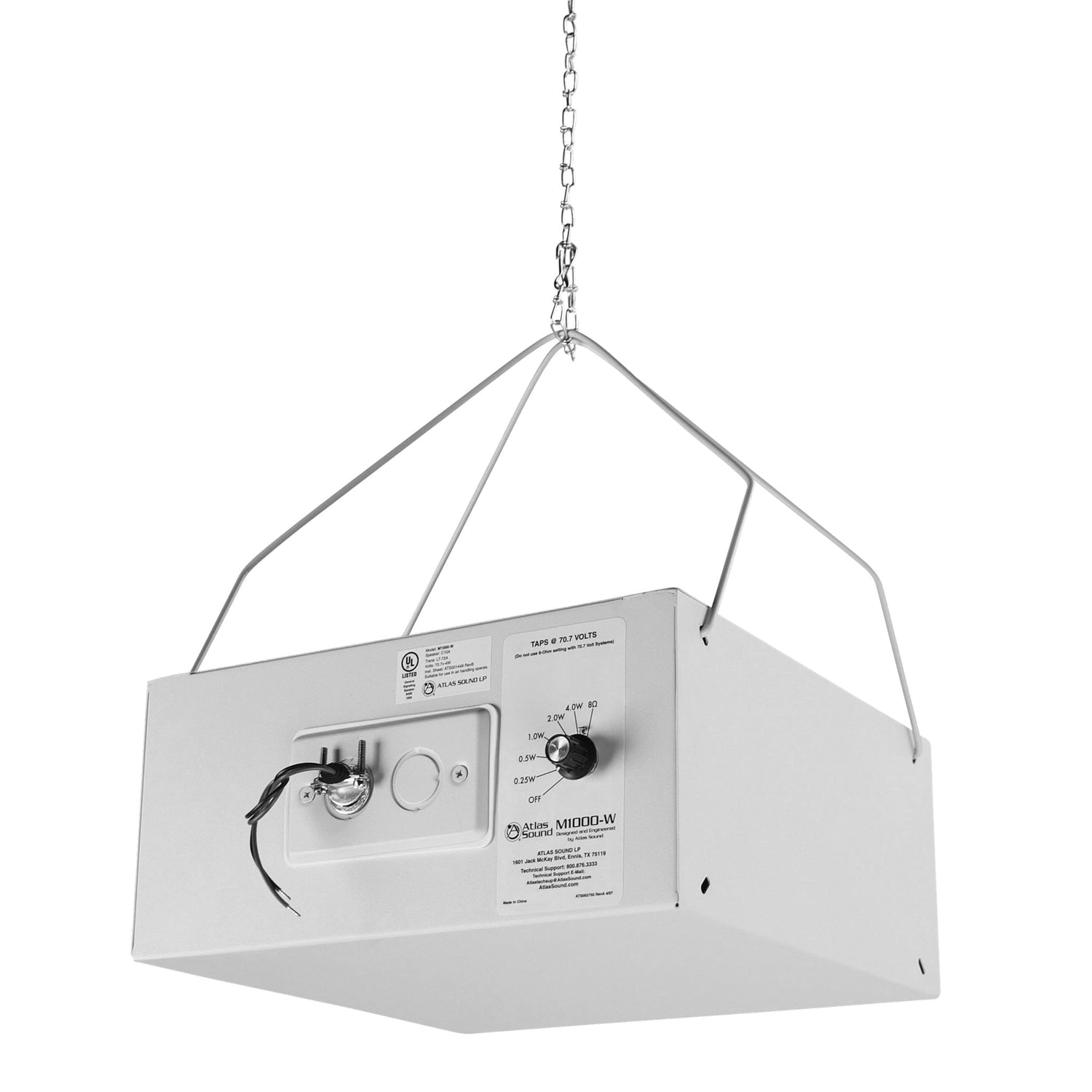

- Mounting System: Factory-installed fold-flat EZ hang brackets (optional MCHAIN72 suspension kit)
- Made in USA: M1000-USA assembled in Texas; BAA compliant
Technical Specifications
- Dimensions: 11.56″ × 11.56″ × 5.5″ (29.37 × 29.37 × 13.97 cm)
- Weight: 9 lbs (4.08 kg); Shipping Weight: 10 lbs (4.54 kg)
- Frequency Response: 100 Hz – 10 kHz ±1.5 dB
- Sensitivity: 97 dB Peak / 94 dB Average
- Enclosure Volume: 734 in³ (12.03 L)
- Power Taps: 0.25 / 0.5 / 1 / 2 / 4 W (70V)
- Safety Listings: UL 1480, UL 2043
- Warranty: 60 months from date of purchase
What’s Included
- AtlasIED M1000-USA or M1000-W speaker assembly
- Factory-installed 8″ driver and 70V transformer
- EZ hang suspension brackets
- Knockout-ready input panel with strain relief
