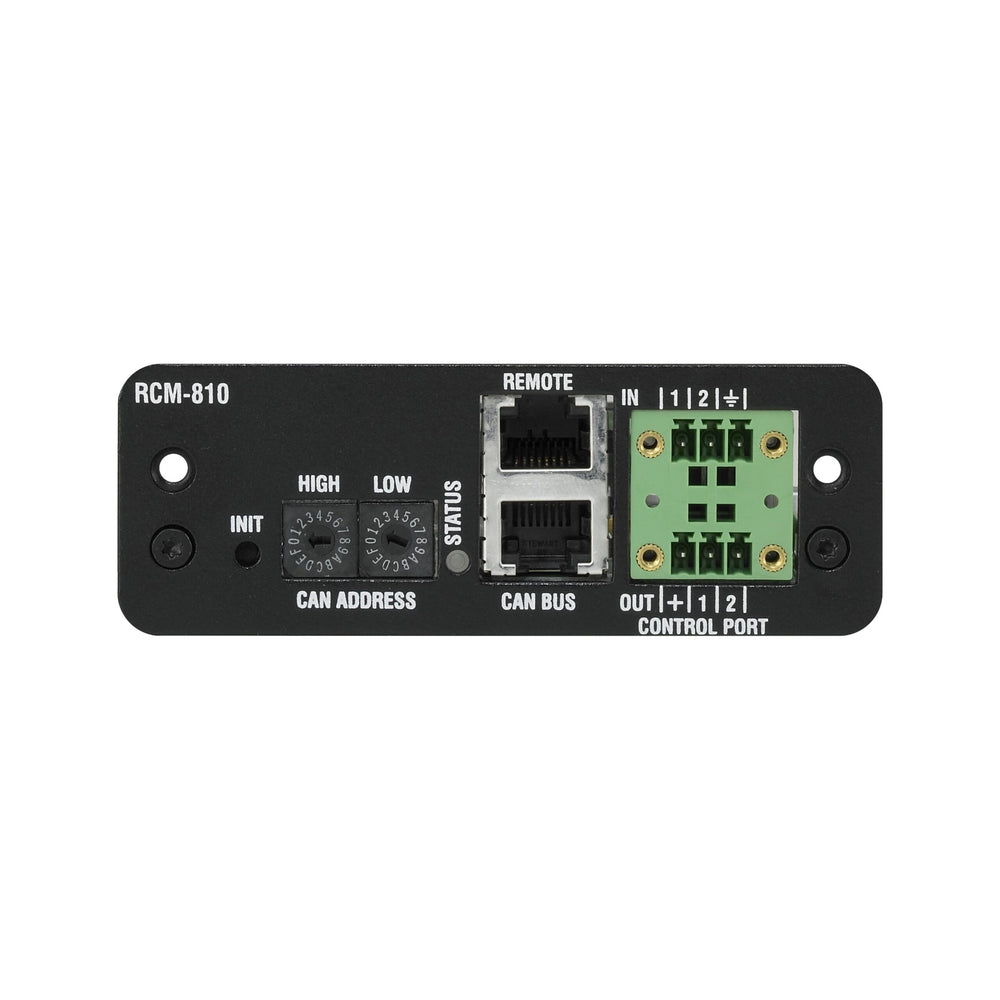

Electro-Voice RCM-810 IRIS-Net Remote Control Module for CPS Series Amplifiers
Electro-Voice | SKU: EV-RCM810-F01U101277
Loading...
$39900
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Electro-Voice RCM-810 IRIS-Net Remote Control Module for CPS Series Amplifiers
IRIS-Net Remote Control Module for CPS Series Amplifiers
Key Features
- Enable powerful control and supervision capabilities
- Integrate up to 100 devices in each remote control network, 250 with multiple networks
- Support for 2-, 4-, and 8-channel CPS models
- Freely programmable control inputs and outputs
- Load-monitoring for each channel
- Variable Load Drive for independent channel impedance on 4- and 8-channel amps (2-10 ohms in 0.1 ohms steps)
Technical Specifications
Audio Network
No
CAN Bus Interface
10 - 500 kbaud, 2x RJ-45 (IRIS-Net Control)
FIR-Drive
No
GPIO Control Ports
2 x 3-pole Euro block 2 Control Inputs 2 Control Outputs 2 Reference Outputs (+5 V, 200 mA / GND)
Internal Processing
None
Network Control (IRIS-Net)
Yes
Network Interface
CAN Bus
Variable Load Drive (VLD)
Yes
