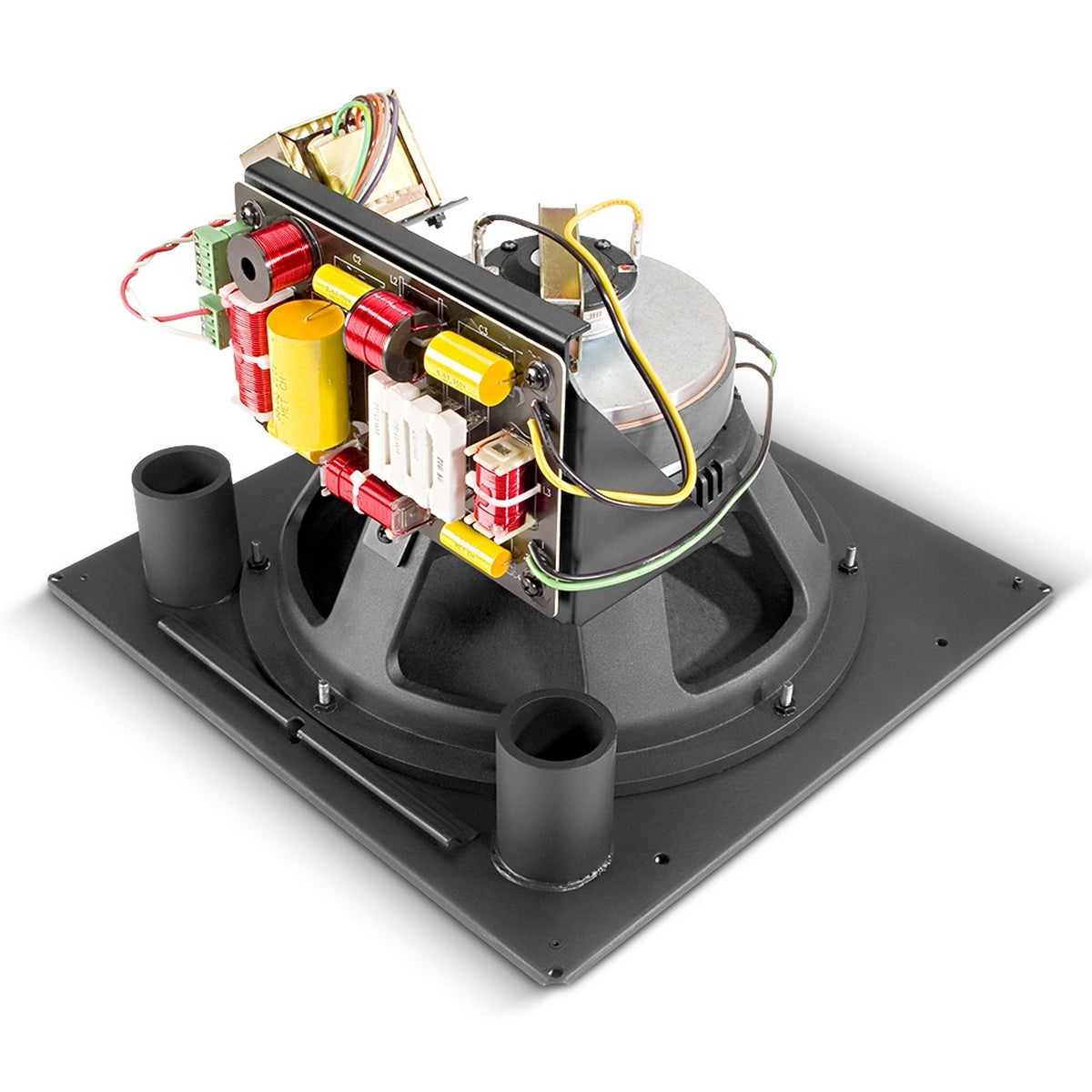

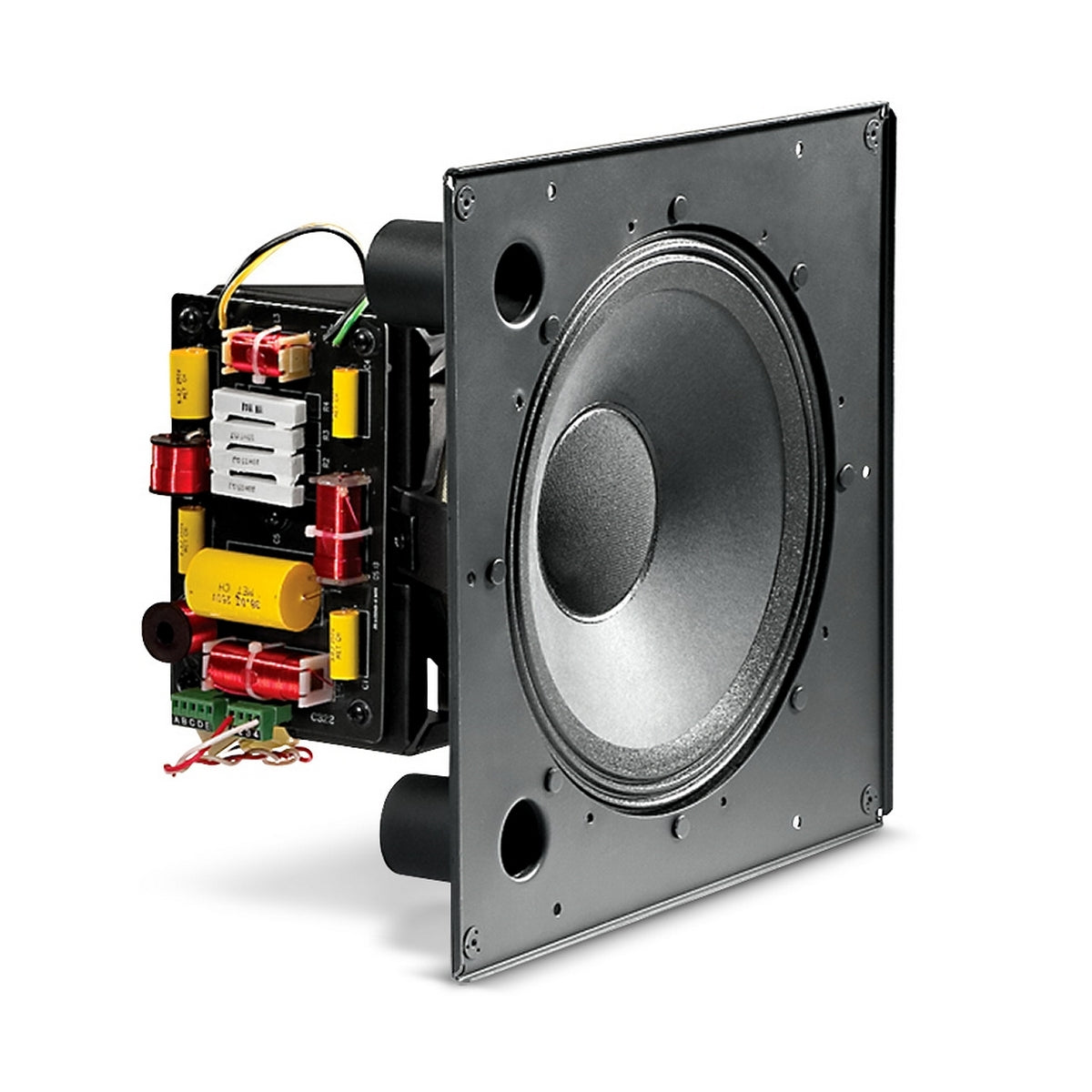

JBL CONTROL 322C High Output 12inch Coaxial Ceiling Loudspeaker

JBL CONTROL 322C | High Output 12inch Coaxial Ceiling Loudspeaker

The JBL CONTROL 322C is a high-output, 12-inch coaxial ceiling loudspeaker designed to deliver exceptional performance for both speech and music. With its advanced point source design, this ceiling loudspeaker ensures consistent 90° broadband pattern control, offering extraordinary clarity for speech and vocals, and an extended frequency response for a rich musical experience. The clean, contemporary grille design makes it an aesthetically pleasing addition to any space, while its robust build ensures durability and long-term reliability.

Engineered with a Kevlar-reinforced 300 mm (12 in) woofer and a medium-format compression driver, the Control 322C excels in delivering high SPL capabilities with minimal distortion. This powerhouse speaker boasts a power handling capacity of 400 Watts and high sensitivity, making it an ideal choice for a variety of commercial applications, including auditoriums, conference rooms, and retail spaces. The advanced high-slope crossover network ensures constant coverage and smooth, natural midrange, making it a versatile and reliable choice for quality audio performance.

Key Features

• Consistent 90° broadband pattern control
• Kevlar-reinforced 300 mm (12 in) woofer with a 75 mm (3 inch) voice-coil cone
• Medium-format compression driver
• Extraordinary clarity for speech and vocals
• Extended frequency response for a rich musical experience
• Power handling of 400 Watts with high sensitivity
• Advanced high-slope crossover network for constant coverage and smooth midrange
• Clean, contemporary grille design
• Optional backbox available

Specifications

• Frequency Range (-10 dB): 32 Hz – 20 kHz
• Long-Term System Power Rating: 400 W (1600 W peak), 2 hrs; 250 W (1000 W peak), 100 hrs
• Sensitivity (2.83V@ 1m): 95 dB measured half-space, 100 dB computed for competitive comparison
• Frequency Response (±3 dB): 48 Hz – 19 kHz
• Coverage Pattern: 90° conical, broadband (Avg. 1k - 16kHz)
• Directivity Factor (Q): 9 (1k - 16kHz)
• Directivity Index (DI): 9.5 dB (1k - 16kHz)
• Crossover Network: 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
• Nominal Impedance: 8 ohms
• Dimensions (H x W x D): 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)

Package Contents

• JBL CONTROL 322C Loudspeaker Unit
• Installation Instructions
• Mounting Hardware
• Warranty Card
