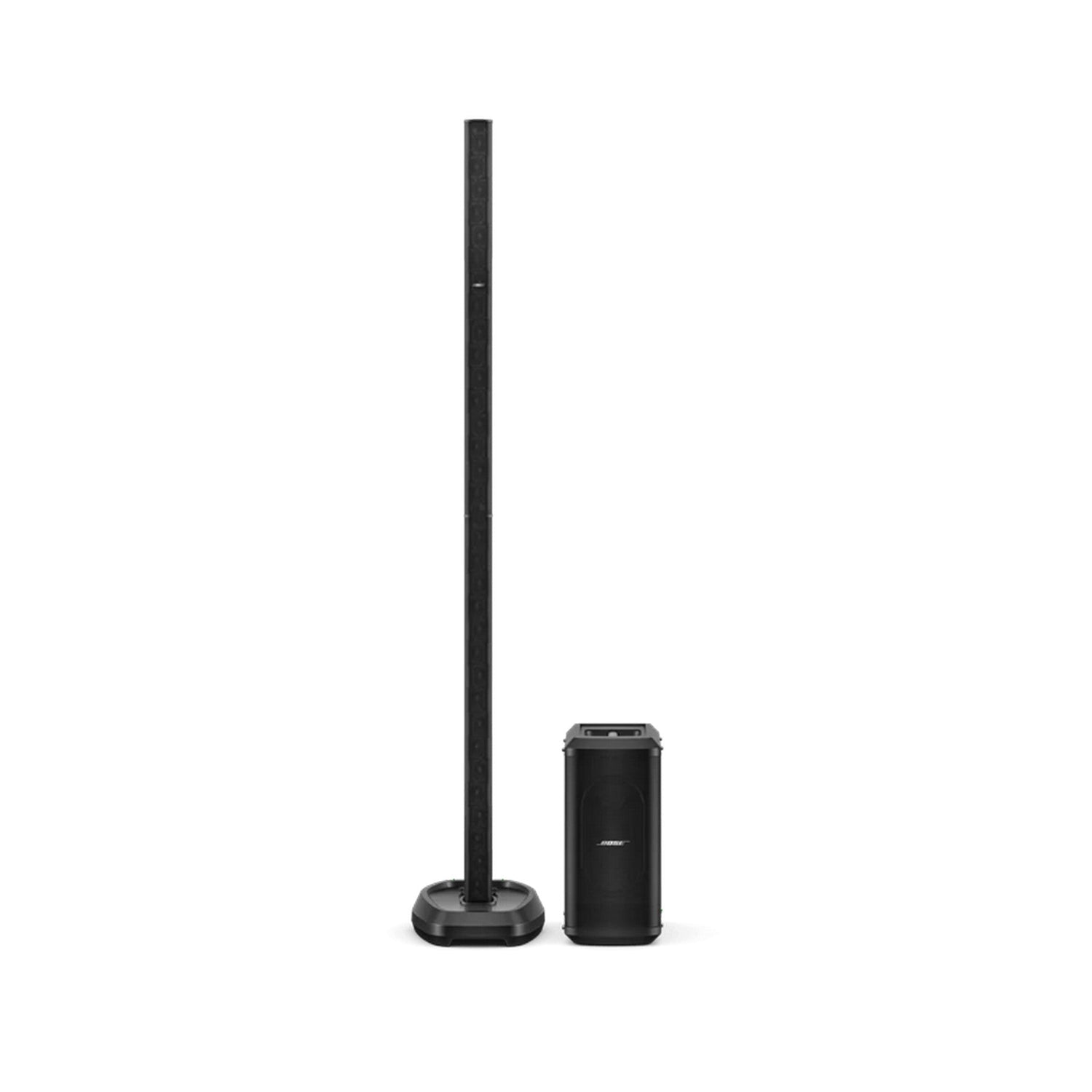

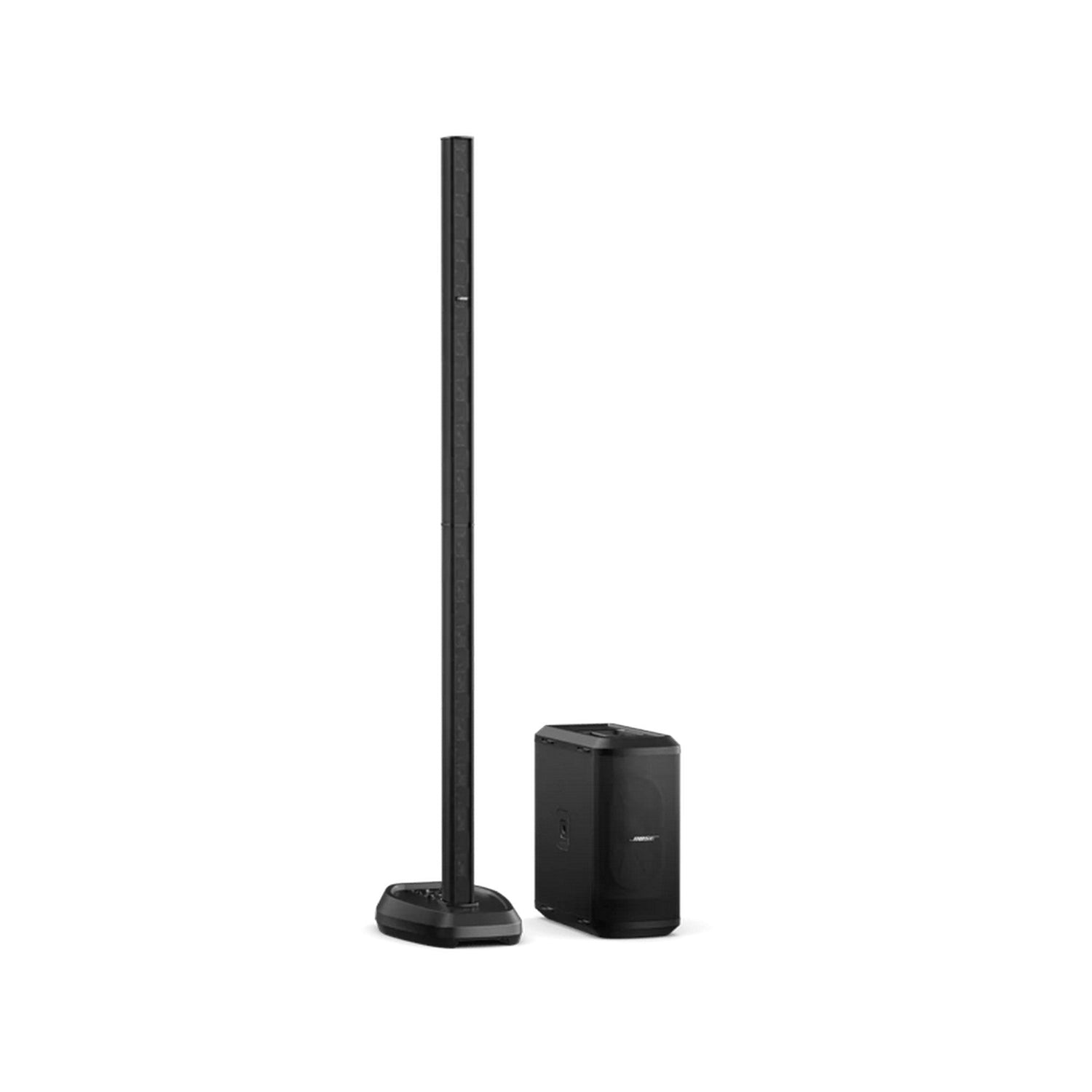

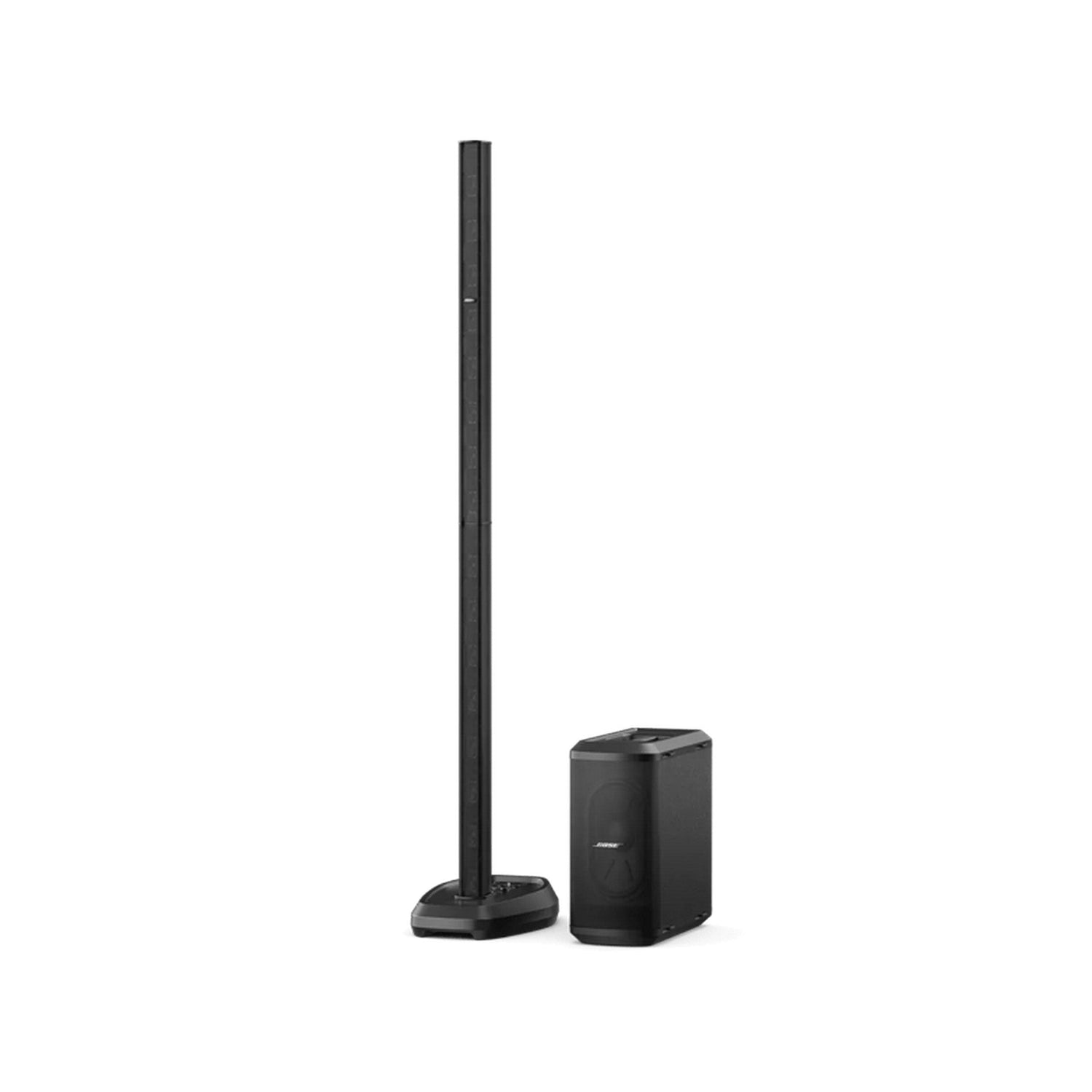

Bose L1 PRO32 Portable Bluetooth Line Array Speaker System

The Bose L1 Pro32 with Sub1 Powered Bass Module offers superior audio performance for DJs, singer-songwriters, and bands. This system combines the clarity of a 32-driver articulated line array with the impactful bass of the Sub1 module, delivering detailed and consistent sound coverage. It's designed for portability, allowing for easy setup and transportation, making it ideal for both small and large venues.

The L1 Pro32 provides 180-degree horizontal coverage and focused vertical dispersion, ensuring your audience experiences clear and immersive audio. The Sub1 module extends low-frequency response down to 40 Hz, enhancing the depth of your music. Both components feature a slim design with RaceTrack drivers, optimizing space without compromising sound quality. Additionally, the system's SubMatch connectivity simplifies setup by transmitting power and audio through a single cable.

Key Features:

• Comprehensive Coverage: 32-driver straight line array offering 180-degree horizontal and focused vertical coverage for consistent sound across the audience area.
• Enhanced Bass Performance: Sub1 module delivers low-frequency response down to 40 Hz, enriching the overall audio experience.
• Portability: Slim design with RaceTrack drivers ensures easy transport and setup without sacrificing sound quality.
• SubMatch Connectivity: Simplifies setup by transmitting power and audio through a single cable, reducing clutter and complexity.
• Integrated Mixer: Built-in mixer with multiple input options, including combo XLR-1/4" inputs and Bluetooth streaming, providing flexibility for various audio sources.
• Wireless Control: Bose Music app allows for intuitive wireless control of mixer settings from your smartphone or tablet.
• System EQ Presets: Optimized EQ presets for live and recorded music, enhancing sound quality for different applications.
• ToneMatch Port: Dedicated port for connecting Bose ToneMatch mixers, expanding input options for complex setups.

Technical Specifications:

System Type: Portable line array with powered bass module
Line Array Drivers: 32 articulated 2" neodymium drivers
Bass Module: Sub1 powered bass module with 7" x 13" RaceTrack driver
Frequency Response: Sub1: down to 40 Hz
Coverage: 180° horizontal; vertical coverage varies with system configuration
Inputs: Two combo XLR-1/4" inputs; 1/4" and 1/8" aux inputs; Bluetooth streaming
Outputs: ToneMatch port; line out
Power Consumption: 15 W idle; 200 W maximum
Dimensions (L1 Pro32): 48.5" H x 7.5" W x 7.5" D; 28 lbs
Dimensions (Sub1): 20.87" H x 9.84" W x 20.87" D; 36 lbs
Included Accessories: Slip cover; power cord
Optional Accessories: Bose ToneMatch mixers; speaker stands; protective covers

Package Contents:

• L1 Pro32 Portable Line Array
• Sub1 Powered Bass Module
• Slip covers for both components
• Power cords
• Quick start guide
• Owner's guide
