Bose L1 Pro16 Portable Line Array Speaker System with Bluetooth

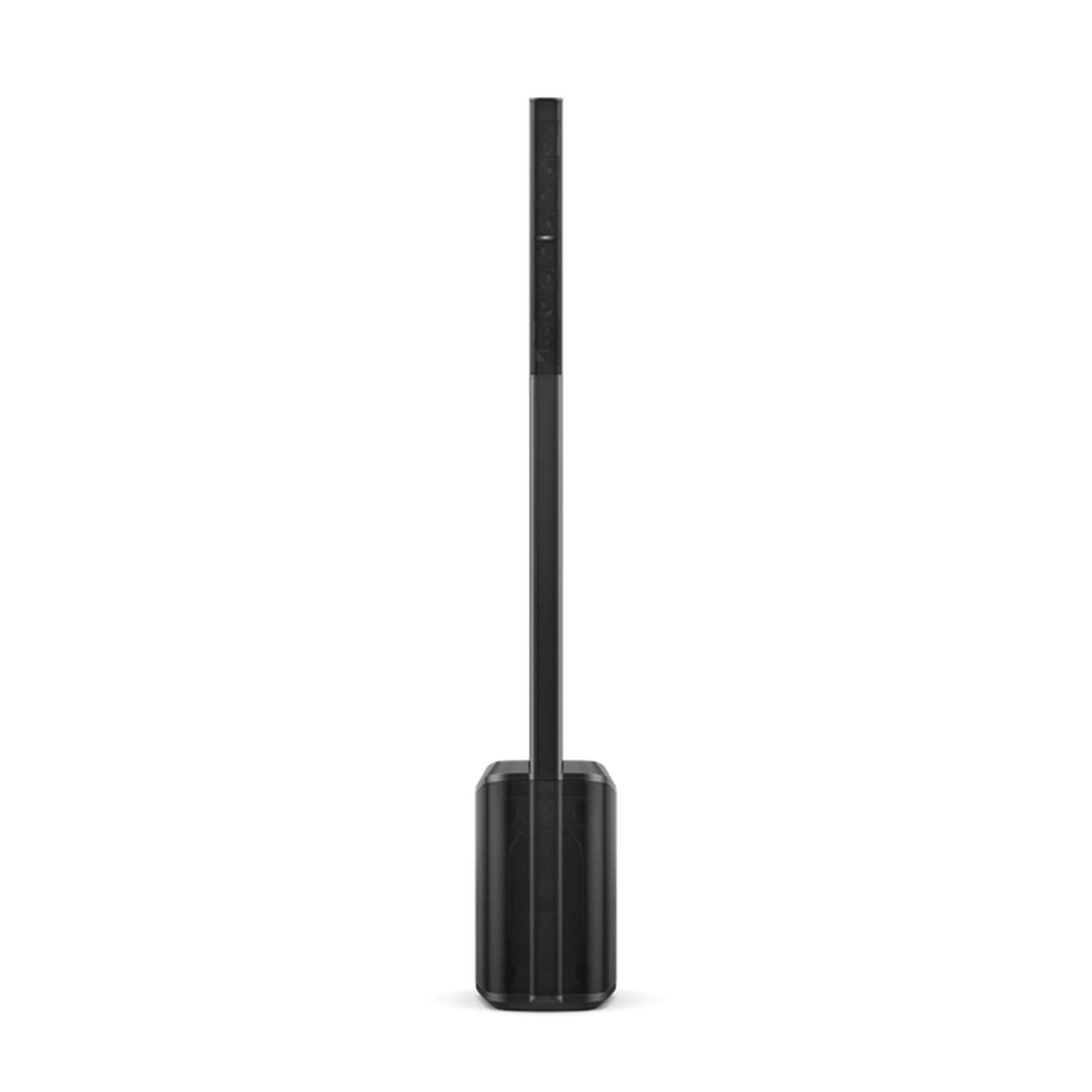

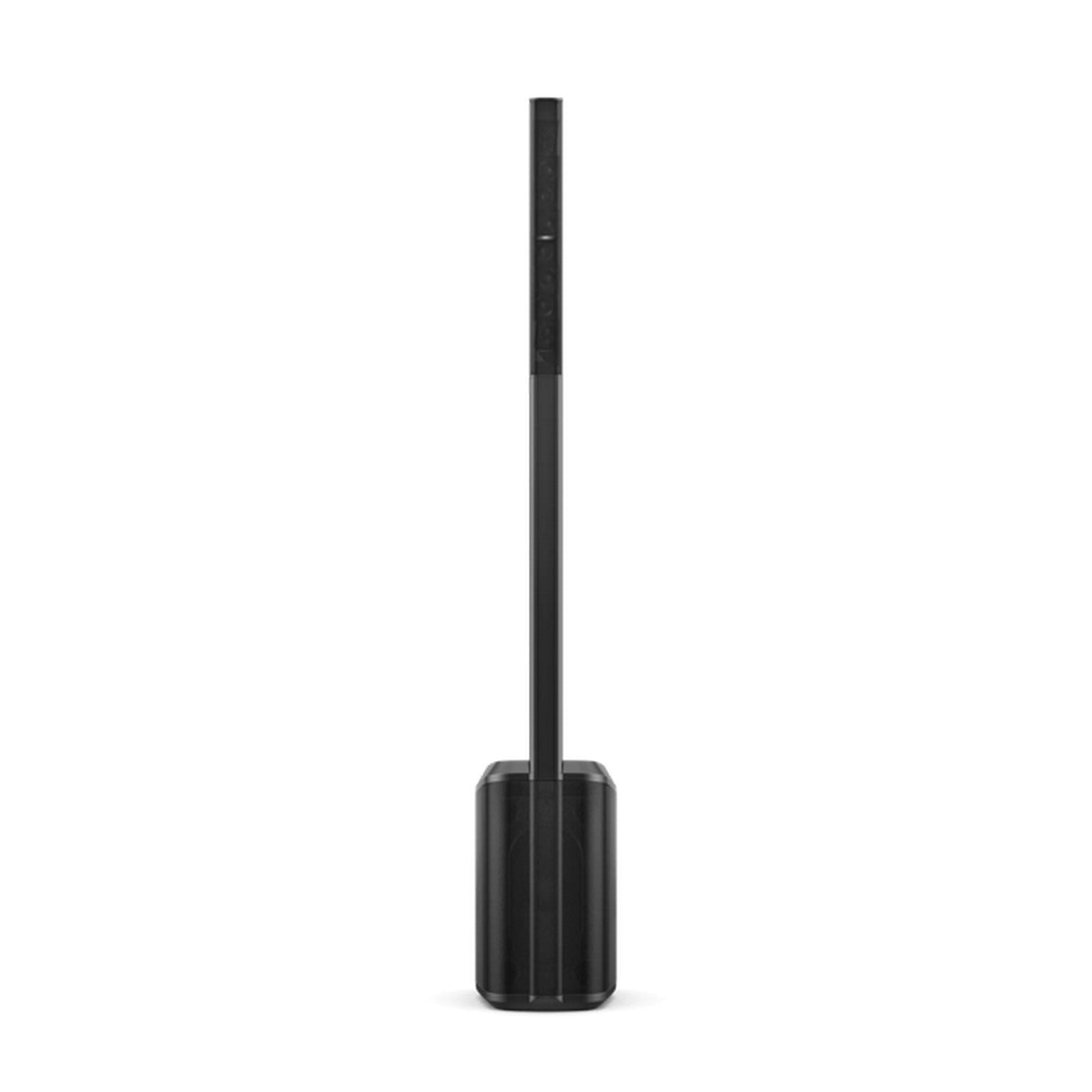

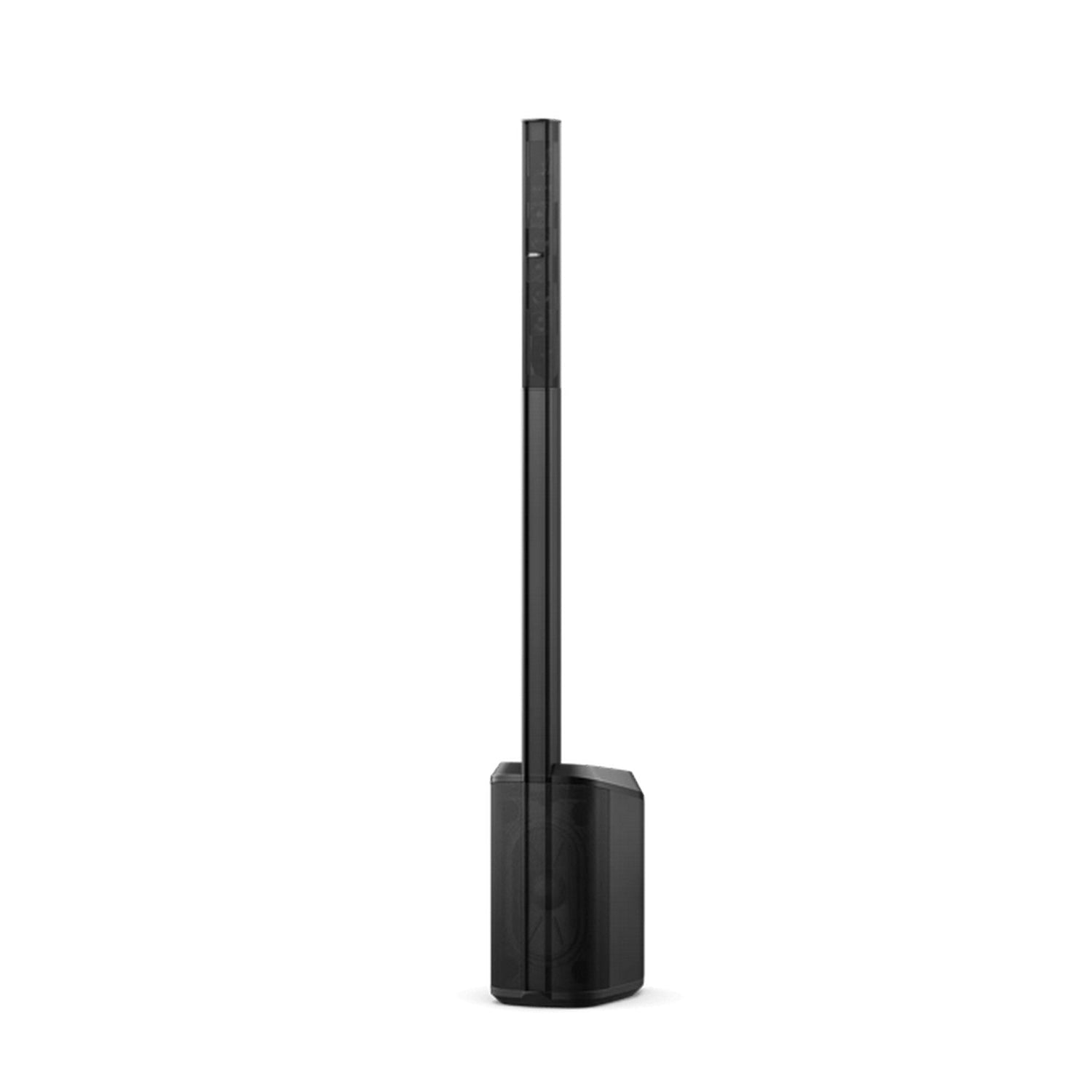

The Bose L1 Pro8 is an ultra-portable line array system designed for musicians, DJs, and performers seeking a balance between performance and convenience. Featuring an eight-driver C-shaped line array, it delivers 180-degree horizontal coverage with wide vertical dispersion, ensuring consistent sound quality throughout small to medium-sized venues such as coffee shops and cafes. The integrated subwoofer utilizes a unique RaceTrack driver, providing powerful bass performance in a slim, space-saving design.

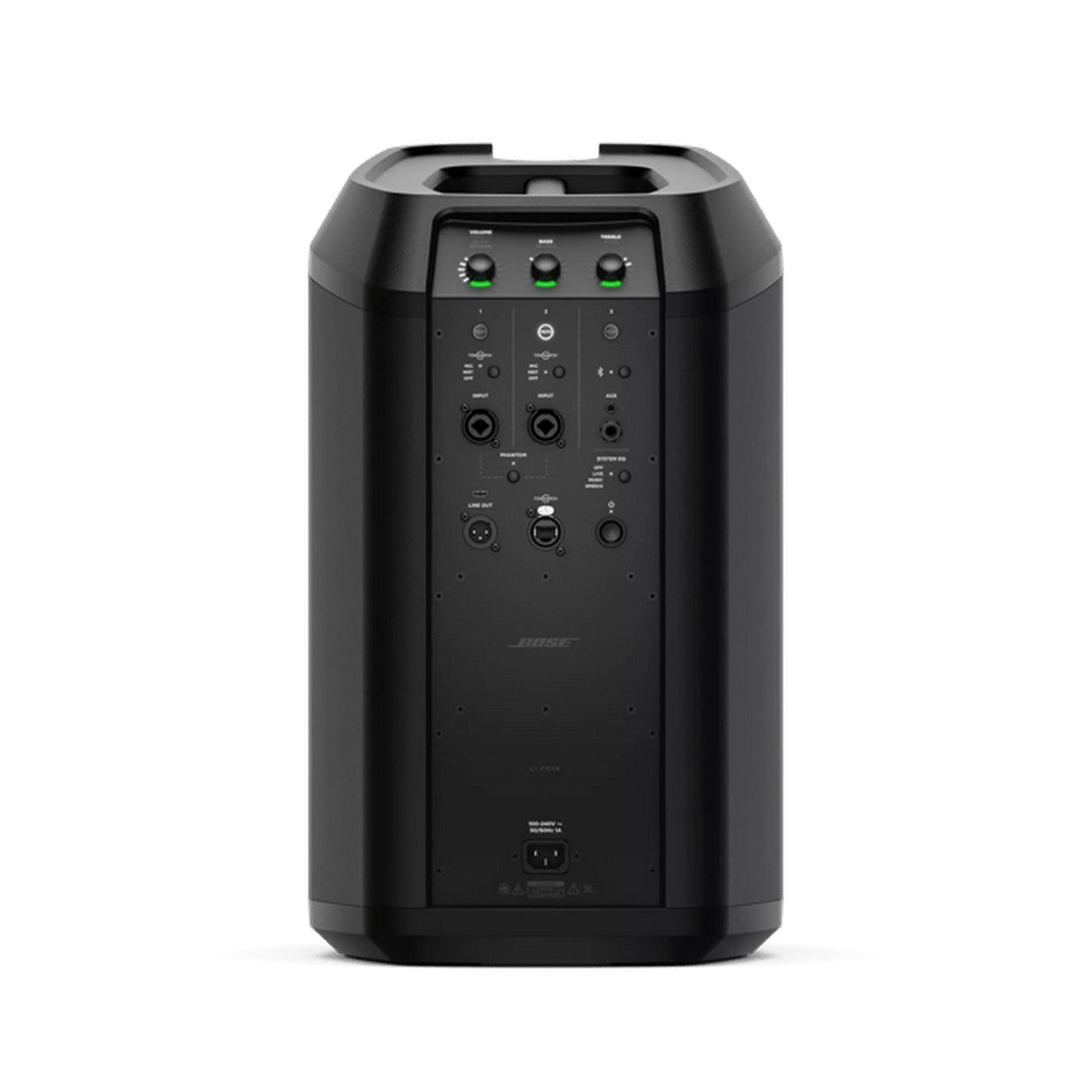

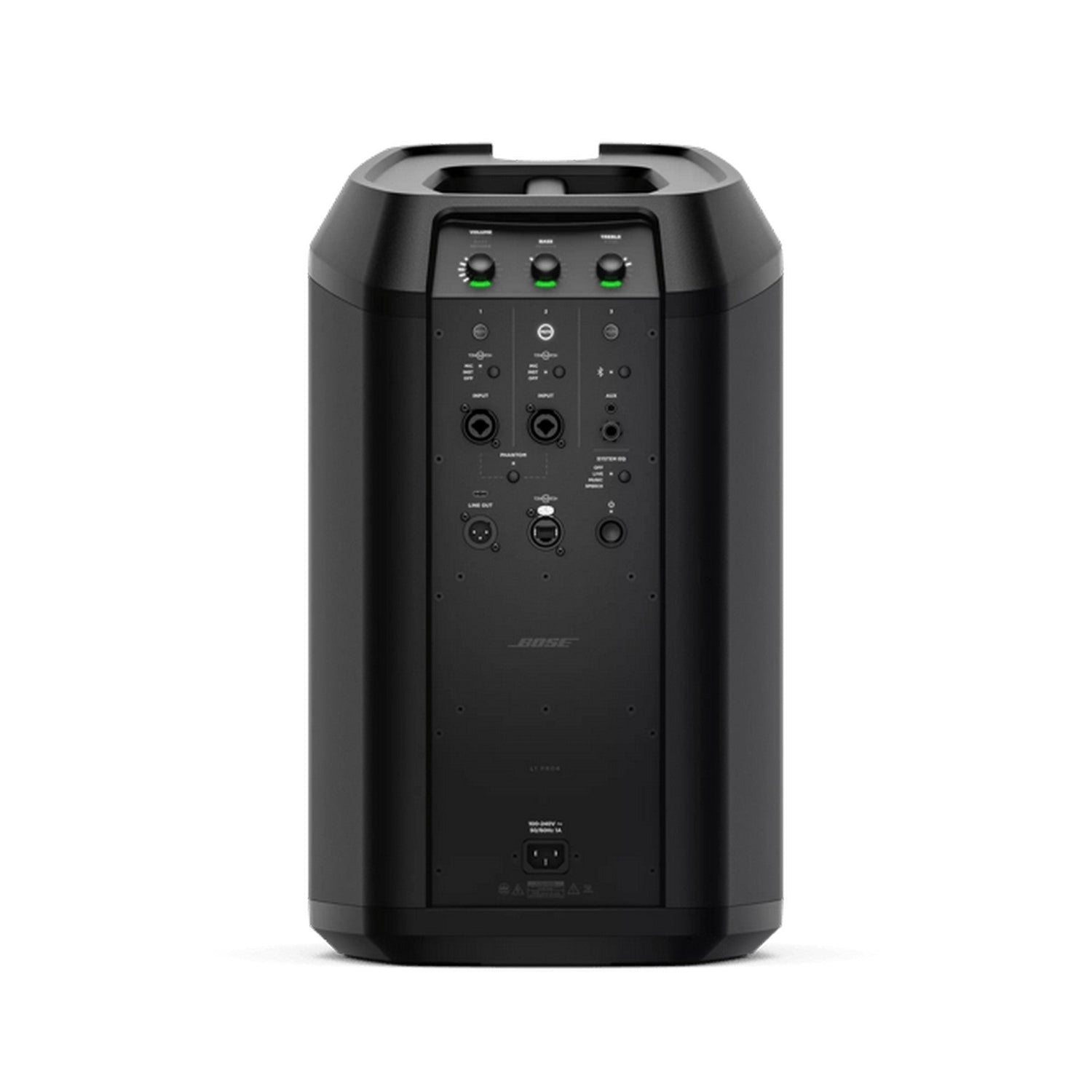

Equipped with a built-in mixer, the L1 Pro8 offers multiple input options, including two combo XLR-1/4" phantom-powered inputs, 1/4" and 1/8" (3.5 mm) aux inputs, and Bluetooth streaming capability. Illuminated rotary encoders allow for easy control over volume, tone, and reverb settings per channel. Additionally, the system is compatible with the Bose Music app, enabling wireless control of the mixer from a smartphone or tablet for added flexibility during performances.

Key Features:

• 180-Degree Horizontal Coverage: C-shaped line array with eight articulated 2" neodymium drivers ensures consistent sound across the audience area.
• Integrated Subwoofer with RaceTrack Driver: Slim 7" × 13" driver delivers powerful bass without the bulk of traditional subwoofers.
• Built-In Mixer: Two combo XLR-1/4" phantom-powered inputs, 1/4" and 1/8" aux inputs, plus Bluetooth streaming for versatile connectivity.
• Illuminated Controls: Rotary encoders provide intuitive access to volume, tone, and reverb settings for each channel.
• Wireless Control via Bose Music App: Adjust mixer settings remotely from a smartphone or tablet for enhanced convenience.
• Ultra-Portable Design: Lightweight system weighing 38.2 lbs (17.4 kg) with modular components for easy transport and quick setup.

Technical Specifications:

Frequency Response (-3 dB): 45 Hz – 16 kHz
Frequency Range (-10 dB): 33 Hz – 18 kHz
Nominal Horizontal Coverage: 180°
Nominal Vertical Coverage: 40°
Maximum SPL at 1 m: 118 dB peak
Amplification: Two-channel Class D; 240 W for low-frequency driver, 60 W for high-frequency drivers
Inputs: Two combo XLR-1/4" inputs, 1/4" and 1/8" aux inputs, Bluetooth streaming
Phantom Power: 48 VDC on Channels 1 & 2
Outputs: XLR line-level output
Dimensions (H × W × D): 78.7" × 12.5" × 17.9" (2000 mm × 317 mm × 456 mm)
Net Weight: 38.2 lbs (17.4 kg)
Enclosure Material: High-impact polypropylene for power stand; high-impact ABS for extension and array
Grille: Powder-coated perforated steel
Cooling System: Convection cooling
AC Power Input: 100–240 VAC (±15%, 50/60 Hz)
Power Connector: IEC

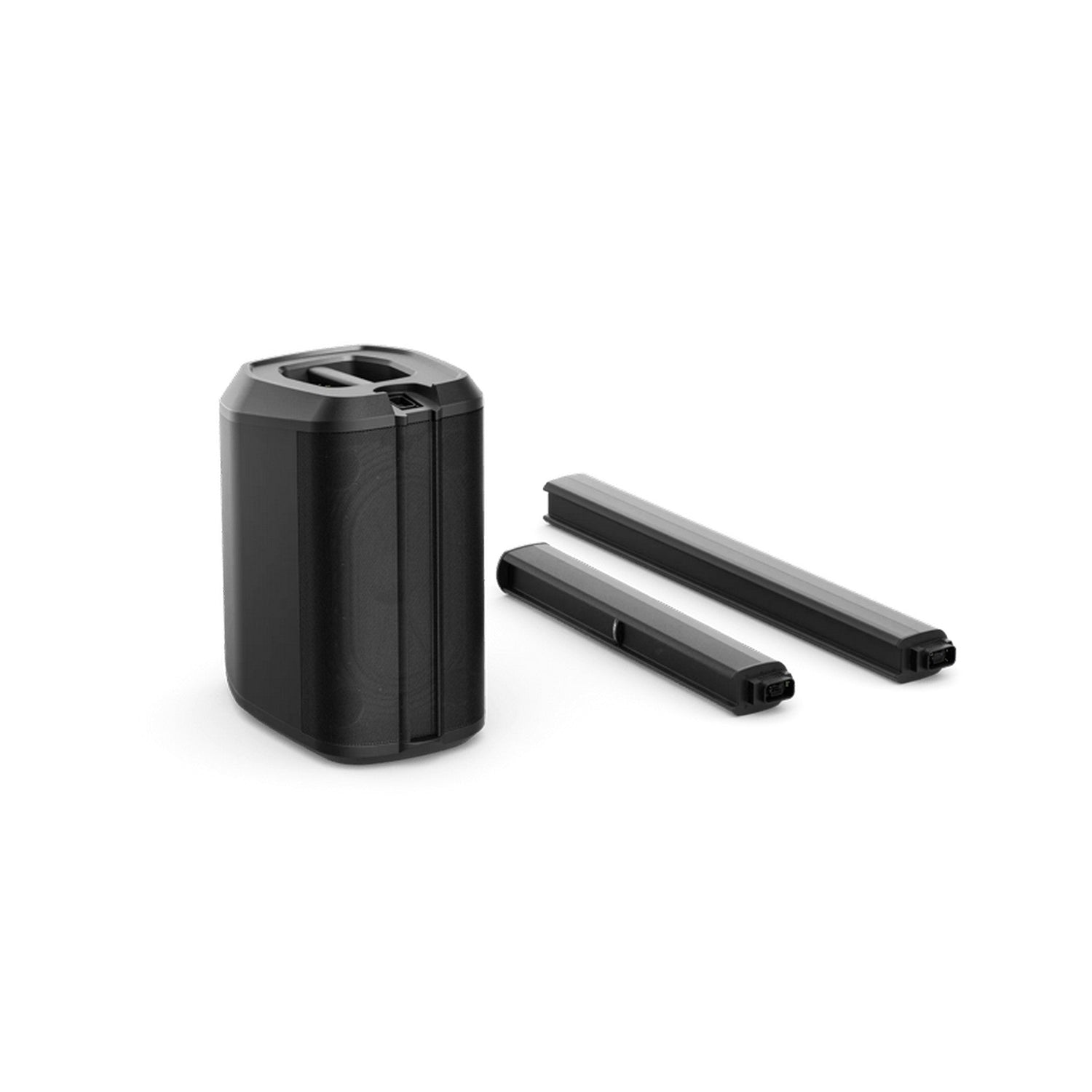

Package Contents:

• Power stand
• Speaker array
• Speaker array extension
• Carry bag for speaker array and extension
• IEC power cord
