JBL CBT 1000E High Output Column Extension Speaker for CBT 1000 Black

JBL CBT 1000E | High Output Column Extension Speaker for CBT 1000 Black

The JBL CBT 1000E is a state-of-the-art column extension speaker designed to elevate the performance of your CBT 1000 array. With its six 165 mm high-excursion low-frequency drivers, this extension unit delivers an impressive 1500W continuous power handling, reaching 6000W at peak. When paired with the CBT 1000, the combined system presents a powerful 3000W handling capacity, offering dynamic sound coverage from 38 Hz to 20 kHz.

By integrating with the CBT 1000, the CBT 1000E benefits from JBL's innovative Constant Beamwidth Technology. This technology ensures consistent frequency distribution and minimizes out-of-coverage lobing, making sure that every corner of your space is filled with clear, crisp sound. The vertical pattern coverage can be individually adjusted, offering 16 different coverage combinations without the need for external DSP processing, thanks to the patent-pending Tapered Horizontal Waveguide. With these features, the JBL CBT 1000E ensures optimal performance for both music and speech applications.

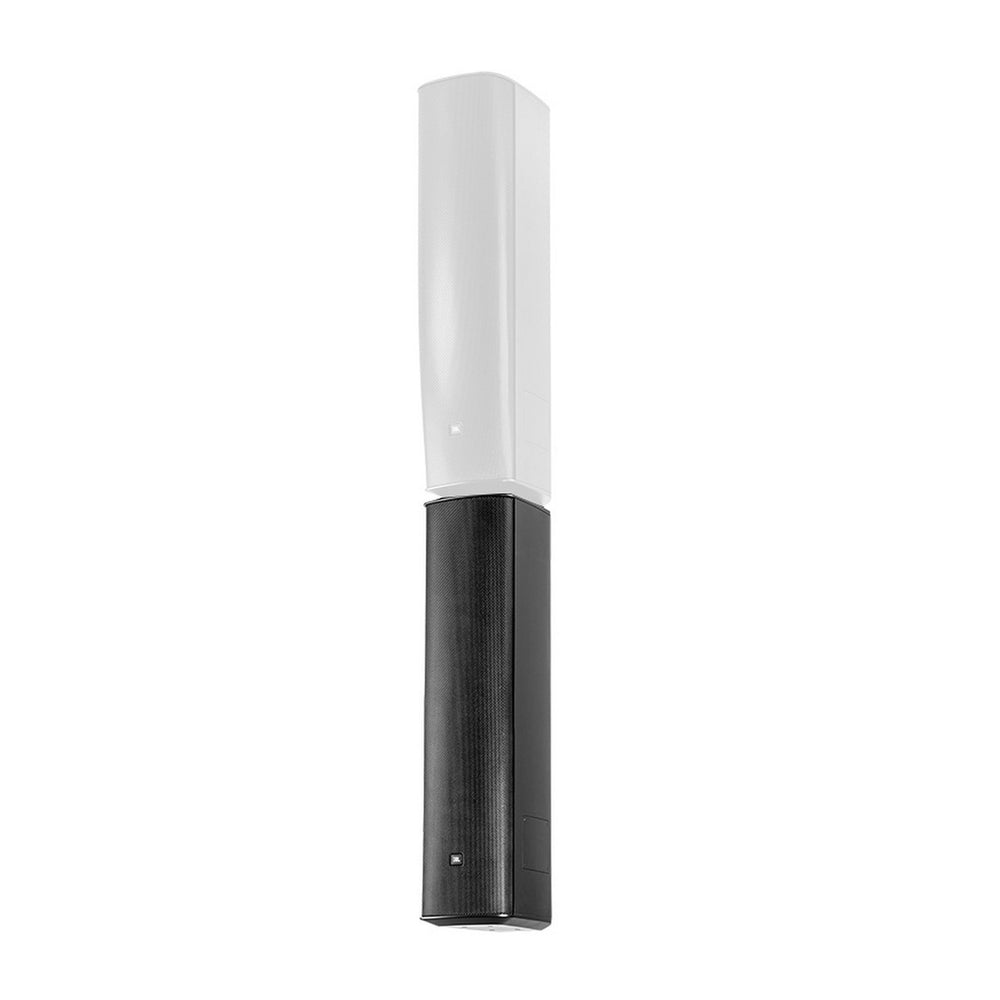

The CBT 1000E is designed for easy integration and setup. It comes with a linking coupler bracket, making it simple to connect with the CBT 1000. This modular design allows for a 200 cm tall array when combined, perfect for venues requiring extensive vertical coverage. Whether you're hosting a live music event, setting up a conference, or enhancing a worship service, the JBL CBT 1000E ensures superior audio precision and flexibility.

Key Features

• Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers (CBT1000E)
• 1500 Watt power handling (CBT1000E)
• Built-in purpose-designed crossover network, for combining with CBT1000 (CBT1000E)
• Coupler plate included (CBT1000E)
• Extended pattern control
• Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
• 3000 watt power handling (CBT1000+1000E)
• Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing (CBT1000)
• Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room (CBT1000)
• Single-speaker system room coverage at high SPL, with little over-splash and strong bass response down to below 38 Hz (CBT1000+1000E)
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode (CBT1000)
• Swivel (pan)/tilt wall bracket and coupler plate included.

Specifications

• Power Handling (CBT1000E): 1500W continuous, 6000W peak
• Power Handling (CBT1000+1000E): 3000W
• Frequency Response: 38 Hz - 20 kHz
• Impedance: 8 ohms (CBT1000+1000E is a 4 ohm system)
• Components: Six (6) 165 mm LF drivers (CBT1000E), Twenty-four (24) 25 mm Tweeters and Twelve (12) 165 mm LF drivers (CBT1000+1000E)
• Height: 100 cm (CBT1000E), 200 cm (CBT1000+1000E)

Package Contents

• JBL CBT 1000E Column Extension Speaker
• Linking Coupler Bracket
• User Manual
• Swivel (pan)/tilt wall bracket
