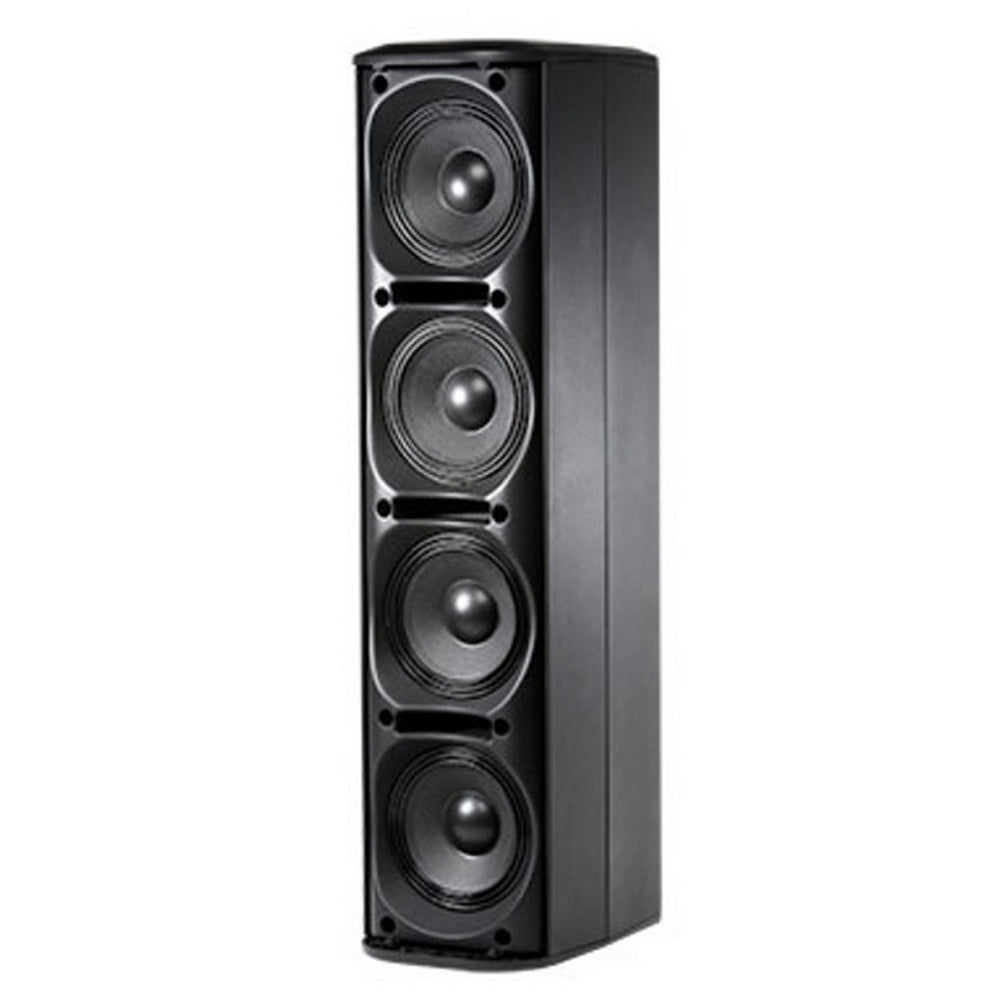

JBL CBT 70JE-1 Purpose Designed Extension for CBT70J-1 Line Array Column Speaker BLACK BLK

JBL CBT 70JE-1 | Purpose Designed Extension for CBT70J-1 Line Array Column Speaker BLACK BLK

The JBL CBT 70JE-1 line array column speaker extension in elegant black is purpose-designed to enhance the performance of your JBL CBT70J-1 speaker system. This powerhouse of an extension delivers extended bass response, superior pattern control, and amplified sound output levels. Featuring the revolutionary Constant Beamwidth Technology, the CBT 70JE-1 ensures consistent vertical coverage without the pitfalls of narrow vertical beaming and out-of-coverage lobing usually associated with passive column speakers. The extension is equipped with high-efficiency neodymium drivers that are engineered for top-notch performance and durability, making it suitable for both indoor and outdoor use.

The dual magnet neodymium motors with 38 mm voice coils work in cohesion to provide impactful, clear, and undistorted sound. The 16 mm long coils ensure high linear drive and robust power handling, encapsulated within a compact yet efficient design. Additionally, the durable driver materials are coated for resistance to moisture, UV rays, and salt, adding an extra layer of reliability for outdoor applications. Whether you're looking for a speaker extension that provides enhanced bass or superior vertical coverage, the JBL CBT 70JE-1 is the right addition to elevate your audio experience.

Key Features

• Components: Four 125 mm (5 in) high-power LF drivers
• 500 Watt power handling
• Built-in purpose-designed crossover network
• Coupler plate included
• Extended pattern control to 400 Hz
• Extended bass response to 45 Hz
• Components: Sixteen 25 mm (1 in) soft dome tweeters and eight 125 mm (5 in) high-power LF drivers
• Patent-pending Constant Beamwidth Technology for consistent directivity
• Switchable vertical pattern coverage
• Switchable voicing for flat or mid-range presence peak
• Coupler plate and wall swivel (pan)/tilt bracket included

Specifications

• Components: Four 130 mm (5 in) LF drivers
• Frequency Range: 45 Hz - 700 Hz
• Sensitivity: 90 dB full space, 96 dB half-space
• Nominal Impedance: 8 ohms
• Power Capacity: 500 W (2000 W peak), 2 hrs; 350 W (1400 W peak), 100 hrs
• Max SPL: 117 dB
• Pattern Control Frequency: 400 Hz
• Mounting: 10 x M6 insert points, combining bracket included
• Color: Black
• Dimensions (H x W x D): 1388 x 168 x 235 mm (54.8 x 6.6 x 9.3 in)
• Weight: 8.2 kg (18 lb)

Package Contents

• JBL CBT 70JE-1 Extension Speaker
• Coupler Plate
• Wall Swivel (Pan) / Tilt Bracket
• User Manual
