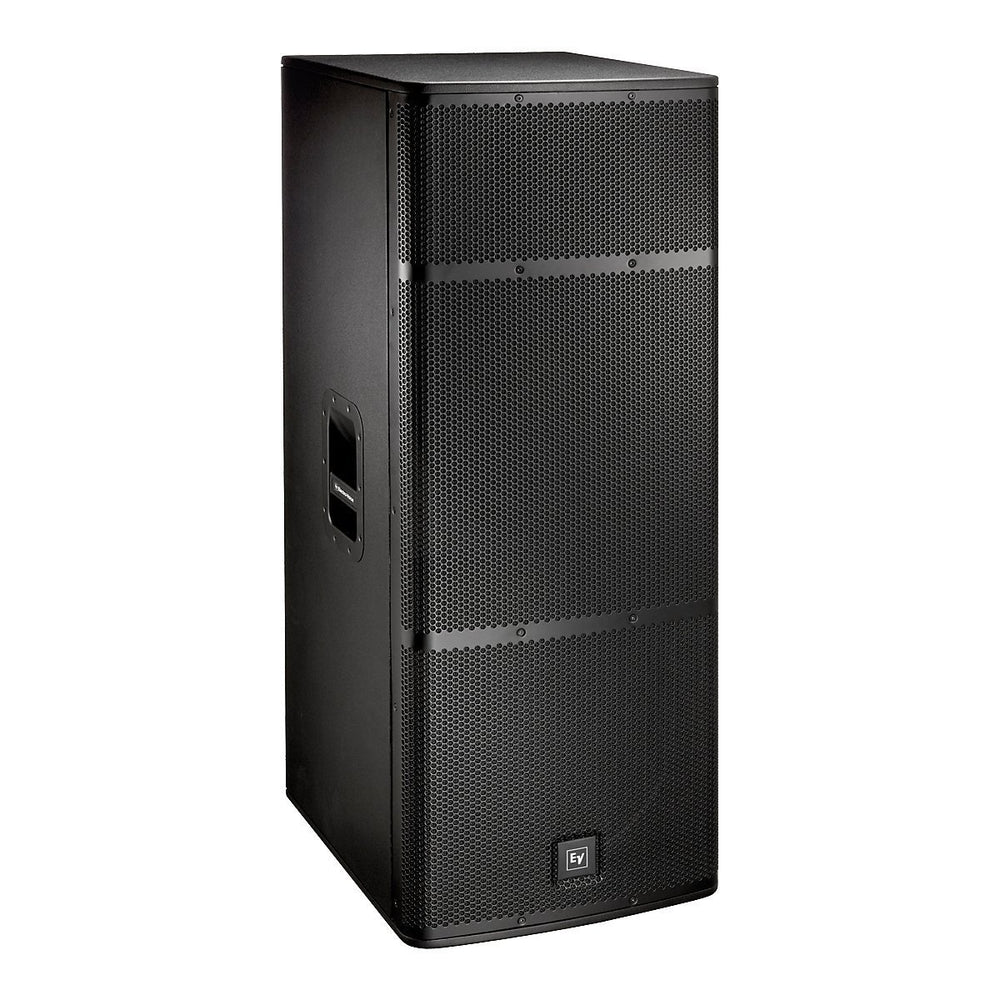

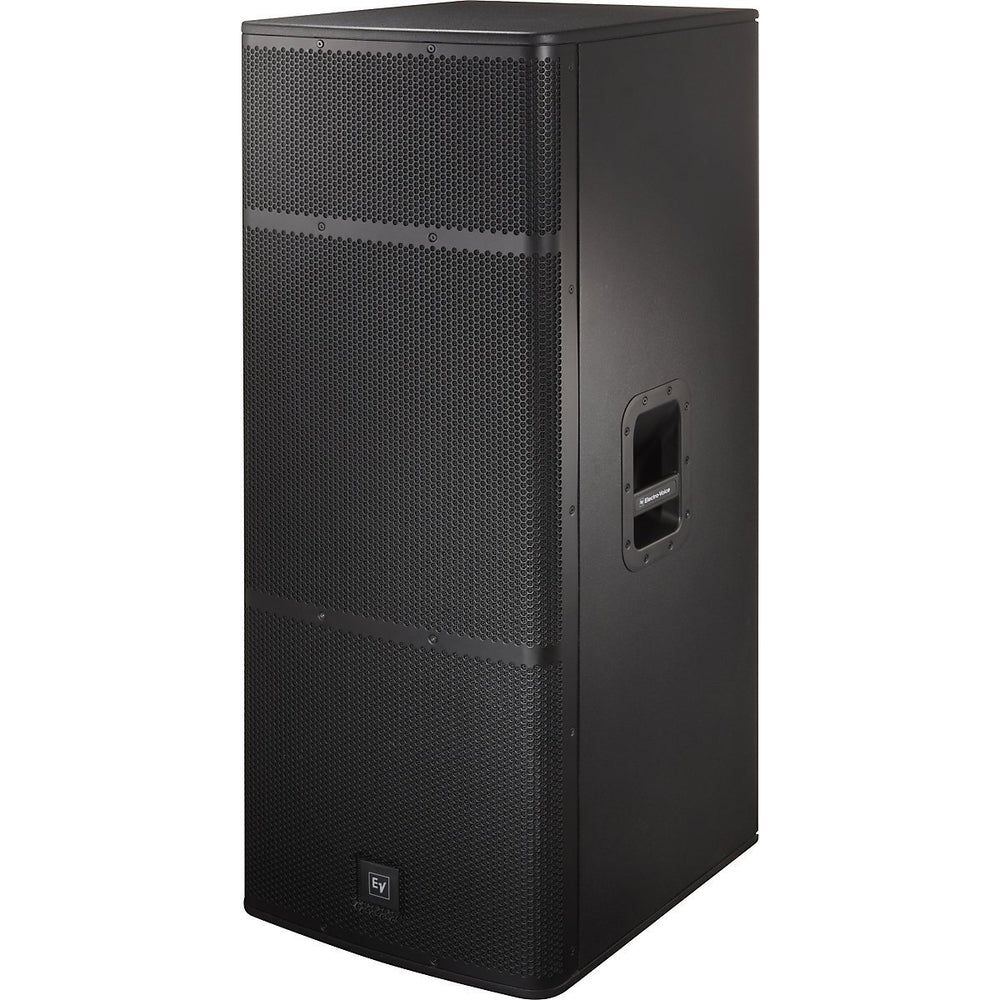

Electro-Voice ELX215 Dual 15-Inch Two-Way Full-Range Speaker
The Electro-Voice ELX215 Dual 15-Inch Two-Way Full-Range Speaker is a twin woofer configuration that delivers real low-end punch. It is ideal for applications that demand high-volume output and an ultra-wide frequency response from a single cabinet.
Key Features
- High-volume punch and ultra-wide frequency reponse
- Ideal for mains
- Two EVS-15K woofers for extended LF
- 1.5-inch DH-1K titanium HF compression driver
- 38Hz – 20kHz frequency range
- 90degrees x 50degrees coverage-pattern waveguide
- 137dB max SPL
- Power handling: 600W continuous, 2400W peak
- Braced 15mm plywood enclosure
Technical Specifications
Axial Sensitivity (SPL, 1W @ 1m)
96dB
Case Material
9-ply, 15mm plywood, internally braced, with textured paint
Coverage (Nominal -6dB)
Omnidirectional
Speaker Type
Full-range, mid-high, two-way
Woofer Size
381mm (15”)
Frequency Response (-3dB)
62 – 18000Hz
Frequency Response (-10dB)
38 – 20000Hz
Internal Crossover
Yes
Recommended High-Pass Frequency
35Hz
Max.SPL/1m (calc)
137dB
Coverage (Nominal -6dB) H
90 degrees
Coverage (Nominal -6dB) V
50 degrees
System Power Handling
600/2400 Watts
LF Transducer
2 x EVS-15K, 381mm (15”) Woofers
HF Transducer
DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver
Crossover Frequency
1.7kHz
Nominal Impedance (Passive)
4Ohms
Minimum Impedance
3.7Ohms
Connector Type
Parallel Neutrik NL4
Grill
18GA Steel with Black Powdercoat
Dimensions (H x W x D)
1154mm x 432mm x 501mm (45.43” x 17.01” x 19.72”)
Weight
40.7kg (89.73lbs.)
