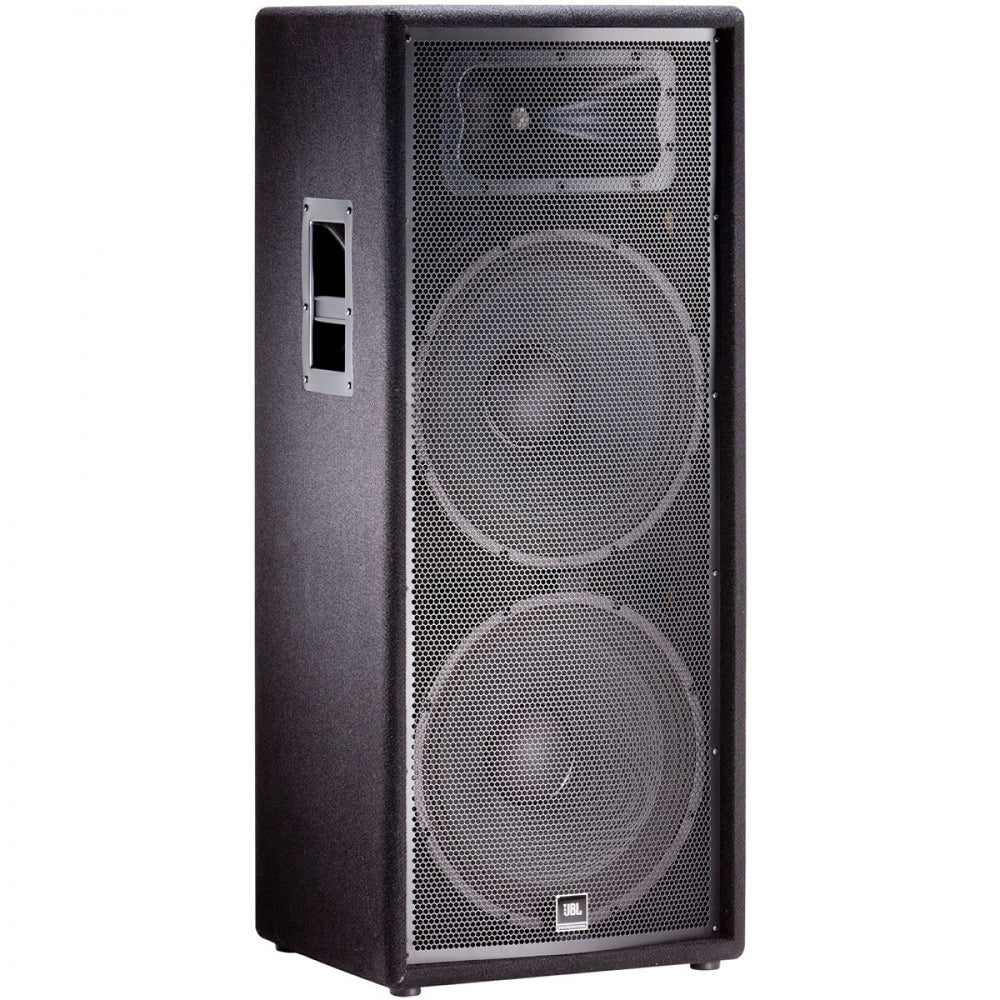

JBL JRX225 | Dual 15" 2-Way Sound Reinforcement Loudspeaker System
The JBL JRX225 Dual 15" 2-Way Sound Reinforcement Loudspeaker System brings professional performance to an affordable platform. This high-efficiency PA speaker has been meticulously engineered to ensure top-notch sound quality and reliability. Perfect for live sound applications and large venues, the JRX225 comes equipped with dual 15" low-frequency drivers, providing powerful bass and clear mid-frequencies. Coupled with a 1" polymer-diaphragm compression driver, this speaker is designed to deliver crisp high-frequencies and consistent performance.
JBL's proprietary design elements, such as the advanced network topology crossover, enhance the speaker's clarity and lessen phase cancellation, making it a standout choice for professionals. Plus, with the rugged MDF enclosure and all-steel handles, this loudspeaker is built for durability. Whether you're an audio engineer, DJ, or part of a band, the JBL JRX225 offers an unbeatable combination of performance and price.
Key Features
- Dual low-frequency drivers with 2.5" edgewound ribbon voice coils for enhanced efficiency and power handling.
- 1" polymer diaphragm compression driver for superior high-frequency performance and reliability.
- Advanced network topology crossover for coherent frequency summation and optimized response.
- "Quasi 3-Way" design for superior bass and improved mid-range sound quality.
- High-voltage capacitors and inductors for high power handling without saturation.
- Progressive Transition high-frequency waveguide for better coverage control and reduced distortion.
- Rugged MDF enclosure for enhanced low-frequency performance and durability.
- SonicGuard technology to protect high-frequency drivers from excessive power.
- Non-resonant, all-steel handles for easy transportation.
- 18-gauge perforated steel grille for component protection.
Specifications
- Power Rating: 500 W / 2000 W
- Frequency Range (-10 dB): 42 Hz - 18 kHz
- Frequency Response (±3 dB): 62 Hz - 13 kHz
- Sensitivity (@1m): 100 dB SPL (1w/1m)
- Nominal Impedance: 4 ohms
- Recommended Amplifier Power: 500 W to 1000 W into 4 ohms
- Maximum SPL: 133 dB
- Nominal Dispersion: 90º x 50º
- Crossover Frequency: 2.2 kHz
- Dimensions (H x W x D): 1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in)
- Weight: 42.6 kg (94 lb)
- High Frequency Driver: JBL 2414H-C, 1" exit compression driver mounted on Progressive Transition Waveguide
- Low Frequency Driver: JBL M115-8A x 2
- Input Connectors: Neutrik Speakon NL-4 (x1); .25 in TS phone jack (x1); parallel
Package Contents
- 1 x JBL JRX225 Dual 15" 2-Way Sound Reinforcement Loudspeaker System
- User Manual
- Warranty Information
