AtlasIED Wireless Microphone Kit with Over Ear Microphone
The AtlasIED MW100BP-OE is a complete UHF wireless microphone system designed for professional audio environments like classrooms, conference rooms, and live presentations. It includes a receiver (MWRCVR), beltpack transmitter (MWBPT), and over‑ear microphone (MWOEM), with cables, antennas, and power supply for instant deployment.
With 100 selectable frequencies across a 25 MHz band and patented two‑way data communication, the system offers stable transmission up to 100 m (line‑of‑sight). The receiver provides balanced XLR and unbalanced ¼″ outputs, selectable via switch, while the transmitter supports up to 16 hours runtime on AA batteries with LCD display monitoring.
Key Features
- Wireless Band: UHF 566–585.8 MHz
- Switching Bandwidth: 25 MHz
- Selectable Frequencies: 100
- Operating Range: 100 m (line‑of‑sight)
- Receiver Outputs: Balanced XLR & unbalanced ¼″
- Receiver Display: LCD for channel/frequency/signal
- Transmitter: Beltpack with over‑ear mic, LCD shows channel/frequency/battery
- Battery Life: Up to 16 hours (AA alkaline or NiMH)
- Audio Quality: ≤ 0.5 % THD, > 110 dB SNR
- Transmission Power: < 35 mW
- Antenna: Swappable dual on receiver, ¼‑wave on transmitter
- Impedance Controls: High/low gain on transmitter
Technical Specifications
- Receiver Frequency Range: 566–585.8 MHz
- Receiver Sensitivity: –95 dBm
- Receiver SNR: > 110 dB
- Receiver THD: < 0.5 %
- Transmitter RF Power: < 35 mW
- Power Supply: 100–240 V AC → 12 V DC/1.6 A (receiver)
- Receiver Weight: 1.39 lb (0.63 kg)
- Receiver Dimensions: 7.87″ × 5.91″ × 1.73″ (20 × 15 × 4.4 cm)
- Transmitter Weight: 0.17 lb (0.076 kg)
- Transmitter Dimensions: 3.31″ × 2.52″ × 0.91″ (8.4 × 6.4 × 2.3 cm)
- Warranty: 12 months

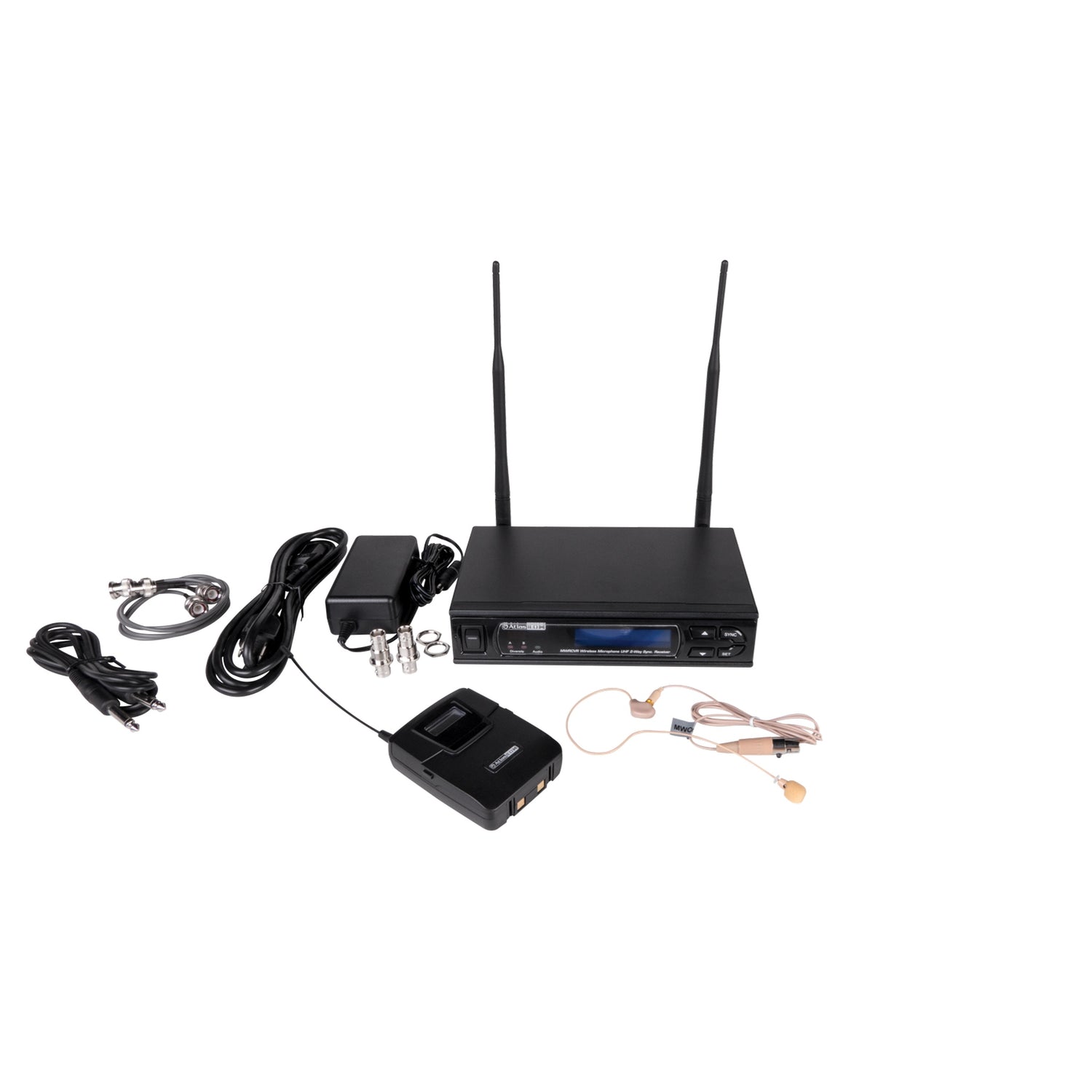

What's Included

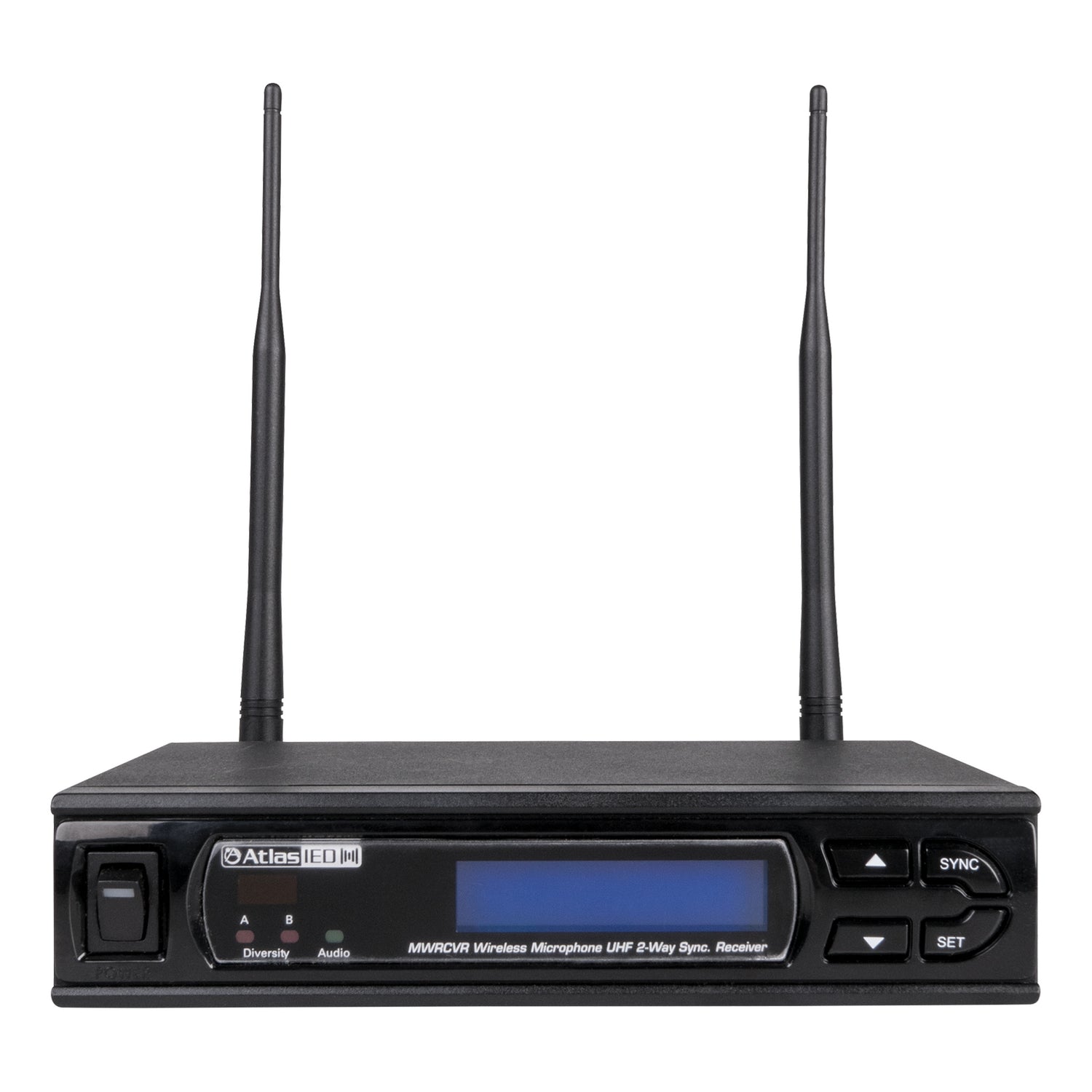

- MWRCVR wireless receiver

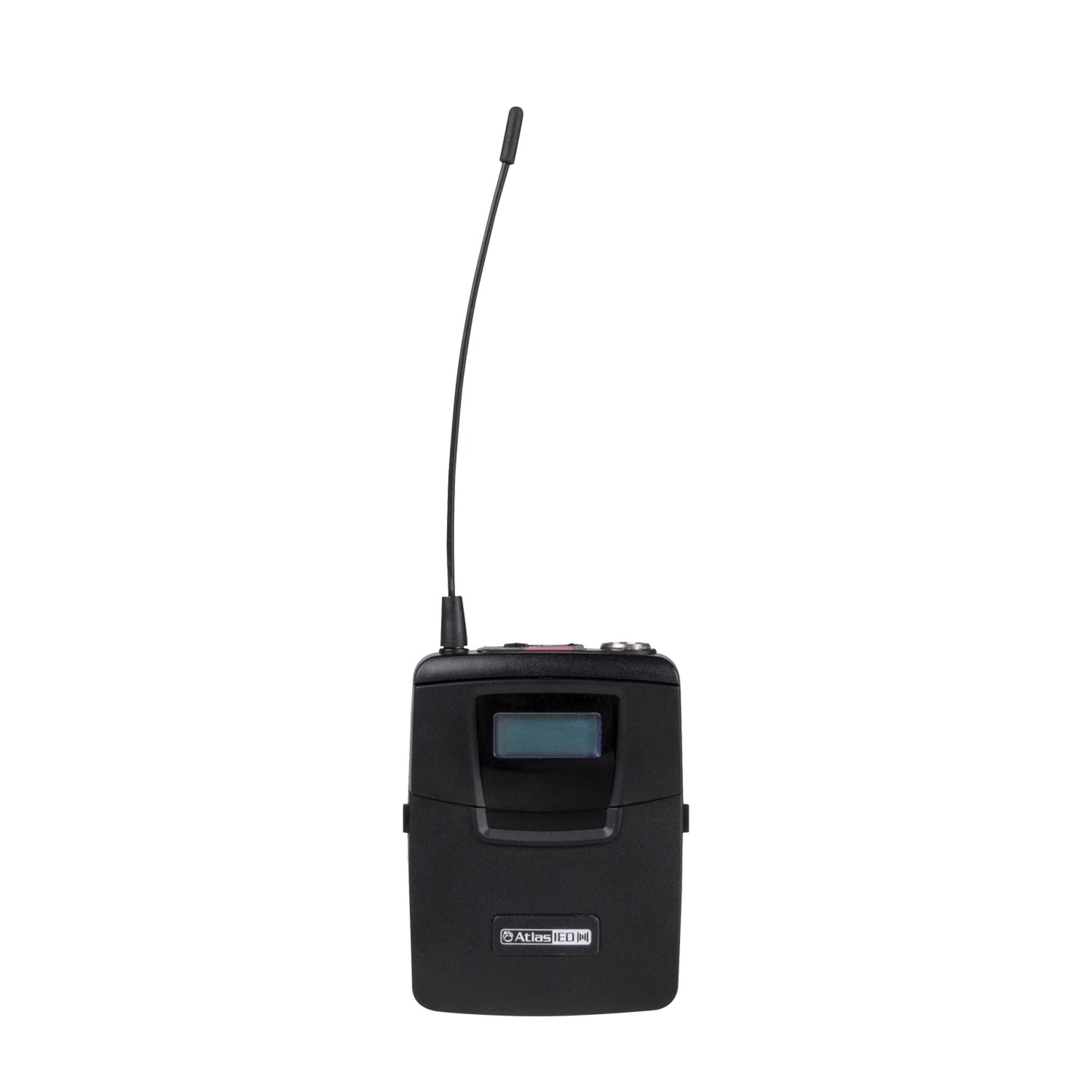

- MWBPT beltpack transmitter

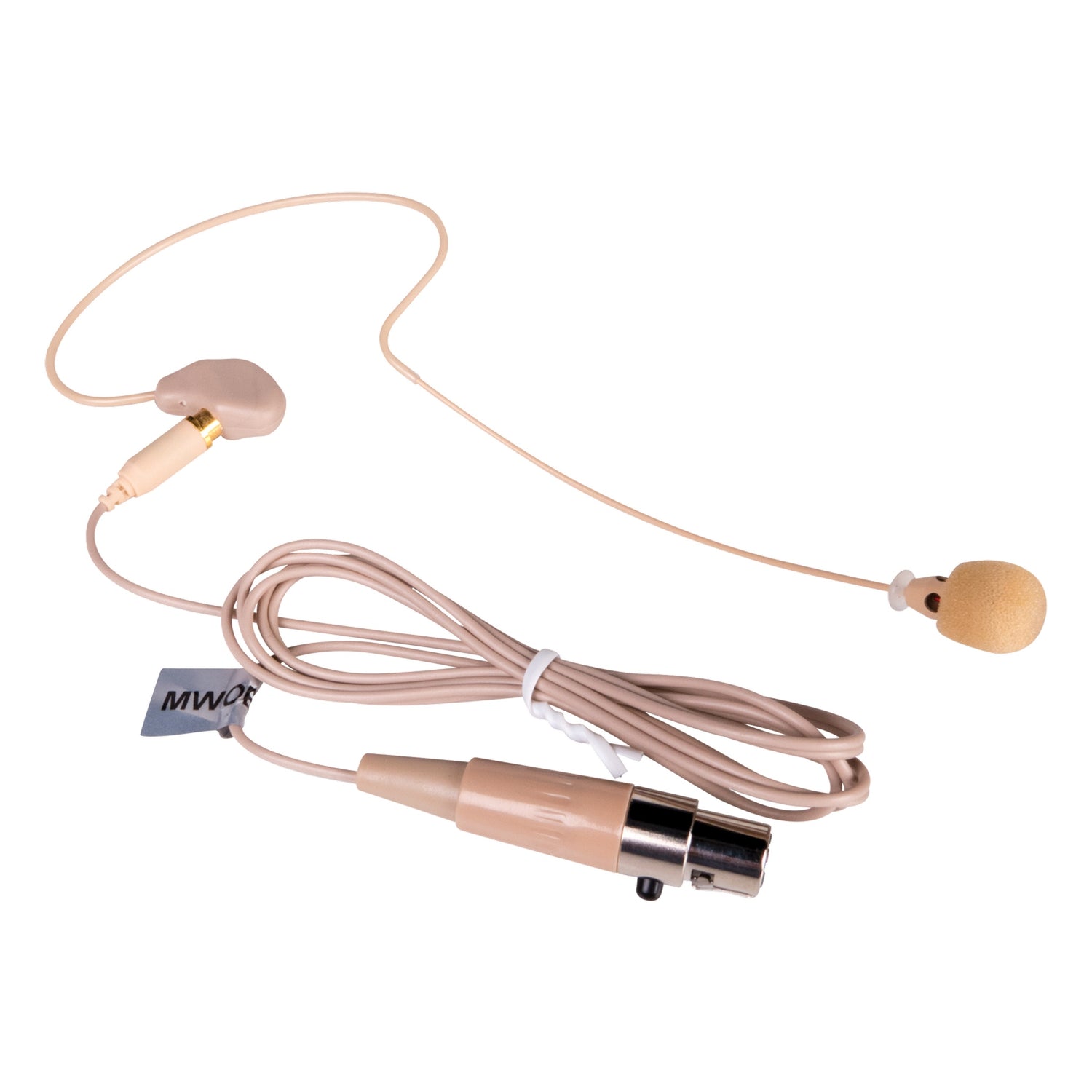

- MWOEM over‑ear microphone
- Receiver power supply (100–240 VAC → 12 V DC/1.6 A)
- Receiver antennas (x2)
- Cables (likely XLR and 1/4″, but details not specified)
- Transmitter belt clip
