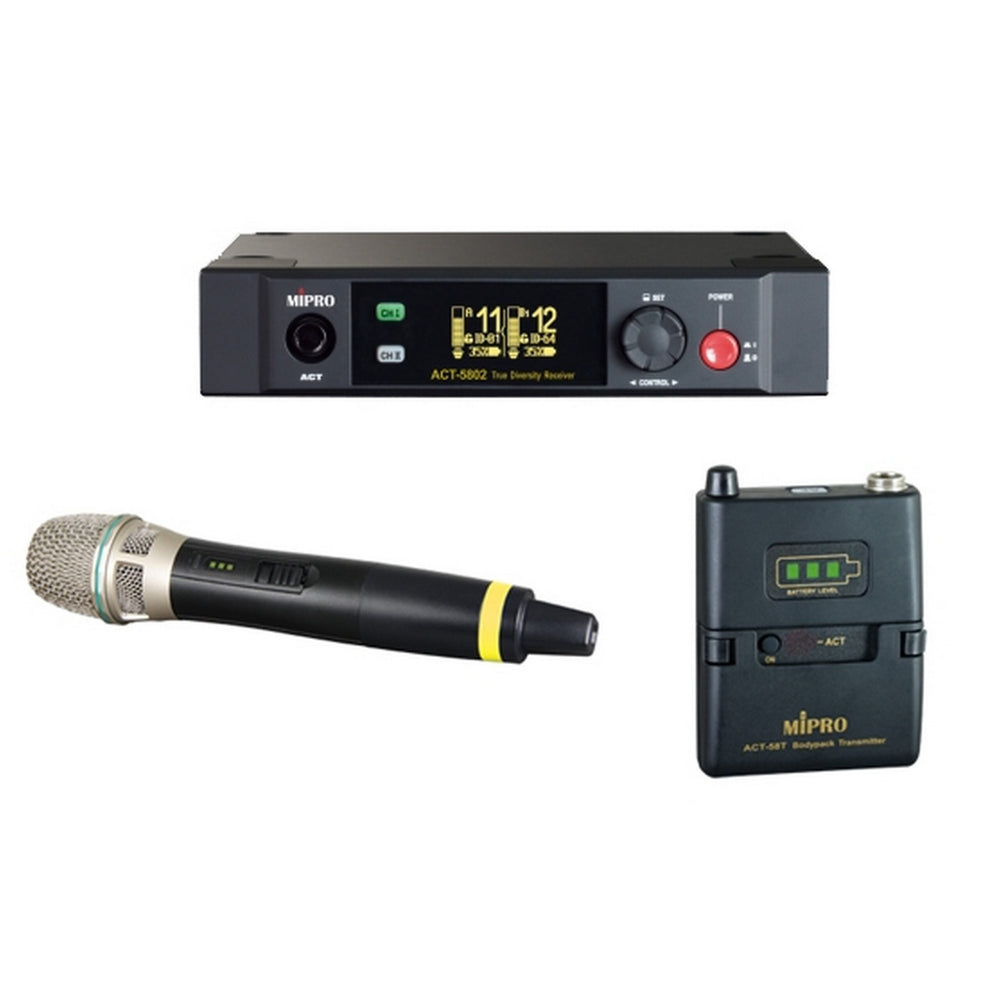

ISM 5 GHz 1/2U Dual-Channel Digital Receiver with Bodypack Transmitter and Handheld Wireless Microphone

Key Features

• ACT-5802 dual-channel is 5.8 GHz receivers in 1/2U metal chassis.
• The panel with MIPRO style, operating procedure, built-in high-efficiency antenna and equips a graphic OLED screen providing a larger field of view without a blind angle.
• Stable digital modulation circuitry. All frequencies are located in a single frequency band.
• Presets 12 channels of interference-free operation in Group A and 24 channels of interference-free operation in Group B1 & B2 are available. 64 IDs and a specific ID are allowed to be set for each channel to prevent the same channel interfered in the same space. Group A has less interference. Group B is recommended when more channels or shorter latency is required. Group A and B can’t operate at the same time.
• Dual tuner true diversity receiving effectively avoid interference from all 2.4 GHz communication products and ensure long reception distance and eliminates signal drop-out.
• The precisely designed PCB is secured in a sturdy chassis for ultra-low malfunction.
  ACT-58H
• Specific outline and color with an ergonomic design in MIPRO’s distinctive aesthetic style.
• Interchangeable capsule module with MIPRO produced premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille instead of sponge foam protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille can be detached easily for cleaning and hygiene practices.
• World’s first ACT function provides precise and rapid frequency sync to the receiver.
• The default gain setting is 0 dB = microphone capsule input sensitivity. High dynamic range for singing aloud without distortion.
  ACT-58T
• Miniature, sturdy plastic compact housing design for easy to wear. An adjustable belt clip allows wearing the transmitter in the up or down position.
• Unique battery cover allows easy access to operate buttons and the lock device prevents accidental operation.
• On top of the housing is equipped with an antenna, mini XLR connector, mute button and a remote-control mute jack.
• World’s first ACT function provides precise and rapid frequency sync to the receiver.
• The mini XLR connector accepts either a screw-lock or a TA4F quick-lock plug.

Technical Specifications

ACT-5801
Channel
Single
Chassis
EIA Standard 1/2U metal black case
Antenna
Built-in
Display
Graphic OLED
Frequency Range
ISM 5.8 GHz 5,725~5,850 MHz
Preset Channels
Presets 12 channels of interference-free operation in Group A and 24 channels of interference-free operation in Group B1 & B2 are available. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel interfered in the same space.
Receiving Mode
Dual-tuner true diversity receiving
Channel Set-up
ACT Sync
Sample Rate
24-bit / 48 kHz
Frequency Response
18 Hz ~ 23 kHz (Group B)
Latency
< 1.7 ms (Group B)
Dynamic Range
120 dBA
Output Connectors
Balanced XLR & Unbalanced -6.3 mm, 0 dB (standard), -10 ~ +20 dB adjustable range.
Power Supply
External 100~240V AC switching power supply
Dimensions
210 - 44 180 mm (W H D)
Weight
Approx. 0.75 kg
Note
Refer to the actual product in the event of product discrepancy.

ACT-58H
Frequency Range
ISM 5.8 GHz
Modulation Type
Digital
RF Output Power
20 mW (country dependent)
Mic Capsule Modules
Condenser MU-90/ 80/ 70 and dynamic
Gain Setting
0 dB = microphone capsule sensitivity
Display
Bright LEDs indicate battery status.
Housing
Black
Dimensions
51 - 257 mm
Net Weight
Approx. 235 g
Battery
2 AA alkaline

ACT-58T
Frequency Range
ISM 5.8 GHz
Modulation Type
Digital
RF Output Power
20 mW (country dependent)
Mic Capsule Modules
Lavalier: MU-53L / MU-55L; Headworn: MU-13 / MU-23 / MU-210 / MU-53HN / MU-55HN; Instrument: VM-10L / VM-10C / VM-10D / CM-10E
Max. Audio Input
6.5 dBV
Battery Meter
3 LEDs light in green to indicate battery status and turn to red to indicate low battery; after 2 hours power will automatically be shut down.
Dimensions
63 - 82 - 22 mm (W H D)
Net Weight
Approx. 73 g
Battery
2 AA alkaline
