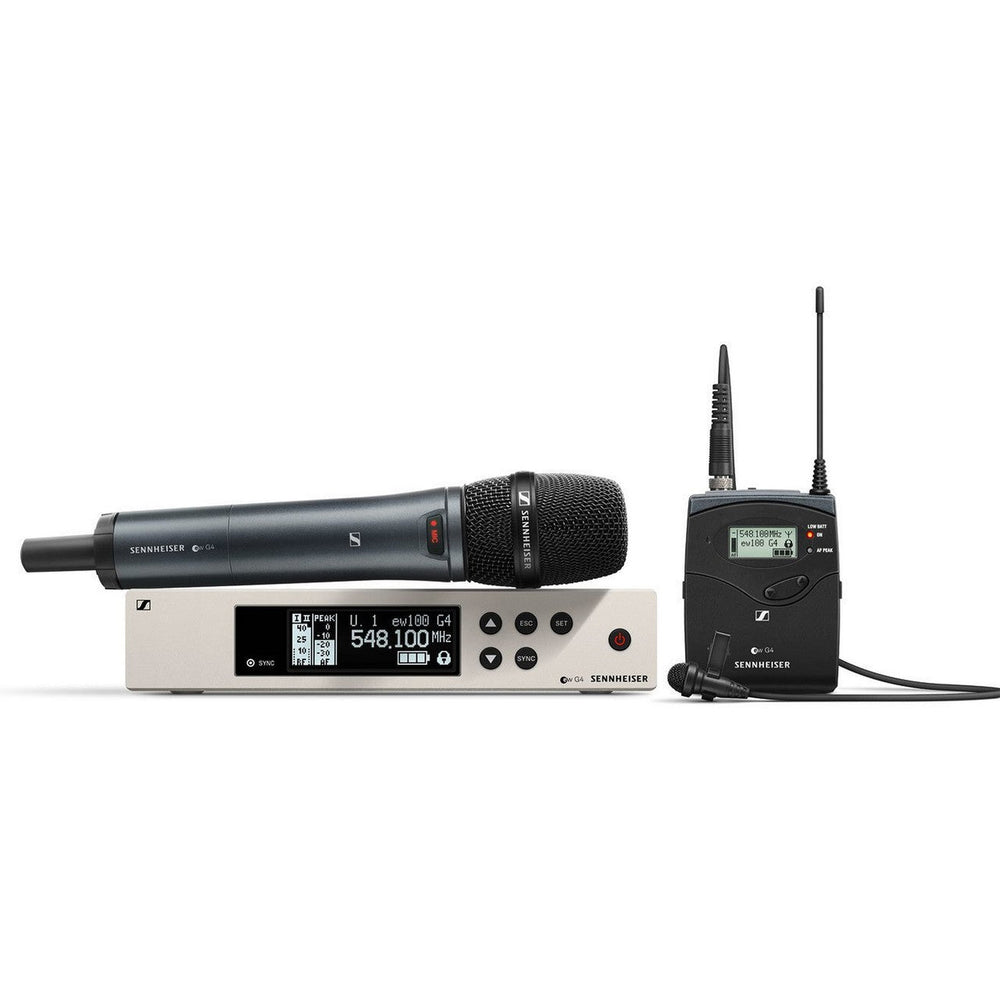

Sennheiser ew 100 G4-ME2/865-S-A Wireless Lavalier/Vocal Combo System with 865 Capsule, A 516-558 MHz

Sennheiser ew 100 G4-ME2/865-S-A Wireless Lavalier/Vocal Combo System with 865 Capsule, A 516-558 MHz

Introducing the Sennheiser ew 100 G4-ME2/865-S-A Wireless Lavalier/Vocal Combo System, an all-in-one wireless solution designed for singers, presenters, and instrumentalists. This versatile system offers up to 42 MHz tuning bandwidth in a stable UHF range, ensuring consistent and reliable performance even in challenging environments. Whether you're on stage or in a conference room, this system enhances your message delivery, providing clear and high-quality audio.

Designed with reliability and performance in mind, the Sennheiser ew 100 G4-ME2/865-S-A system features a rugged dynamic handheld microphone (e 865), a robust bodypack transmitter, and an unobtrusive clip-on microphone (ME 2-II) with high speech intelligibility. The true diversity half-rack receiver, housed in a full-metal casing, includes an intuitive LCD display that allows for full control over your setup. With the easy setup function, scanning and selecting the best frequencies around you is a breeze, making the system quick to deploy and highly efficient.

Built to last, the evolution wireless G4 100 Series boasts a transmission range of up to 100 meters and a battery life of 8 hours, ensuring it performs when you need it most. Its high-RF output power and flexible wireless synchronization between transmitter and receiver via infrared ensure a seamless and robust audio experience, free from interruptions and dropouts.

Key Features

• Rugged all-in-one combo wireless system suitable for singers, presenters, and moderators
• Dynamic handheld microphone e 865 with robust bodypack transmitter
• High speech intelligibility through unobtrusive clip-on microphone ME 2-II (omni-directional)
• True diversity half-rack receiver in full-metal housing with intuitive LCD display
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels and 42 MHz bandwidth with 1680 selectable frequencies
• Transmission range up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• Dimensions: Approx. 190 x 212 x 43 mm
• Compander: Sennheiser HDX
• THD, Total Harmonic Distortion: ≤ 0.9%
• Weight: Approx. 980 g
• Audio Output: 6.3 mm jack socket (unbalanced) +12 dBu, XLR socket (balanced) +18 dBu
• Signal-to-Noise Ratio: ≥ 110 dBA
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Modulation: Wideband FM
• Power Supply: 12 V DC
• Antenna Connector: 2 BNC sockets
• Current Consumption: 300 mA
• Adjacent Channel Rejection: Typically ≥ 65 dB
• Intermodulation Attenuation: Typically ≥ 65 dB
• Receiving Frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation, 1 frequency bank with up to 12 programmable channels
• RF Sensitivity: < 2.5 uV for 52 dBA eff S/N
• Squelch: Low: 5 dBuV, Middle: 15 dBuV, High: 25 dBuV
• Equalizer: Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: True diversity
• Blocking: ≥ 70 dB

Package Contents

• EM 100 G4
• SK 100 G4
• SKM 100-S G4
• MME 865-1
• ME 2
• MZQ 1 microphone clamp
• Power supply
• 4 AA batteries
• 2 rod antennas
• RJ 10
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Frequency supplement sheet
• Rackmount set
