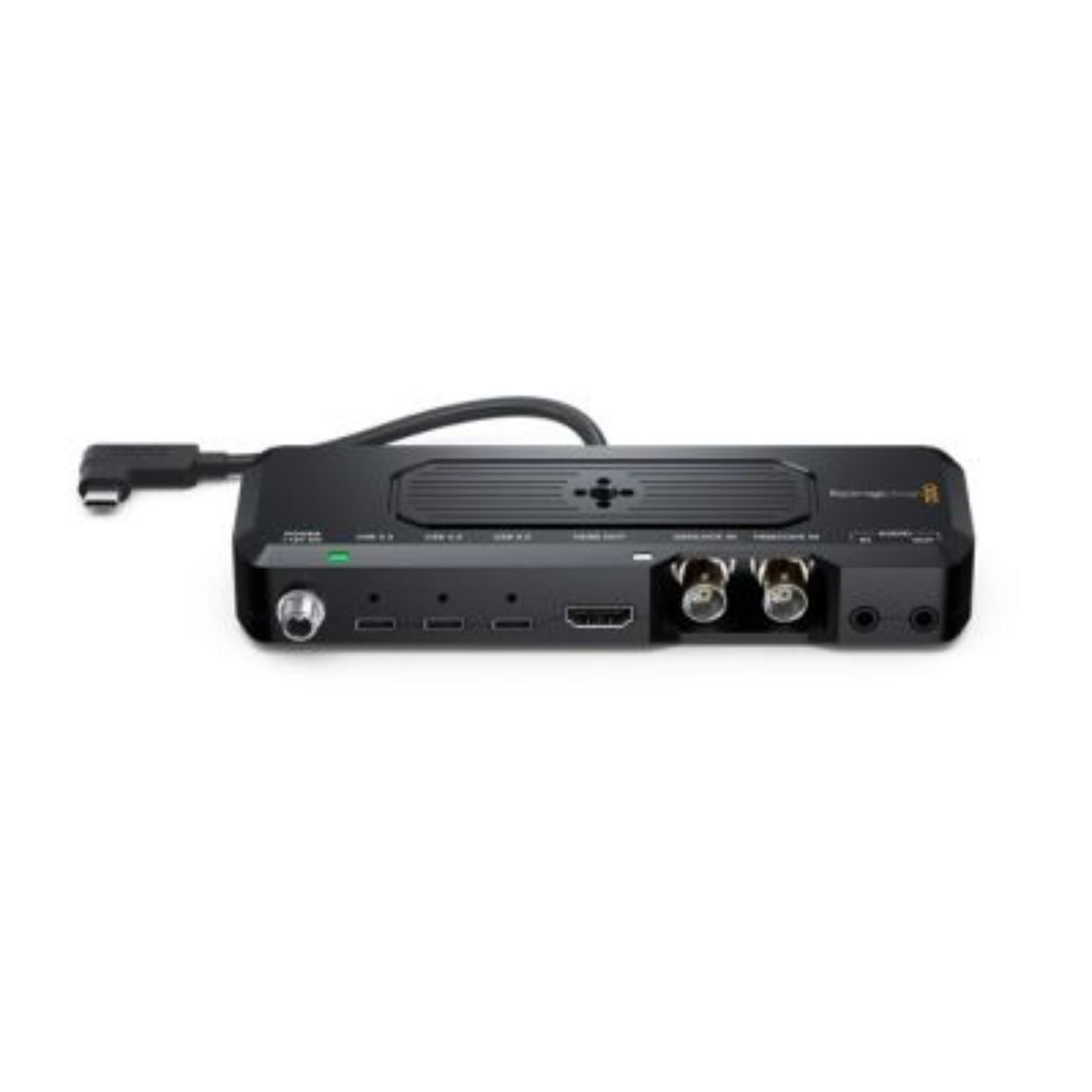

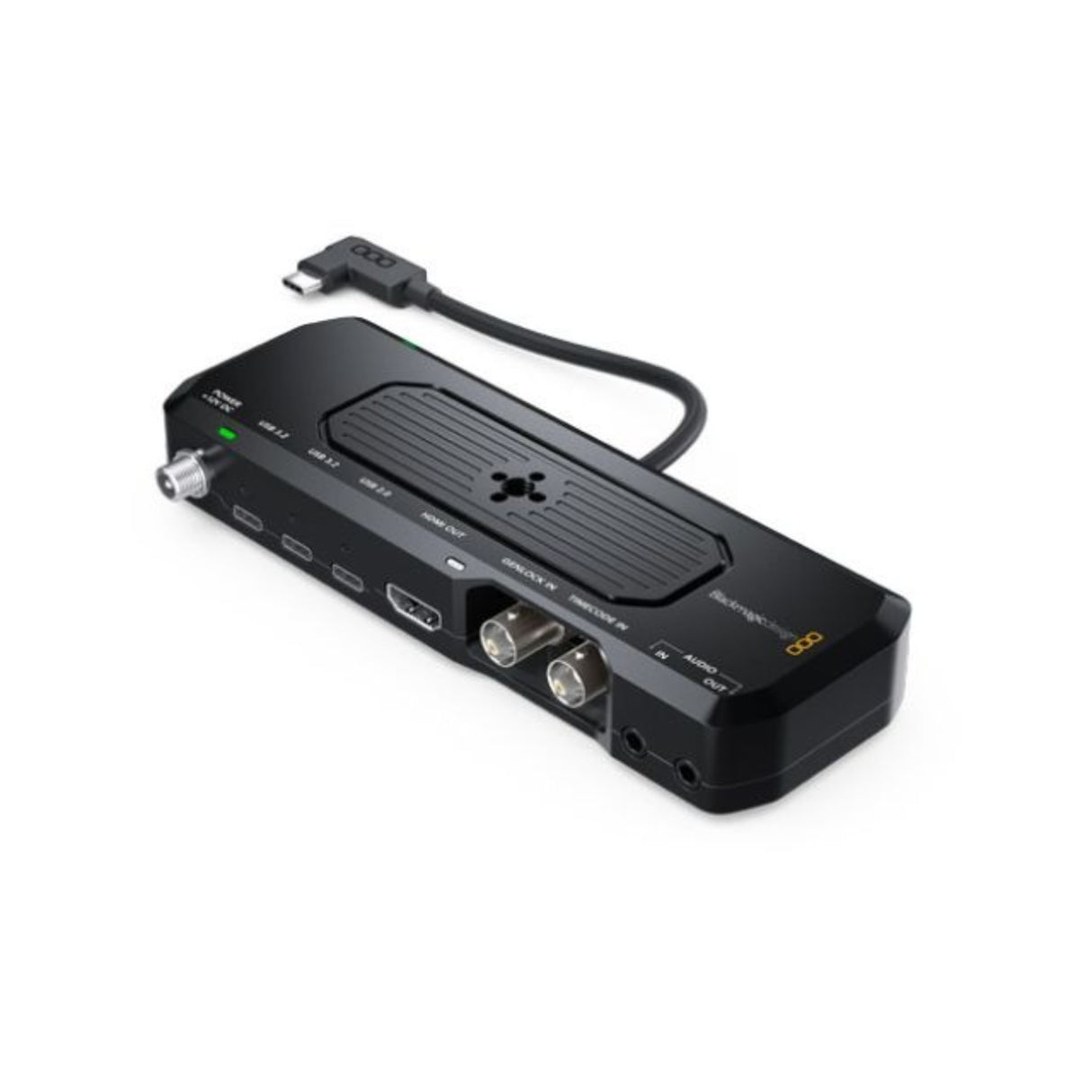

Blackmagic Design Camera BMD-CINTDOCKPRO ProDock for iPhone

Blackmagic Camera ProDock — Professional Cinema Connections for iPhone

The Blackmagic Camera ProDock (BMD-CINTDOCKPRO) transforms iPhone into a professional digital cinema camera by adding the industry-standard connections required for high-end video production. It delivers HDMI monitoring output, BNC genlock and timecode I/O, three USB-C expansion ports, and 3.5mm audio I/O — all powered by a locking 12V DC input that simultaneously powers iPhone, the dock, and every connected accessory.

For filmmakers evaluating the best iPhone dock for professional video production, ProDock is purpose-built for the Blackmagic Camera app, enabling ProRes and ProRes RAW recording up to 4K, direct upload to Blackmagic Cloud, and full manual control over frame rate, shutter angle, white balance, and ISO — all in a single tap. Whether building a compact handheld rig or a full studio setup, ProDock gives cinematographers the same intuitive workflow as Blackmagic Design's award-winning digital cinema cameras. It's an essential iPhone ProRes RAW recording accessory for productions that demand broadcast-grade reliability.

The ProDock's BNC genlock input is specifically engineered for iPhone 17 Pro and iPhone 17 Pro Max, ensuring every captured frame stays locked to external sources — cameras, switchers, and LED walls — eliminating dropped frames and flicker artifacts in virtual production environments. External timecode input allows each camera on a multi-camera shoot to record independently, with DaVinci Resolve using embedded timecode to align footage automatically, eliminating hours of manual syncing. The 1/4-20 pin lock mounting points on the top and bottom surfaces integrate cleanly with standard cage systems and rigging accessories, making ProDock a natural fit in any professional production ecosystem.

Key Features of the Blackmagic Camera ProDock

• BNC Genlock Input: Keeps iPhone 17 Pro and Pro Max frame-locked to external cameras, video switchers, and LED walls — eliminating flicker and tearing in virtual production workflows.
• External Timecode Input: Enables independent multi-camera recording with automatic DaVinci Resolve sync, eliminating manual alignment of thousands of shots in post-production.
• 3 USB-C Expansion Ports: Supports high-speed external SSDs for direct recording, plus lens control and camera control accessories — all running simultaneously via integrated power management.
• Full-Size HDMI Output: Connects directly to on-set monitors and production monitors for real-time, high-quality image review during shooting.
• 3.5mm Audio I/O: Stereo microphone input accepts external camera mics and wireless receiver outputs; stereo headphone output enables real-time audio monitoring.
• Locking 12V DC Power Input: Powers the ProDock, iPhone, and all connected USB-C accessories simultaneously from a single source — eliminating battery drain during long production days.
• 1/4-20 Pin Lock Mounting Points: Top and bottom mounting points ensure secure, tool-free integration with standard rigs, cages, and production accessories.
• Blackmagic Camera App Integration: Unlocks ProRes and ProRes RAW recording up to 4K, Blackmagic Cloud collaboration, and full manual cinema controls including frame rate, ISO, shutter angle, and white balance.

Technical Specifications

• SKU: BMD-CINTDOCKPRO
• Manufacturer: Blackmagic Design
• Compatible Devices: iPhone (Blackmagic Camera app); Genlock and Timecode: iPhone 17 Pro and iPhone 17 Pro Max
• Video Output: Full-size HDMI
• Sync I/O: BNC genlock input, BNC timecode input
• USB-C Ports: 3 (accessories, lens control, external SSD recording)
• Audio Input: 3.5mm stereo (microphone / wireless receiver)
• Audio Output: 3.5mm stereo (headphone monitoring)
• Power Input: Locking 12V DC
• Mounting Points: 1/4-20 pin lock (top and bottom)
• UPC: 9338716010107
• Weight: 2 lbs
