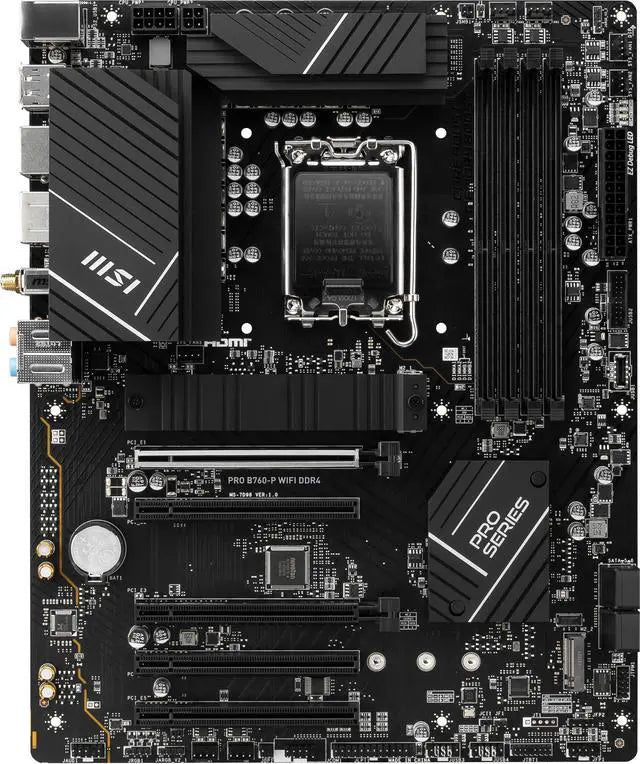

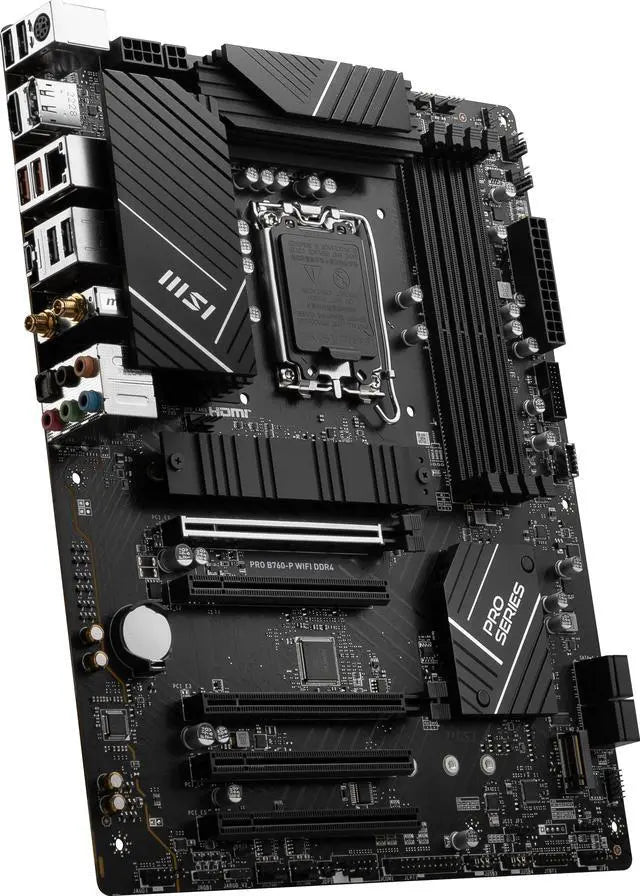

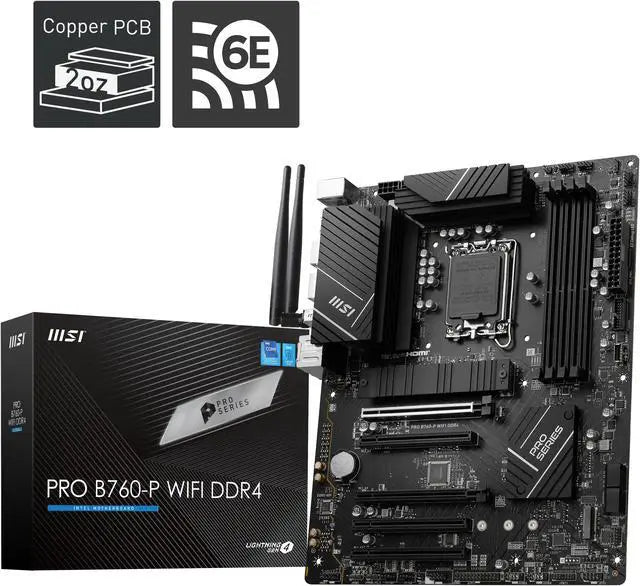

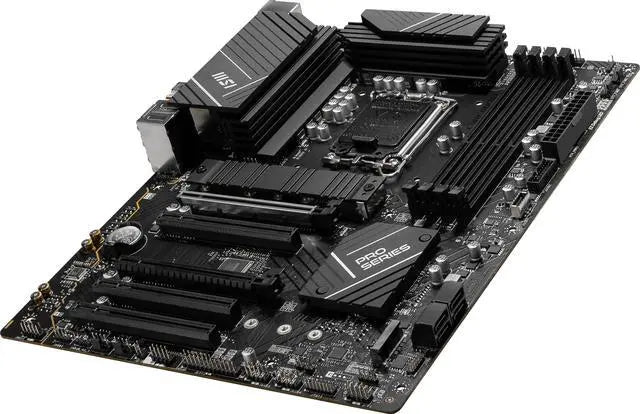

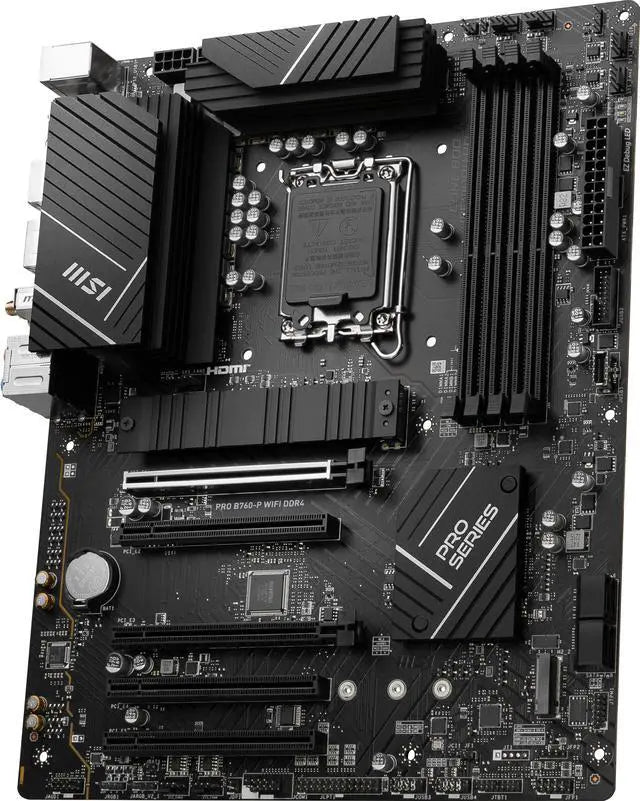

MSI PRO B760-P WIFI DDR4 ATX Motherboard for 12th and 13th Gen Intel
The MSI PRO B760-P WIFI DDR4 is a full-size ATX motherboard built on the Intel B760 chipset, supporting 12th and 13th Gen Intel Core processors in the LGA 1700 socket. It delivers up to 128GB of DDR4 memory, Intel Wi-Fi 6E, 2.5G LAN, and dual M.2 NVMe slots in a professional-grade platform designed for productivity and reliability.
Ideal for business workstations, content creation rigs, and productivity-focused desktop builds, the PRO B760-P WIFI DDR4 is a top choice for professionals seeking a reliable Intel B760 ATX board with wireless connectivity, multi-display support, and comprehensive USB expansion. Whether upgrading an office system or building a new workstation from scratch, this board delivers the connectivity and stability power users demand.
Backed by MSI's industry-renowned PRO Series quality standards and a 3-year manufacturer warranty, the PRO B760-P WIFI DDR4 is certified for Windows 11 64-bit and Windows 10 64-bit, ensuring long-term compatibility for enterprise and professional deployments.
Key Features of the MSI PRO B760-P WIFI DDR4
- Intel Wi-Fi 6E with Bluetooth 5.3: Pre-installed Intel Wi-Fi 6E module delivers tri-band wireless (2.4GHz / 5GHz / 6GHz) with speeds up to 2.4Gbps and MU-MIMO TX/RX support, plus Bluetooth 5.3 for comprehensive wireless connectivity.
- 2.5G Wired LAN: Realtek RTL8125BG 2.5G LAN controller delivers faster-than-gigabit wired networking, ideal for data-intensive workstation environments.
- DDR4 with XMP Overclocking Support: Four DDR4 DIMM slots support up to 128GB with speeds from 2133MHz (JEDEC) up to 5333MHz (OC) and full Intel Extreme Memory Profile (XMP) compatibility for easy performance tuning.
- Dual M.2 NVMe Storage: Two M.2 slots (one CPU-direct PCIe 4.0 x4, one chipset PCIe 4.0 x4 / SATA) allow fast NVMe SSDs alongside four SATA 6Gbps ports, with RAID 0, 1, 5, and 10 support for flexible storage configurations.
- Comprehensive USB Connectivity: Fourteen USB ports total including USB 3.2 Gen2 Type-A and Type-C on the rear panel, plus front-panel headers for USB 3.2 Gen1 Type-A and Type-C, ensuring compatibility with modern peripherals and enclosures.
- 4K Multi-Display Output: Integrated graphics support via HDMI 2.1 and DisplayPort 1.4, both capable of 4K 60Hz output for dual-monitor productivity setups (requires CPU with integrated graphics).
- Frozr AI Cooling & Fan Control: BIOS and software-based fan control with up to 4 temperature targets and automatic fan adjustment via MSI AI Engine, keeping systems quiet and thermally optimized without manual intervention.
- Addressable RGB & EZ Debug LEDs: Two JARGB_V2 headers and one JRGB header for system lighting customization, plus four EZ Debug LEDs for instant boot troubleshooting.
Technical Specifications
- Chipset: Intel B760
- CPU Socket: LGA 1700
- Compatible Processors: 12th and 13th Gen Intel Core, Pentium Gold, and Celeron
- Memory Slots: 4x DDR4 DIMM
- Max Memory: 128GB
- Memory Speeds: 2133 / 2400 / 2666 / 2933 / 3200 (JEDEC); up to 5333MHz (OC)
- Memory Modes: Dual-Channel, non-ECC unbuffered, Intel XMP
- M.2 Slots: 2x M.2 (M.2_1: CPU PCIe 4.0 x4, up to 22110; M.2_2: Chipset PCIe 4.0 x4 / SATA, up to 2280)
- SATA Ports: 4x SATA 6Gbps
- RAID: RAID 0, 1, 5, 10 (SATA)
- PCIe Slots: 1x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x16 (Chipset), 3x PCIe 3.0 x1 (Chipset)
- Wireless LAN: Intel Wi-Fi 6E, 802.11 a/b/g/n/ac/ax, up to 2.4Gbps (160MHz)
- Bluetooth: 5.3
- Wired LAN: Realtek 2.5G LAN
- Rear USB: 4x USB 2.0 Type-A, 2x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C
- Front Panel USB: 4x USB 2.0, 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-C
- Video Output: 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz)
- Audio: Realtek ALC897, 7.1-Channel High Definition Audio, S/PDIF-OUT
- Fan Headers: 1x CPU Fan, 1x Pump Fan, 5x System Fan
- RGB Headers: 2x JARGB_V2 (Addressable), 1x JRGB
- Form Factor: ATX (243.84mm x 304.8mm)
- TPM: TPM 2.0 pin header
- Operating System: Windows 11 64-bit, Windows 10 64-bit
- Dimensions: 14 x 11 x 3 inches
- Weight: 5 lbs
- Warranty: 3 Years
