MSI PRO Z790-P WIFI ATX Motherboard Intel Z790 LGA1700 DDR5

MSI PRO Z790-P WIFI ATX Motherboard for 12th/13th Gen Intel Core Processors

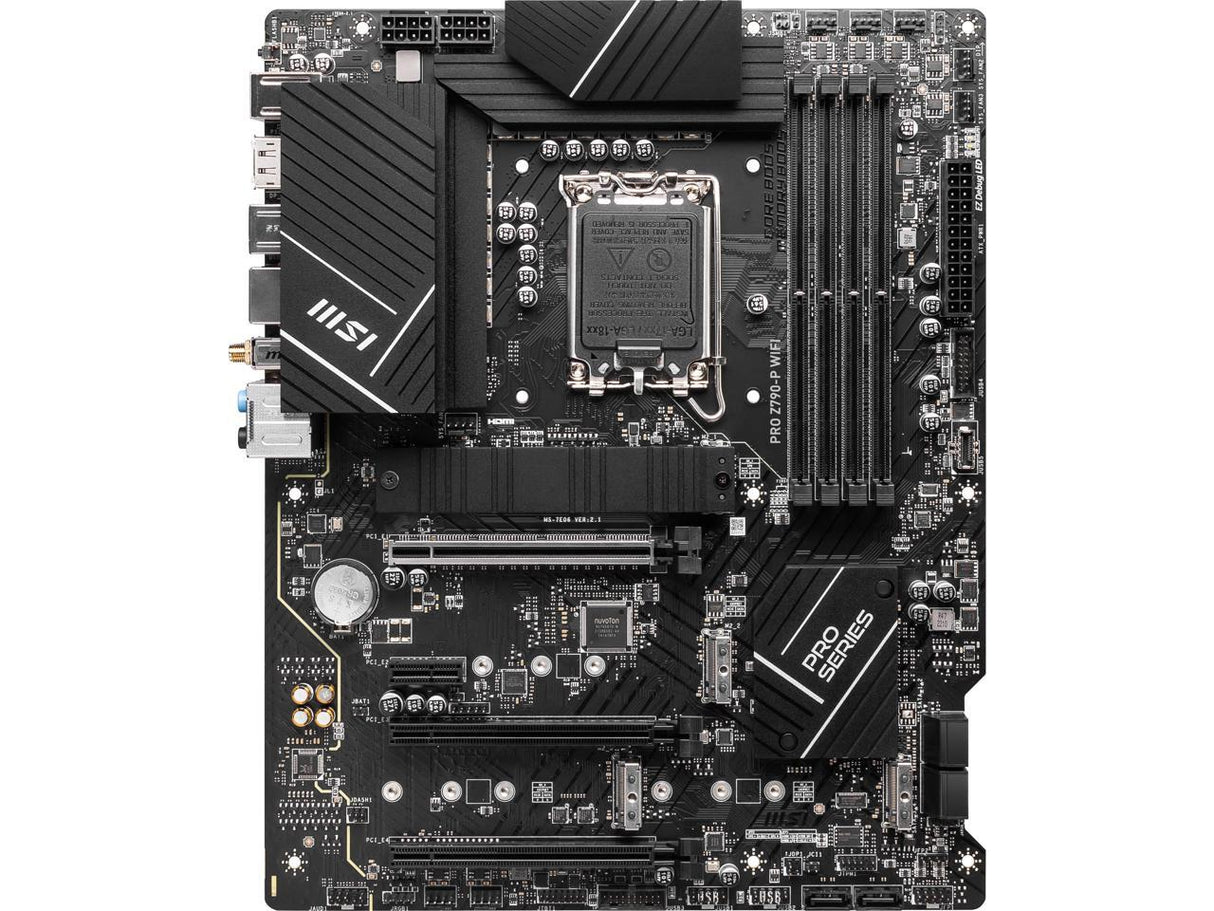

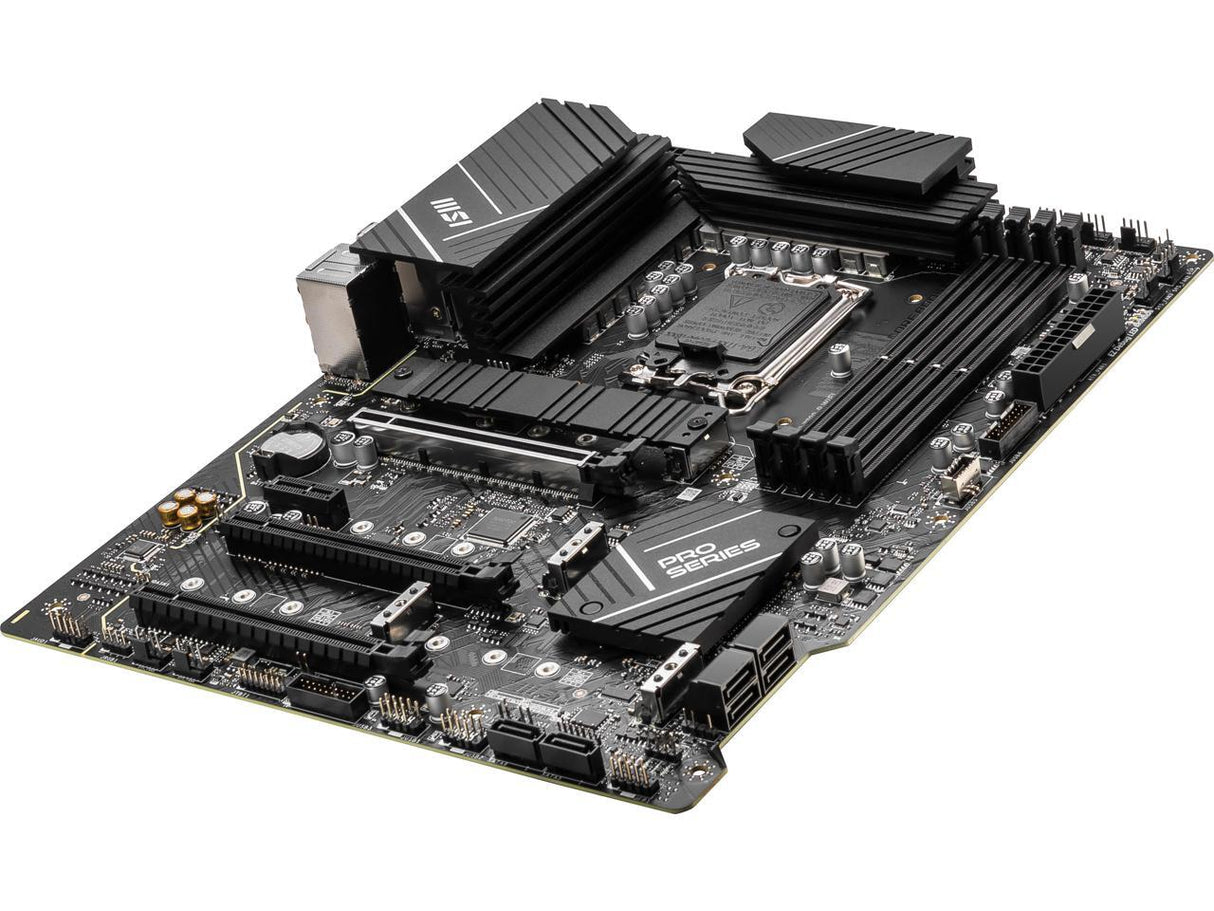

The MSI PRO Z790-P WIFI is an ATX motherboard built on the Intel Z790 chipset for LGA 1700 socket processors, supporting 12th and 13th Gen Intel Core, Pentium Gold, and Celeron CPUs with up to 192GB of DDR5 memory at speeds reaching 7000+ MHz.

Ideal for professionals and power users seeking a reliable productivity workstation or high-performance PC build, this board suits those upgrading to DDR5 for content creation, multitasking workloads, and next-generation storage with PCIe 5.0. Buyers looking for a Wi-Fi 6E motherboard with 2.5G LAN for a future-ready home office or studio PC will find the PRO Z790-P WIFI a compelling choice.

Backed by a 3-year MSI warranty and designed under the PRO Series philosophy of business-grade reliability, the Z790-P WIFI meets the high-quality and durability standards expected by professionals. MSI's Core Boost and Memory Boost technologies, combined with server-grade 6-layer PCB construction, deliver consistent performance you can depend on.

Key Features of the MSI PRO Z790-P WIFI

• Enhanced 14+1+1 Power Design: Features 55A DrMOS power stages with dual 8-pin CPU power connectors and Core Boost technology for stable, clean power delivery to demanding Intel processors.
• DDR5 Memory with XMP 3.0 Support: Four DDR5 slots support up to 192GB of memory and overclocking frequencies up to 7000+ MHz, with Intel XMP 3.0 for one-click performance tuning.
• PCIe 5.0 Primary Slot: The main PCIe x16 slot runs at Gen 5 speeds from the CPU, maximizing bandwidth for the latest discrete graphics cards.
• Wi-Fi 6E and 2.5G LAN Networking: Intel Wi-Fi 6E delivers up to 2.4 Gbps wireless with 6GHz band support, while Intel 2.5Gbps wired LAN ensures low-latency, high-throughput connectivity.
• Quad M.2 Slots with M.2 Shield Frozr: Four M.2 slots support NVMe SSDs at up to PCIe 4.0 x4 speeds, with thermal shields to keep drives cool under sustained loads.
• Premium Thermal Solution: Extended VRM heatsinks with 7W/mK MOSFET thermal pads and additional choke pads protect components during intensive workloads.
• High-Quality 6-Layer PCB: Built with 2oz thickened copper and server-grade materials for improved signal integrity, durability, and long-term reliability.
• USB 3.2 Gen 2x2 Type-C (20Gbps): Rear panel includes a USB 3.2 Gen 2x2 Type-C port delivering 20Gbps for ultra-fast external storage and peripheral connectivity.

Technical Specifications

• Chipset: Intel Z790
• CPU Socket: LGA 1700
• Compatible CPUs: 12th and 13th Gen Intel Core, Pentium Gold, Celeron
• Memory Slots: 4x DDR5 DIMM
• Max Memory: 192GB
• Memory Speeds: 4800 / 5000 / 5200 / 5400 / 5600 (JEDEC); up to 7000+ MHz (OC); Intel XMP 3.0 supported
• Form Factor: ATX (243.84mm x 304.8mm)
• Expansion Slots: 3x PCIe x16 (PCIe 5.0 x16 CPU, PCIe 4.0 x4 Chipset, PCIe 3.0 x1 Chipset), 1x PCIe x1
• Storage: 4x M.2 (PCIe 4.0 x4 / SATA), 6x SATA 6Gbps
• RAID: RAID 0, 1, 5, 10 for SATA and M.2 NVMe
• Onboard Graphics Output: 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz)
• LAN: Intel 2.5Gbps
• Wireless: Intel Wi-Fi 6E (802.11ax, 2.4 / 5 / 6GHz, up to 2.4Gbps, MU-MIMO)
• Bluetooth: 5.3
• Audio: Realtek ALC897, 7.1-Channel HD Audio

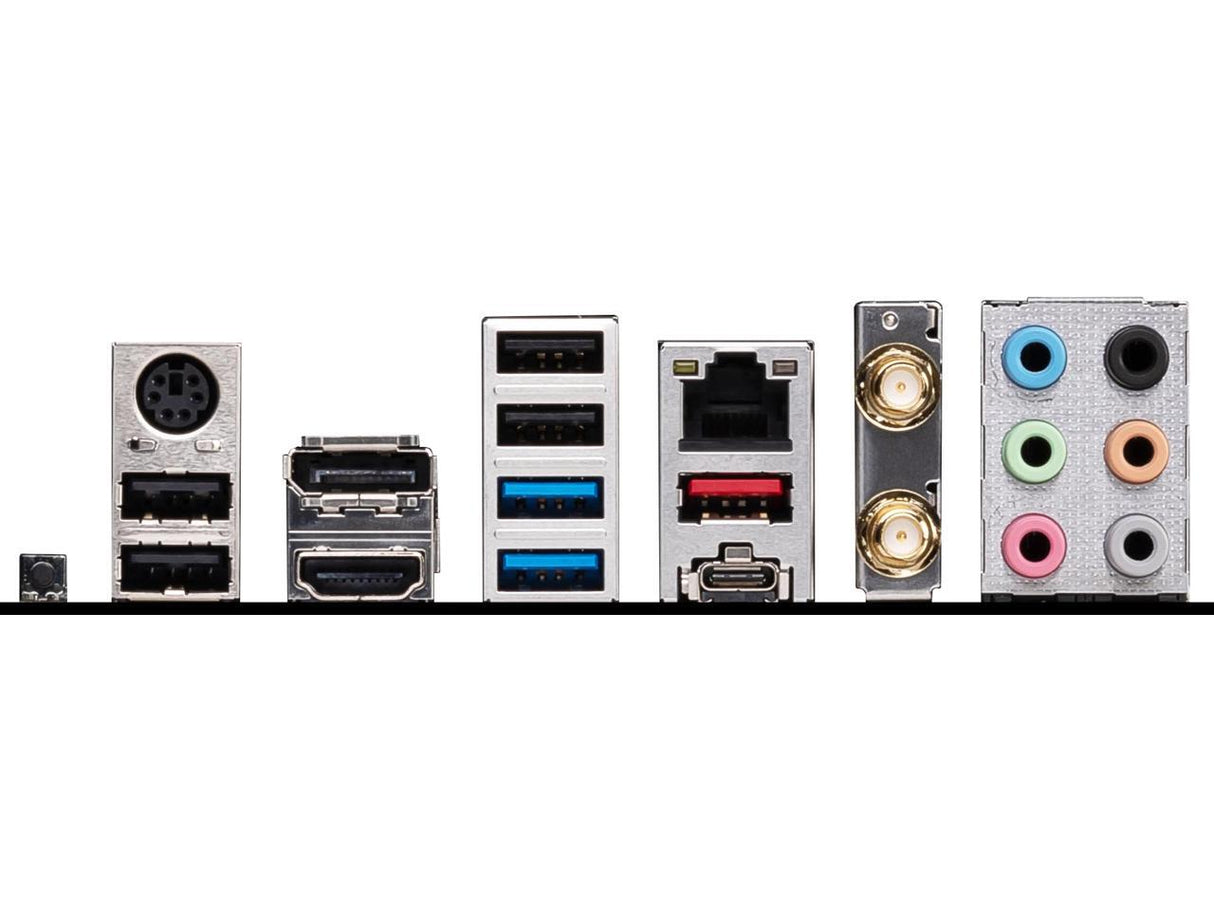

• Rear USB: 4x USB 2.0, 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C
• Internal USB Headers: 4x USB 2.0, 4x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C
• Fan Headers: 1x CPU Fan, 1x Pump Fan, 6x System Fan
• LED Features: 4x EZ Debug LED; 2x ARGB V2 headers; 1x RGB header
• Operating System: Windows 11 64-bit, Windows 10 64-bit
• Warranty: 3 Years
• Dimensions: 14 x 11 x 3 inches
• Weight: 4 lbs
