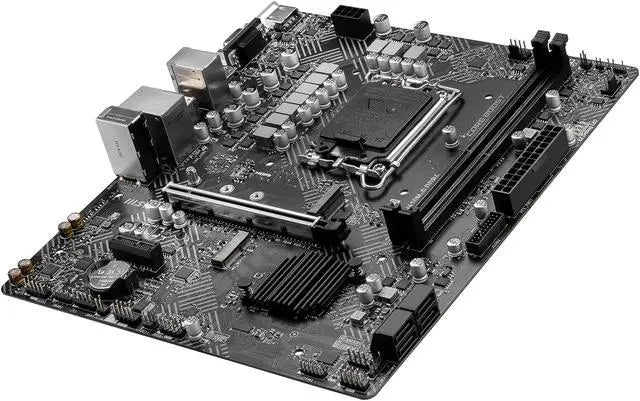

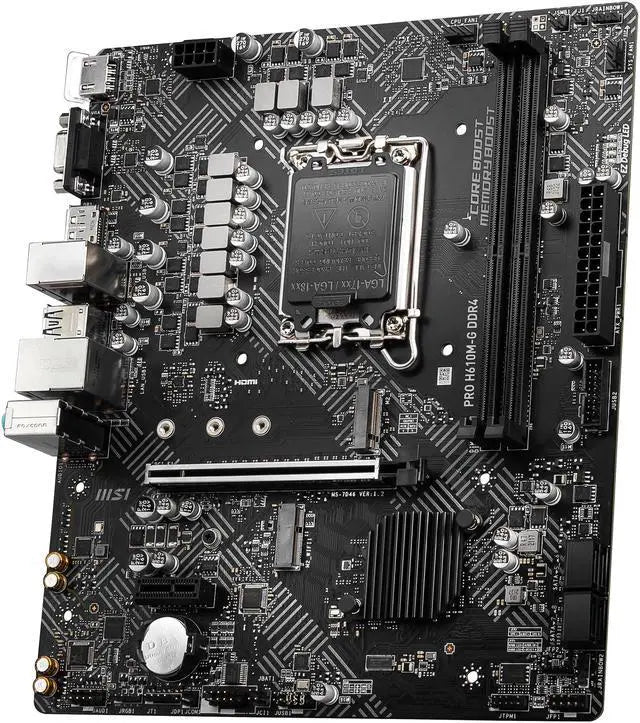

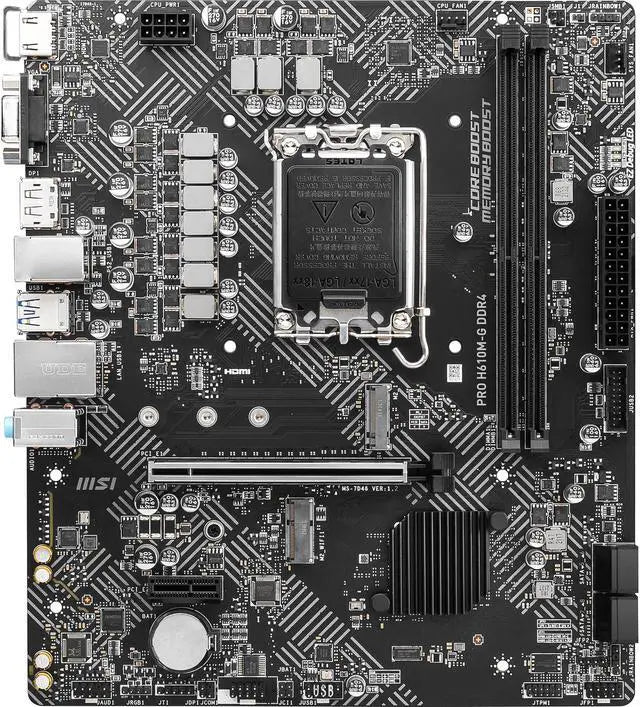

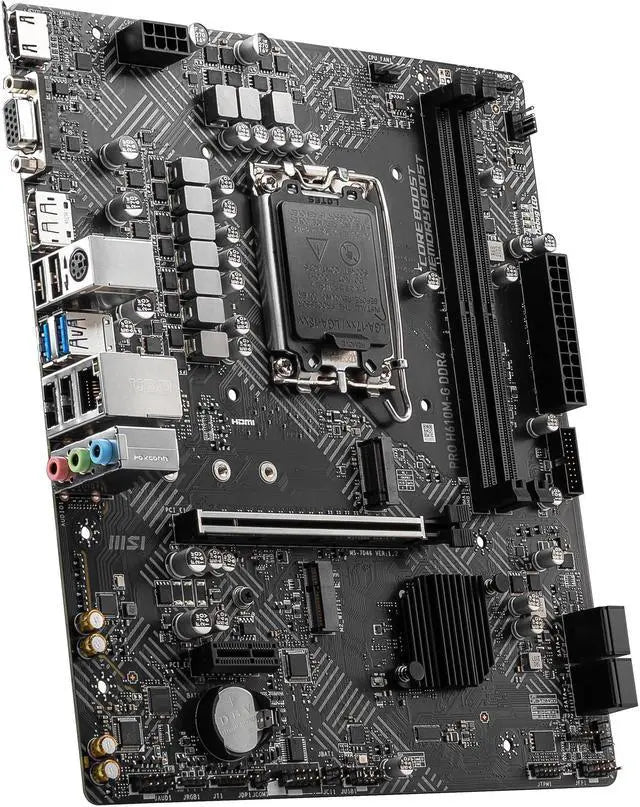

MSI PRO H610M-G DDR4 LGA 1700 Micro-ATX Motherboard
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Description
MSI PRO H610M-G DDR4 Micro-ATX Motherboard for Intel 12th Gen
The MSI PRO H610M-G DDR4 is a compact Micro-ATX motherboard built on the Intel H610 chipset with LGA 1700 socket support, accommodating up to 64GB of dual-channel DDR4 memory at speeds up to 3200MHz - delivering reliable, professional-grade performance for business builds and home office workstations.
Ideal for small form-factor office PCs, professional workstations, and budget-conscious Intel 12th/13th Gen desktop builds, this board suits buyers seeking stable daily computing with Intel Gigabit LAN, integrated graphics output via DisplayPort and VGA, and AI-driven fan management without the premium cost of enthusiast boards.
Backed by MSI's PRO series commitment to rigorous quality assembly and longevity, the H610M-G DDR4 ships with MSI's standard manufacturer warranty and is compatible with the full MSI ecosystem of software utilities including MSI Center and LAN Manager for streamlined system management.
Key Features of the MSI PRO H610M-G DDR4
- FROZR AI Cooling: Automatically monitors CPU and GPU temperatures using MSI's AI ENGINE, dynamically adjusting system fan duty cycles for quiet, efficient thermal management.
- Intel I219V Gigabit LAN: Low-latency wired networking powered by Intel's proven controller, optimized for stable throughput in productivity and online applications.
- MSI LAN Manager: Software-level traffic prioritization and per-application bandwidth control, ensuring latency-sensitive tasks always get the network resources they need.
- Dual-Channel DDR4 Memory: Two DIMM slots support up to 64GB of DDR4 at speeds ranging from 2133 to 3200MHz, providing headroom for multitasking and future upgrades.
- M.2 NVMe Storage Slot: One M.2 slot enables fast NVMe SSD installation alongside four SATA III ports for flexible, high-speed storage configurations.
- Comprehensive USB Connectivity: Four USB 2.0 rear ports, two USB 3.2 Gen 1 Type-A rear ports, plus two USB 2.0 and two USB 3.2 Gen 1 front-panel headers cover all peripheral needs.
- Integrated Display Outputs: Onboard DisplayPort and VGA outputs support dual-monitor configurations with Intel integrated graphics, eliminating the need for a discrete GPU in office environments.
Technical Specifications
- Socket: LGA 1700
- Chipset: Intel H610
- CPU Support (Max): Intel Core i9 (12th/13th Gen)
- Form Factor: Micro-ATX (mATX)
- Memory Type: DDR4
- Memory Slots (DIMM): 2
- Max Memory: 64GB
- Memory Speeds: 2133 / 2400 / 2666 / 2800 / 2933 / 3000 / 3200MHz
- Memory Channels: Dual
- PCIe x16 Slots: 1
- PCIe x1 Slots: 1
- M.2 Slots: 1
- SATA III Ports: 4
- LAN: Intel I219V Gigabit (1x)
- USB 3.2 Gen 1 Rear Ports: 2x Type-A
- USB 3.2 Gen 1 Front Header: 2x Type-A
- USB 2.0 Rear Ports: 4
- USB 2.0 Front Header: 2
- Audio Codec: Realtek ALC892 / ALC897
- Display Outputs: 1x DisplayPort, 1x VGA
- TPM Header: 1
