AtlasIED CLA202 200W Two Channel Multi Impedance Power Share Amplifier
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

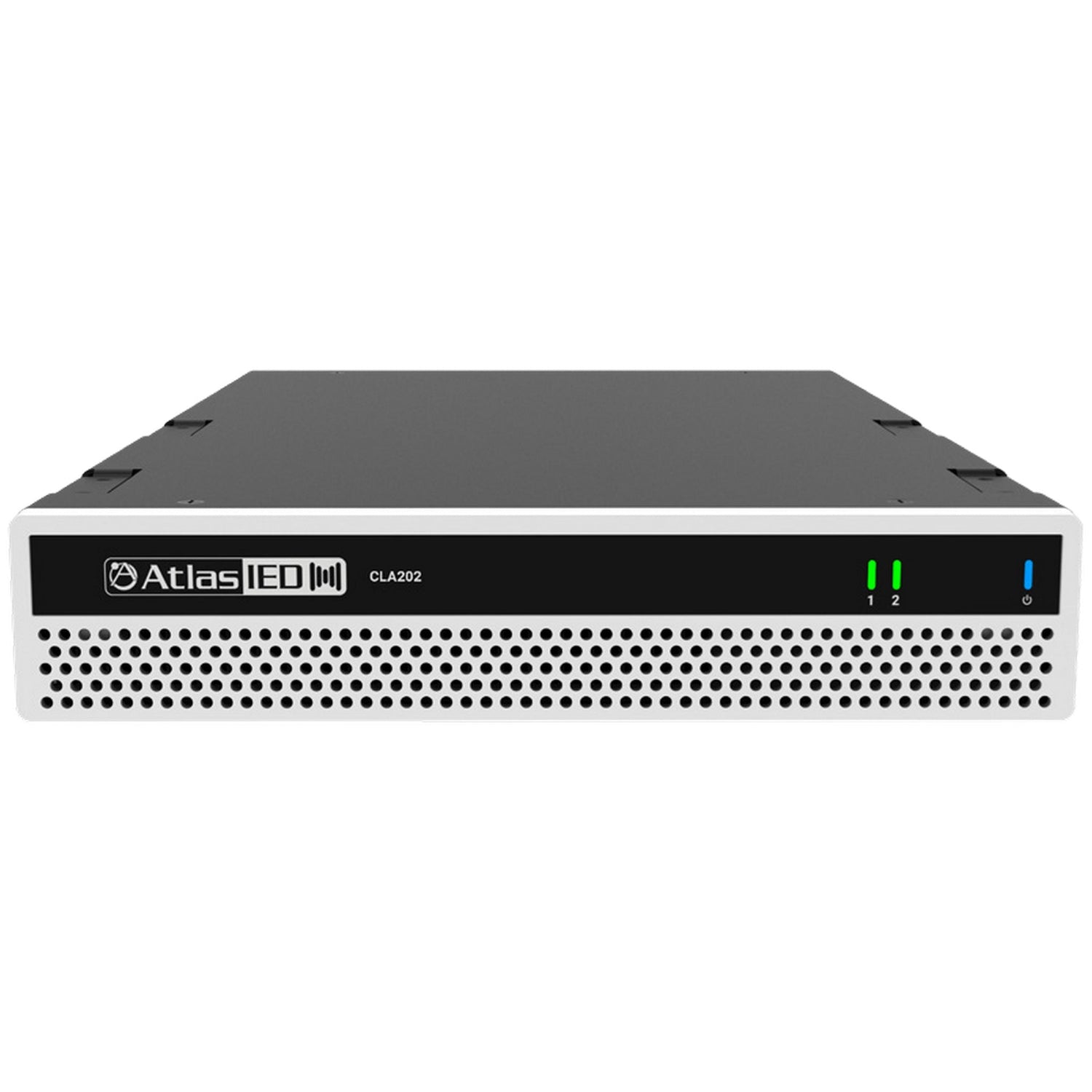

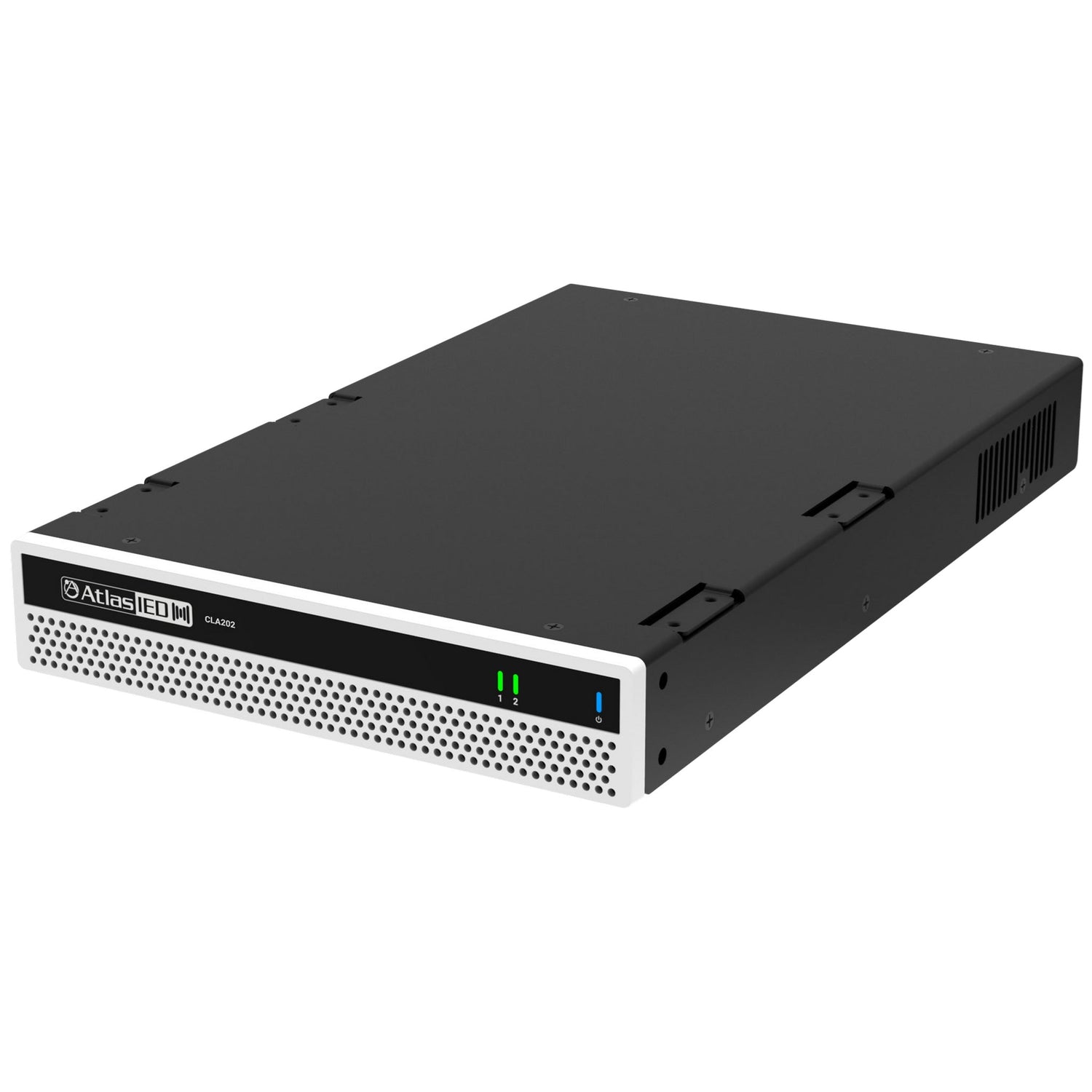

AtlasIED CLA202 200-Watt Two Channel Multi Impedance Power Share Amplifier
The AtlasIED CLA202 is a versatile 200-Watt two-channel amplifier designed for multi-impedance applications. Featuring the innovative Patent-Pending Power Share technology, it allows precise power distribution to different zones regardless of load impedance. This amplifier supports commercial 25V/70.7V/100V distributed systems as well as low impedance loads including 2, 4, or 8 ohms, making it an ideal solution for a wide range of sound reinforcement and distributed audio needs.
Engineered with a switch-mode, global auto-sensing power supply, the CLA202 delivers stable output power even under fluctuating electrical conditions. Its low-resistance, direct-coupled thermal transfer output stage ensures optimal temperature management, often operating in convection cooled mode with fan assist only when necessary. Compact and efficient, this 1RU half-rack amplifier meets Energy Star standards, consuming less than 1W in standby mode.

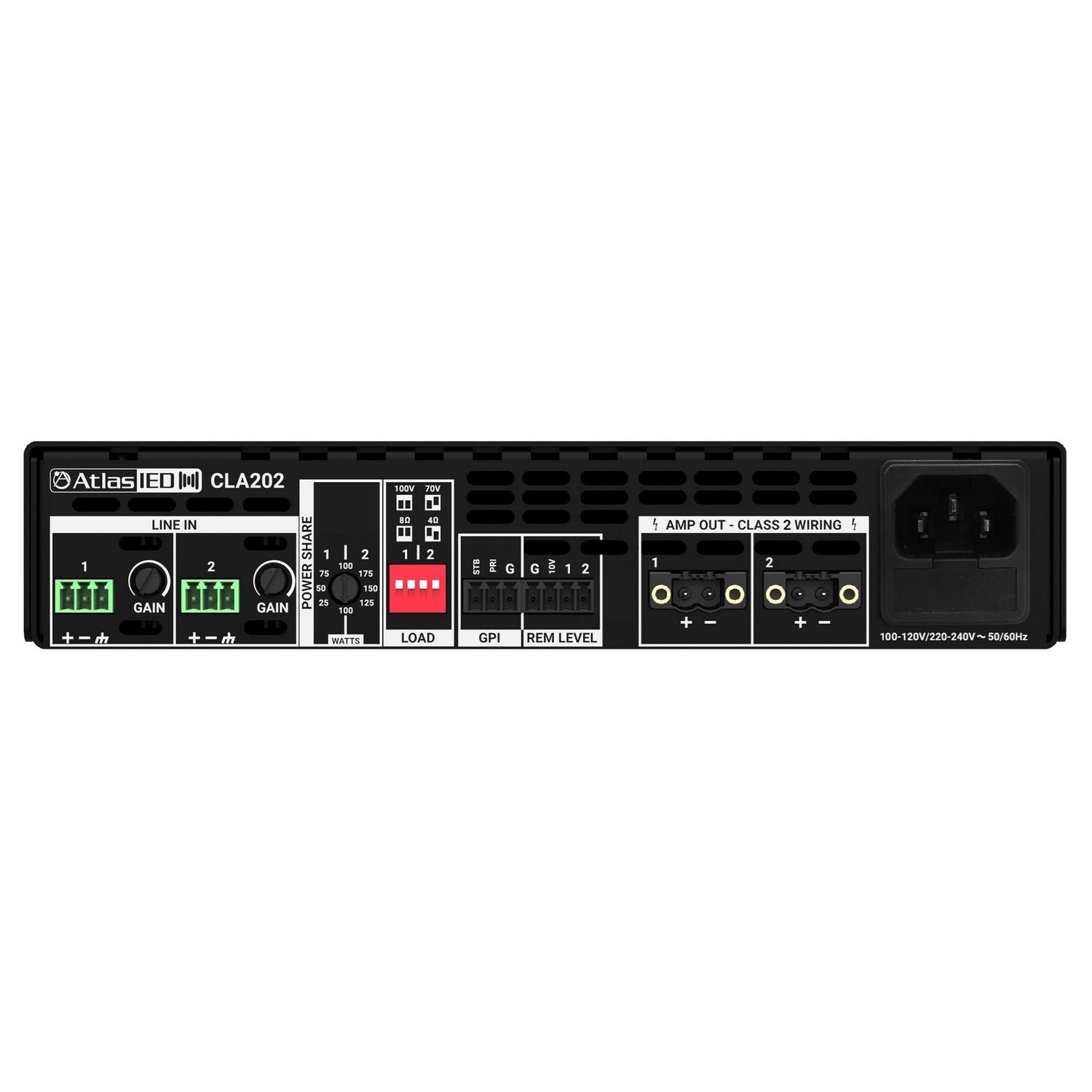

The CLA202 offers flexible configuration with individual channel load and power share settings via rear panel switches. Additional features include remote level control, priority mute GPI, and rear attenuators, providing a highly customizable and reliable amplifier solution for multi-zone and high SPL audio systems.
Key Features
- Two amplifier channels with independent load configurations (2Ω, 4Ω, 8Ω, 25V, 70.7V, 100V)
- Patent-Pending Power Share configurations: 2 x 100W, 1 x 175W/25W, 1 x 150W/50W, 1 x 125W/75W
- Energy-efficient design with 1W standby power consumption
- Convection cooling with fan assist on demand
- Priority mute GPI and remote level control
- Compact 1RU half-rack form factor
Technical Specifications
- System Type: 2 Channel Power Amplifier
- Topology: Class D
- Output Power: 200W
- Number of Inputs: 2
- GPI Ports: 5, Euro Block 3.5mm
- Output Speaker Terminals: 2, Removable Euro Block, 5.08mm Pitch, Locking
- THD (1kHz, 1dB Below Rated Power): ≤0.15%
- Signal to Noise Ratio (8 Ohm): >93dBA Below Rated Output (A-Weighted)
- Cooling: Idle Mode Convection, Audio Signal Sense Fan with Variable Speed
- Dimensions (HxWxD): 1.75-Inch x 8.75-Inch x 13.5-Inch (44mm x 222mm x 343mm)
- Weight: 5.3 lbs (2.36 kg)
- Warranty Period: 36 months from date of purchase
