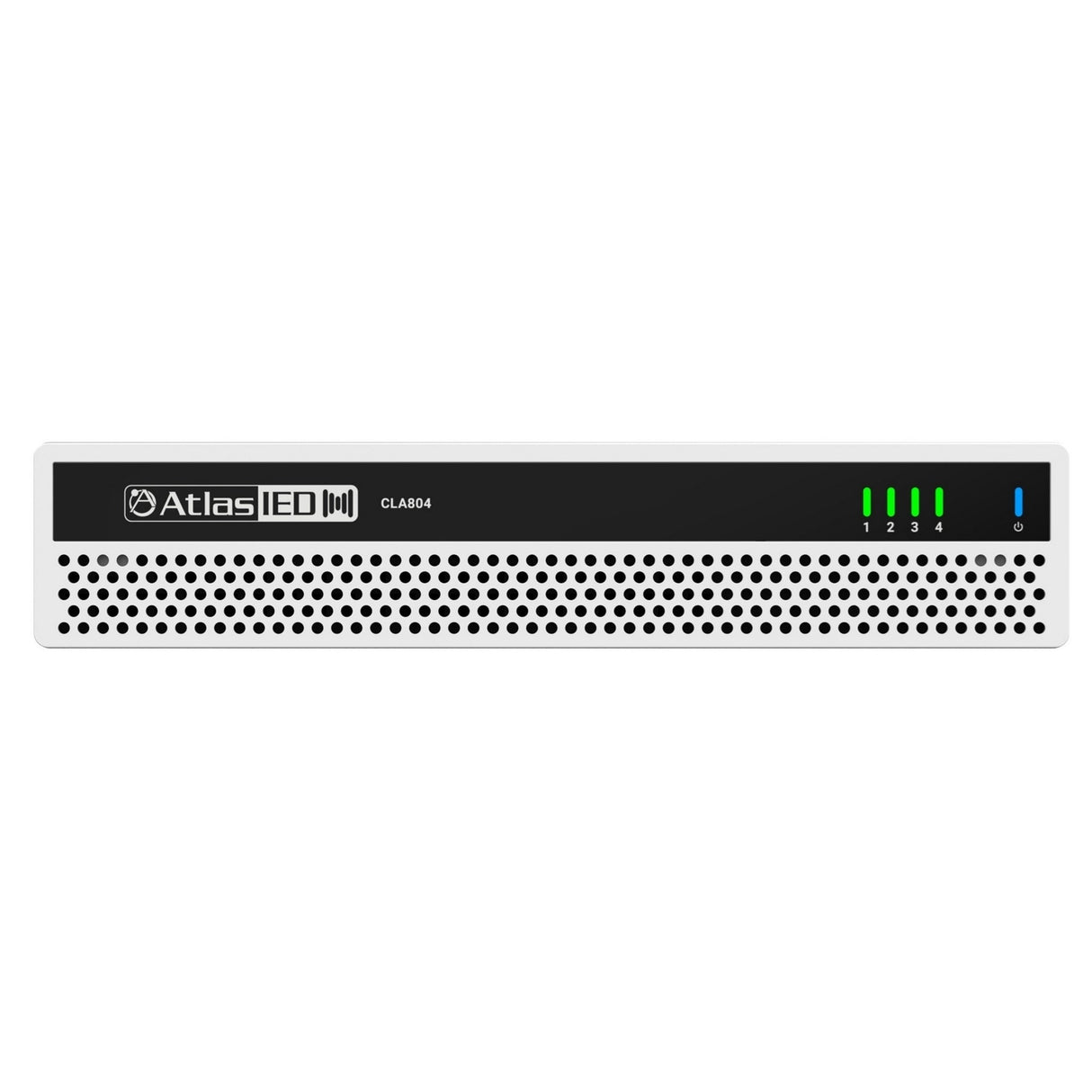

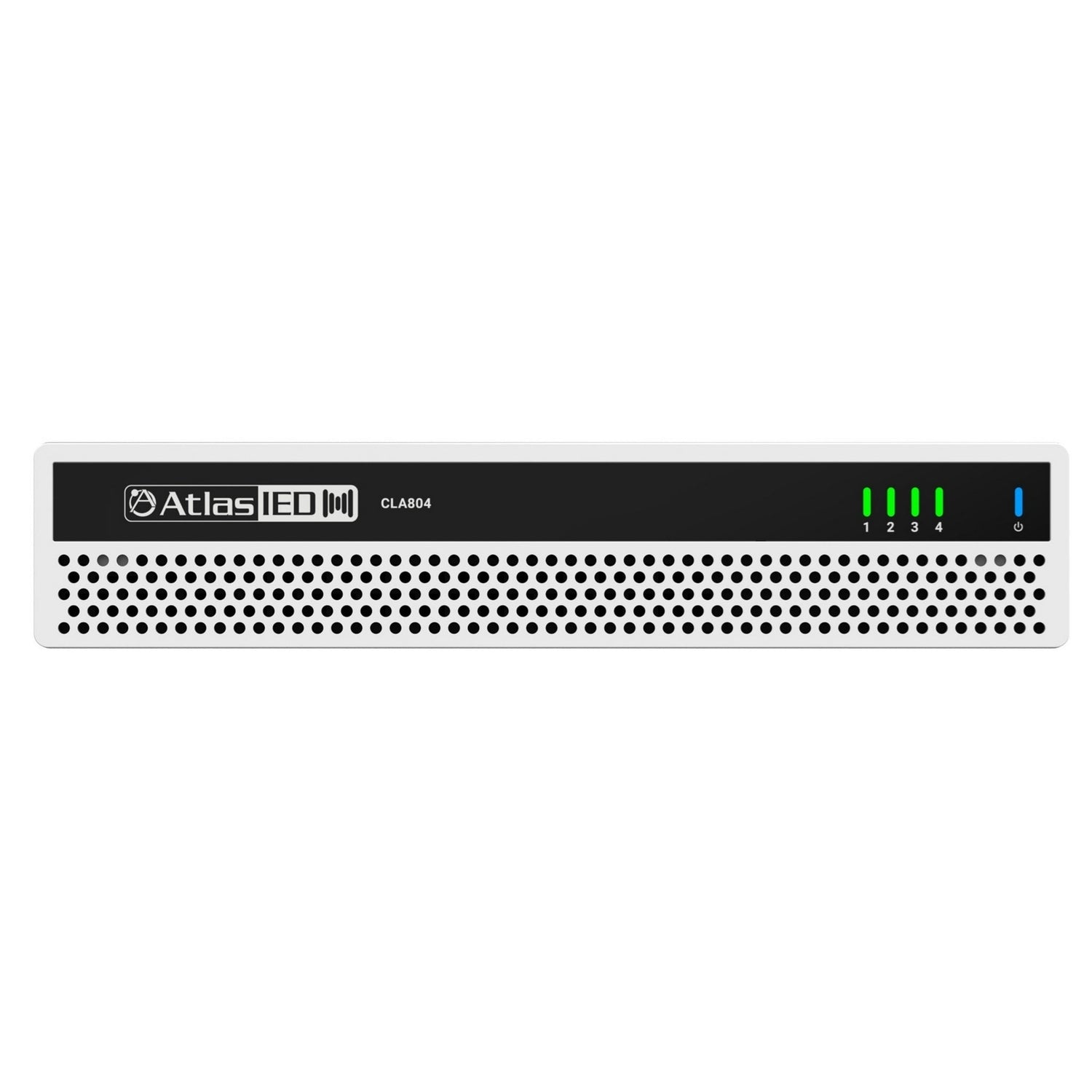

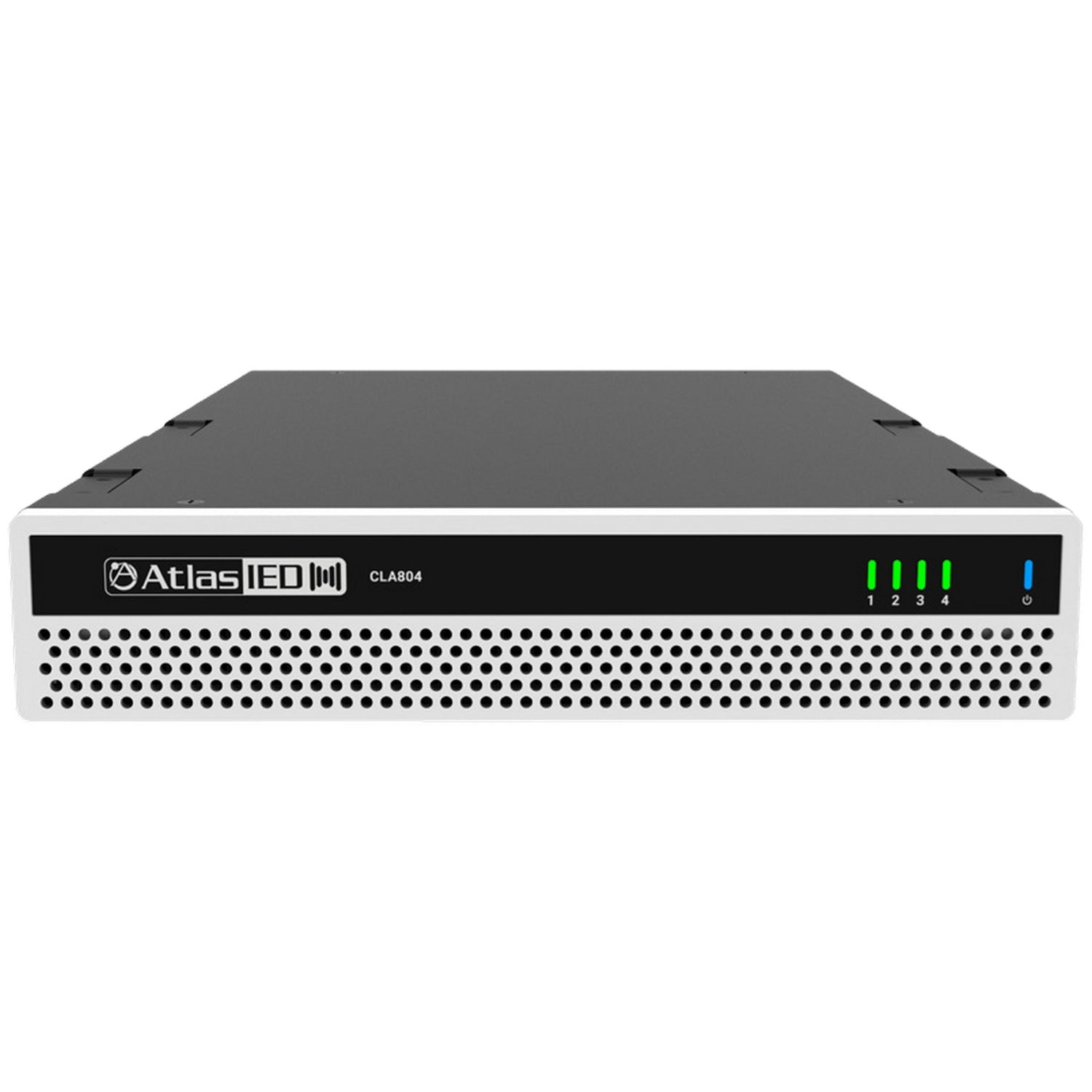

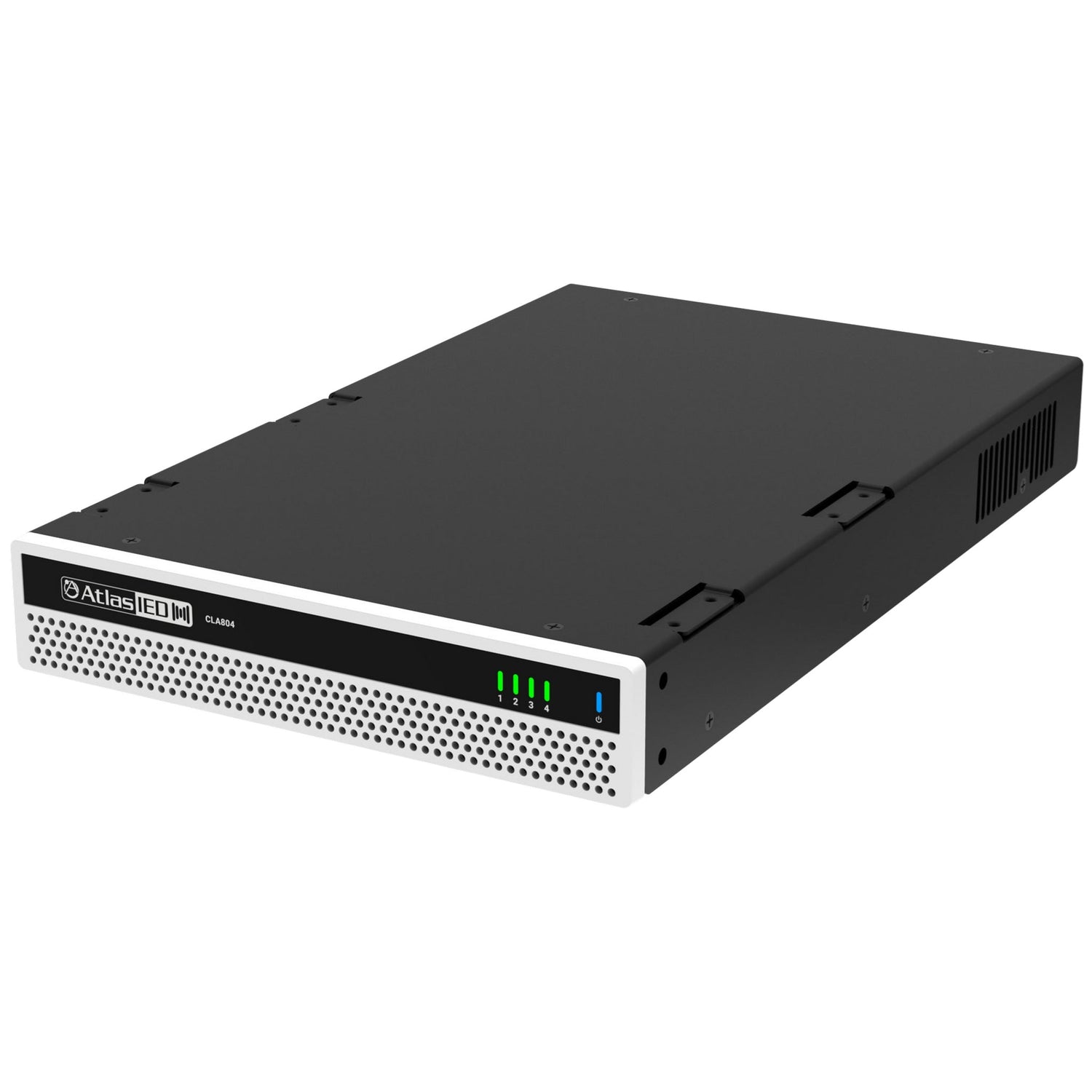

AtlasIED CLA804 800W Four Channel Multi-Impedance Power Share Amplifier
The AtlasIED CLA804 is a high-performance four-channel amplifier delivering a powerful 800-Watt output with innovative Power Share technology, allowing dynamic power distribution across zones regardless of speaker impedance. Designed for both distributed 25V/70.7V/100V systems and low-impedance loads (2Ω, 4Ω, 8Ω), it offers versatile applications in sound reinforcement, paging, and background music environments.
Equipped with a global auto-sensing switch-mode power supply, the CLA804 ensures stable performance under varying electrical conditions. It achieves Energy Star efficiency, consuming less than 1W in standby, and primarily uses convection cooling with quiet fan assistance as needed. Housed in a compact 1RU half-rack chassis, it supports easy configuration and integration with remote level control, priority mute GPI, rear attenuators, and multiple GPI ports.

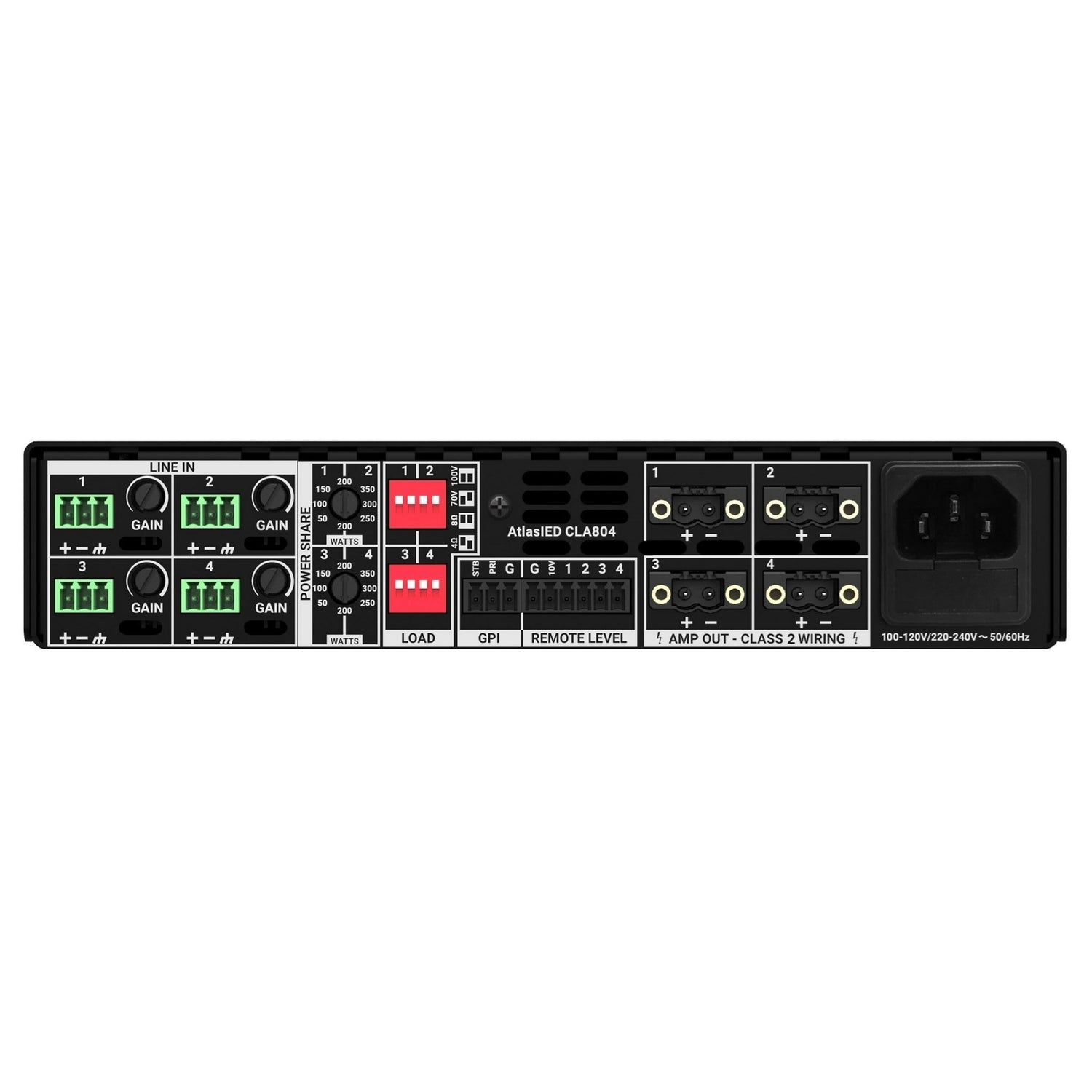

Rear-panel switches enable easy setup for individual channel loads and power sharing modes. With flexible output configurations and rugged construction, the CLA804 provides a reliable, scalable solution for multi-zone audio installations.
Key Features
- Four channels supporting loads of 2Ω, 4Ω, 8Ω, 25V, 70.7V, and 100V
- Power Share modes: 4x200W, 2x350W + 50W, 2x300W + 100W, 2x250W + 150W
- Less than 1W standby power consumption meeting Energy Star standards
- Convection-cooled with variable-speed fan assist
- Priority mute GPI, remote level control, and rear attenuators
- Compact 1RU half-rack chassis with global auto-sensing power supply
Technical Specifications
- System Type: 4 Channel Power Amplifier
- Topology: Class D
- Output Power: 800W total
- Inputs: 4 balanced Euro Block 3.5mm connectors
- GPI Ports: 7 via Euro Block 3.5mm
- Output Terminals: 4 removable Euro Block, 5.08mm, locking
- THD (1kHz, 1dB below rated power): ≤0.15%
- Frequency Response: 20Hz–20kHz (+0/‑1.5dB low-impedance), 50Hz–20kHz (+0/‑1.5dB constant-voltage)
- Signal-to-Noise Ratio (8Ω): >93 dBA A-weighted
- Cooling: Convection idle, audio-signal sensing fan
- Dimensions (HxWxD): 1.75‑Inch x 8.75‑Inch x 13.5‑Inch
- Weight: 8 lbs
- Warranty Period: 36 months from date of purchase
