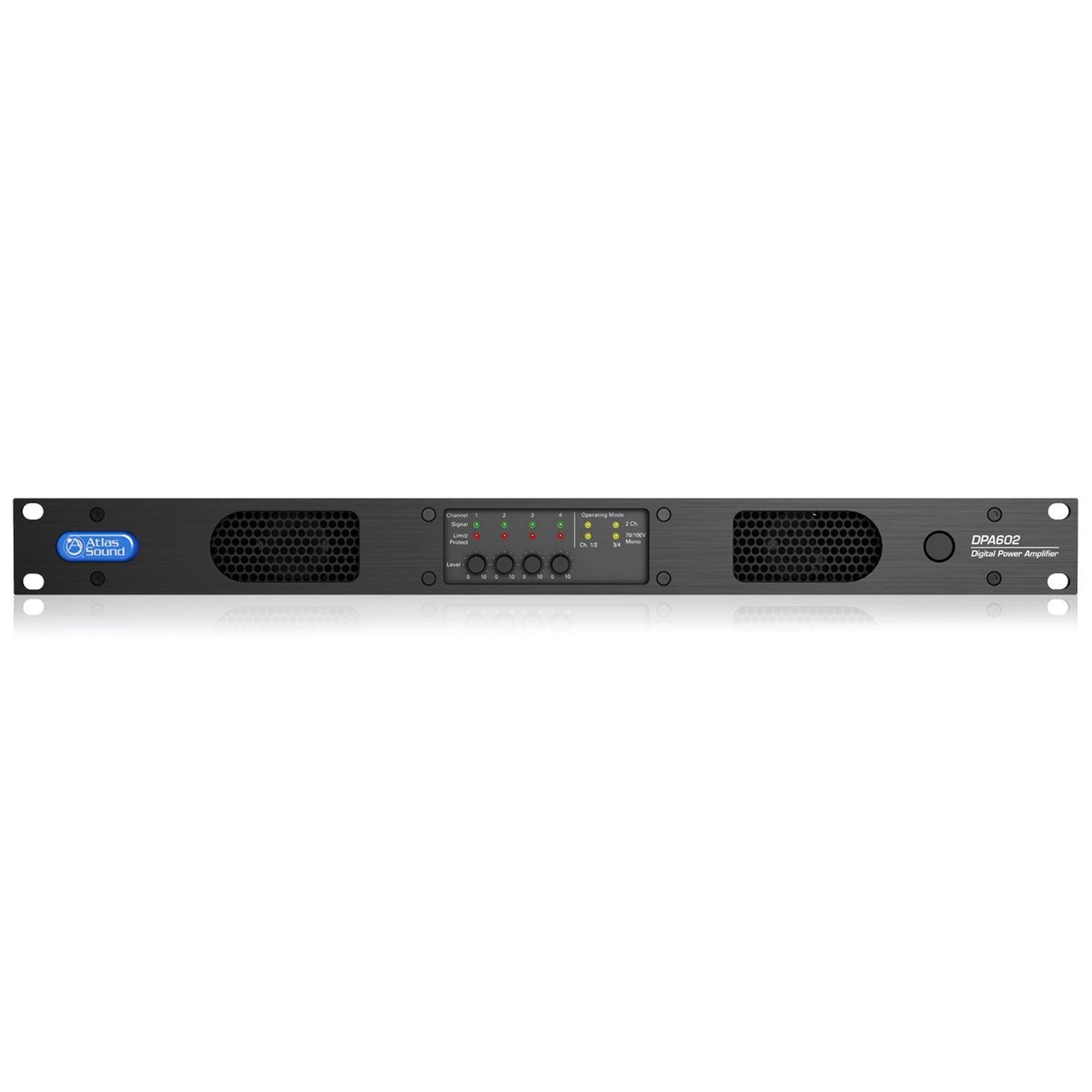

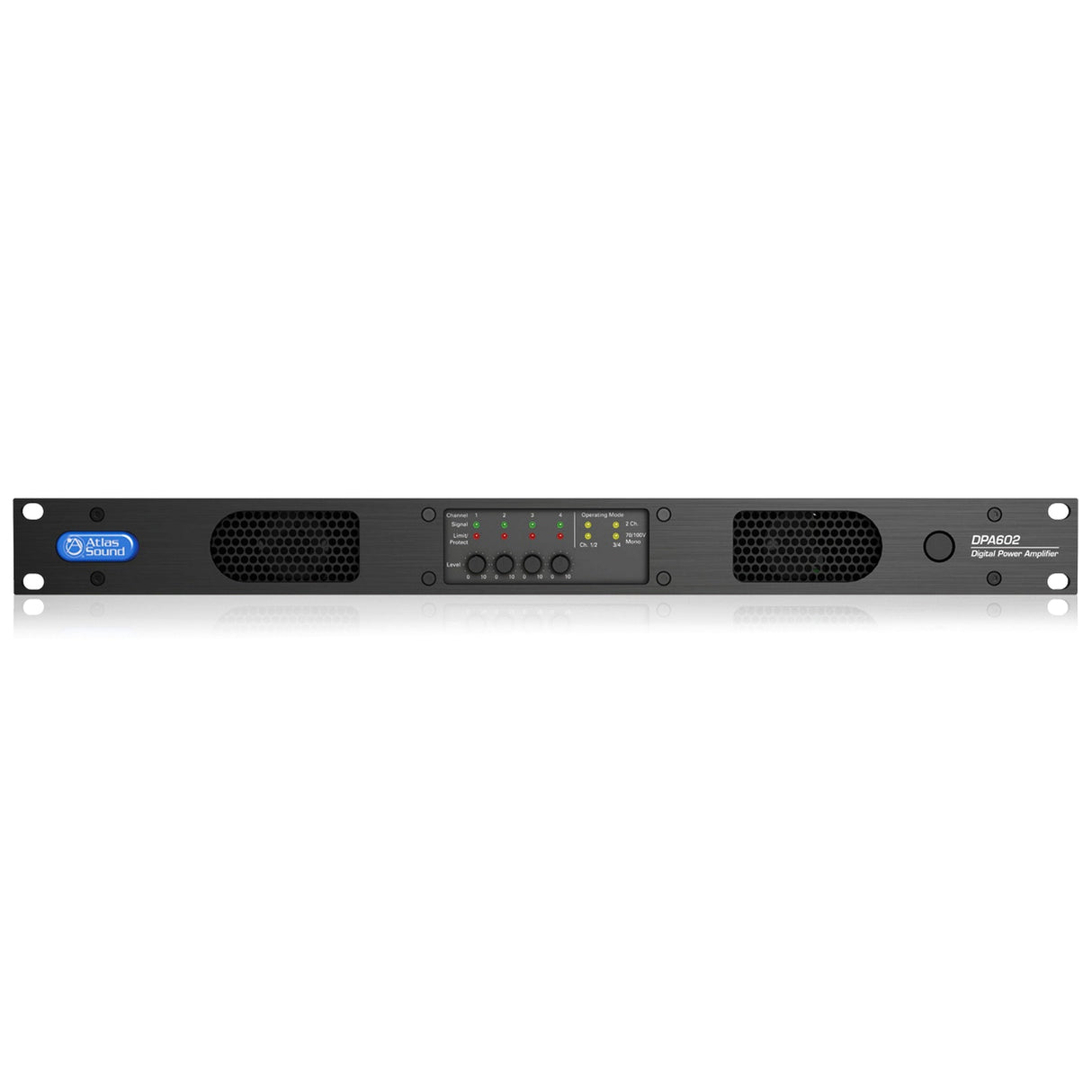

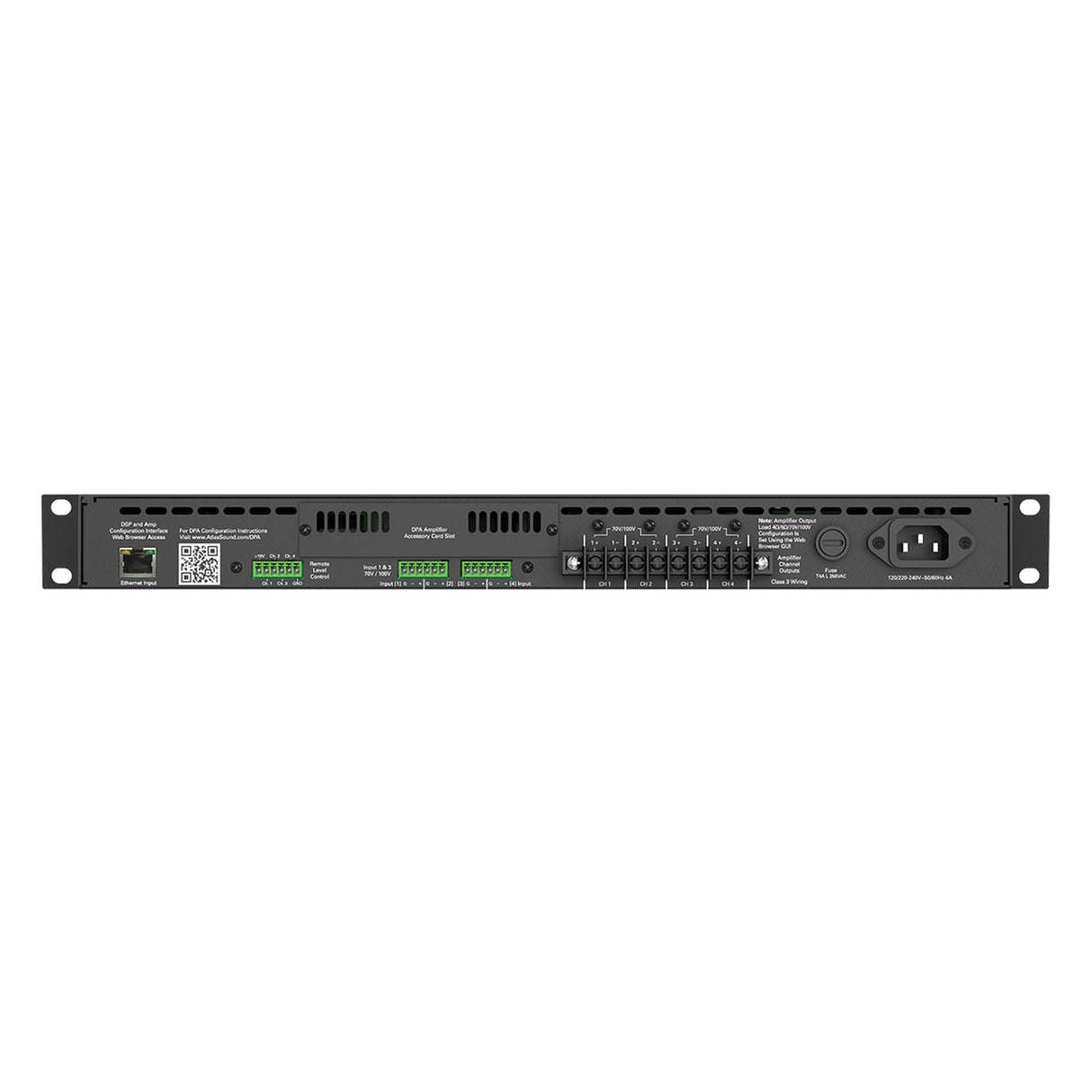

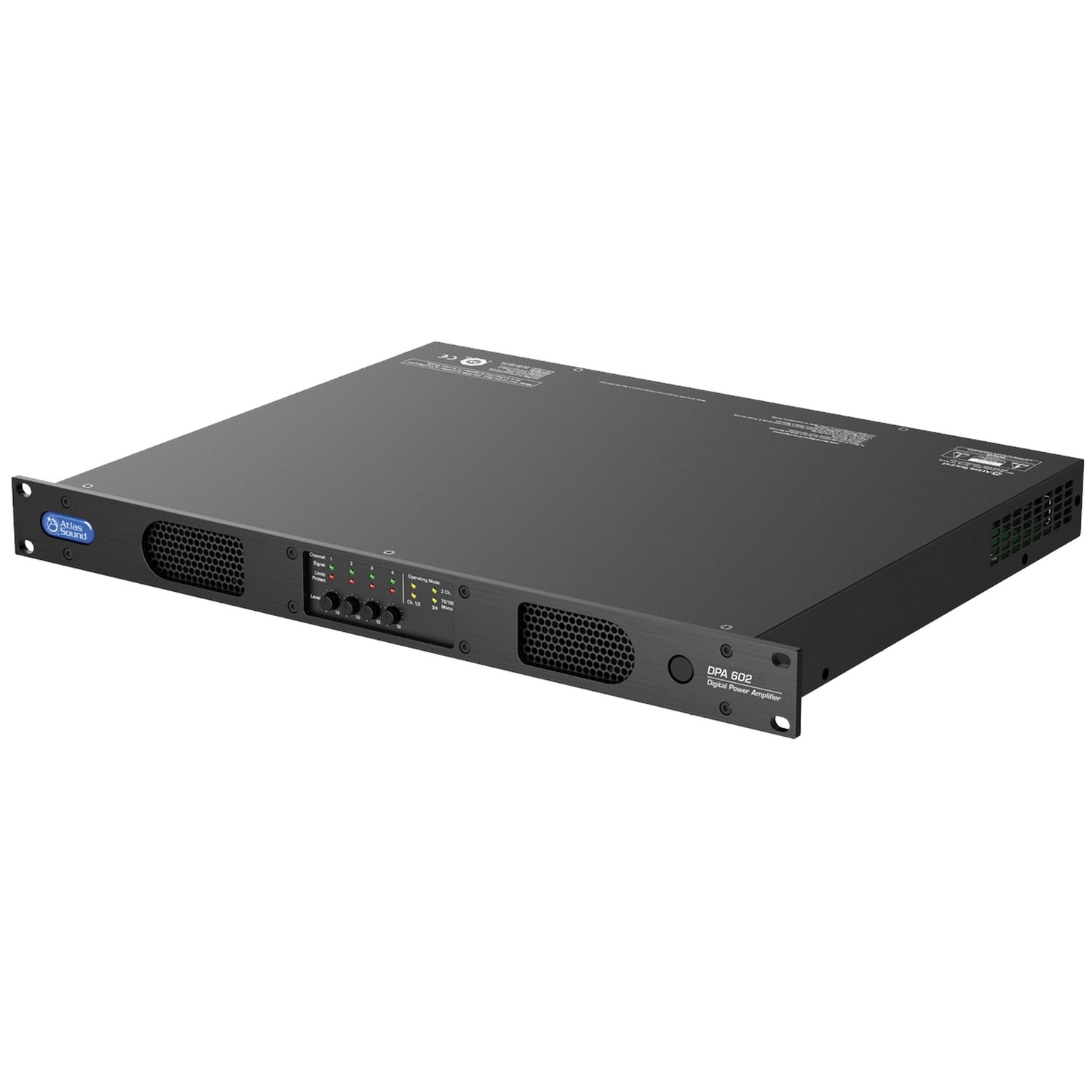

AtlasIED DPA602 600W Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio
The AtlasIED DPA602 amplifier delivers a powerful combination of flexibility, performance, and network control for commercial audio installations. This network-enabled 4-channel amplifier supports multiple configuration modes to meet diverse system requirements, including 2-channel 70.7V/100V operation or 4-channel low impedance amplification at 4Ω or 8Ω. It is factory-configured as a 2-channel 70.7V/100V amplifier but can be reconfigured for paging, background, or stereo foreground applications. The DPA602 features onboard DSP with full configurability via an intuitive web GUI, allowing installers to set level controls, EQ, limiters, filters, and delays for optimum sound performance.
Equipped with four balanced line inputs and an optional accessory slot for either a 4-channel Dante™ receiver card (DPA-DAC4) or a mixed mic/line and AUX input card (DPA-AMIX), the amplifier supports up to eight inputs, all mixable and routable to any amplifier channel. Remote control options include front panel potentiometers, web-based GUI, or wired remote level controls. The unit features input/output metering, mute assignments triggered by audio or contact closure, and password protection for DSP settings. Additionally, the DPA Site Manager software offers easy network device discovery, fault reporting, and remote activation through a scheduler, enhancing system management and monitoring capabilities.
Key Features
- Configurable for Use as 2-Channel 70.7V Amplifier
- Configurable for Use as 4-Channel 4Ω Amplifier
- Configurable for Use as Single Channel 70.7V and 2-Channel 4Ω Amplifier
- Networkable with Onboard Web GUI
- Configurable DSP via GUI
- Site Manager Software with Network Auto-Discovery, Fault Reporting, Input & Output Status, Standby Status, Remote Activation via Scheduler
- Assignable Input & Output Level Control
- Mute Assignments Triggered via Audio Signal or Contact Closure
- Audio Sense Turn-On/Off
- Four Balanced Inputs, Expandable to Eight via Accessory Card
- Optional Accessory Card Slot for Dante™ Receiver or Mic/Line and AUX Input Card
- PC, iOS®, and Android® Compatible
Technical Specifications
- Power Output: 2 x 300-Watts @ 70.7V
- Power Output: 2 x 300-Watts @ 100V
- Power Output: 4 x 150-Watts @ 4Ω
- Power Output: 4 x 75-Watts @ 8Ω
- Power Output: 1 x 300-Watts @ 70.7V, 2 x 150-Watts @ 4Ω
- Power Output: 1 x 300-Watts @ 100V, 2 x 150-Watts @ 4Ω
- Amplifier Topology: Class AB Switching Hybrid -BASH
- Input Sensitivity: 750mV Balanced, 0dBU
- Input Impedance: Balanced 40kΩ
- Maximum Input Signal: +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante™
- THD: 1% @ Rated Output
- Frequency Response: -3dB 20Hz - 20kHz (DSP Filters Set to Flat)
- Signal to Noise Ratio: -100dB Below Rated Output (A-Weighted)
- Crosstalk: 73dB @ 1kHz
- Voltage: 110V - 120V & 220V - 240V Auto Switch Over, 50/60Hz
- Idle Current: 38W
- Rack Units: 1RU
- Height: 1.72-Inch (45mm)
- Width: 19-Inch (483mm)
- Depth: 14.5-Inch (368mm)
- Weight: 13 lbs. (5.92kg)
- Voltage Compatibility: Universal
- Warranty Period: 36 months from date of purchase
