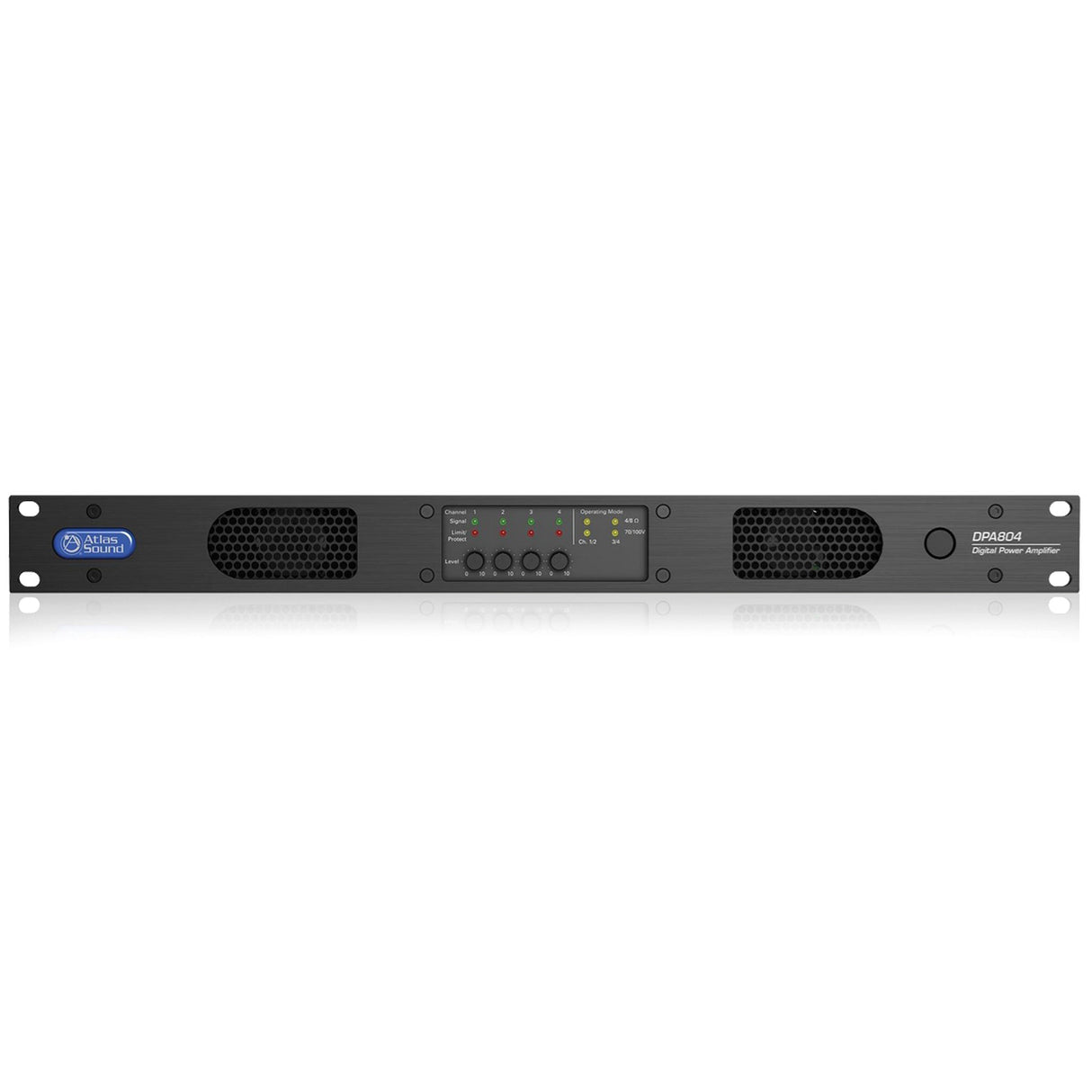

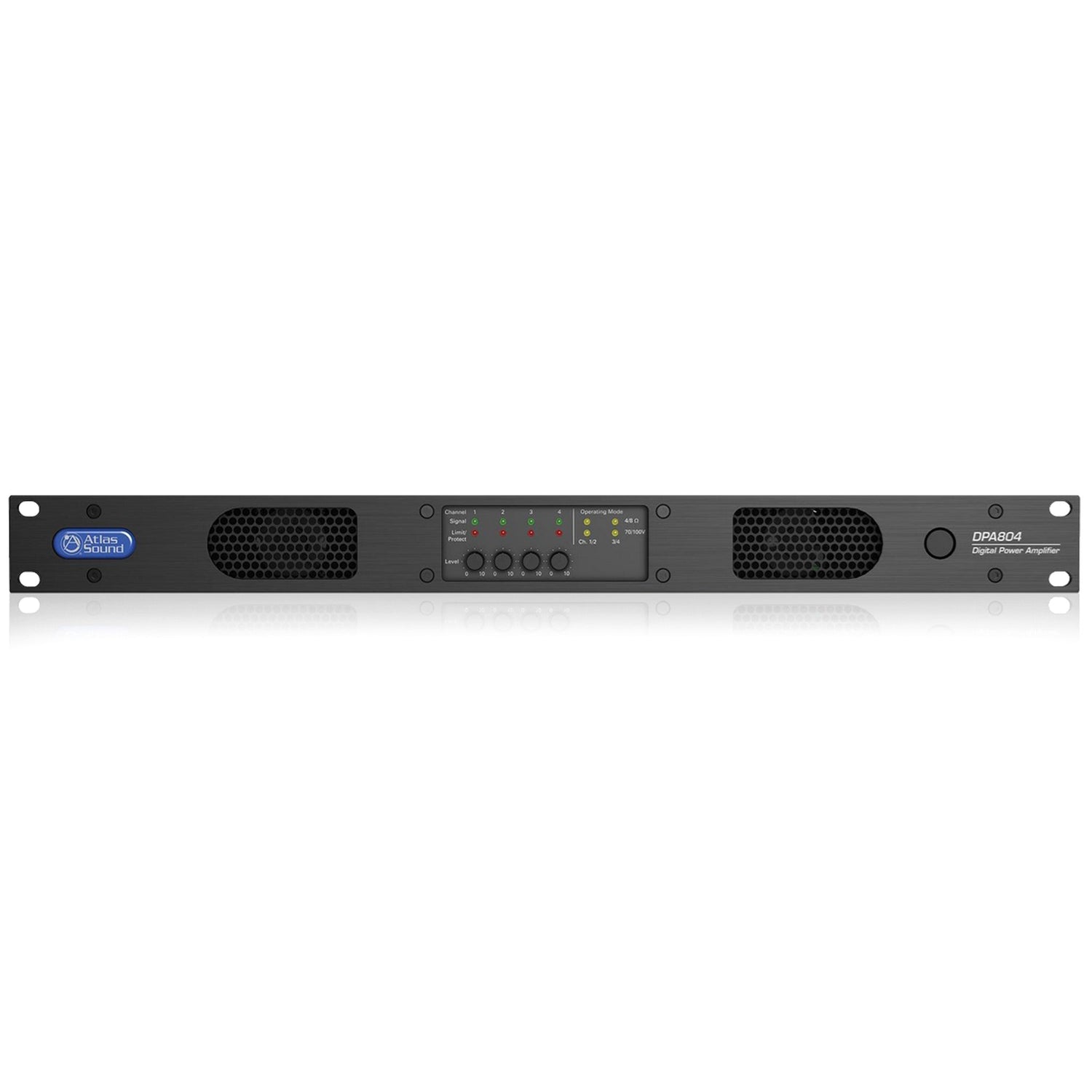

AtlasIED DPA804 800W Networkable 4-Channel Power Amplifier with Optional Dante Network Audio
The AtlasIED DPA804 amplifier offers powerful networkable audio performance designed for versatile commercial applications. This DSP-controlled 4-channel amplifier is configurable in multiple modes including 4-channel low impedance operation at 4Ω or 8Ω, or 2-channel 70.7V/100V operation for distributed paging and background music systems. Factory defaulted as a 2-channel 70.7V amplifier, the DPA804 can be reconfigured for various amplification needs, including mixed low and high impedance outputs, providing system designers with maximum flexibility.
Equipped with four balanced line inputs and an accessory slot for an optional DPA-DAC4 4-channel Dante™ receiver card or DPA-AMIX input card (2 mic/line and 2 AUX), the DPA804 supports up to eight inputs, all mixable and routable to any amplifier channel. Advanced DSP features such as level controls, EQ, limiters, high & low pass filters, and delay allow precise tuning for any environment. Remote control options include front panel potentiometers, onboard web GUI, or wired remote level control, with mute functions triggered by audio or contact closure. The DPA Site Manager software facilitates network discovery, fault reporting, and remote activation, streamlining system management.
Key Features
- Configurable as 4-Channel 4Ω or 8Ω Amplifier
- Configurable as 2-Channel 70.7V/100V Amplifier
- Networkable with Onboard Web Browser GUI
- Configurable DSP via GUI
- Site Manager Software with Network Auto-Discovery, Fault Reporting, Input & Output Status, Standby Status, and Remote Activation via Scheduler
- Assignable Input & Output Level Control
- Mute Assignments Triggered by Audio Signal or Contact Closure
- Four Balanced Inputs, Expandable to Eight via Accessory Card
- Optional Slot for Dante™ Receiver or Mic/Line and AUX Input Card
- PC, iOS®, and Android® Compatible
Technical Specifications
- Power Output: 4 x 200-Watts @ 4Ω
- Power Output: 4 x 100-Watts @ 8Ω
- Power Output: 2 x 200-Watts @ 70.7V
- Power Output: 2 x 200-Watts @ 100V
- Power Output: 1 x 200-Watts @ 70.7V, 2 x 200-Watts @ 4Ω
- Power Output: 1 x 200-Watts @ 100V, 2 x 200-Watts @ 4Ω
- Amplifier Topology: Class AB Switching Hybrid -BASH
- Input Sensitivity: 750mV Balanced, 0dBU
- Input Impedance: Balanced 40kΩ
- Maximum Input Signal: +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante™
- THD: 1% @ Rated Output
- Frequency Response: -3dB 20Hz - 20kHz (DSP Filters Set to Flat)
- Signal to Noise Ratio: -100dB Below Rated Output (A-Weighted)
- Crosstalk: 73dB @ 1kHz
- Voltage: 110V - 120V & 220V - 240V Auto Switch Over, 50/60Hz
- Idle Current: 46W
- Rack Units: 1RU
- Height: 1.75-Inch (45mm)
- Width: 19-Inch (483mm)
- Depth: 14.5-Inch (368mm)
- Weight: 13.5 lbs. (6.12kg)
- Voltage Compatibility: Universal
- Warranty Period: 36 months from date of purchase
