AtlasIED HPA2602 2-Channel x 1600W Commercial Multi-Impedance Power Amplifier
The AtlasIED HPA2602 is a high‑output, dual‑channel power amplifier engineered for both commercial 70 V/100 V systems and low‑impedance pro audio setups. Utilizing Generation II Class I output technology, it combines the energy efficiency of Class D with the sonic fidelity of Class AB. A compact 2 RU chassis, universal auto‑sensing power supply, and fan‑assisted cooling ensure stable performance even in fluctuating power environments.
Each channel delivers 800 W at 8 Ω, 1300 W at 4 Ω, and 1800 W at 2 Ω, with bridged modes providing up to 3200 W at 4 Ω or 2500 W at 8 Ω. Features include front‑panel security‑covered rotated level controls, balanced Euro‑block inputs, fault reporting, remote turn‑on, and an accessory slot for optional Dante networking — ideal for clubs, houses of worship, and commercial installs.
Key Features
- Massive power: 2 × 1300 W @ 4 Ω; 3200 W bridged for maximum output flexibility.
- Versatile outputs: Support for 2 Ω, 4 Ω, 8 Ω, 70.7 V distributed systems; no 100 V mode.
- Reliable operation: Gen II Class I efficiency, auto-sensing universal PSU, variable-speed fan, Energy Star standby (1 W).

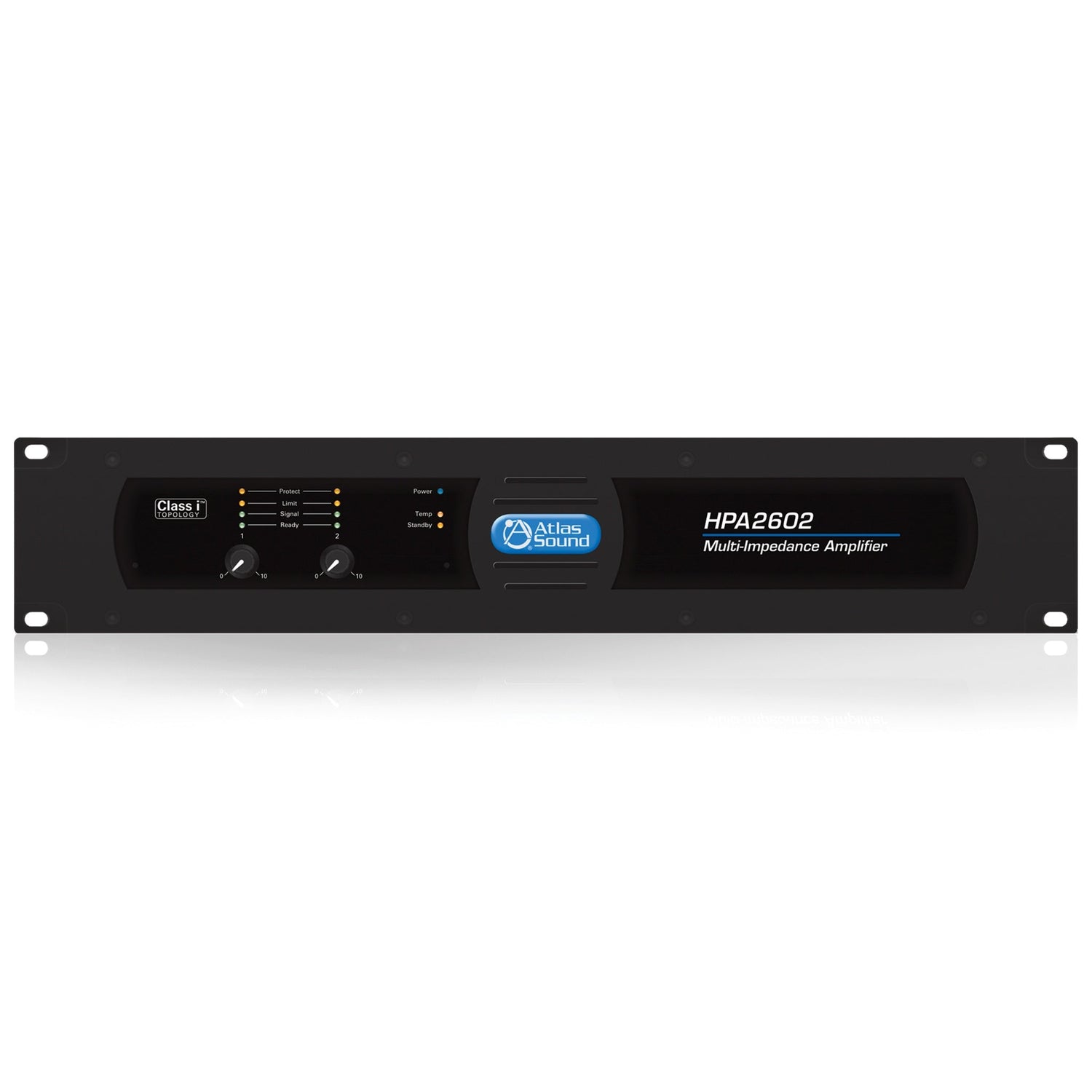

- Install-ready: Detented level knobs with cover, fault LED reporting, balanced inputs, remote trigger, optional Dante slot.
Technical Specifications
- Model: HPA2602
- Dimensions: 19.0 × 15.0 × 3.5 in (483 × 381 × 89 mm)
- Weight: 33 lbs (15 kg)
- Channels & Power: 2 × 800 W @ 8 Ω • 2 × 1300 W @ 4 Ω • 2 × 1800 W @ 2 Ω • Bridged: 2500 W @ 8 Ω, 3200 W @ 4 Ω
- THD: <0.05 %
- Freq Response: 20 Hz–20 kHz (+0/‑1.5 dB)
- SNR: <85 dB

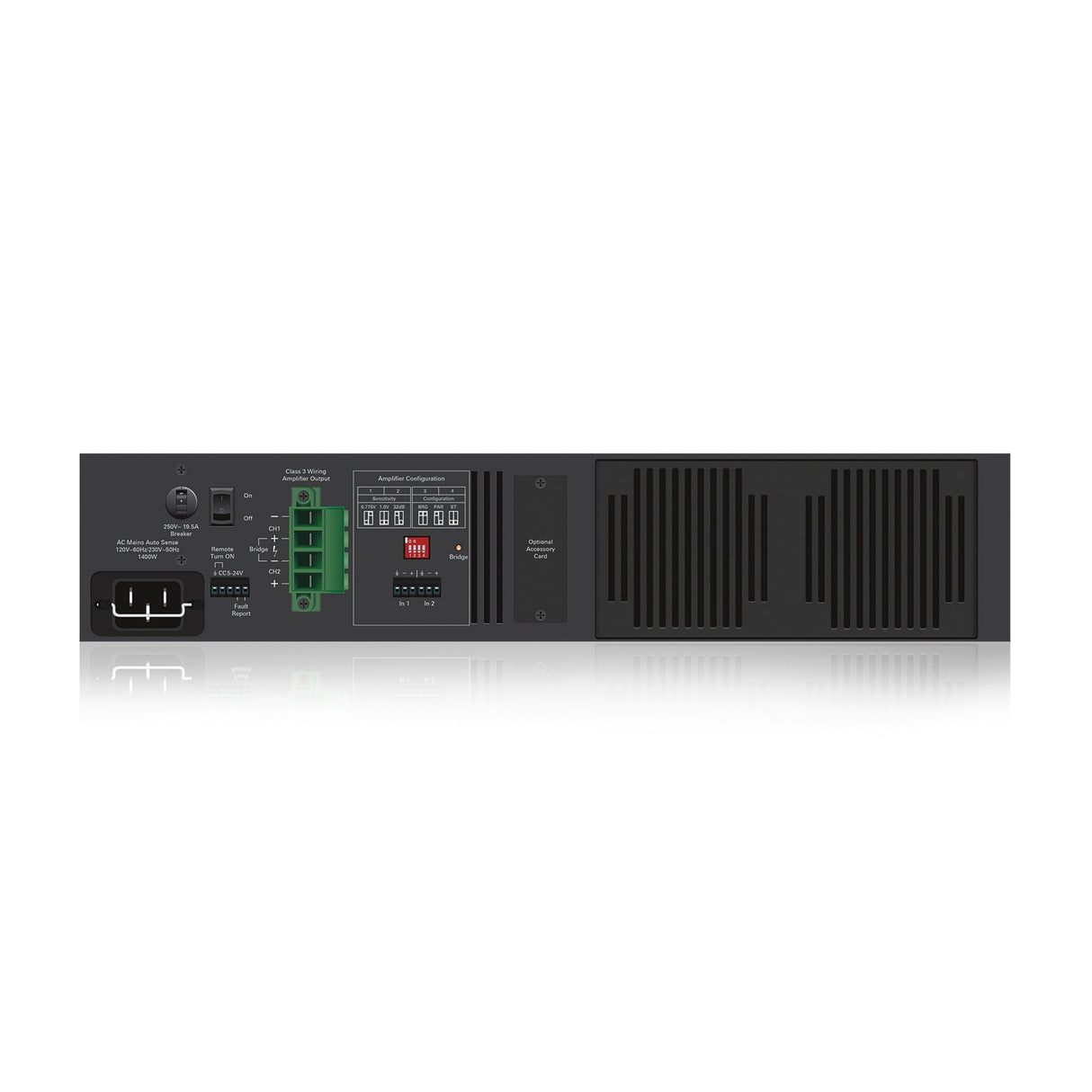

- Connectivity: Balanced Euro‑block line inputs, speaker terminal-block outputs, 5‑pin GPIO, accessory Dante slot
