AtlasIED PA1001G 100W Single‑Channel Pole‑Mount Power Amplifier

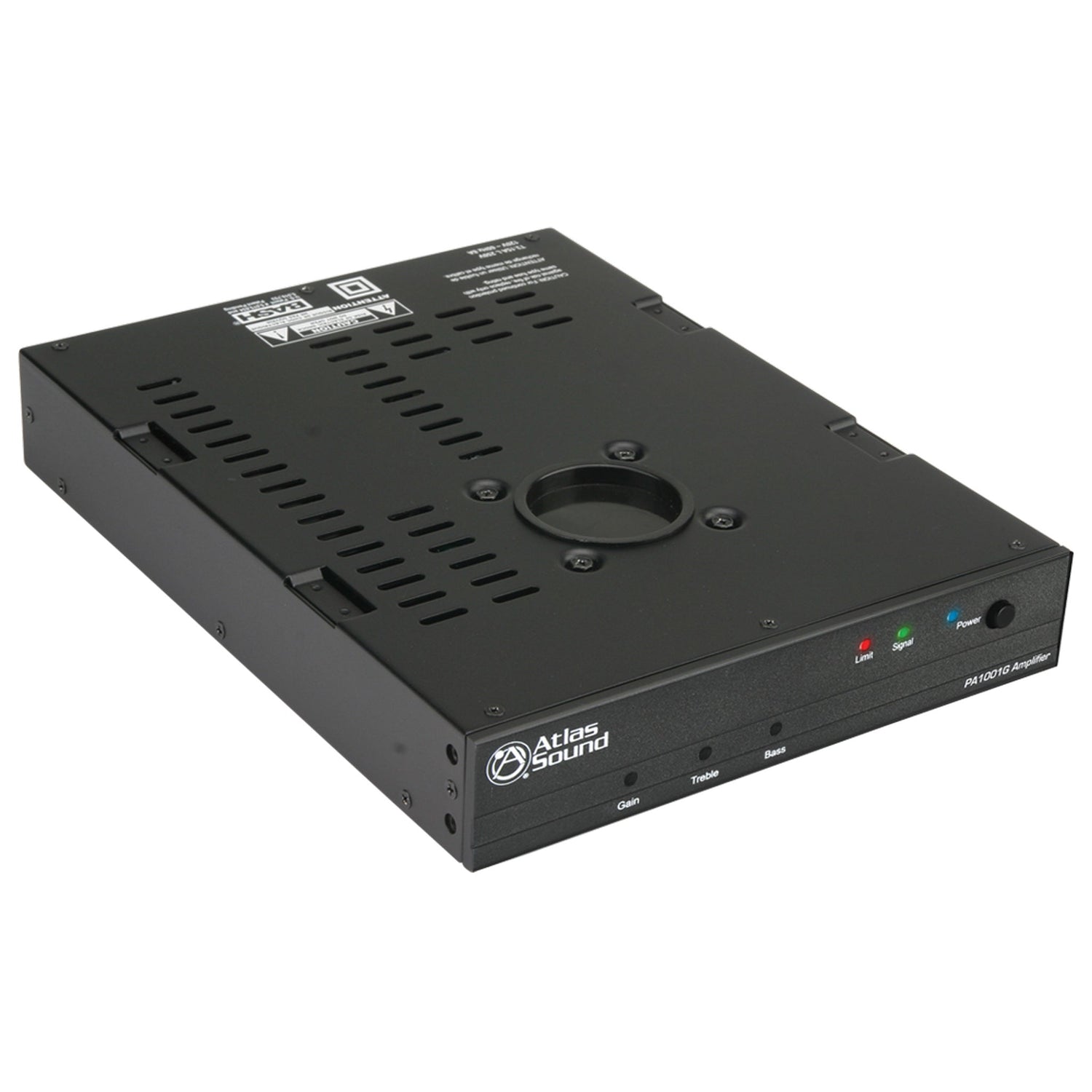

The AtlasIED PA1001G is an ultra‑compact (1RU, half‑rack) 100 W power amplifier designed for 70 V/100 V distributed audio systems in commercial environments. Its patent‑pending through‑chassis mounting hole allows seamless integration with ceiling‑mounted projector poles, keeping installations streamlined and secure.
Equipped with both balanced (Phoenix) and unbalanced (RCA) inputs that can be summed, this amplifier also offers remote power‑on via audio or AC sensing, adjustable EQ (bass/treble), a selectable high‑pass filter, line‑out for daisy‑chaining, and universal power capability (120–240 VAC). Installers will appreciate the optional half‑rack kit for dual‑amplifier setups.
Key Features
- Power Output: 100 W @ 70 V or 100 V

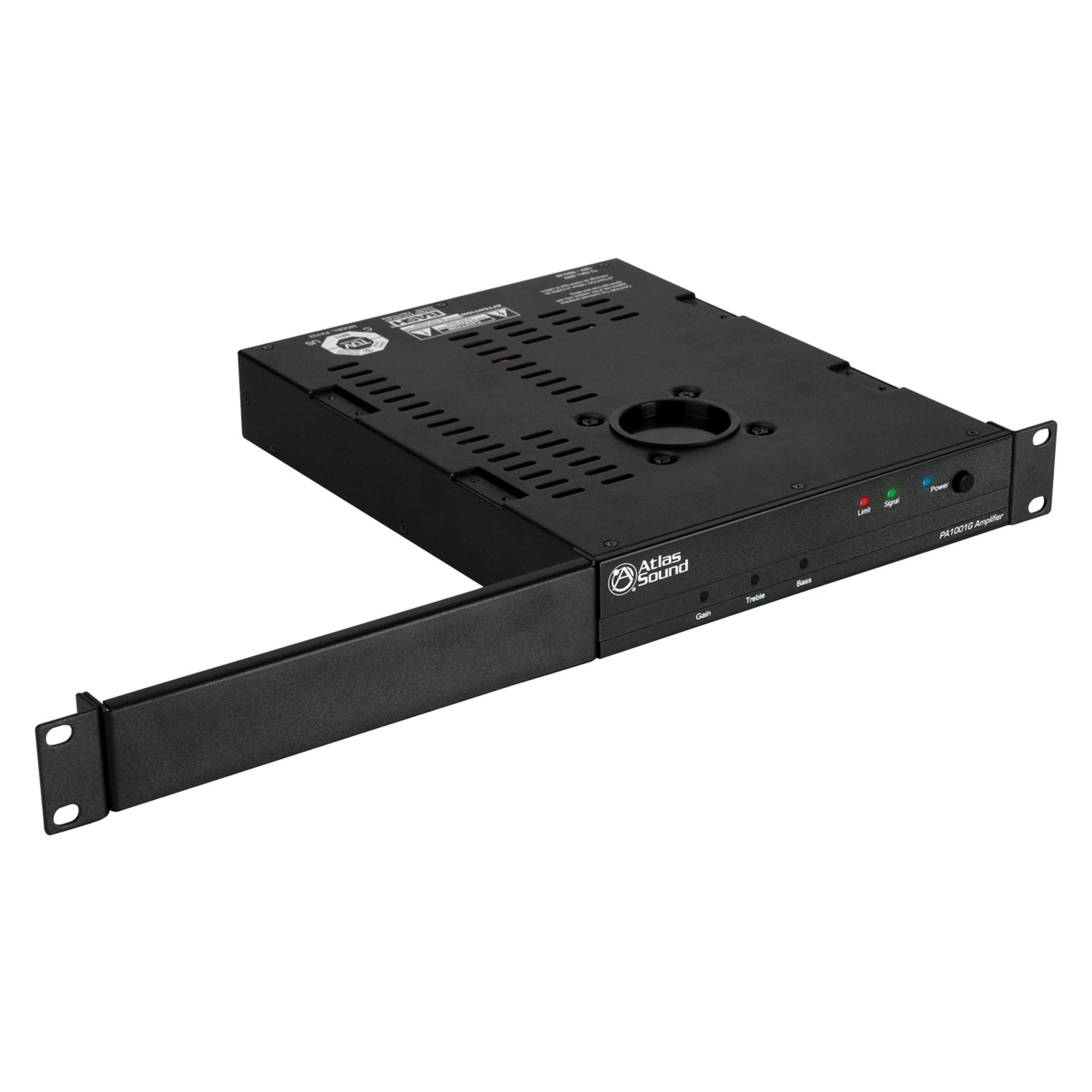

- Mounting: Through‑chassis hole for projector‑pole mount; optional half‑rack kit (PA702‑RMK)
- Inputs: Balanced Phoenix + unbalanced stereo RCA (summable, isolated)
- Remote Turn‑On: Audio‑sense (1–20 mV adjustable) or AC‑sense (100 mA threshold)
- EQ Controls: Recessed bass & treble adjustments (±6 dB)
- High‑Pass Filter: Switchable 100 Hz option
- Line‑Out: Pre/post VCA selectable, for chaining amps
- Energy Efficiency: Only 10 W sleep / 16 W idle
- Cooling: Convection‑cooled, no fan noise
- Universal Power: 120–240 VAC, 50–60 Hz
Technical Specifications
- Output Power: 100 W @ 70 V into 50 Ω; 100 W @ 100 V into 100 Ω
- Frequency Response: 30 Hz–20 kHz (±3 dB, HPF off); 100 Hz–20 kHz (HPF on)
- Total Harmonic Distortion: 0.002%
- Signal‑to‑Noise Ratio: –100 dB A‑weighted
- Input Sensitivity: RCA 50–320 mV; Balanced 320 mV
- Input Impedance: RCA 10 kΩ; Balanced 20 kΩ
- Power Consumption: 10 W sleep, 16 W idle, 165 W full load
- Dimensions: 1.75″ × 8.5″ × 13.5″ (44.5 × 215.9 × 342.9 mm)
- Weight: 4.9 lb (2.22 kg)
- Warranty: 36 months / 3 years
What's Included
- AtlasIED PA1001G amplifier
- Pole‑mounting hardware
- Power cord
- Owner’s manual
