AtlasIED PA40G 40W Single‑Channel 70/100V Power Amplifier, 1RU

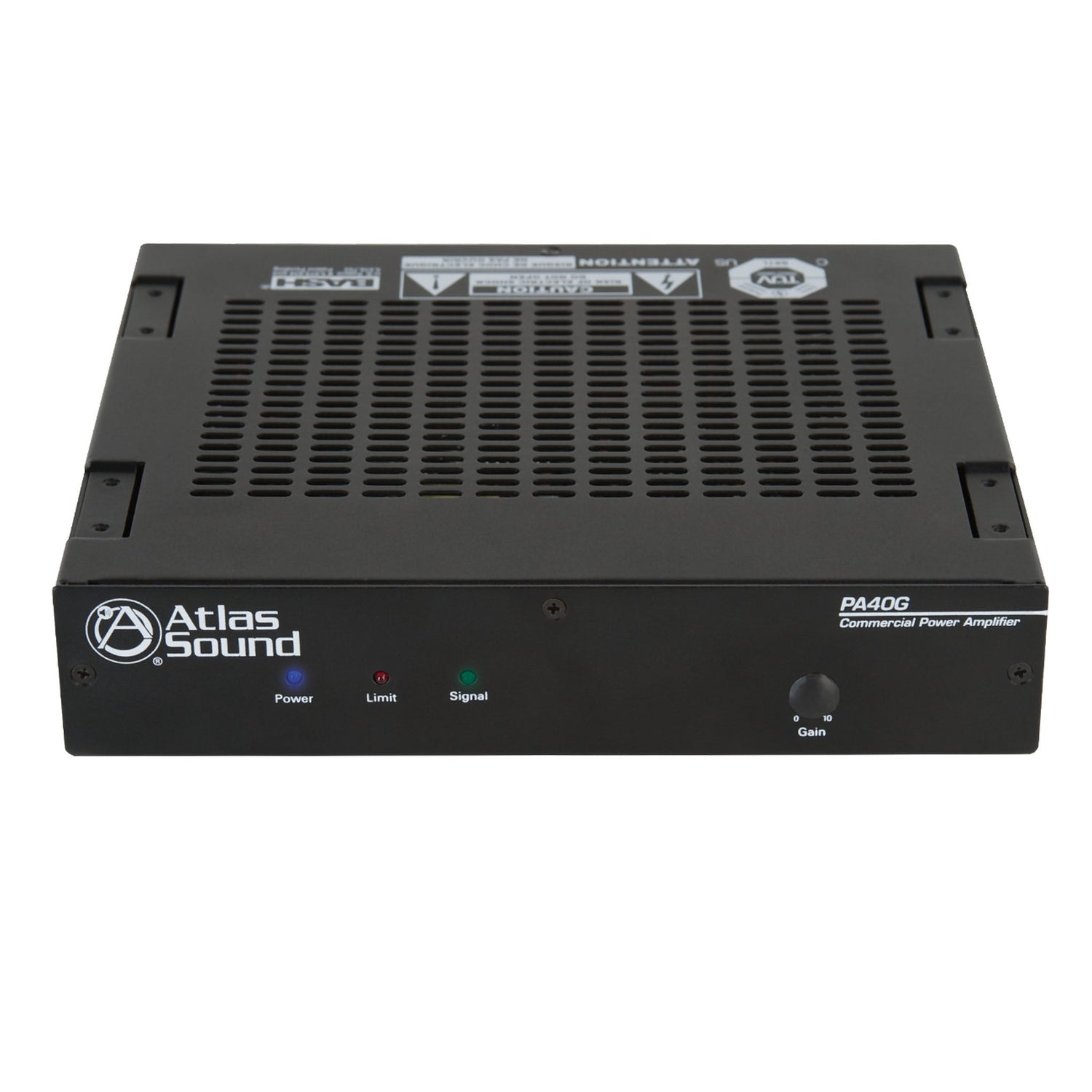

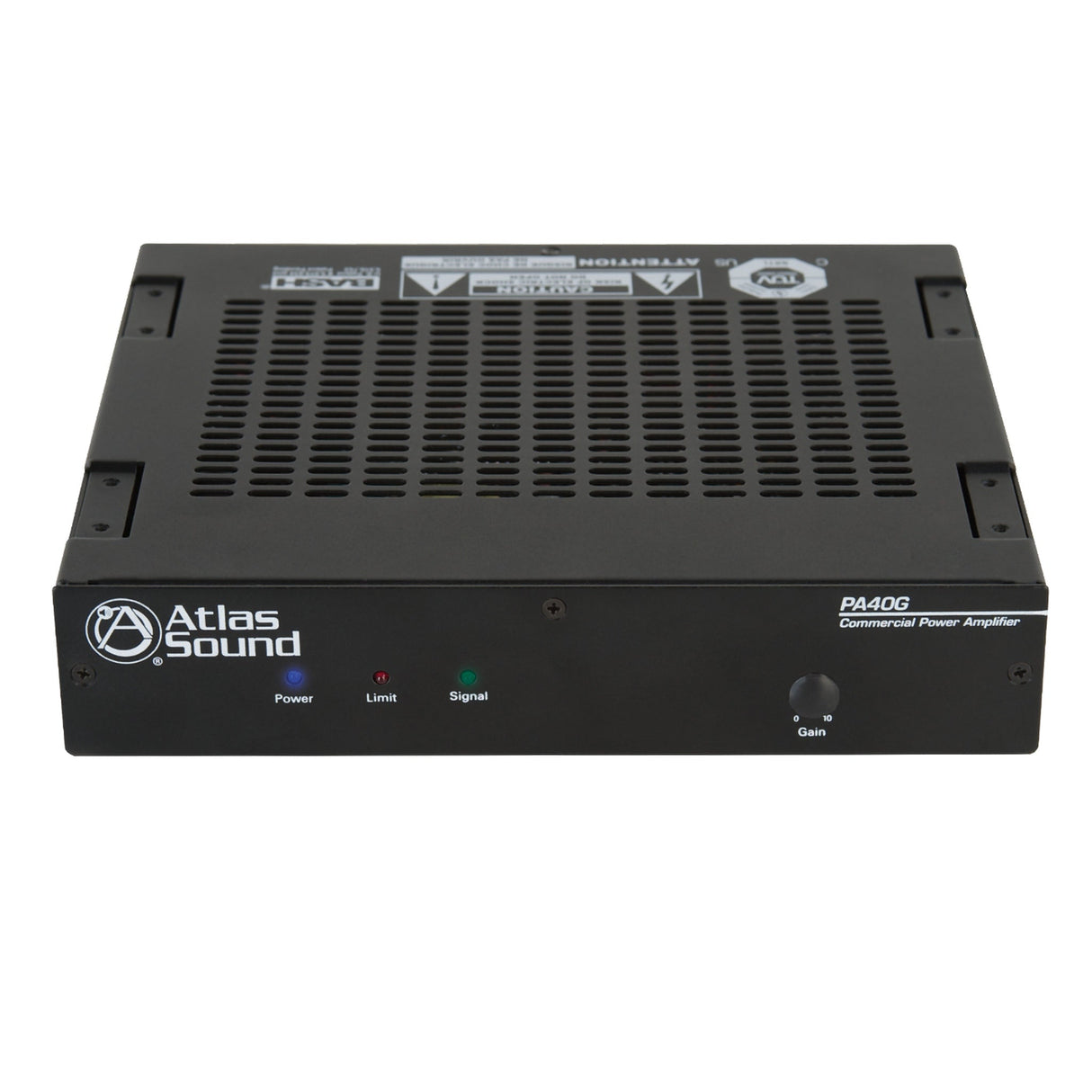

The AtlasIED PA40G is a compact, half‑rack (1RU) power amplifier delivering 40 W into 70.7 V or 100 V speaker lines—ideal for paging, background music, and sound masking in commercial environments. It features a global power supply (100–240 VAC), status LEDs, and removable level controls with security covers for clean, secure installations.
Equipped with a balanced Phoenix input and summing stereo RCA input, it offers versatile input compatibility. Its convection‑cooled design ensures silent operation, while the optional PA702‑RMK rack‑mount kit supports half‑rack mounting in standard 19″ cabinets.
Key Features
- Power Output: 40 W @ 70.7 V (125 Ω) or 100 V (250 Ω)

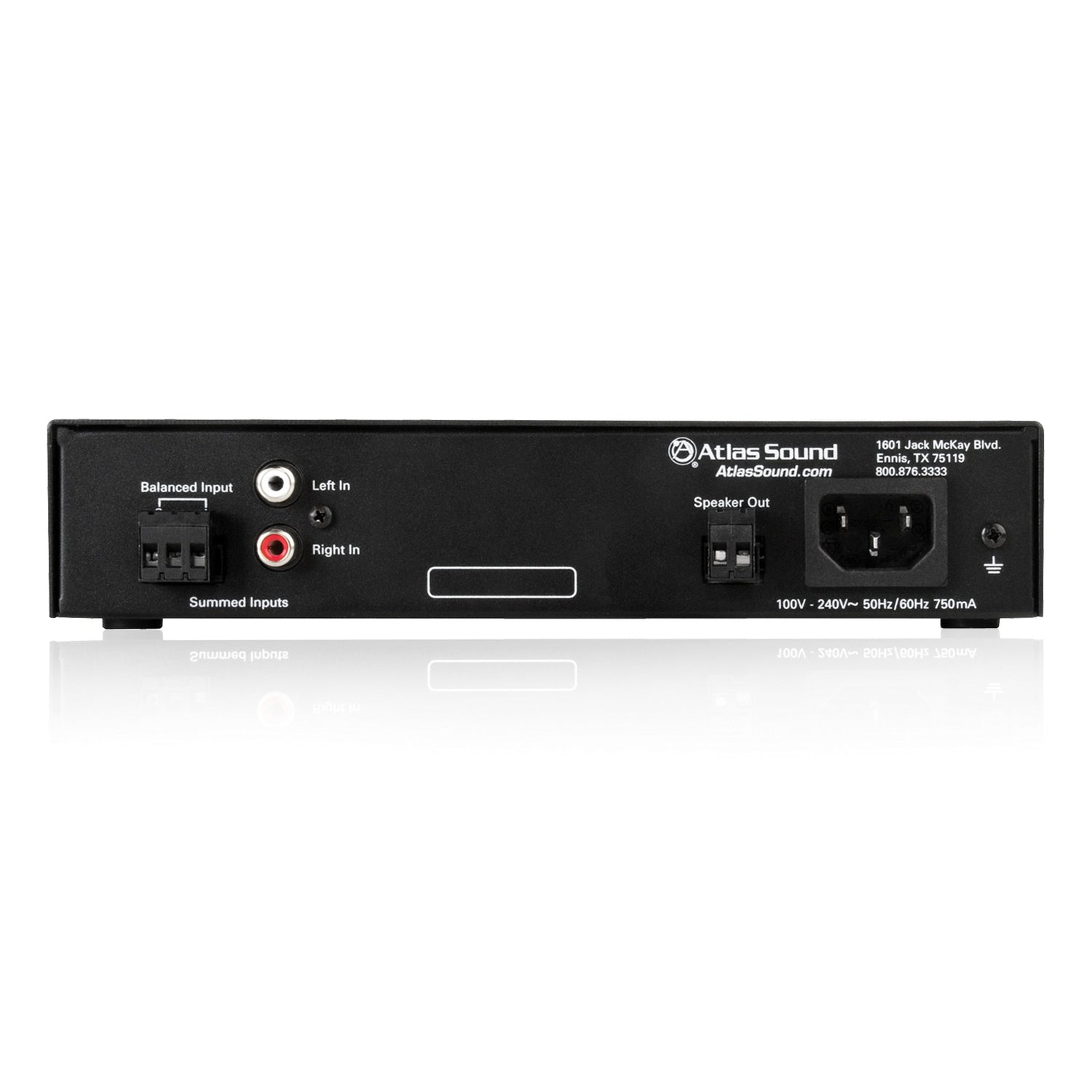

- Inputs: Balanced Phoenix + summing stereo RCA
- Global Power Supply: 100–240 VAC, 50/60 Hz
- Form Factor: 1RU, ½ rack width; convection cooled

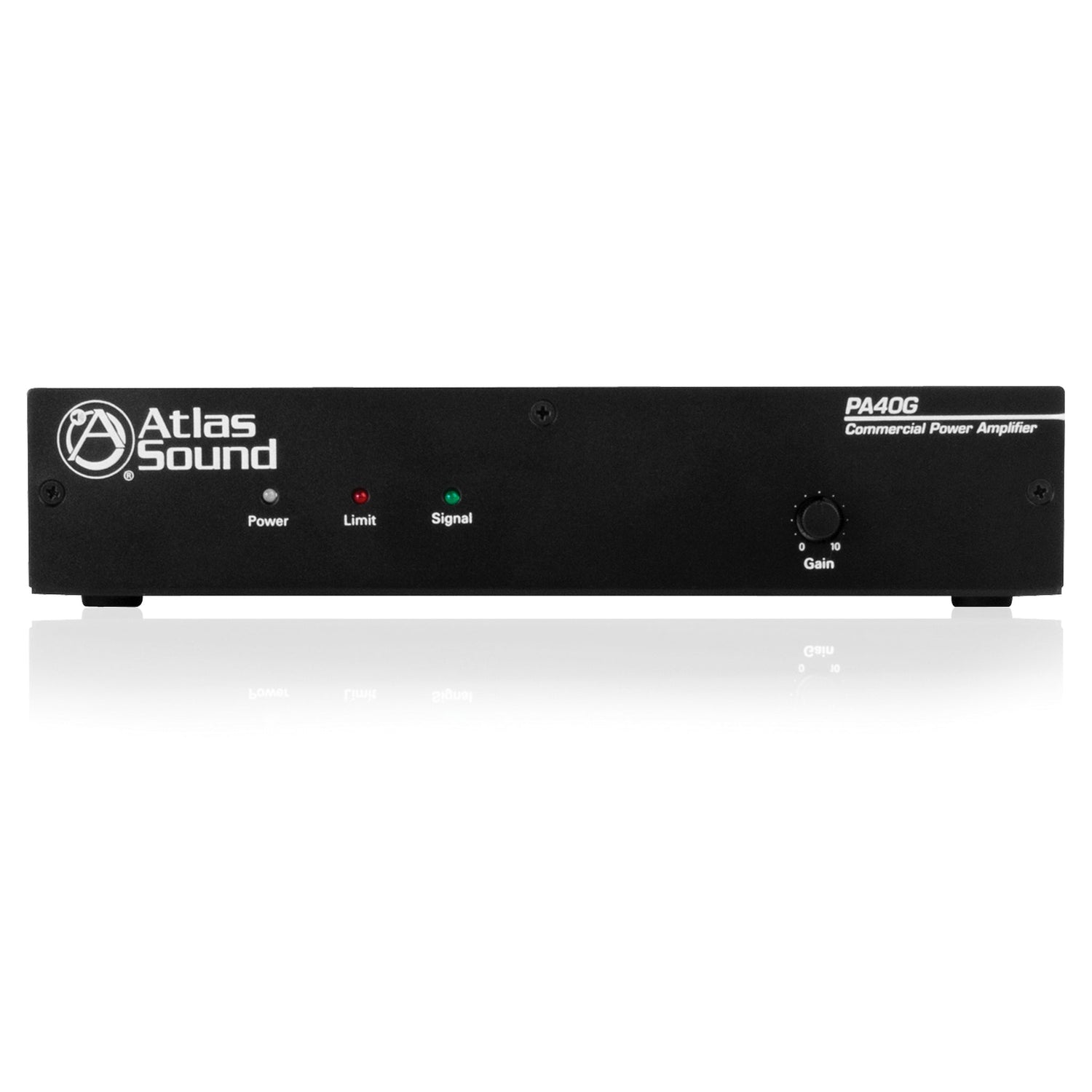

- Indicators: LEDs for Power, Signal, Limit
- Security: Removable level control with securable cover
- Mounting: Optional half‑rack kit PA702‑RMK
Technical Specifications
- Frequency Response: 50 Hz–20 kHz
- THD+N: ≤ 0.5% @ 1 kHz, rated power
- Sensitivity: 500 mV (balanced, 600 Ω); 500 mV (RCA, 10 kΩ)
- S/N Ratio: > 55 dB (balanced & RCA)
- Power Consumption: Idle 8 W; Typical 24 W; Max 71 W
- Fuse: T630 mA
- Net Weight: 2.9 lb (1.32 kg)
- Shipping Weight: 3.1 lb (1.4 kg)
- Dimensions: 1.75″ × 8.5″ × 7.81″ (44 mm × 216 mm × 198 mm)
- Warranty: 36 months from date of purchase
What's Included
- PA40G amplifier
- Removable level control with security cover
- IEC power cord
- Owner’s manual
- Optional half‑rack rack‑mount kit (PA702‑RMK) sold separately
