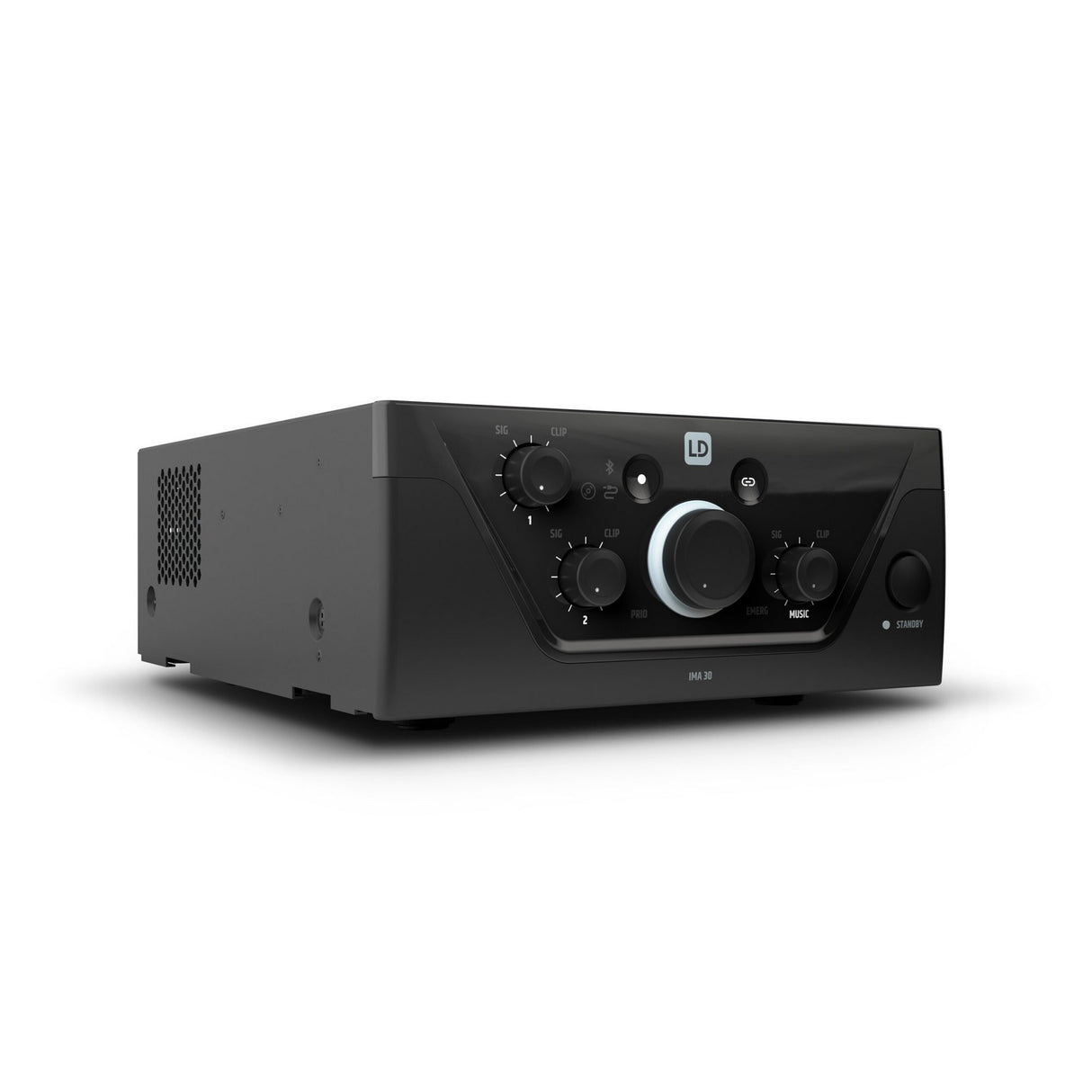

LD Systems IMA 30 Installation Mixing Amplifier
Authorized Dealer
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
LD Systems IMA 30 Installation Mixing Amplifier
The LD Systems IMA 30 Installation Mixing Amplifier is the perfect solution for permanent installations requiring a visually discrete design while offering maximum flexibility and versatility. Ideal for various scenarios such as commercial spaces, educational institutions, and emergency communication systems, this mixing amplifier supports multiple audio sources and enables you to manage and mute non-priority signals during announcements or emergency calls seamlessly. With its sleek design and robust features, the IMA 30 ensures your audio installations are both efficient and effortlessly managed.
Featuring two microphone/line input sockets, each with switchable 24V phantom power, the IMA 30 can accommodate various audio inputs, including Bluetooth 4.0 for seamless wireless connectivity. This device also includes a line input specifically for emergency signals with contact closure, ensuring critical messages get through without interruption. The 30W Class-D amplifier, coupled with Lo-Z/Hi-Z selector switch and multiple output options, provides unmatched audio quality, whether you're addressing a small room or a large hall.
The IMA 30 is designed with user-friendliness in mind, incorporating an intuitive control panel with capacitive controls for source selection and Bluetooth pairing. There are four priority settings available, allowing comprehensive integration with different audio systems. An auto standby mode helps reduce energy consumption when the amplifier is not in active use, making this an eco-friendly option for long-term installations.
Key Features
- Line input for emergency signal with contact closure
- 2 microphone/line input sockets with microphone/line switch and switchable 24V phantom power
- Switchable chime feature in Mic/Line 1 channel
- 2 line inputs with RCA sockets and Bluetooth 4.0 interface (mono summed)
- 30W Class-D Amplifier with Lo-Z / Hi-Z selector switch and 4 Ohm / 100V / 70V outputs
- Balanced AUX line output with Music-Mix switch for controlling external amplifiers, active subwoofers, or music-on-hold systems
- 4 priority settings for comprehensive integration options
- Switchable auto standby mode for reduction of energy consumption
- Intuitive control panel design with capacitive controls for selecting music source and Bluetooth pairing
- Universal wide-range switching power supply
Specifications
- Product type: Installation mixing amplifier
- Emergency input: 1 balanced line input
- Mic/line inputs: 2
- Music sources: 2 unbalanced stereo line inputs, Bluetooth 4.0
- Line outputs: 1
- Powered outputs: 1 with output mode selector (Low-Z/High-Z)
- Cooling: Convection
- Priority levels: 4
- Emergency Input Nominal input sensitivity: -6 dBu (Sine 1 kHz, Gain max)
- Nominal input clipping: 20 dBu (Sine 1kHz)
- Connector: 5-pin Terminal Block, pitch 5.08mm
- Mic/Line inputs 1-2 Nominal input sensitivity: Mic - 36 dBu (Sine 1 kHz, Gain max)
- Nominal input clipping Mic: - 17 dBu (Sine 1kHz)
- Nominal input clipping line: +19dBu (Sine 1kHz)
- Phantom power: + 24V, 10mA switchable
- Connector Mic/Line1: 5-pin Terminal Block, pitch 5.08mm, XLR/6.3 mm jack
- Connector Mic/Line 2: 1 dual RCA Mono Summed, 3-pin Terminal Block, pitch 5.08 mm
- Music inputs - CD/AUX Nominal input sensitivity: CD/AUX - 6.22 dBV (Sine 1 kHz, Gain max)
- Nominal input clipping CD/AUX: 7.78 dBV (Sine 1kHz)
- Connector CD/AUX: 2 x dual RCA Mono Summed
- Amplifier Outputs High-Z: 70V or 100V outputs
- Low-Z: 4 ohm minimum load
- Preamplifier input: 5-pin Terminal Block, pitch 5.08mm
- RMS Power: 35 W (Continuous sine wave 1kHz, 4 ohm load)
- Power (Peak): 39 W (100 msec sine 1kHz burst @ 4 ohm load)
- Freq. range: 20 Hz - 20 kHz (LO-Z -3 dB), 60 Hz - 20 kHz (HI-Z -3 dB)
- Tone control Bass: +/-10dB (100Hz)
- Tone control Treble: +/-10dB (100Hz)
- Protection circuits: Audio Limiter, over-current, short circuit, thermal overload
- Dimensions (W x H x D) (height with rubber feet): 210 x 96.5 x 266.76 mm
- Weight: 2,39 kg
Package Contents
- LD Systems IMA 30 Installation Mixing Amplifier
- Optional Accessories Rack mounting hardware
