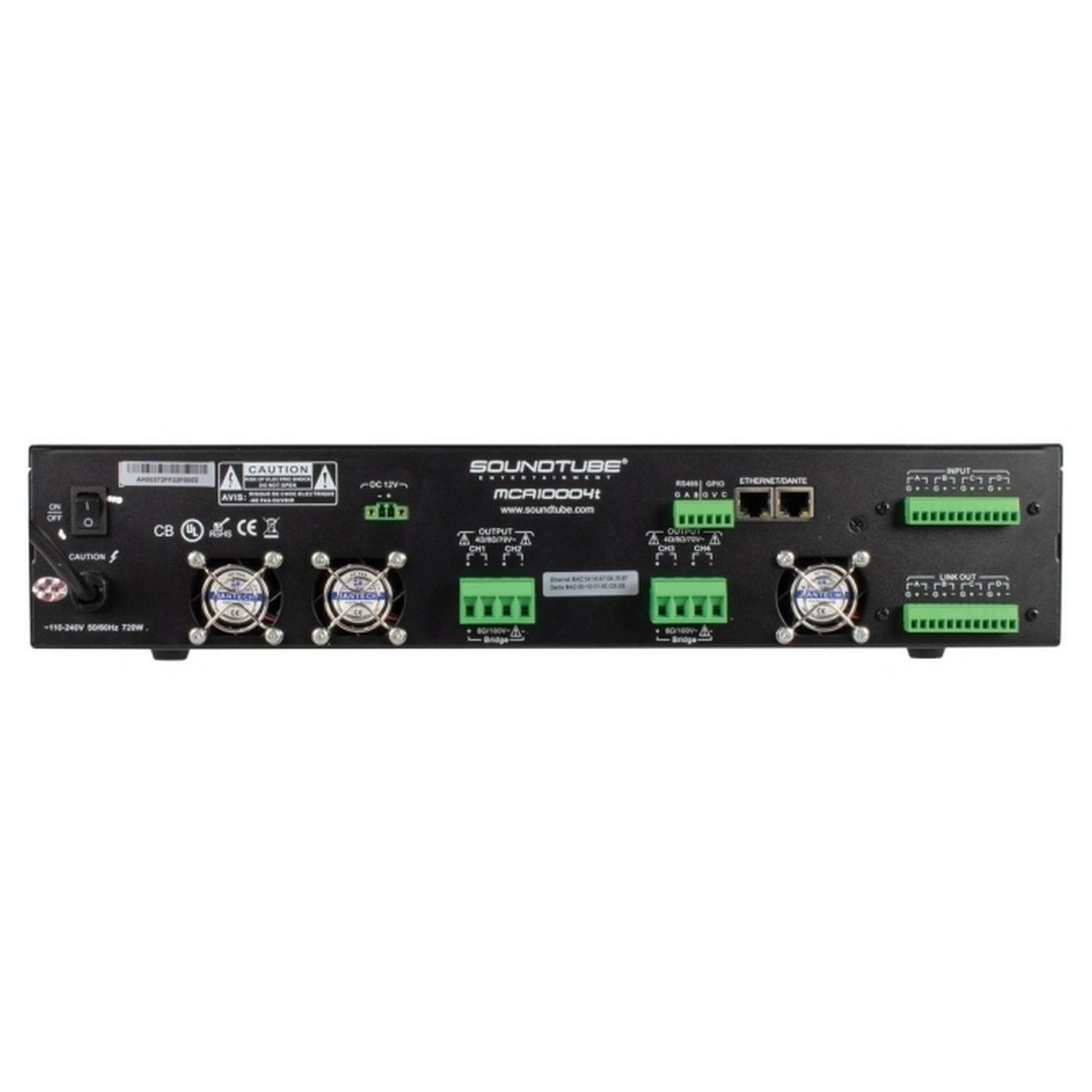

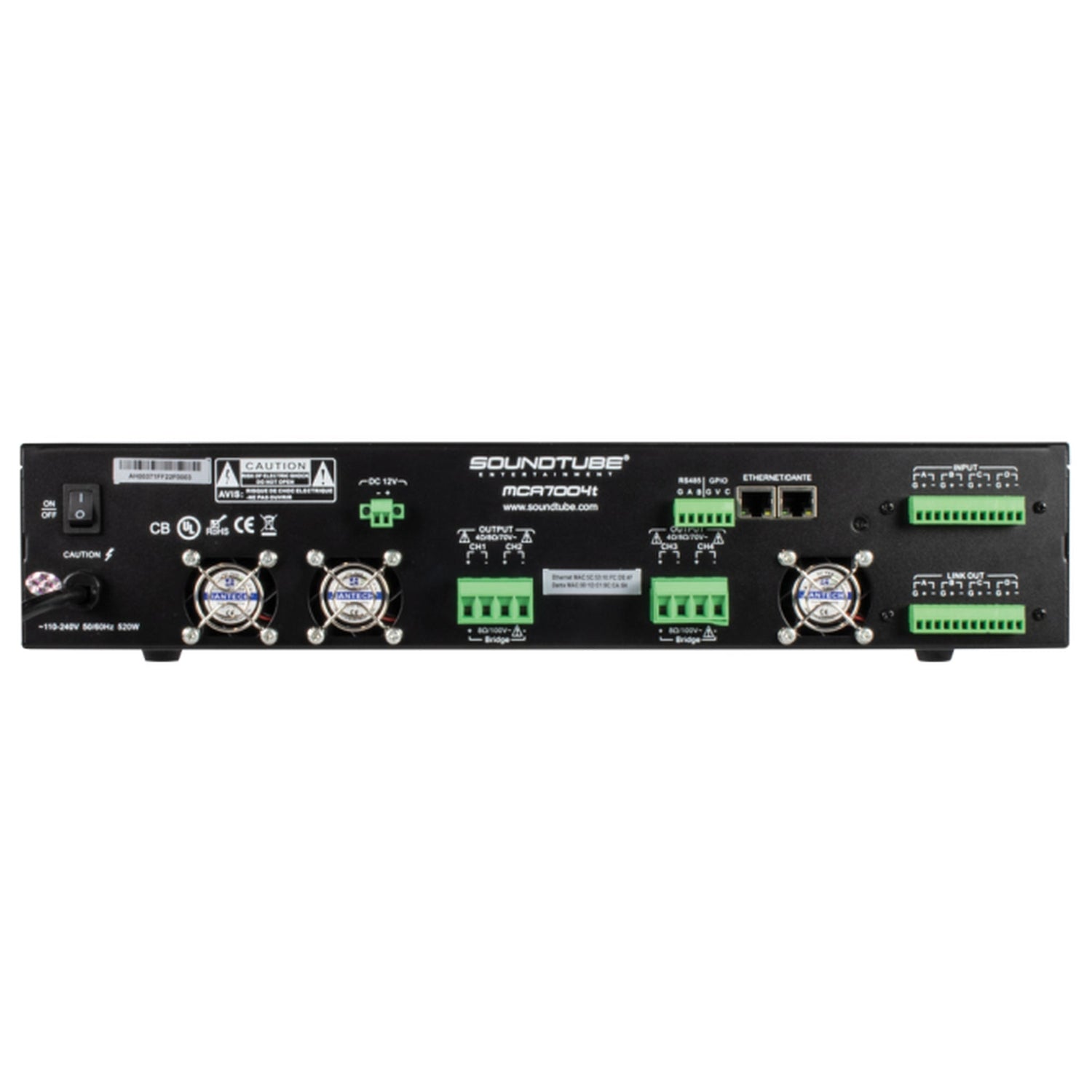

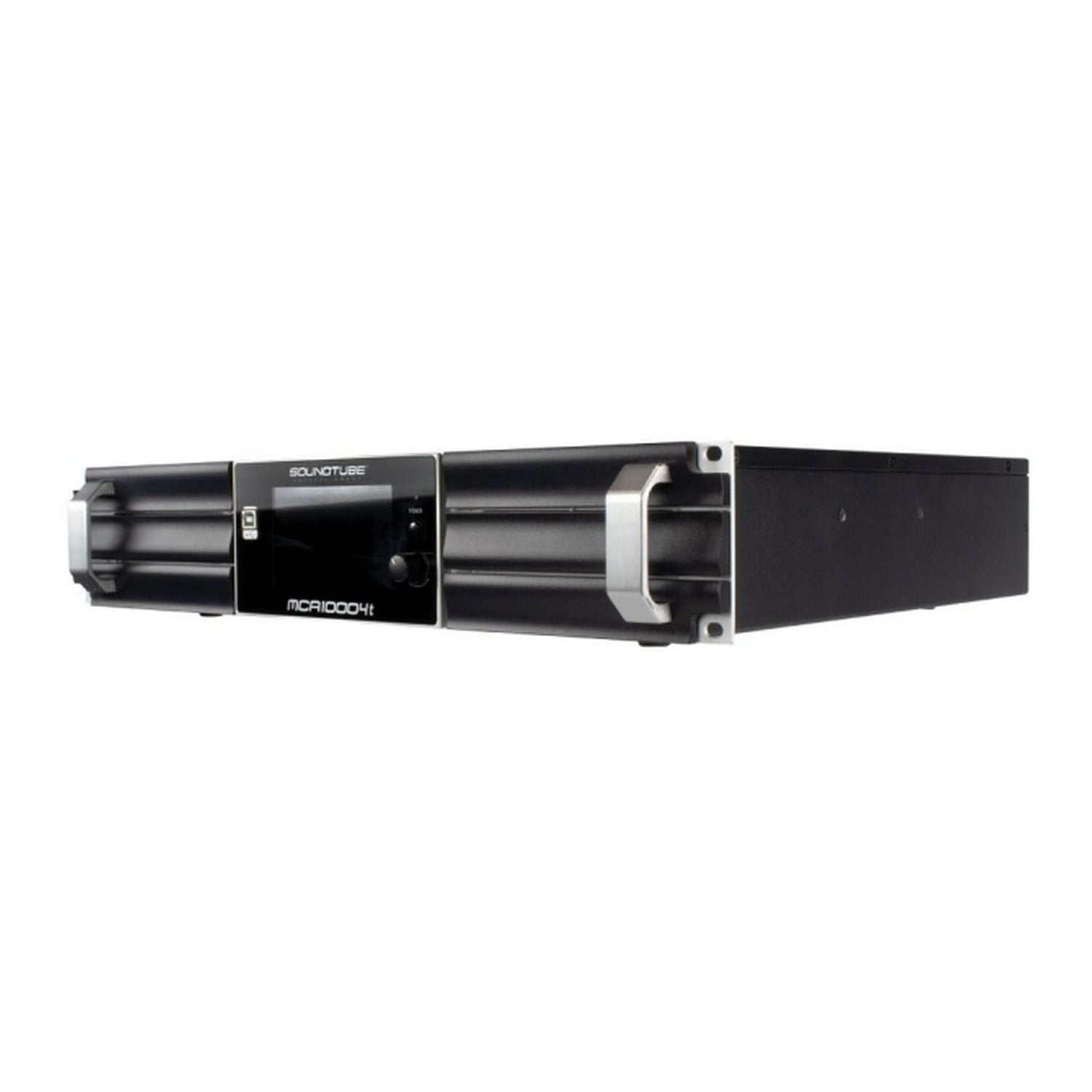

SoundTube MCA7004t / MCA10004t Dante‑Enabled 4‑Channel Amplifier
The MCA7004t (700W/ch at 4 Ω) and MCA10004t (1000W/ch at 4 Ω) are networked DSP matrix amplifiers featuring Dante™/AES67, offering powerful and flexible multichannel audio distribution. Each offers four channels of amplificationW with built-in DSP control for routing, EQ, delay, dynamics, and presets via a 4.3″ touch screen and STNet MCA Control software.
Housed in a standard 2‑RU rack chassisWith fan cooling and professional-grade protection circuits, both models support fixed-resistance and constant-voltage output modes for versatile deployment in commercial, residential, and performance environments.
Key Features
- Dante™/AES67 Networking: Digital network audio input and remote control functionality
- Channel Power: MCA7004t: 700W/ch at 4 Ω; MCA10004t: 1000W/ch at 4 Ω
- Output Modes: 70 V / 100 V constant‑voltage, or bridged stereo/mono outputs
- Integrated DSP: Parametric EQ, delay, dynamics, compressor, limiter, noise gate, routing matrix

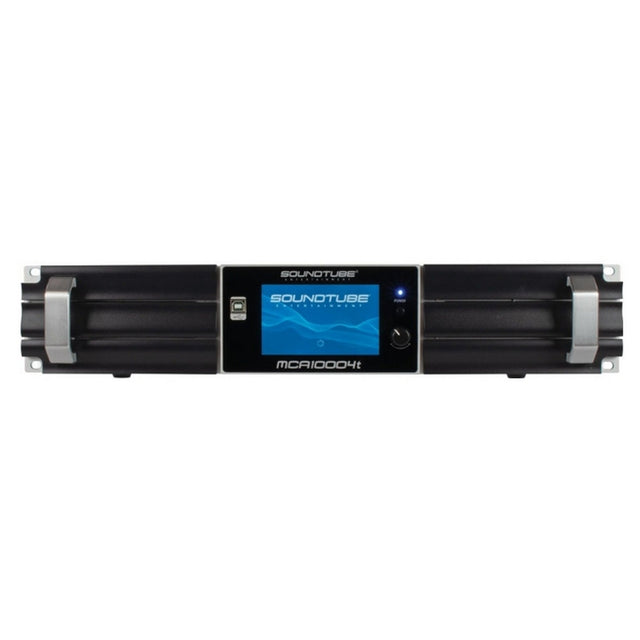

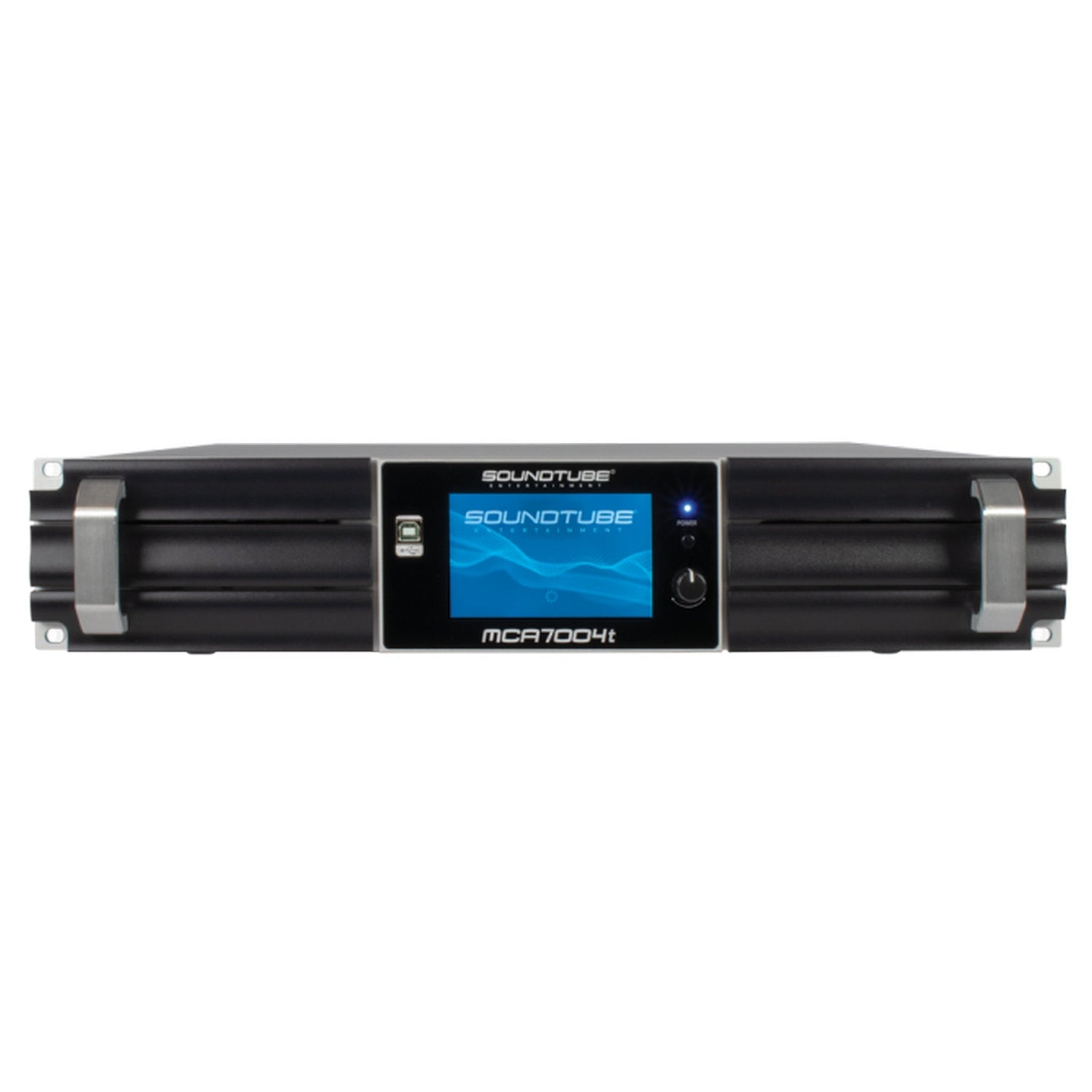

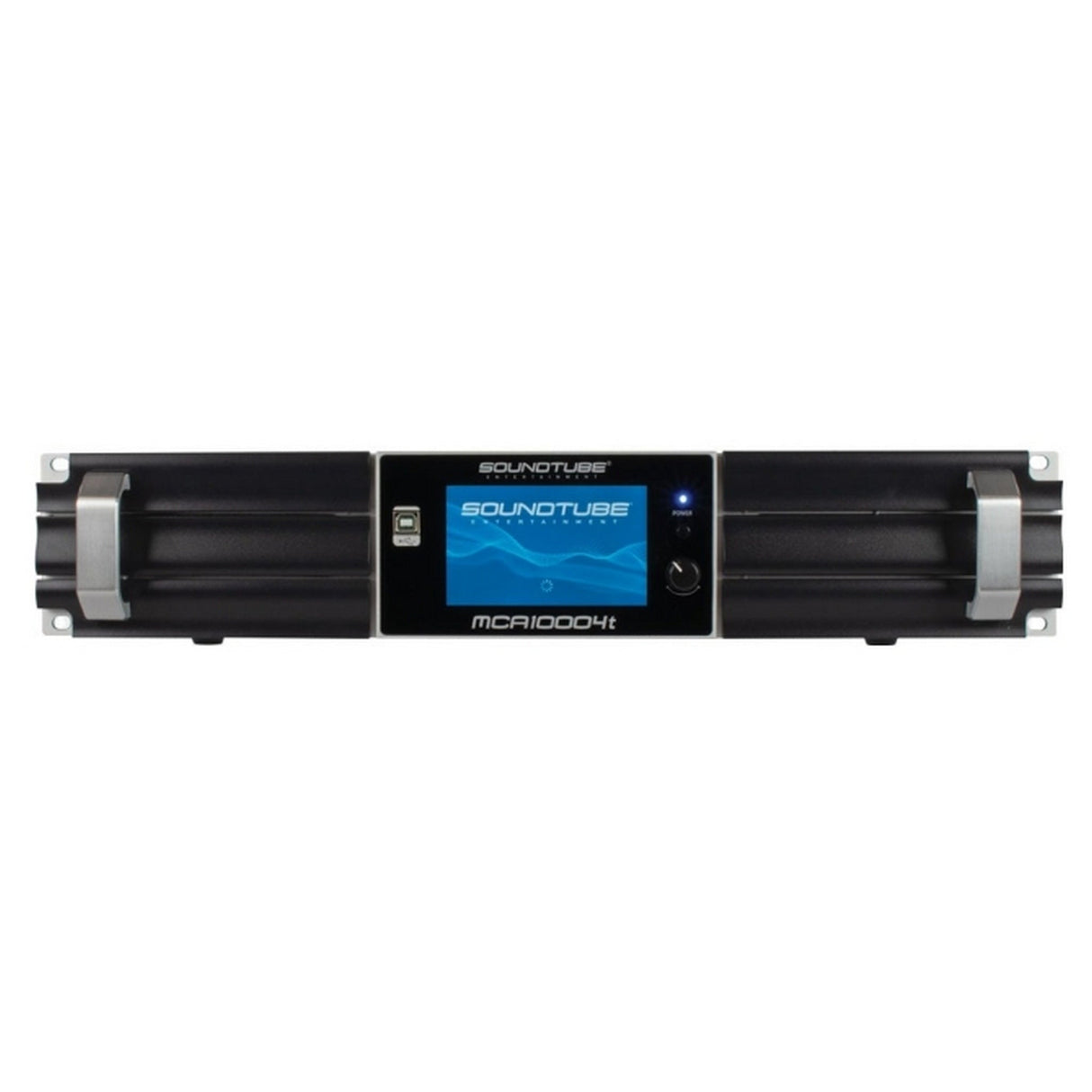

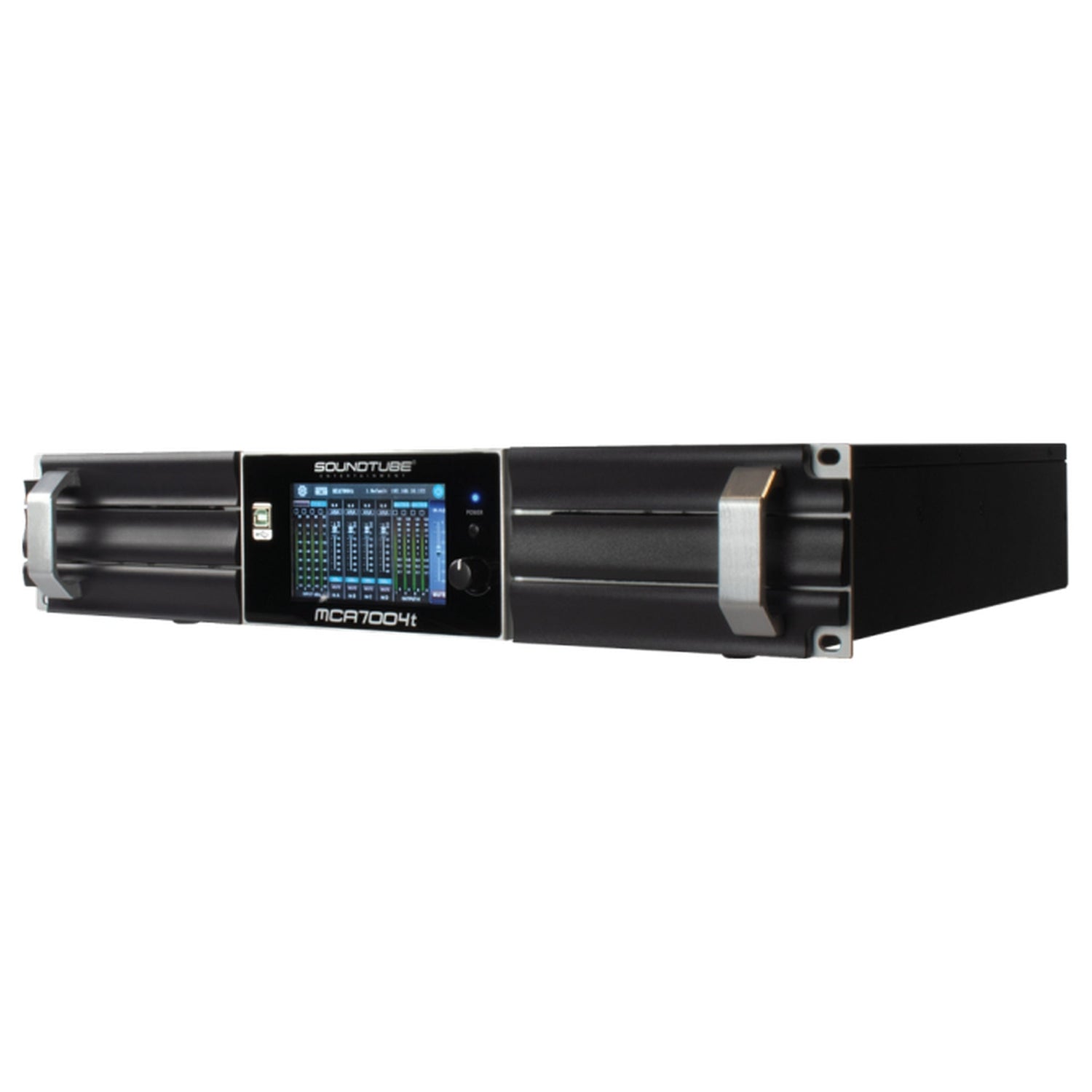

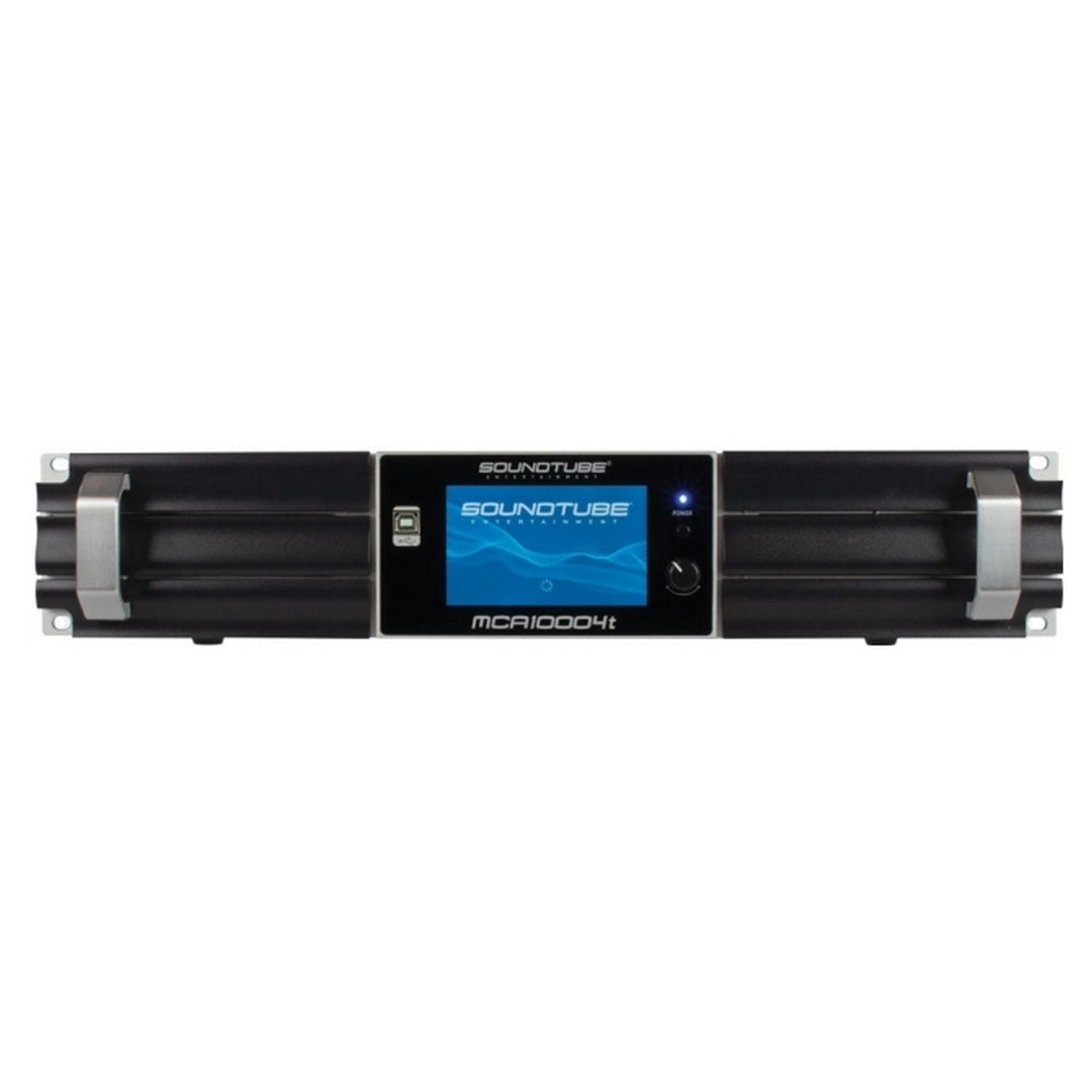

- Touchscreen Interface: Front‑panel 4.3″ LCD touchscreen for setup and monitoring
- Input Options: Dante, AES3, balanced Euroblock or unbalanced analog inputs
- Protection Features: Thermal, overload, short‑circuit, clipping protection
- Power & Cooling: Efficient switching power supply, active fan cooling
Technical Specifications
- Channels: 4 independent outputs
- Output Power (MCA7004t): 250W @ 16 Ω; 500W @ 8 Ω; 700W @ 4 Ω | Bridged: 700W×2 @ 16 Ω
- Output Power (MCA10004t): 350W @ 16Ω; 700W @ 8 Ω; 1000W @ 4 Ω | Bridged: 1000W×2 @ 16 Ω
- Fixed Voltage (MCA7004t): 500W/ch @ 70V; 1000W×2 @ 100 V
- Fixed Voltage (MCA10004t): 800W/ch @ 70V; 1500W×2 @ 100 V
- Frequency Response: 20 Hz – 20 kHz ±1 dB
- THD+N: ≤ 0.05% (at 1/8 rated power)
- SNR: ≥ 96 dB (A‑weighted)
- Damping Coefficient: ≥ 200 @ 1 kHz (8 Ω)
- Isolation: ≥ 95 dB @ 1 kHz
- Maximum Power Draw: MCA7004t: ~1020W | MCA10004t: ~1380W (pink noise, all channels)
- Typical Consumption @ 1/8 Power: 720W (MCA7004t), 1140W (MCA10004t)
- Input Sensitivity: 2 dBu, 6 dBu, 12 dBu selectable
- Input Impedance: Balanced: 20 kΩ
- Control & Interface: RJ45 LANWith TCP/IP and RS485 management
What’s Included
- MCA7004t or MCA10004t amplifier unit (rack‑mountable 2 RU chassis)
- IEC power cord
- Rack‑mount ears and brackets
- Euroblock input connectors & RJ45 Ethernet port
