Vaddio EasyIP 20 Base Kit with Professional IP PTZ Camera - Black

Vaddio EasyIP 20 Base Kit with Professional IP PTZ Camera

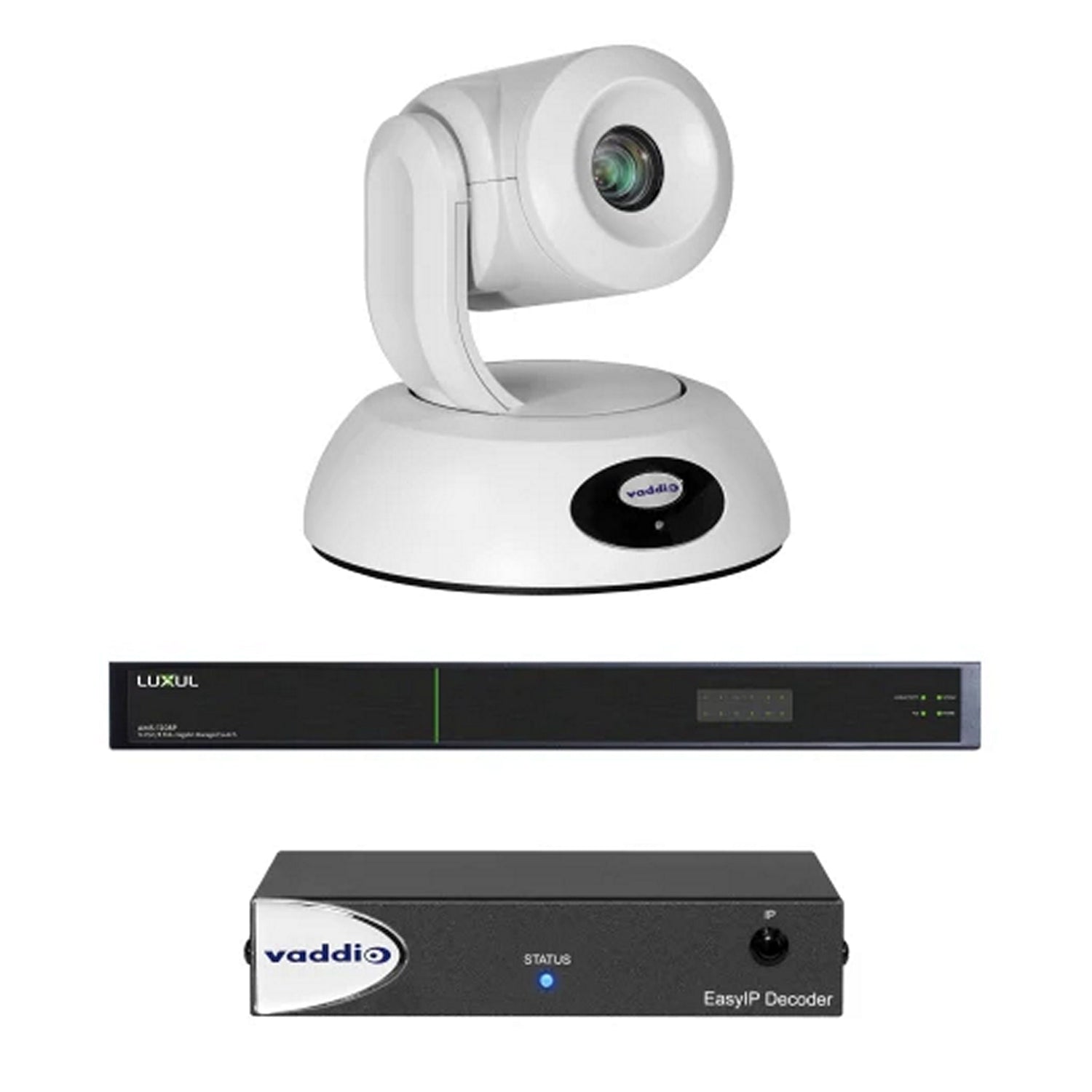

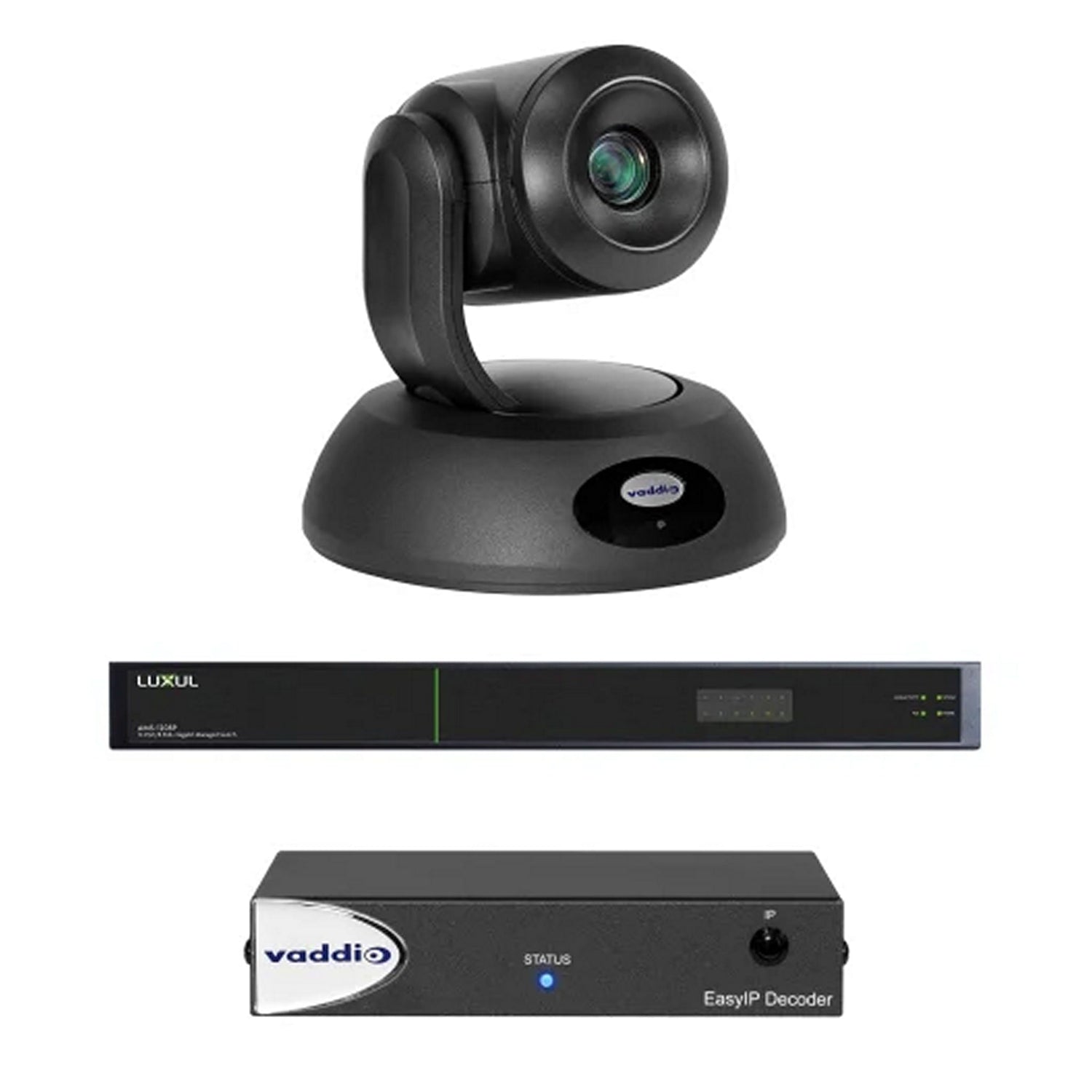

The Vaddio EasyIP 20 Base Kit (Model 999-30232-000) is a comprehensive AV-over-IP system designed to streamline video conferencing and streaming in medium to large environments such as conference rooms, lecture halls, and houses of worship. This all-in-one kit includes the EasyIP 20 PTZ camera, EasyIP Decoder, and EasyIP Switch, providing a seamless solution for capturing, streaming, and decoding high-definition video over a network.

Featuring a 20x optical zoom and a 1/2.5" Exmor R CMOS sensor, the EasyIP 20 camera delivers crisp 1080p60 video with a horizontal field of view ranging from 70.2° to 4.1°. It supports both HDMI and EasyIP (PoE+) outputs, allowing for flexible integration into various AV setups. The included EasyIP Decoder provides USB 3.0 output for direct connection to conferencing platforms like Zoom, Microsoft Teams, and Google Meet, while the EasyIP Switch ensures reliable network connectivity with Power over Ethernet (PoE+).

Key Features

• 20x Optical Zoom: Captures detailed video from a distance.
• Wide Field of View: Horizontal FOV from 70.2° to 4.1° for versatile framing.
• Dual Video Outputs: HDMI and EasyIP (PoE+) for flexible integration.
• USB 3.0 Output: Direct connection to web conferencing platforms.
• PoE+ Support: Simplifies installation with single-cable connectivity.
• Remote Control: Includes IR Remote Commander for easy operation.

Technical Specifications

• Camera Dimensions (W x H x D): 7.05" x 6.94" x 6.75" (17.91 x 17.63 x 17.15 cm)
• Camera Weight: 4.9 lbs (2.2 kg)
• Decoder Dimensions (W x H x D): 8.38" x 1.72" x 6.40" (21.27 x 4.37 x 16.26 cm)
• Decoder Weight: 3.0 lbs (1.36 kg)
• Switch Dimensions (W x H x D): 8.25" x 1.75" x 17.3" (20.96 x 4.45 x 43.94 cm)
• Switch Weight: 6.2 lbs (2.81 kg)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: 23°F to 140°F (-5°C to 60°C)
• Humidity: 20% to 80% (non-condensing)
• Power Supply: PoE+ (802.3at)
• Certifications: CE, FCC, TAA Compliant

Included in the Box

• EasyIP 20 PTZ Camera (Black or White)
• Thin Profile Wall Mount with Mounting Hardware
• Vaddio IR Remote Commander
• EasyIP Switch (Luxul AMS-1208P)
• Rack Mount Kit for EasyIP Switch
• EasyIP Decoder
• Half-Rack Mounting Kit for EasyIP Decoder
• 10 ft (3.05m) Cat-5e Snagless Cable (Black)
• 3 ft (0.91m) Cat-5e Cable
• 6 ft (1.8m) USB 3.0 Cable
• 4-Pin Phoenix-Style Connector
• Power Cord for EasyIP Switch
• Quick-Start Guides
