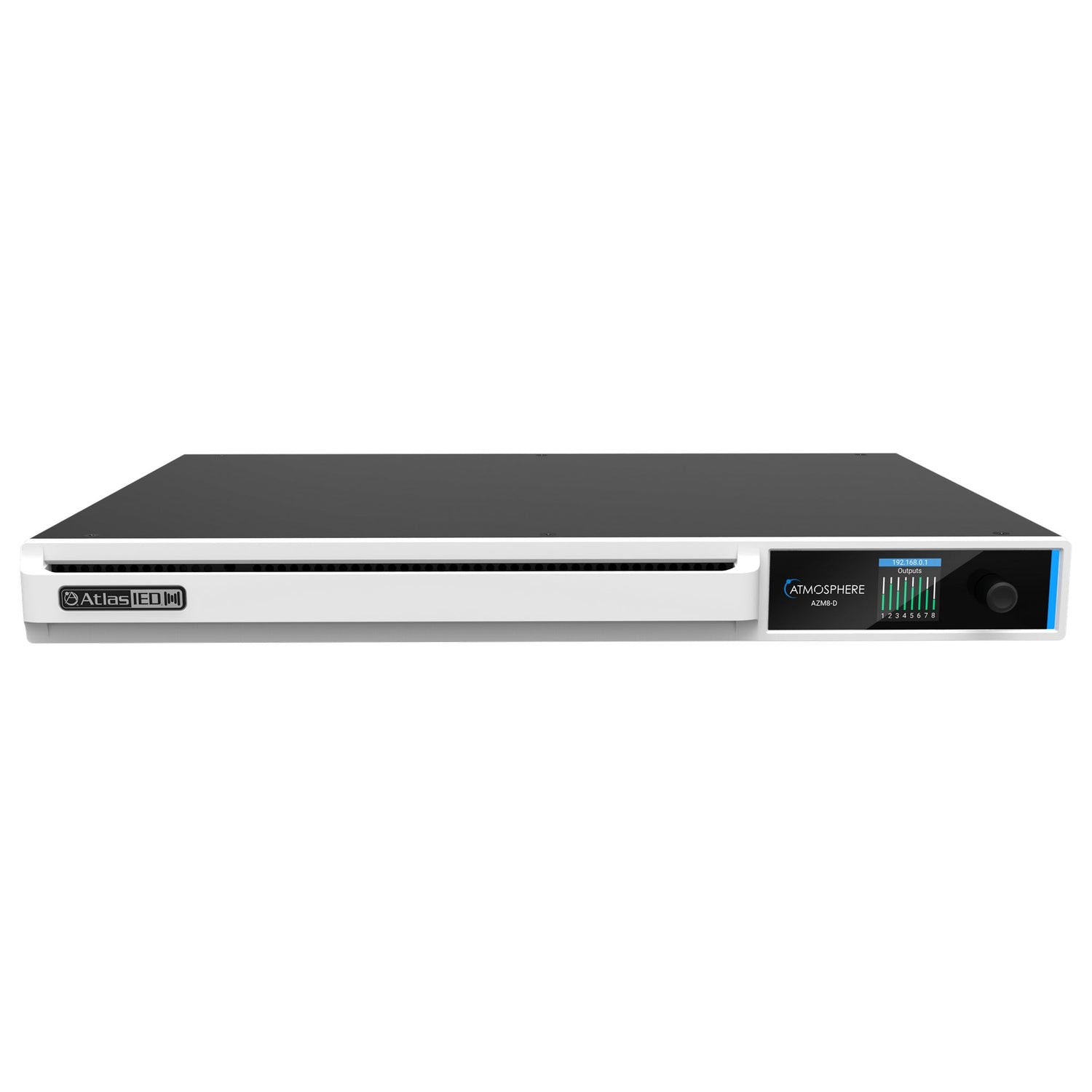

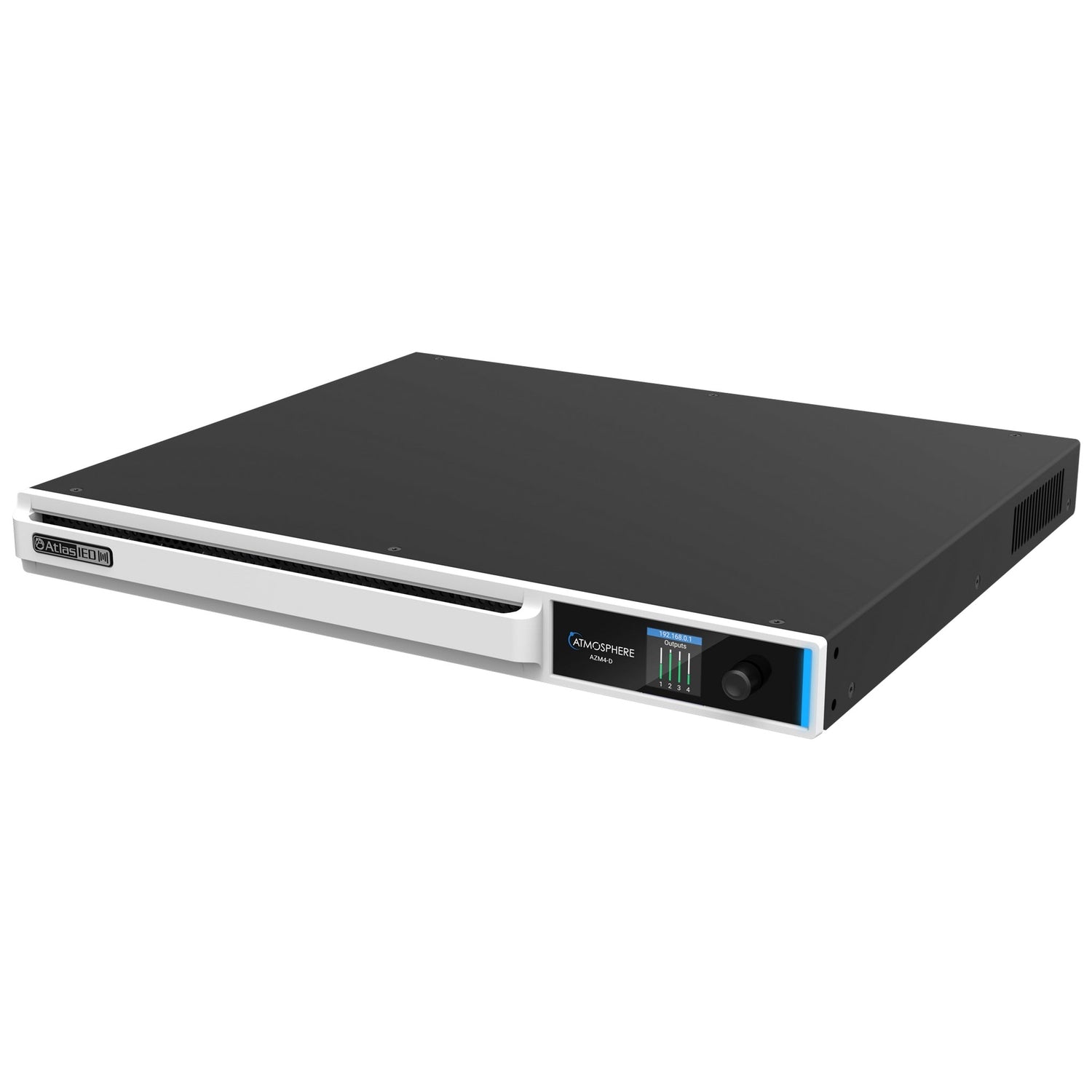

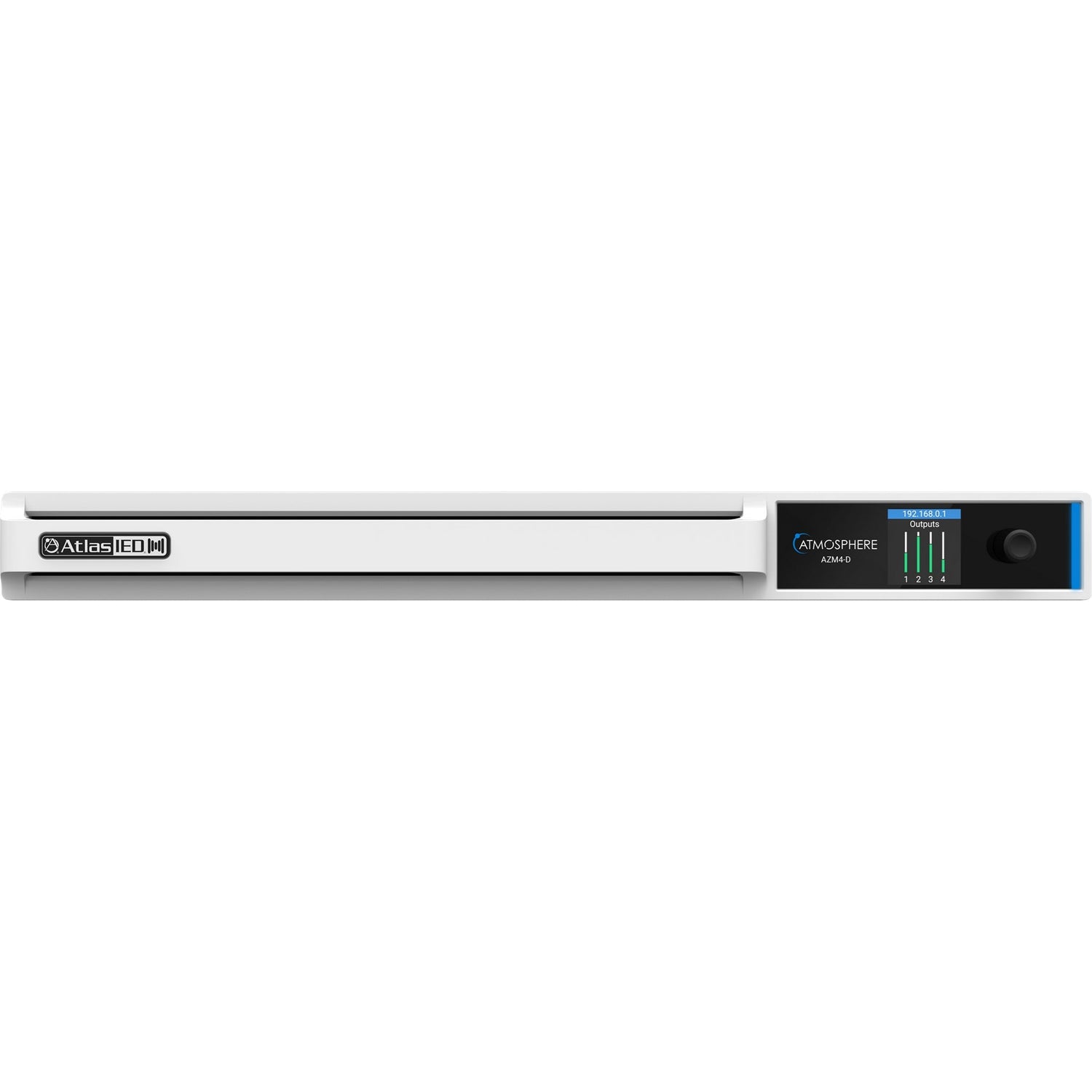

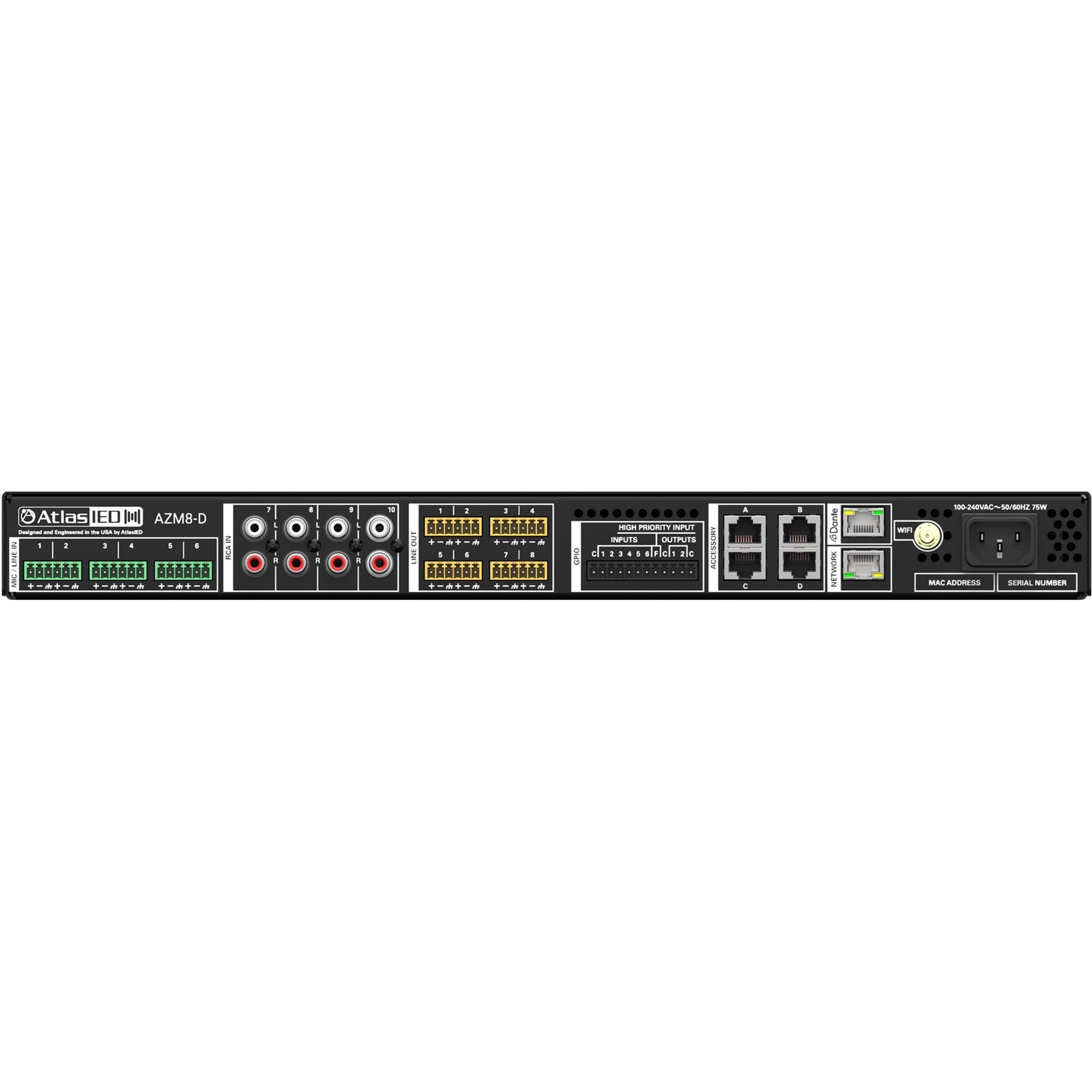

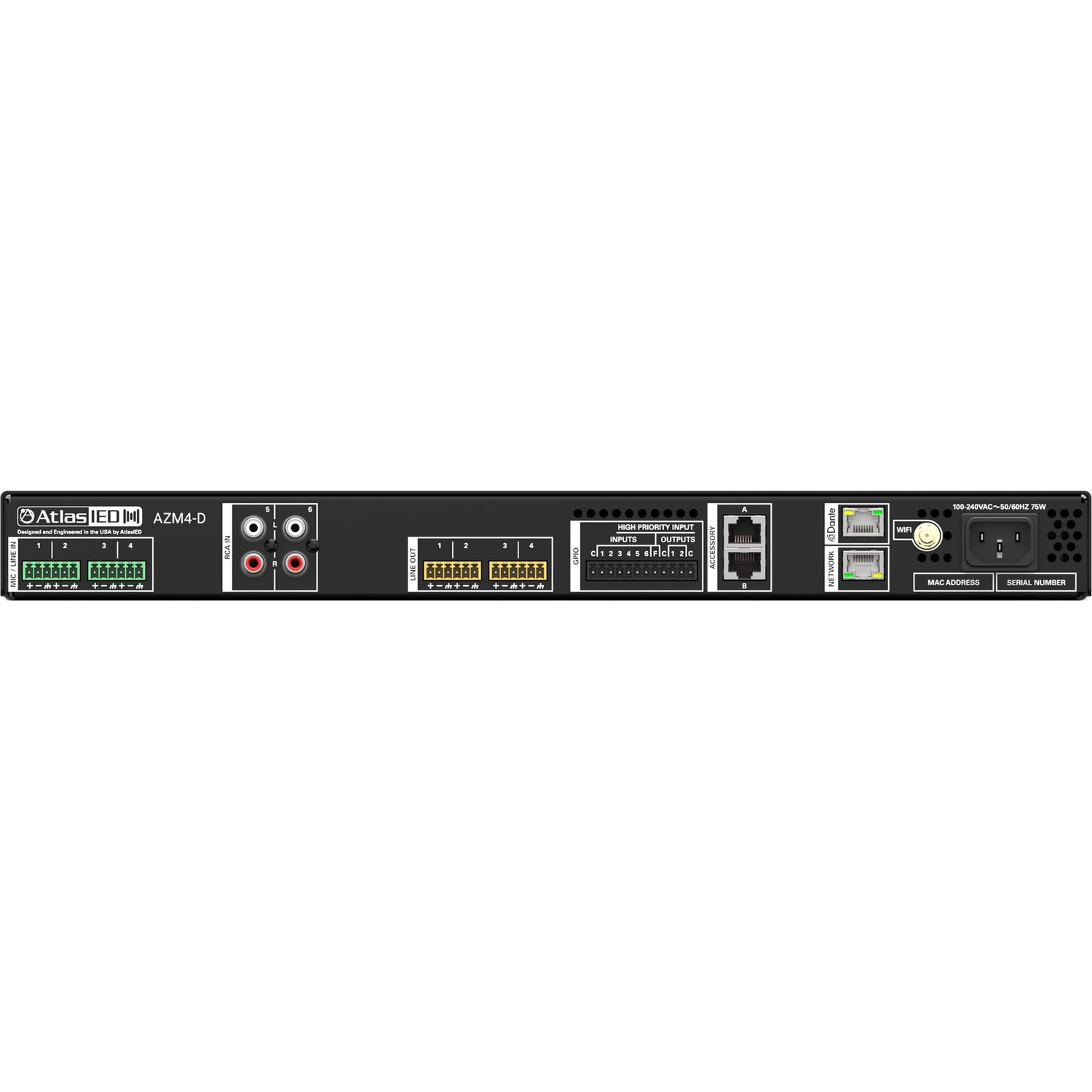

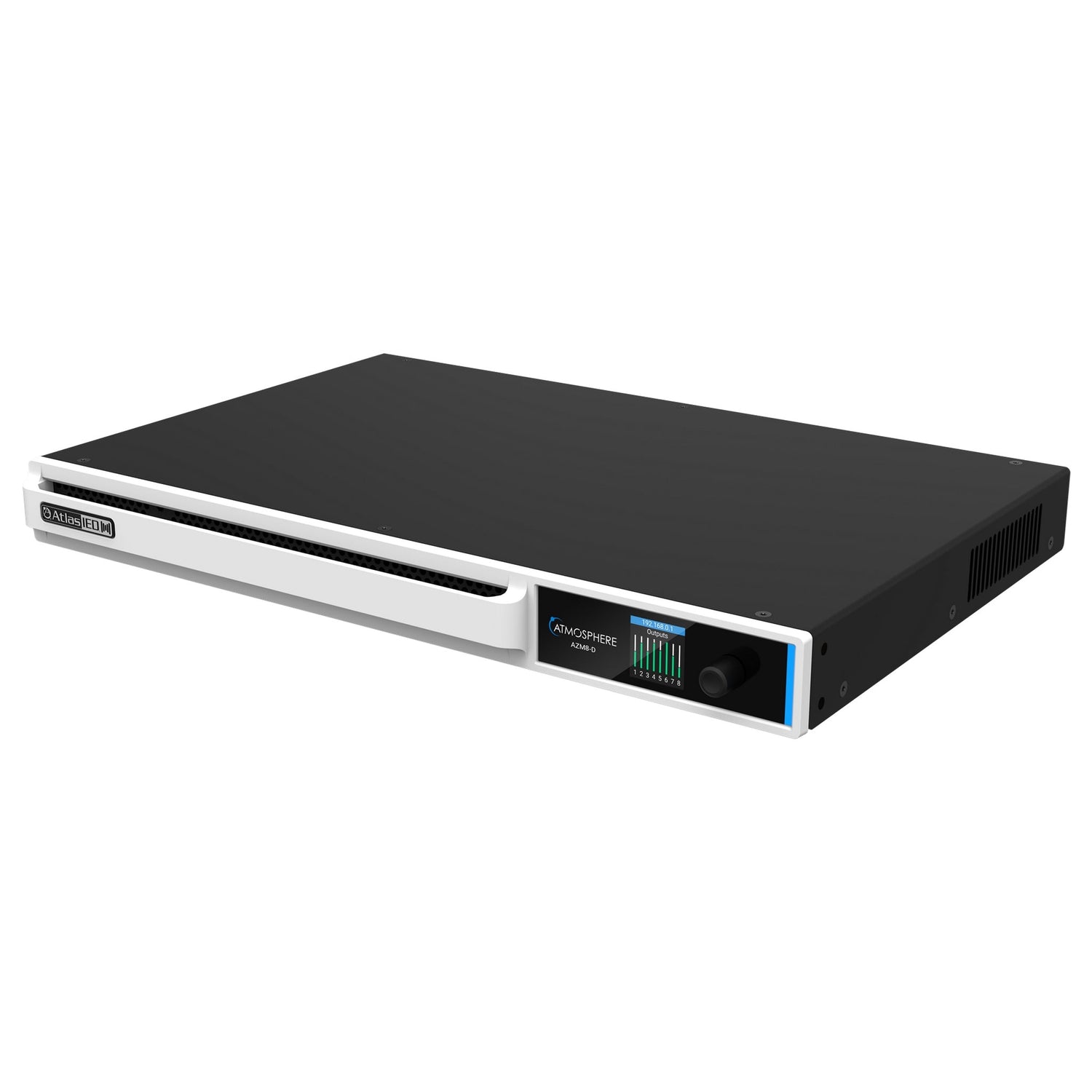

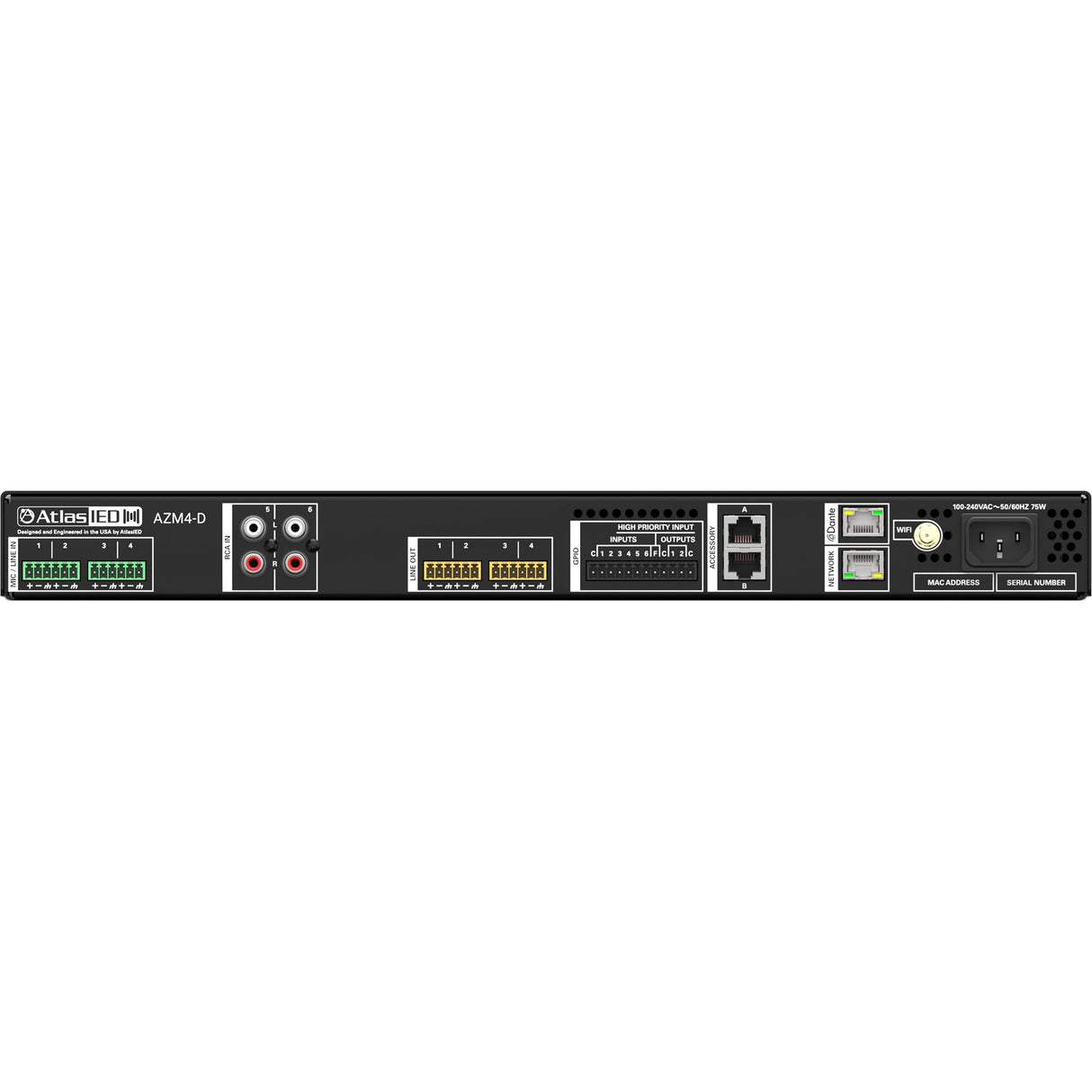

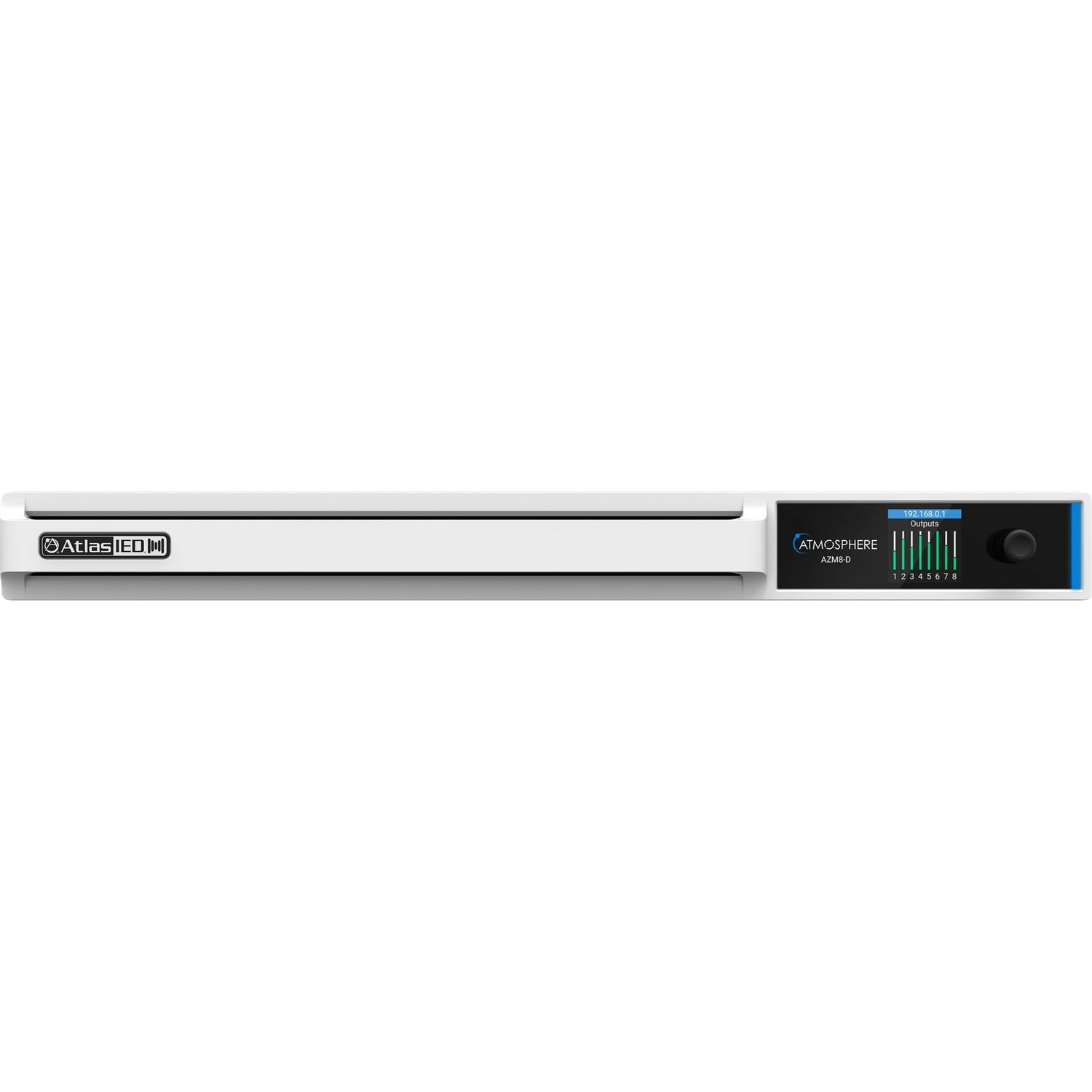

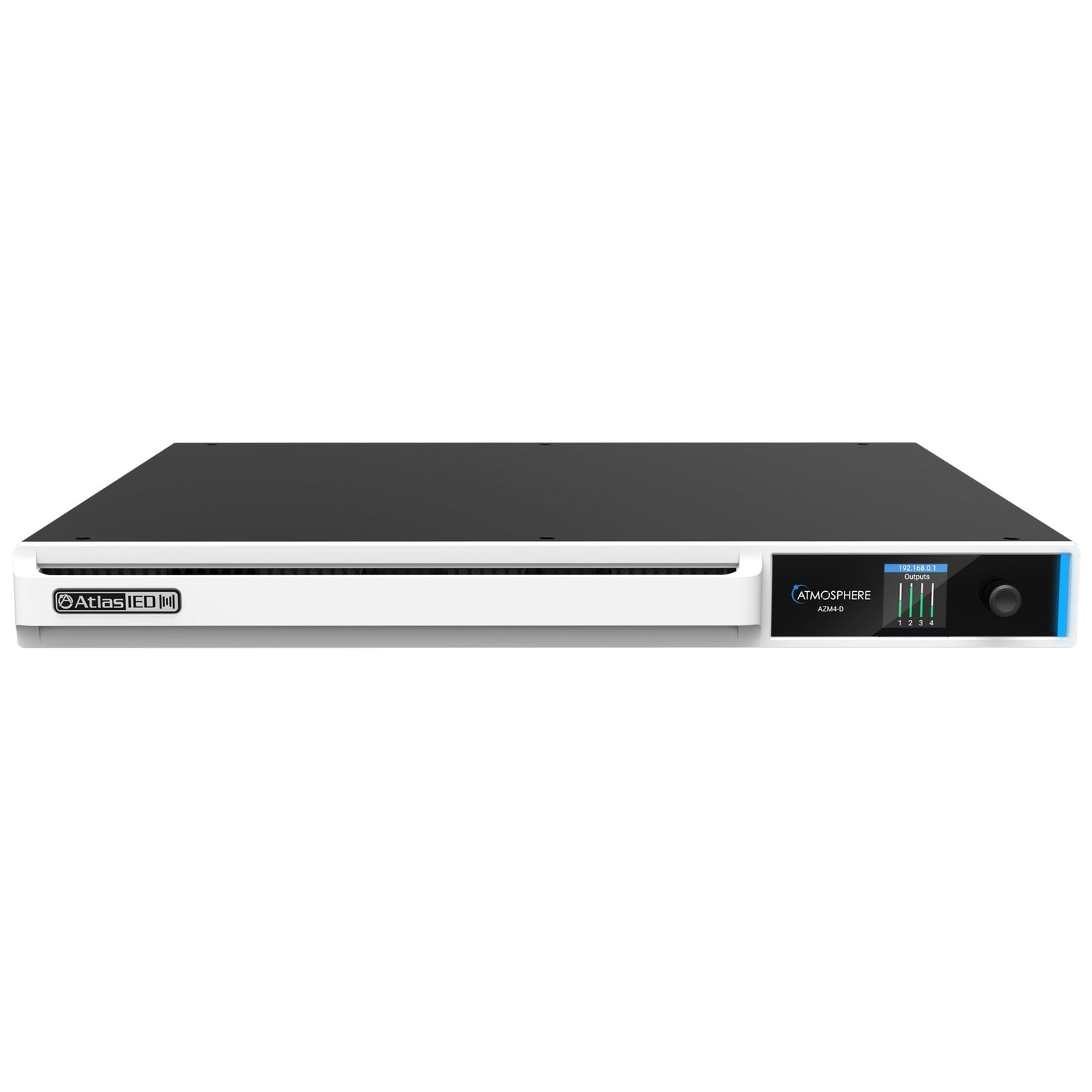

AtlasIED Atmosphere Audio Processor with Dante
The AtlasIED AZM4-D and AZM8-D are advanced Atmosphere™ digital audio processors engineered for superior sound system control in commercial environments. The AZM4-D supports four output zones while the AZM8-D expands to eight, offering scalable DSP solutions for various audio zoning needs. Both models feature Dante™ networked audio for seamless integration into digital infrastructures, enhancing connectivity with other Dante-enabled devices. These processors serve as the core of the Atmosphere platform, incorporating cutting-edge algorithms and a robust feature set tailored for applications in hospitality, retail, corporate, and education settings.
Both processors offer intuitive, browser-based control via a modern Progressive Web App interface and built-in Wi-Fi, ensuring quick configuration from any connected device. Features such as a message player, bell scheduler, auto-gain, Tilter Filter™, room combine functionality, and sound masking tools enable high-level customization. Up to 16 plug-and-play accessories, including wall controllers and sensors, can connect across two accessory ports. Whether choosing the AZM4-D for smaller installations or the AZM8-D for larger zone control, both deliver powerful and flexible DSP performance designed to meet the evolving demands of professional audio systems.
Key Features
- Available models: AZM4-D (4-zone) and AZM8-D (8-zone)
- Dante™ digital audio networking capability
- Supports up to 16 accessories across 2 ports
- Built-in Wi-Fi for direct device connection or network integration
- App-less virtual wall control via QR code or URL
- Room combine and grouping support
- Full sound masking suite and message playback system
- Auto noise compensation and loud noise detection
- Bell scheduling functionality
- Compatible with RTI, Crestron, Extron, and AMX control modules
Technical Specifications
- Zone Outputs: AZM4-D (4), AZM8-D (8)
- Width: 8.6-Inch
- Height: 1.7-Inch
- Depth: 9.4-Inch
- Weight: 4.6 lbs
- Control Interface: Web-based PWA and Wi-Fi connectivity
- Audio Channels: 10-In / 4-Out (set), 16x16 Dante supported via Brooklyn 3 card
- Accessory Compatibility: Up to 16 devices, 1000ft per port
- Warranty: 36 months from date of purchase
